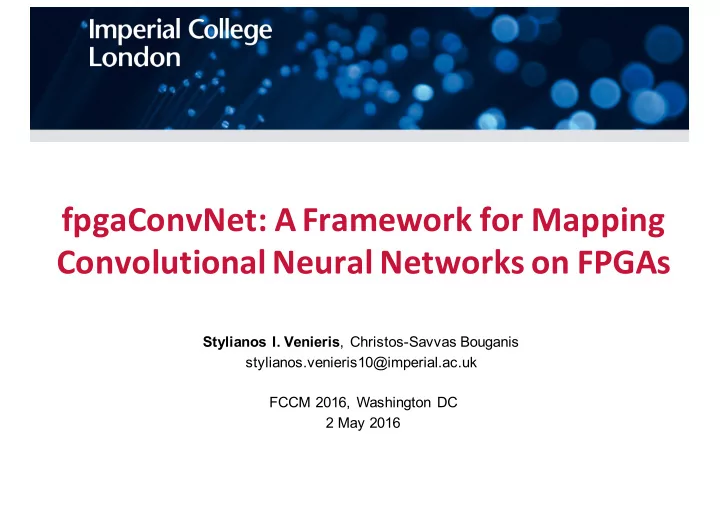

SLIDE 1
fpgaConvNet: A Framework for Mapping Convolutional Neural Networks on FPGAs
Stylianos I. Venieris, Christos-Savvas Bouganis stylianos.venieris10@imperial.ac.uk FCCM 2016, Washington DC 2 May 2016
Deep Learning and AI
2
fpgaConvNet: A Framework for Mapping Convolutional Neural Networks - - PowerPoint PPT Presentation
fpgaConvNet: A Framework for Mapping Convolutional Neural Networks - - PowerPoint PPT Presentation
fpgaConvNet: A Framework for Mapping Convolutional Neural Networks on FPGAs Stylianos I. Venieris , Christos-Savvas Bouganis stylianos.venieris10@imperial.ac.uk FCCM 2016, Washington DC 2 May 2016 Deep Learning and AI 2 Deep Learning Success
SLIDE 2
SLIDE 3
Deep Learning Success Stories - ConvNets
3 Image Recognition (Microsoft, 2015) Image Captioning (Microsoft, 2015) “Deep Face” (Facebook, 2014)
SLIDE 4
Deep Learning on FPGAs
4
- Hand-tuned implementations
- Memory I/O Optimisation
- Design Space Exploration
SLIDE 5
What is missing?
5
- Caffe
- TensorFlo
- Theano
- Torch
- FPGA
– ConvNet Functionality – Optimised for High Performance
Deep Learning Developers
fpgaConvNet
SLIDE 6
Our approach - fpgaConvNet
6
Automated Design Space Exploration ConvNet Hardware Mapping
fpgaConvNet
FPGA Target Platform Specifications
Supplied by Deep Learning Expert
ConvNet Description Bitstream
SLIDE 7
Convolutional Neural Networks (ConvNets)
7 convolutional + nonlinearity pooling convolutional + nonlinearity pooling
SLIDE 8
- Synchronous Data Flow
– ConvNetas a data-driven graph – Represented as a matrix – Each layer mapped to a tunable set of hardware building blocks
fpgaConvNet– ConvNet Modelling Framework
8
Streaming Analytical power
SLIDE 9
fpgaConvNet– Modelling ConvNetswith SDF
9 ConvNet Hardware SDF Graph
Convolutional Layer with 4 filters Nonlin Layer Pooling Layer Convo
Memory Interface Input Data
SLIDE 10
fpgaConvNet– Design Space Perspective
10 ConvNet Hardware SDF Graph
Bottlenecks:
– Limited compute resources – Limited off-chip memory bandwidth – Limited on-chip memory for model parameters
2 4 6 5 10
Throughput Area
Design Space
Current Design Point
FPGA 2 FPGA 1
Define a set of actions to move around the design space
SLIDE 11
Action 1: Coarse-grained Folding
1) Exceeding the available compute resources 4 Convolutions / cycle
11
2) Not enough off-chip memory bandwidth
SLIDE 12
Action 1: Coarse-grained Folding
2 Convolutions / cycle
12
Action 2
Fine-grained Folding
Compute Resources Required Bandwidth
SLIDE 13
Input Data Conv Layer 1 Nonlin Layer 1 Pool Layer 1 Conv Layer 2 Nonlin Layer 2 Pool Layer 2
Subgraph 1 Subgraph 2 Subgraph 3 Bitstream 1 Bitstream 2 Bitstream 3
13
Bitstream
Exceeding the available compute resources
Action 3: Partitioning through Reconfiguration
Not enough on-chip memory FPGA Reconfiguration
Input Data Intermediate Results Intermediate Results Final Results
Off-chip Memory
SLIDE 14
fpgaConvNet– SDF Analytical Power
14
Window Size = K Pool Size = P Design 1 Design 2
- Synchronous Data Flow
– Actions as algebraic operations – Any local action propagates through the network – Static scheduling – Analytical Performance Model – Cast DSE to formal resource-constrained optimisation
Hardware Stages Interconnections
SLIDE 15
Evaluation - Experimental Setup
15
- fpgaConvNet
– Xilinx Zynq-7000 XC7Z020 SoC with 220 DSPs at 100 MHz – Q8.8 fixed-point precision to match existing work (also supports floating-point) – Current toolflowsupports the VivadoHLS toolchain
SLIDE 16
Performance Model Accuracy
16
2 4 6 8 10 12 14
CFF LeNet-5 MPCNN CNP Sign Recognition ConvNet Scene Labelling ConvNet
Performance Model Accuracy
Measured Performance (GOps/s) Predicted Performance (GOps/s)
Error between 1.73% and 11.76%
SLIDE 17
fpgaConvNet vs. Existing FPGA Work
17
0.00005 0.0001 0.00015 0.0002 0.00025 0.0003 0.00035 0.0004 0.00045 0.0005
Hand-tuned [1] Memory-optimised [2]
Performance Density Comparison (GOps/s/Slice)
Existing Work (GOps/s/Slice) fpgaConvNet (GOps/s/Slice)
1.62×
[1] C. Farabet et al., “CNP: An FPGA-Based Processor for Convolutional Networks”, in FPL, IEEE, 2009. [2] M. Peemen et al., “Memory-centric accelerator design for Convolutional Neural Networks”, in ICCD, IEEE, 2013.
SLIDE 18
18
1 2 3 4 5 6 7 8
Hand-tuned Embedded GPU [3]
Performance Efficiency Comparison (GOps/s/Watt)
Existing Work (GOps/s/Watt) fpgaConvNet (GOps/s/Watt)
[3] L. Cavigelli et al., “Accelerating real-time embedded scene labeling with convolutional networks”, in DAC, ACM/EDAC/IEEE, 2015.
Hand-tuned Embedded GPU
- Tegra K1 at 800 MHz
- Memory Bandwidth: 12 GB/s
fpgaConvNet
- Zynq-7000 XC7Z020 at 100 MHz
- Memory Bandwidth: 4.26 GB/s
fpgaConvNet vs. Existing Embedded GPU Work
SLIDE 19
Conclusions
19
- Caffe
- TensorFlo
- Theano
- Torch
Deep Learning Developers
