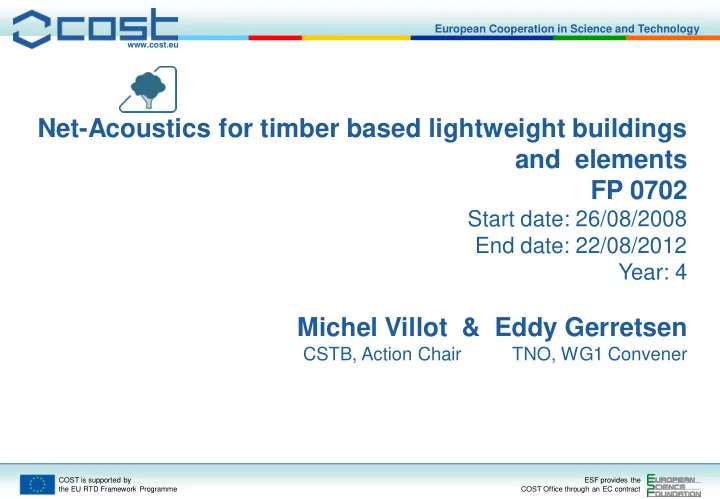

Net-Acoustics for timber based lightweight buildings and elements FP 0702

Start date: 26/08/2008 End date: 22/08/2012 Year: 4

Michel Villot & Eddy Gerretsen

CSTB, Action Chair TNO, WG1 Convener

COST is supported by the EU RTD Framework Programme ESF provides the COST Office through an EC contract

2

Scientific context and objectives

• Increase

knowledge in the evaluation and prediction

• f

the performances of timber based lightweight constructions:

• acoustic

performance, including low frequencies down to 50 Hz

• vibration performance, especially walking induced vibration

below 25 Hz

• Cooperate with European standardization Committees in order to bring

results to standardization

• measuring methods for noise (ISO 140 parts)
• prediction methods for noise (EN 12354)
• relevant quantities for vibration (Eurocodes?)

COST is supported by the EU RTD Framework Programme ESF provides the COST Office through an EC contract

3

Action Parties

COST Countries: AT, BE, CH, DE, DK, ES, FR, GB, IE, LT, NL, NO, SE Non-COST countries : AU, NZ Grant Holder: Lund University, Sweden

COST is supported by the EU RTD Framework Programme ESF provides the COST Office through an EC contract

4

Working groups

1. Working group 1 (E. Gerretsen, NL): adapt methods predicting acoustic and vibration building performances from the performance of elements, to lightweight constructions 2. Working group 2 (D. Bard, SE): adapt measuring methods (field and lab) to timber based lightweight buildings and elements, with emphasis

• n the low frequency range and relevant impact sources

3. Working group 3 (B. Zhang, UK, B. Rasmussen, DK): rate annoyance associated with sound (down to typically 50 Hz) and low frequency vibration (typically < 25 Hz) ; possible need of specific descriptors for lightweight buildings 4. Working group 4 (B. Ingelaere, BE): gathering and categorizing main timber based lightweight building types in Europe, making sure these types are considered by other WGs

COST is supported by the EU RTD Framework Programme ESF provides the COST Office through an EC contract

5

Highlights in scientific results (1)

• Workshop in Vaxjo (SE), May 2009, with various presentations clearly

stating the problems to be solved and the ongoing research

• Workshop in Delft (NL), November 2010, with presentation on action

scientific objectives: evaluation and prediction of sound and vibration performances

• f

lightweight constructions; identification

• f

relevant descriptors and frequency range

• Several WG meetings, in Biel, Brugge, Bordeaux and Bilbao
• STSM’s performed on descriptors for floor impact noise and low frequency

vibration, as well as on acoustic prediction and measurements

• Workshop in Zürich (CH), November 2011, for both Actions FP0702 and

TU0901

COST is supported by the EU RTD Framework Programme ESF provides the COST Office through an EC contract

6

• numerous studies performed by members at national level:
• at TNO (NL): study of junctions of lightweight elements; analytical and

numerical tools for structural vibration

• Lulea University (SE): model for impact sound in timber buildings
• Liverpool University *(GB): transient SEA model for impact sources
• CSTB *(FR): field validation of method predicting sound insulation in timber

buildings; study of service equipment installed in timber structures

• PTB (DE): study of service equipment installed in timber structures
• BBRI (BE): building guidelines for timber constructions; junctions of timber

elements with resilient joints

• SINTEF (NO): work on long span timber floors and cross-laminated timber

building elements

• EMPA *(CH): new lab facilities to characterize junctions of timber elements

Highlights in scientific results (2)

* proposals recommended by COST FP0702

COST is supported by the EU RTD Framework Programme ESF provides the COST Office through an EC contract

7

Expected results (1)

• WG1:

proposal for acoustic prediction (down to 50 Hz) and for vibration prediction (below 25 Hz) are being drafted. acoustic prediction model to be discussed in CEN/TC126/WG2 (February 2012)

• WG2:

proposal for acoustic measurement method down to 50 Hz procedures for measuring (lighweight) junctions and radiation efficiencies procedures for measuring relevant vibration parameters including damping

COST is supported by the EU RTD Framework Programme ESF provides the COST Office through an EC contract

8

Expected results (2)

• WG3:

review of current regulations and standards summary table of descriptors assessment methods for low frequency sound and vibration comfort

• WG4:

catalogue of construction details and building elements with their performances

COST is supported by the EU RTD Framework Programme ESF provides the COST Office through an EC contract

9

More about vibration

• Objectives: evaluation and prediction of walking induced vibration both
• n the excited floor and on neighboring floors
• Evaluation of excited floor (best for time being):
• floor fundamental frequency
• unit force deflection
• damping through unit impulse response or other quantities (also

valid for evaluating neighboring floors)

• Need for well defined measurement methods
• Prediction through FEM calculation:

simplified procedure proposed to model junctions between elements with correct boundary conditions

COST is supported by the EU RTD Framework Programme ESF provides the COST Office through an EC contract

10

Links with TU0901

• TU0901 covers all types of buildings

FP0702 covers only timber based lightweight buildings

• FP0702 must consider low frequency sound (<100 Hz) and vibration

(<25 Hz) low frequency sound is a common interest with TU0901

• FP0702 focuses on predicting and measuring vibration and sound, also at

low frequencies

• TU0901 focuses on universal sound descriptors and classification
• Both actions collect typical designs and performance data for buildings to

illustrate effects and demonstrate possibilities.

COST is supported by the EU RTD Framework Programme ESF provides the COST Office through an EC contract

11

• So far, no significant deviations from the work plan
• Vibration:

need for good descriptor and well defined measurement methods

• Low frequency sound:

need for perceptive studies to identify proper descriptors and frequency range

• Collect relevant examples with performance data (low frequency sound

and vibration), in collaboration with TU 0901

• Final conference in autumn 2012 in Grenoble (FR)

Concluding remarks
