Foscam Wireless IP Cameras www.Foscam.us Foscam Digital Technologies LLC Foscam FI8919W Wireless IP Camera Outdoor Pan & Tilt Wireless IP Camera 640 x 480 Display Resolution 22 IR lights for night vision up to 15 meters

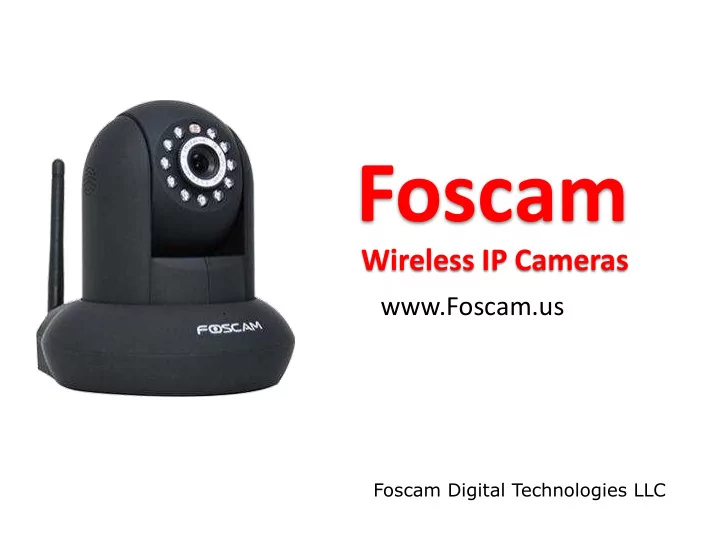

SLIDE 1

Foscam

Wireless IP Cameras

www.Foscam.us

Foscam Digital Technologies LLC

SLIDE 2

Foscam Digital Technologies LLC

Foscam FI8919W Wireless IP Camera

Outdoor Pan & Tilt Wireless IP Camera
640 x 480 Display Resolution
22 IR lights for night vision up to 15 meters
360 degree pan, 90 degree tilt
4mm lens for 55 degree wide viewing angle
IR-Cut filter for true color images
Fixed outdoor wireless IP camera
Hardened outdoor water-proof enclosure
Wireless B/G/N compatible (wired connection available)
Supports WEP, WPA and WPA2 Encryption
Infrared motion detection with email and ftp alerts
MSRP: $199.95
The Foscam FI8906W Wireless IP Camera features remote internet viewing, motion detection email/ftp alerts, night-vision

as well as a built in network video recording system. It is smartphone compatible (Iphone, Android & Blackberry) as well as viewable over the internet using the standard browsers (IE, Firefox, Safari, Chrome). The camera functions well as part of a home or office security system with remote internet monitoring ability.

SLIDE 3

Foscam Digital Technologies, LLC

Model FI8919W Resolution 640 x 480 Pixels(300k Pixels) Color White Image Sensor 1/4" Color CMOS Sensor Display Resolution 640 x 480 Pixels(300k Pixels) Lens f: 4mm F: 1.2 (IR Lens) Mini Lumination 0.5Lux Lens Type Glass Lens Viewing Angle 55 Input N/A Output N/A Audio Compression N/A Image Compression MJPEG Image Frame Rate 15fps(VGA),30fps(QVGA) Flip Mirror Images Vertical / Horizontal Light Frequency 50Hz, 60Hz or Outdoor Video Parameters Brightness, Contrast Ethernet One 10/100Mbps RJ-45 Wireless Standards IEEE 802.11b/g/n Data Rate 802.11b/g/n Wireless Security WEP & WPA & WPA2 Encryption Pan/Tilt Angle 300 degree pan, 120 degree tilt Infrared Light 22 IR LEDs,Night visibility up to 15 meters Gross Weight 1855g (Color Box Size:260x195x278mm) Net Weight 1655g Storage Temperature

10°C ~ 60° (14°F ~ 140°F)

Storage Humidity 0% ~ 90% non-condensing CPU 2.0GHZ or above (suggested 3.0GHz) Memory Size 256MB or above (suggested 1.0GHz) Display Card 64M or above Supported OS Microsoft Windows 2000/XP/Vista / 7 / Mac Browser IE 6.0, IE7.0,IE8.0,Firefox or other standard browsers Certification CE,FCC Warranty Limited 1-year warranty

SLIDE 4

Foscam FI9807W Wireless IP Camera

Outdoor Megapixel H.264 Wireless IP Camera
720p (1280 x 720) Display Resolution
H.264 compression for smoother video feed, smaller files
36 IR lights for night vision up to 50 meters
IR-Cut filter for true color images
Fixed outdoor wireless IP camera
Hardened outdoor water-proof enclosure
Wireless B/G/N compatible (wired connection available)
Supports WEP, WPA and WPA2 Encryption
Fitted with an 6mm lens for a 48 degree viewing angle
Infrared motion detection with email and ftp alerts
MSRP: $219.99
The Foscam FI9807W Wireless IP Camera differs from other outdoor models as it adopts a high performance media processor (single

SOC chip with built-in ARM+DSP), capable of streaming stunning HD 720p video using H.264 video compression. The H.264 video compression is significant because it facilitates the transmission of high definition video with minimal bandwidth consumption and recorded file sizes (this is important for users who intend to record the video on their computers or in the cloud). The Foscam FI9807W also features remote internet viewing, motion detection email/ftp alerts, night-vision as well as a built in network video recording system. It is smartphone compatible (Iphone, Android & Blackberry) as well as viewable over the internet using the standard browsers (IE, Firefox, Safari, Chrome). The camera functions well as part of a home or office security system with remote internet monitoring ability.

Foscam Digital Technologies LLC

SLIDE 5 Model FI9807W Resolution 720p (1280*720) Color Silver Image Sensor ¼” Color CMOS Display Resolution 720p (1280*720) D1(720*576), CIF(352*288), QCIF(176*144) Lens f:6mm Mini Lumination 0.1Lux Lens Type Glass Lens Viewing Angle 48°(6mm lens) Input Linear Input Output Linear Output Audio Compression G.711/G.726 Image Compression H.264 Image Frame Rate 25fps(PAL Formats), 30fps(NTSC Formats) Flip Mirror Images Vertical / Horizontal Light Frequency 50Hz, 60Hz or Outdoor Video Parameters Brightness, Contrast Ethernet One 10/100 MBPS RJ - 45 Wireless Standards IEEE 802.11 b/g/n Data Rate 802.11b/g/n Wireless Security WEP WPA WPA2 Encryption Pan/Tilt Angle N/A Infrared Light Φ8mm 36 IR LEDs, Night visibility up to 50 meters Gross Weight 1480g (Color Box Size: 295 x 130 x 215mm) Net Weight 1020g (Accessories Included) Storage Temperature

10°ree ~ 60°ree (14°ree F ~ 140°ree F)

Storage Humidity 0% - 90% non-condensing CPU 2.0GHZ or above (suggested 3.0 GHZ) Memory Size 256 MB or above (suggested 1.0 GB) Display Card 64M or Above Supported OS Microsoft Windows 2000 / XP / Vista / 7 / Mac Browser IE 6.0, IE 7.0, Firefox, Safari (no sound), and other standard browser Certification CE, FCC Warranty Limited 1-year warranty

Foscam Digital Technologies, LLC

SLIDE 6

Foscam FI9820W (Black) Wireless IP Camera

Indoor Pan & Tilt Megapixel H.264 Wireless IP Camera
720p (1280 x 720) Display Resolution
H.264 video compression for smoother video, smaller files
IR-Cut filter for true color video and images
Indoor pan/tilt wireless IP camera
Two-way audio
300 degree pan, 120 degree tilt
IR lights for night vision up to 8 meters
Wireless B/G/N compatible (wired connection available)
Supports WEP, WPA and WPA2 Encryption
Integrated SD card slot for internal storage
Infrared motion detection with email and ftp alerts
MSRP: $179.95
The Foscam FI9820W Wireless IP Camera differs from other models in that it adopts a high performance and powerful

media processor, single SOC chip with built-in (ARM+DSP), capable of high resolution 720p streaming video. This model also includes H.264 video compression which allows for the transmission of high definition video with minimal bandwidth consumption and file sizes. The FI9820W comes fitted with a 3.6 mm lens for a 60 degree viewing angle. The FI9820W also features remote internet viewing, motion detection email/ftp alerts, night-vision as well as a built in network video recording system. It is smartphone compatible (Iphone, Android & Blackberry) as well as viewable over the internet using the standard browsers (IE, Firefox, Safari, Chrome). The camera functions well as part of a home or office security system with remote internet monitoring ability. Foscam Digital Technologies LLC

SLIDE 7

Foscam Digital Technologies, LLC

Model FI9820W Resolution 720p (1280*720) Color Silver Image Sensor ¼” Color CMOS Sensor Display Resolution 720p (1280*720) D1(720*576), CIF(352*288), QCIF(176*144) Lens f:3.6mm Mini Lumination 0.1Lux Lens Type Glass Lens Viewing Angle 48°(6mm lens) Input Linear Input Output Linear Output Audio Compression G.711/G.726 Image Compression H.264 Image Frame Rate 25fps(PAL Formats), 30fps(NTSC Formats) Flip Mirror Images Vertical / Horizontal Light Frequency 50Hz, 60Hz or Outdoor Video Parameters Brightness, Contrast Ethernet One 10/100 MBPS RJ - 45 Wireless Standards IEEE 802.11 b/g/n Data Rate 802.11b/g/n Wireless Security WEP WPA WPA2 Encryption Pan/Tilt Angle 270 degree pan, 120 degree tilt Infrared Light 5mm 11 IR LEDs, Night visibility up to 8 meters Gross Weight 814g (Color Box Size: 245 x 145 x 165mm) Net Weight 348g (Accessories Included) Storage Temperature

10°ree ~ 60°ree (14°ree F ~ 140°ree F)
