FMC Subsea Drilling Systems UWD-SB 13 5/ 8 Wellhead System June 2010 Chelsi Kaltwasser AGENDA 13 5/8 Wellhead System System Advantages Installation History 13 5/8 Wellhead System Components and Tools


slide-1
SLIDE 1

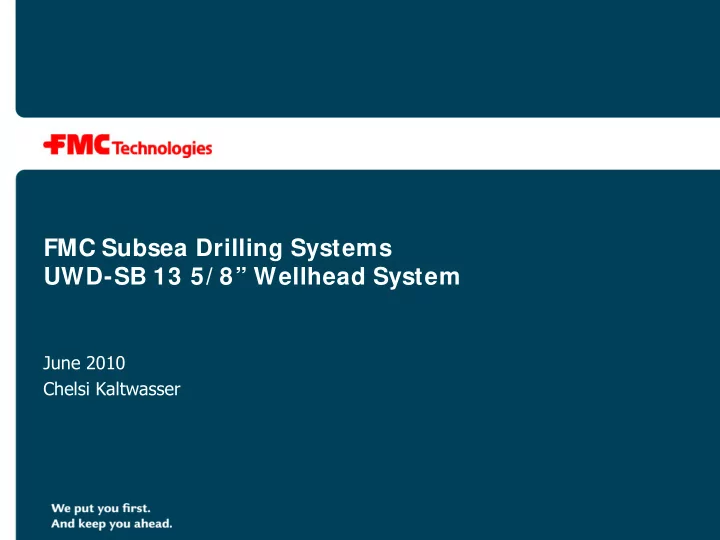

FMC Subsea Drilling Systems UWD-SB 13 5/ 8” Wellhead System

June 2010 Chelsi Kaltwasser

slide-2
SLIDE 2

2

AGENDA

  • 13 5/8”

Wellhead System

  • System Advantages
  • Installation History
  • 13 5/8”

Wellhead System Components and Tools

  • In-Wellhead Completion
  • Installation videos
slide-3
SLIDE 3

3

13 5/ 8” Slimbore Wellhead System

slide-4
SLIDE 4

4

Advantages of a Slimbore Wellhead System

  • Designed to be used with Surface

BOPs

  • Allows for lighter drilling packages
  • n TLP and Spars
  • Designed with smaller and lighter

casing programs

  • Reduces mud costs due to smaller

drilling risers

  • Can be used in shallow and

deepwater applications

Canopy Integral Rigid Lock Wear Bushing 13 5/8”

  • 10,000 psi

Wellhead Housing w/ H4 Profile 36” Conductor Housing Metal-to-Metal Packoff 10 ¾” Casing Hanger

slide-5
SLIDE 5

5

I nstallation I nformation

North Sea

  • 1 Exploration Wellhead

Congo, Africa

  • FDPSO –

allows drilling and completion from the same ship

  • 1500 m water depth
  • 10 wells

− 1 FMC Tubing Head on existing exploration well − 4 FMC Wellheads and Tubing Hangers installed − Currently installing 4th Tree − Will begin 5 well batch set in July

slide-6
SLIDE 6

Murphy Azurite Field

6 FMC Scope of Supply

  • Ten (10) Enhanced Vertica

Deepwater Trees (EVDT)

  • Nine (9) UWD-SB 13 5/8

Slimbore Wellheads

  • Control Systems
  • One (1) 10-slot Manifold
  • Gooseneck connectors
slide-7
SLIDE 7

7

I RLSD System Components

slide-8
SLIDE 8

8

30”/ 36” I ntegral Rigid Lock Low Pressure Housing

  • Drifts 26”

bit

  • Four 3”

diameter ports for passing drilling and cement returns

30”/ 36” I RLSA CAM Tool

  • Tool has two 2”

diameter ports for additional 6.28 in2 flowby

30”/ 36” I RLSA Drill Ahead Tool

  • Will pass a 10”

tool joint in DA mode

  • Six 3.0”

diameter ports with 42.4 in2

  • f flowby for passing returns

during drilling

30”/ 36” I RLSA Low Pressure Housing

slide-9
SLIDE 9

Running the Low Pressure Housing

9

slide-10
SLIDE 10

Canopy Rigid Lock Seal Assy M2M Packoff Seal Area Tubing Hanger Locking Grooves Tubing Hanger Flowby Holes Packoff Locking Grooves Seat Segments 16 x .715 BW Prep Ø13.515 Ø12.477 10

13 5/ 8” Slimbore Wellhead Housing

  • 4.0 million ft-lb bending capacity (18 ¾

H4)

  • Rigidizing Mechanism provides 1.5 million pounds
  • f preload
  • 2.85 million lb. Internal load shoulder rating
  • Capacity for up two casing hangers, or one

hanger and tubing hanger

  • 10,000 psi plus 1.0 million pounds casing for 1st

hanger and 650,000 pounds casing/tubing

13 5/ 8” Wellhead Housing Running Tool

  • 1.0 MM Rated Casing Capacity
  • Runs and Retrieves Nominal Bore Protector
  • Performs BOP tests up to 10,000 psi

Rigid Lock Setting Tool

  • “Bolts-on”

to the Wellhead Housing Running Tool

  • Preloads the Rigid Lock using ROV or Drill Pipe

Pressure

13 5/ 8” Wellhead Housing and Running Tools

13 5/8” Wellhead Housing Running Tool Rigid Lock Mechanism Seal to close off the annulus above cement ports 13 5/8” Rigid Lock Setting Tool

slide-11
SLIDE 11

Pre-skid the High Pressure Housing

11

slide-12
SLIDE 12

12

13 5/ 8” x 10 ¾ ” Casing Hanger

  • 1.0 MM lbs casing weight
  • Supports up to 650,000 lbs casing or tubing weight + 10 ksi BOP Test
  • Hangers have 5.65 square inches of flow-by area (0.60”

particle)

13 5/ 8” Annulus Seal Assemblies

  • Used to seal off the annulus between the casing and the wellhead
  • PR2 Qualified 30°F to 250°F, 10K Bore Pressure, 10K Annulus
  • External Lock Ring is rated to 0.8 million lbs
  • Seal is retrieved to surface if not fully energized and locked onto the hanger

13 5/ 8” Single Trip Tool

  • Installs the casing hanger and annulus seal assembly in the same

trip

  • Tool rated for 1,000,000 lbs of casing and a 10,000 psi pressure

test.

  • Seal assembly is hydraulically set with 3200 psi drill pipe pressure. Drill pipe is

vented with 4500 psi.

  • Lead impression blocks give a tell-tail that the seal assembly is locked to hanger

and fully energized

Casing Hanger, Seal Assembly & Running Tool

slide-13
SLIDE 13

Plug Loading and Running the Casing Hanger

13

slide-14
SLIDE 14

14

  • 10,000 psi Rated Working Pressure
  • Run/Retrieve all Wear Bushings and pressure test BOP stack on the

same trip

  • Can perform BOP tests in all wellhead positions
  • Retrieve 13 5/8”

Annulus Seal Assemblies

  • Spring loaded mandrel provides 4.63 in2
  • f flowby area
  • 5,000 lbs of drill string weight required to compress spring and

close flowby

  • No drill pipe rotation required to function tool

13 5/ 8” Spring Loaded Tool & Wear Bushing

slide-15
SLIDE 15

Spring Loaded Tool and Wear Bushing

15

slide-16
SLIDE 16

16

13 5/ 8” I solation Test Tool

  • Test Annulus Seal Assemblies while landed isolating the DR and

BOP stack

  • Rated for 10,000 psi Annulus Seal tests
  • 5,000 lbs
  • f drill string weight required to shear shear pins to

actuate tool

  • No drill pipe rotation required to function tool
  • Pressure through the drill string creates a downward force on

the mandrel, preventing the tool from disengaging prematurely

slide-17
SLIDE 17

I solation Test Tool

17

slide-18
SLIDE 18

18

I n-Wellhead Completions

slide-19
SLIDE 19

19

13 5/ 8” EVDT Tubing Hanger

(shown in wellhead)

Canopy Integral Rigid Lock 13 5/8” EVDT Tubing Hanger 13 5/8”

  • 10,000 psi

Wellhead Housing w/ H4 Profile 36” Conductor Housing Metal-to-Metal Packoff 10 ¾” Casing Hanger

  • 10,000 psi Working Pressure
  • Available for 5”

– 7” tubing

  • Features a 1-1/2”

annulus gate valve

  • Can accommodate up to 11 down hole lines
slide-20
SLIDE 20

20

I nstalling a Tubing Hanger in the Wellhead

Measurement Run using 13 5/ 8” Gage Tool

  • Run on drill pipe
  • Measures the distance between the internal

shoulder of the wear bushing and the running grooves of the wellhead housing

  • Retrieves the Wear Bushing
  • Uses a setting stand to portray the wellhead and

allow the tubing hanger to be set

  • Adjust the Tubing Hanger Bearing Ring per

wellhead measurement

  • Install Tubing Hanger inside of the wellhead using

the Tubing Hanger Running Tool

Torque Key Smart Pins Shear Pins Retrieval Ring Locking Dog

slide-21
SLIDE 21

Casing Hanger Measurement Tool

21

slide-22
SLIDE 22

22

slide-23
SLIDE 23

23
