Service Orchestration and Federation for Verticals IEEE WCNC18: The First Workshop on Control and management of Vert rtica ical l sli licing ing inc includ luding ing the Edge and Fog System stems s (CO COMPASS) MPASS) Xi Li (NEC)


slide-1
SLIDE 1

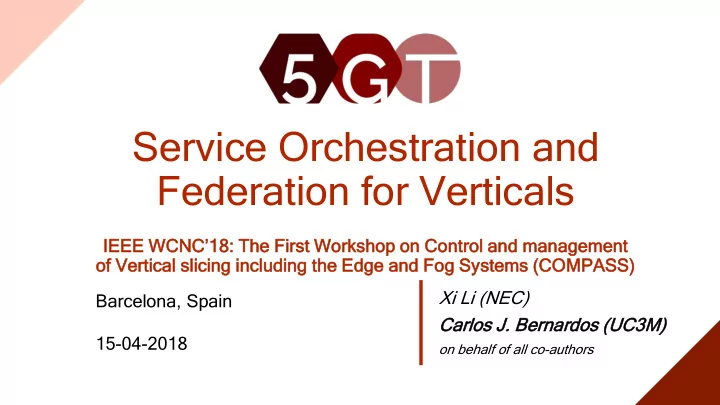

Service Orchestration and Federation for Verticals

IEEE WCNC’18: The First Workshop on Control and management

  • f Vert

rtica ical l sli licing ing inc includ luding ing the Edge and Fog System stems s (CO COMPASS) MPASS) Barcelona, Spain 15-04-2018 Xi Li (NEC) Ca Carlos los J. Bernardo ardos s (UC UC3M) M)

  • n behalf of all co-authors
slide-2
SLIDE 2

Outline

  • Overview of 5G-TRANSFORMER
  • 5G-TRANSFORMER System Architecture
  • Mapping to 3GPP/ETSI NFV
  • SO Functionalities and Architecture options
  • Federation
  • Conclusions

15 April 2018 2

slide-3
SLIDE 3

5G-TRANSFORMER Overview

5G-TRANSFORMER aims to to transform rigid id mobile transport networks in into an an SDN/NFV-based 5G Mobile Transport and and Computing Pla latform (MTP)

Technical approach:

  • Enable Vertical Industries to meet their service requirements

within customized MTP slices

  • Aggregate and Federate transport networking and computing

fabric, from the edge up to the core and cloud, to create and manage MTP slices throughout a federated virtualized infrastructure

15 April 2018 3

slide-4
SLIDE 4

5G TRANSFORMER Concept

15 April 2018 4

▪ Vert rtical Sli Slicer (5 (5GT-VS)

  • logical entry point for

verticals to support the creation of their transport slices in a short time-scale

▪ Se Service Orc rchestrator (5 (5GT-SO)

  • federation of transport

networking and computing resources from multiple domains and allocation to slices

▪ Mobile Tra ransport and Computing Platform (5GT-MTP)

  • underlying unified transport

stratum for integrated fronthaul and backhaul networks, including compute resources

slide-5
SLIDE 5

From Vertical Service to Network Slice to NFV Network Service Instantiation

15 April 2018 5

Verticals, MVNOs 5GT-SO 5GT-VS Vertical Services (VSB) NFV Network Service (NSD and flavors)

Defining and Managing Vertical Services:

(1) Defining vertical services (VSB->VSD) (2) VSD/NSD translator: maps vertical’s requirements to NFV-NS NSD deployment (3) Mapping vertical services to network slices, in turn mapped to NFV Network Services

VSB->VSD->NSD Vertical Slice -> Network Slice Network Slice -> NFV Network Service NFV Network Service Instance (NFV-NSI ) 5GT-MTP

NFV Network Service Orchestration/Federation:

  • Service Orchestration

(NFVO-NSO)

  • Resource orchestration

(NFVO-RO)

Request resource allocation and instantiation

  • Allocation of resources over

the infrastructure

  • Providing abstractions
slide-6
SLIDE 6

Architecture in 3GPP and ETSI NFV

15 April 2018 6

  • 3GPP TR 28.801 – Architecture
  • CSMF: Translates the communication

service requirements to network slice requirements

  • NSMF: Manages the NSIs, including their

lifecycle and their mapping with the NSSIs that compose them

  • NSSMF: Manages the NSSIs and their

lifecycle

  • Map to NFV architecture
  • CSMF, NSMF and NSSMF are part of the

OSS/BSS

  • An additi

itiona

  • nal «mapping

ing funct ction»

  • n» is

required to translate between Network Slices and Network Services and interact with the NFVO

slide-7
SLIDE 7

5G-T Architecture Mapping to 3GPP/ETSI NFV

15 April 2018 7

  • Ve

Vertica ical l Sl Slicer er:

  • CSMF (extended to deal with

requirements of generalized services, not only communication ones)

  • NSMF & NSSMF
  • Mapping function
  • Se

Service ice Orche hestr strato ator: r:

  • NFVO (NSO + RO)
  • VNFM
  • MTP

TP:

  • VIM/WIM
  • NFVI (extended to Mobile Edge Hosts)
  • May also include its own NFVO

Vertical’s OSS/BSS

5GT-VS

Oss-Vs Vs-So

5GT-SO 5GT-MTP

So-Mtp

5GT-MTP

slide-8
SLIDE 8

15 April 2018 8

slide-9
SLIDE 9

SO Key Functionalities

  • Service

vice Orche chest strati ration

  • Orchestration of E2E NFV Network services to fulfill the requirements of the

vertical services requested through the VS

  • De-composition of NFV network services to multiple segments, deployed in

different technical or administrative domains

  • Provisioning of E2E NFV networks service
  • Resource

rce Orch chest estrat ration ion - optimum decisions on

  • VNF(s) Placement
  • Resource to be allocated
  • Federat

ration ion with other administrative domains through EBI/WBI

  • Resource federation (NFVIaaS)
  • Service federation (NSaaS)

15 April 2018 9

slide-10
SLIDE 10

Use case 1: NFVIaaS

15 April 2018 10

  • The NFVIaaS consumer is a service

provider that wants to run VNF instances inside an NFVI provided as a service by a different administrative entity: the NFVIaaS provider

  • The NFVIaaS consumer has the control of the

VNF instances and virtual resources

  • NFVIaaS consumer and NFVIaaS provider

belong to different administrative domains

  • The NFVI of the NFVIaaS provider is

structured in several VIMs

slide-11
SLIDE 11

Use case 2: Network services over multiple administrative domains

15 April 2018 11

  • Each administrative domain

includes one or more NFVI PoPs, VIMs, VNFMs and an NFVO

  • Distinct specific sets of

Network Services are instantiated on each administrative domain

slide-12
SLIDE 12

Hierarchical interaction between NFVOs

15 April 2018 12

  • ETSI IFA 028 proposes a hierarchical architecture:
  • The NFVO of the administrative domain offering the composite NS interacts

with the NFVOs of the administrative domains offering the constituent nested NSs through a new reference point, called Or-Or, based on IFA013

slide-13
SLIDE 13

5G-TRANSFORMER architecture based on hierarchical paradigm

15 April 2018 13

slide-14
SLIDE 14

5G-TRANSFORMER architecture based on peer-to-peer paradigm

15 April 2018 14

slide-15
SLIDE 15

Federation

  • Defined on the SO-SO interface for sharing of resources and/or

services

  • Can be formed as
  • Pre-established federation
  • Relationship agreement is previously established (offline) as a business

agreement

  • Open federation
  • Established between entities that advertise their resources publicly
  • Key difference is level of abstraction applied to

resources/services

15 April 2018 15

slide-16
SLIDE 16

Conclusions

15 April 2018 16

  • 5G-TRANSFORMER architecture is based on SDN-NFV
  • 5GT-VS:
  • Logical entry point for verticals to support the creation of vertical services
  • Creation of network slicing tailored to specific needs of vertical industries
  • 5GT-SO: Service/resource orchestration and federation
  • 5GT-MTP: Evolved Mobile Transport and Computing Platform plus MEC
  • 5G-T architecture mapping to 3GPP/ETSI NFV
  • SO architecture options
  • NFVIaaS
  • Network services over multiple administrative domains (hierarchical and P2P)
slide-17
SLIDE 17

15 April 2018 17

Thank you!

The research leading to these results has received funding from the European Community's H2020 Programme under grant agreement Nº H2020-761536.
