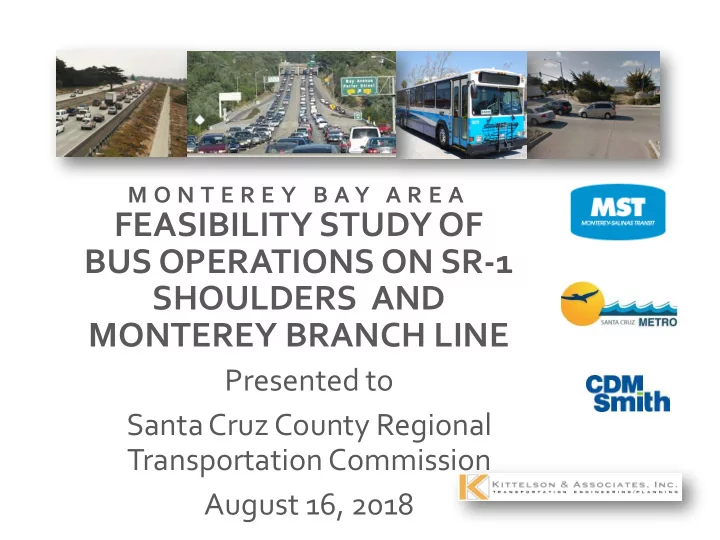

FEASIBILITY STUDY OF BUS OPERATIONS ON SR-1 SHOULDERS AND - - PowerPoint PPT Presentation

M O N T E R E Y B A Y A R E A

FEASIBILITY STUDY OF BUS OPERATIONS ON SR-1 SHOULDERS AND MONTEREY BRANCH LINE

Presented to Santa Cruz County Regional Transportation Commission August 16, 2018

OVERVIEW

• 1. History and Project Overview
• 2. Findings of Feasibility Study
• a. Traffic Congestion
• b. Bus-on-Shoulder
• c. Monterey Branch Line Busway
• 3. Next Steps
• 4. Questions

2

HISTORY

• 1. AB 946 (2013)
• 2. Funding from AMBAG, TAMC, METRO (2016)
• 3. Feasibility of Bus-on-Shoulder on SR-1 in both:
• Monterey County
• Santa Cruz County
• 4. Monterey Branch Line Rail Corridor

3

Project Overview

• 1. Project Kick-Off – December 2016

2.Existing Conditions Data Collected

– 2016

• 3. Meetings with stakeholder group

and local agencies – 2017

4.Feasibility Study – 2018

4

BOS DESIGN GUIDELINES – RIGHT SHOULDER

• 1. Design Speed – 35 mph (max.)
• 2. Speed Differential – 15 mph max. with regular traffic
• 3. Shoulder Width
• 1. 10 ft min.
• 2. 12 ft desirable
• 3. 11.5 ft min. desired over bridges
• 4. Stopping Sight Distance – 250 ft min.
• 5. Cross Slope – 6% max.
• 6. Vertical Clearance – 14 ft

5

STUDY AREA

EA: S

SANTA CRU

RUZ COUNT NTY

6

50TH PERCENTILE SPEEDS – SB PM (SANTA CRUZ COUNTY)

7

Time River Street to SR-17 SR-17 to Morrissey Boulevard Morrissey Boulevard to Soquel Drive Soquel Drive to 41st Avenue 41st Avenue to Bay Avenue Bay Avenue to Park Avenue Park Avenue to State Park Drive State Park Drive to Rio Del Mar Boulevard Rio Del Mar Boulevard to Freedom Boulevard Freedom Boulevard to Larkin Valley Road Larkin Valley Road to La Selva Drive La Selva Drive to Buena Vista Drive Buena Vista Drive to Airport Boulevard Airport Boulevard to SR- 152 SR-152 to Harkins Slough Road 15:00 32 55 18 34 24 41 61 61 62 60 70 67 67 63 65 15:15 42 67 27 16 15 41 60 62 66 64 74 70 71 62 73 15:30 41 59 21 14 18 39 44 39 59 55 69 66 65 62 68 15:45 39 58 13 15 15 26 30 30 60 57 73 68 64 66 72 16:00 25 64 13 14 12 27 25 30 58 55 66 65 64 61 63 16:15 30 59 10 11 10 19 24 30 61 59 69 67 66 63 68 16:30 38 63 16 13 8 13 28 37 61 59 67 65 65 62 67 16:45 34 55 11 10 19 18 33 36 55 56 65 64 67 66 71 17:00 42 54 10 10 15 20 23 32 61 60 67 67 68 66 69 17:15 52 51 8 5 15 16 22 29 66 57 69 66 69 64 68 17:30 37 41 6 5 6 16 21 28 67 52 70 66 69 65 63 17:45 35 40 6 5 8 16 22 34 58 54 67 65 65 56 66 18:00 40 38 7 8 11 24 23 34 56 53 66 66 68 61 65 18:15 40 47 18 12 13 19 22 31 57 54 67 62 64 56 64 18:30 40 55 25 17 24 32 29 27 58 60 66 65 65 62 65 18:45 37 59 47 19 22 34 39 31 60 63 69 64 61 58 62 19:00 38 59 59 40 32 46 55 32 58 54 67 59 56 54 60

ALTERNA

NATI TIVE 1

1 – INTER

ERIM IM SB B

B BUS

US-ON ON-SHOU OULDE DER

8

ALTERNA

NATI TIVE 2A

2A – HYBRI

RID-AUXIL ILIA IARY LANES

9

ALTERNA

NATI TIVE 2B

B – BUS

US-ON ON-SHOU OULDE DER

10

ALTERN

RNATIV IVE 3 – HOV L

LANES

ES

11

Evaluation Summary – Santa Cruz County

12

KEY

EY FIND NDINGS GS – SANTA CRU RUZ COUNT NTY

13

• 1. Severe SR 1 AM & PM peak period – peak

direction congestion of long duration

• 2. Congestion and unreliability keeps METRO

from using SR 1 for bus services

• 3. SR-1 shoulders lack the width and

structural section to support bus-on- shoulder operations without significant construction – although there is some potential in the SB direction

KEY

EY FIND NDINGS GS – SANTA CRU RUZ COUNT NTY (CO CONT)

14

• Interim Bus-on-Shoulder - Alternative 1 –

Segment C from RR bridges to Freedom Boulevard is the best near term opportunity

4.

Existing and planned auxiliary lanes will provide an opportunity for bus-on- shoulder operations, Alternatives 2A &

• 2B. Must be implemented in coordination

with each stage of the auxiliary lane project.

• Alternative 2A is the most effective with the

least cost. Operationally superior.

ALTERNA

NATI TIVE 2A

2A – HYBRI

RID-AUXIL ILIA IARY LANES

15

NEXT STEPS – SANTA CRUZ COUNTY

• 1. Presentation to SCCRTC– Today
• 2. Presentations to Santa Cruz METRO, and

TAMC

• 3. Further evaluate bus-on-shoulder with

auxiliary lanes in Santa Cruz

16

QUESTIONS?

17
