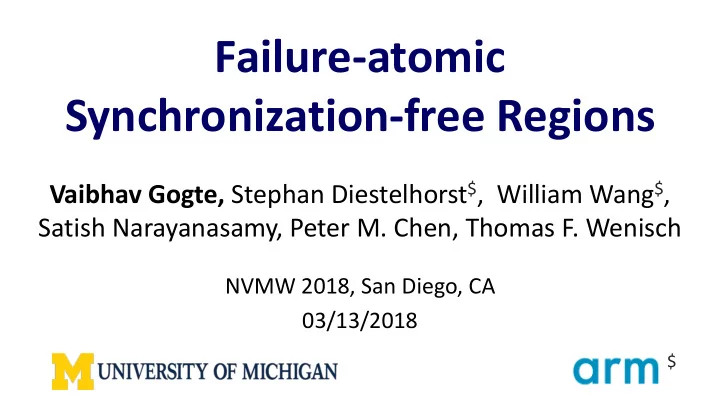

Failure-atomic Synchronization-free Regions

Vaibhav Gogte, Stephan Diestelhorst$, William Wang$, Satish Narayanasamy, Peter M. Chen, Thomas F. Wenisch

$

NVMW 2018, San Diego, CA 03/13/2018

Promise of persistent memory (PM)

2

Non-volatility Performance

Byte-addressable, load-store interface to storage

Density

Core- 1 Core- 2 Core- 3 Core- 4

L1 $ L1 $ L1 $ L1 $ LLC DRAM Recovery

Recovery can inspect the data-structures in PM to restore system to a consistent state

Persistent memory system

Persistent Memory (PM)

Memory persistency models

4

• Provide guarantees required for recoverable software

– Academia [Condit ‘09][Pelley ‘14][Joshi ‘15][Kolli ‘17] … – Industry [Intel ‘14][ARM ‘16]

• Express primitives to define state of the program after failure
• Govern ordering constraints on persists to PM
• Ensure failure atomicity for a group of persists

Semantics for failure-atomicity

5

• Assures that either all or none of the updates visible post failure
• Guaranteed by hardware, library or language implementations
• Design space for semantics

Do not provide clean failure semantics Have high performance

• verhead

Do not compose well with general sync. primitives Individual persists

[Intel ‘14][ARM ‘16][Joshi ’15]…

Outermost critical sections

[Chakrabarti ‘14][Boehm ‘16]

Transactions

[Coburn ‘11][Volos ‘11]…

Existing mechanisms suffer a trade-off between programmability and performance

Contributions

6

• Failure-atomic Synchronization-free Regions (SFR)

– Extend clean semantics to post-failure recovery – Employ existing synchronization primitives in C++

• Propose failure-atomicity as a part of language implementation

– Build compiler pass that emits logging code for persistent accesses

• Propose two designs: Coupled-SFR and Decoupled-SFR
• Achieve 65% better performance over state-of-the-art tech.

Outline

7

• Design space for granularities of failure-atomicity
• Our proposal: Failure-atomic SFRs

– Coupled-SFR design – Decoupled-SFR design

• Evaluation

Language-level persistency models [Chakrabarti ’14][Kolli ’17]

• Enables writing portable, recoverable software
• Extend language memory-model with persistency semantics
• Persistency model guarantees:

– Ordering: How can programmers order persists? – Failure-atomicity: Which group of stores persist atomically?

8

Persist ordering

9

L1.acq(); A = 100; L1.rel(); L1.acq(); B = 200; L1.rel();

Thread 1 Thread 2

Core- 1 Core- 2

L1 $ L1 $ LLC PM

a b

St A <hb St B St A <p St B sw

Ascribe persist ordering using synchronization primitives in language

Why failure-atomicity?

10

Task: Fill node and add to linked list, safely

fillNewNode() updateTailPtr()

In-memory data

Fence

Why failure-atomicity?

11

Task: Fill node and add to linked list, safely

In-memory data

Failure-atomicity à Persistent memory programming easier

fillNewNode() updateTailPtr()

Atomic

Granularity of failure-atomicity - I

12

L1.lock(); x -= 100; y += 100; L2.lock(); a -= 100; b += 100; L2.unlock(); L1.unlock();

Individual persists [Condit ‘09][Pelley ‘14][Joshi ‘16][Kolli ‘17]

• Mechanisms ensure atomicity of individual persists
• Non-sequentially consistent state visible to recovery

à Need additional custom logging

Granularity of failure-atomicity - II

13

L1.lock(); x -= 100; y += 100; L2.lock(); a -= 100; b += 100; L2.unlock(); L1.unlock();

Outer critical sections

[Chakrabarti ‘14][Boehm ‘16]

• Guarantees recovery to observe SC state

à Easier to build recovery code

• Require complex dependency tracking between critical sections

à > 2x performance cost

Our proposal: Failure-atomic SFRs

14

l1.acq(); x -= 100; y += 100; l2.acq(); a -= 100; b += 100; l2.rel(); l1.rel();

SFR1 SFR2

Thread regions delimited by synchronization operations or system calls Synchronization free regions (SFR) Persistent state atomically moves from one sync. operation to the next

Failure-atomicity of SFRs

• Persist SFRs in sequentially consistent order
• Extends clean SC semantics to post-failure recovery
• Allow hardware/compiler optimizations within SFR
• Persist ordering

– Synchronizing acquire and release ops in C++

• Failure-atomicity

– Undo-logging for SFRs

15

Two logging designs à Coupled-SFR and Decoupled-SFR

Undo-logging for SFRs

16

L1.acq(); x = 100; L1.rel();

SFR1 Failure- atomic

createUndoLog (L) mutateData (M) commitLog (C) persistData (P)

SFR1 Need to ensure the ordering of steps in undo-logging for SFRs to be failure-atomic

Design 1: Coupled-SFR

17

L1.acq(); x = 100; L1.rel();

SFR1

L1.acq(); x = 200; L1.rel();

SFR2 Thread 1 Thread 2

+ Persistent state lags execution by at most one SFR à Simpler implementation, latest state at failure

• Need to flush updates at the end of each SFR

à High performance cost L1 M1 P1 C1 REL1

SFR1 Thread 1

L2 M2 P2 C2 ACQ2

SFR2 Thread 2 sw

Design 2: Decoupled-SFR

• Coupled-SFR has simple design, but lower perf.

– Persists and log commits on critical execution path L

• Key idea: Decouple persistent state from program exec.

– Persist updates and commit logs in background – Create undo logs in order – Roll back updates in reverse order of creation on failure

18

Decoupled-SFR in action

19

L1.acq(); x = 100; L1.rel();

SFR1

L1.acq(); x = 200; L1.rel();

SFR2 Thread 1 Thread 2

P1 C1 P2 C2 Flush and commit in background L1 M1 REL1

SFR1 Thread 1

L2 M2 ACQ2

SFR2 Thread 2

Create logs in order during execution

Need to commit logs in order à record order in which logs are created

sw

Log ordering in Decoupled-SFR

20

X = 100; L1.rel(); L1.acq(); X = 200;

Thread 1 Thread 2 Thread 1 Header Thread 2 Header Store X X = 0 Rel L1 Seq = 0 Acq L1 Seq = 1 Store X X = 100

L1 0

Sequence Table

à 1

• Sequence numbers in logs record inter-thread order of log creation
• Background threads commit logs using recorded sequence no.

Init X = 0

sw

Evaluation setup

• Designed our logging approaches in LLVM v3.6.0

– Instruments stores and sync. ops. to emit undo logs – Creates log space for managing per-thread undo-logs – Launches background threads to flush/commit logs in Decoupled-SFR

• Workloads: write-intensive micro-benchmarks

– 12 threads, 10M operations

• Performed experiments on Intel E5-2683 v3

– 2GHz, 12 physical cores, 2-way hyper-threading

21

Performance evaluation

22

0.2 0.4 0.6 0.8 1 1.2

CQ SPS PC RB-tree TATP LL TPCC Mean Normalized exec. time Atlas Coupled-SFR Decoupled-SFR No-persistency

65% Better

Decoupled-SFR performs 65% better than state-of-the-art ATLAS design

[Chakrabarti ’14]

Performance evaluation

23

0.2 0.4 0.6 0.8 1 1.2

CQ SPS PC RB-tree TATP LL TPCC Mean Normalized exec. time Atlas Coupled-SFR Decoupled-SFR No-persistency

Better

Coupled-SFR performs better that Decoupled-SFR when fewer stores/SFR

[Chakrabarti ’14]

Conclusion

• Failure-atomic synchronization-free regions

– Persistent state moves from one sync. operation to the next

• Coupled-SFR design

– Easy to reason about PM state after failure; high performance cost

• Decoupled-SFR design

– Persistent state lags execution; performs 65% better than ATLAS

24

More details in our full paper on “Persistency for Synchronization-free Regions” appearing in PLDI ’18

Thank you! Questions?
