PHOTO 1940s PHOTO 2016 ARCHITECT: PROJECT: DRAWING TITLE: PROJECT NO.: 17003 DATE: 10.24.2017 MISRA & ASSOCIATES P.C. DRAWN BY: MS DWG NO.: FACADE RECONSTRUCTION HISTORIC PHOTO & CHECKED BY: RM ARCHITECTURE PLANNING

slide-1
SLIDE 1

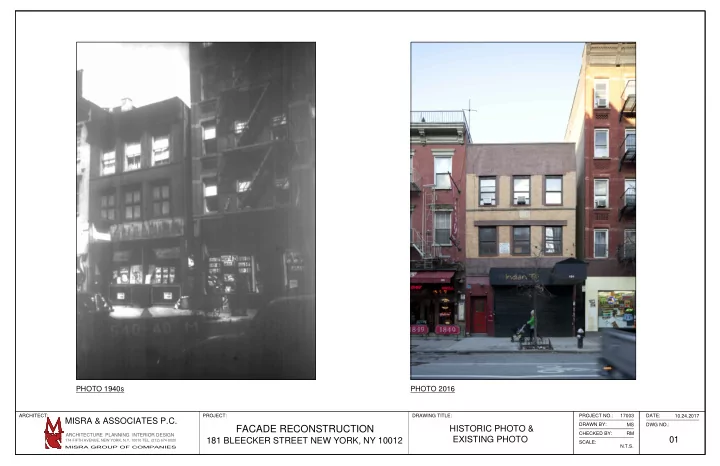

PHOTO 1940s PHOTO 2016

01

N.T.S.

HISTORIC PHOTO & EXISTING PHOTO

FACADE RECONSTRUCTION

181 BLEECKER STREET NEW YORK, NY 10012

DWG NO.: ARCHITECT:

MISRA & ASSOCIATES P.C.

ARCHITECTURE PLANNING INTERIOR DESIGN

174 FIFTH AVENUE, NEW YORK, N.Y. 10010 TEL. (212) 674 8020

PROJECT: DRAWING TITLE: PROJECT NO.: DRAWN BY: CHECKED BY: MS RM SCALE: DATE: 10.24.2017 17003

slide-2
SLIDE 2
  • EL. +38'-10"

TOP OF BUILDING

  • EL. +23'-6"

THIRD FLOOR

  • EL. +12'-11 1/2"

SECOND FLOOR

  • EL. +2'-8"

FIRST FLOOR

  • EL. +0'-0"

ENTRY GRADE

#1 #3 #5 #2 #4 #6

PHOTO #6

01

3/16"=1'-0"

KEY ELEVATION & EXISTING PHOTO

FACADE RECONSTRUCTION

181 BLEECKER STREET NEW YORK, NY 10012

DWG NO.: ARCHITECT:

MISRA & ASSOCIATES P.C.

ARCHITECTURE PLANNING INTERIOR DESIGN

174 FIFTH AVENUE, NEW YORK, N.Y. 10010 TEL. (212) 674 8020

PROJECT: DRAWING TITLE: PROJECT NO.: DRAWN BY: CHECKED BY: MS RM SCALE: DATE: 10.24.2017 17003

KEY ELEVATION

1

slide-3
SLIDE 3

01

N.T.S.

EXISTING PHOTOS

FACADE RECONSTRUCTION

181 BLEECKER STREET NEW YORK, NY 10012

DWG NO.: ARCHITECT:

MISRA & ASSOCIATES P.C.

ARCHITECTURE PLANNING INTERIOR DESIGN

174 FIFTH AVENUE, NEW YORK, N.Y. 10010 TEL. (212) 674 8020

PROJECT: DRAWING TITLE: PROJECT NO.: DRAWN BY: CHECKED BY: MS RM SCALE: DATE: 10.24.2017 17003

PHOTO #1 PHOTO #2 PHOTO #3 PHOTO #4 PHOTO #5

slide-4
SLIDE 4

FACADE RECONSTRUCTION

181 BLEECKER STREET NEW YORK, NY 10012

DWG NO.: ARCHITECT:

MISRA & ASSOCIATES P.C.

ARCHITECTURE PLANNING INTERIOR DESIGN

174 FIFTH AVENUE, NEW YORK, N.Y. 10010 TEL. (212) 674 8020

PROJECT: DRAWING TITLE: PROJECT NO.: DRAWN BY: CHECKED BY: MS RM SCALE: DATE: 10.24.2017 17003

01

N.T.S.

GREEK REVIVAL EXAMPLES

183 BLEECKER ST. 200 / 202 BLEECKER ST. 130 / 132 MACDOUGAL ST. 179 SULLIVAN 228 THOMPSON ST. 132 WEST 4TH ST. / 134 WEST 4TH ST.

slide-5
SLIDE 5
  • EL. +38'-10"

TOP OF BUILDING

  • EL. +23'-6"

THIRD FLOOR

  • EL. +12'-11 1/2"

SECOND FLOOR

  • EL. +2'-8"

FIRST FLOOR

  • EL. +0'-0"

ENTRY GRADE ROOF REPLACE EXISTING DOUBLE-HUNG WINDOW/S WITH NEW TWO-OVER-TWO WOOD DOUBLE HUNG WINDOW/S REPLACE EXISTING DOUBLE-HUNG WINDOW/S WITH NEW TWO-OVER-TWO WOOD DOUBLE HUNG WINDOW/S

CAREFULLY REMOVE EXISTING BRICK MASONRY FACADE IN ITS ENTIRETY FROM PARAPET AT ROOF LEVEL, DOWN TO SECOND FLOOR. BRICK FACADE TO BE REMOVED ONE FLOOR AT A TIME TO ALLOW FOR TEMPORARY SHORING AND PROTECTION OF BUILDING INTERIOR. REMOVE EXISTING ONE OVER ONE ALUMINUM DOUBLE-HUNG WINDOWS. EXISTING AWNING AT FIRST FLOOR COMMERCIAL STOREFRONT TO BE

  • REMOVED. NEW AWNING TO BE INSTALLED BY TENANT UNDER A SEPARATE

LPC APPLICATION. REMOVE OLD DETERIORATED BROWNSTONE FINISH FROM WALL

  • SURFACES. WASH DOWN THE ENTIRE AREA AND PREPARE FOR SCRATCH

COAT. RECONSTRUCT FACADE WITH NEW BRICK MASONRY IN RUNNING BOND PATTERN, INCLUDING NEW PARAPET WITH TINTED CONCRETE COPING. INSTALL NEW BROWNSTONE LINTELS AT WINDOW OPENINGS INSTALL NEW BROWNSTONE SILLS AT WINDOW OPENINGS INSTALL NEW PAINTED WOOD BRICK MOULD TRIM AT WINDOW OPENINGS INSTALL NEW TWO-OVER-TWO WOOD DOUBLE HUNG WINDOW BY PELLA. NEW BROWNSTONE FINISH APPLIED AT SIGN BAND. COLOR TO BE APPROVED BY NYC LANDMARKS PRESERVATION COMMISSION. PROTECT EXISTING RESIDENTIAL ENTRANCE DOOR AND COMMERCIAL STOREFRONT + ENTRANCE DOOR TO REMAIN. REPLICATE HORIZONTAL MOLDING BELOW THIRD FLOOR WINDOWS WITH NEW BROWNSTONE MOLDING. MATCH PROFILE AND DIMENSIONS OF EXISTING. APPLY NEW EXTERIOR PAINT FINISH AT EXISTING STREET LEVEL OF FACADE. COLOR : TBD 1 2 3 4 5 6 7 8 9 10 11 NOTES : 12 13

01

3/16"=1'-0"

EXISTING FRONT ELEVATION & NOTES

FACADE RECONSTRUCTION

181 BLEECKER STREET NEW YORK, NY 10012

DWG NO.: ARCHITECT:

MISRA & ASSOCIATES P.C.

ARCHITECTURE PLANNING INTERIOR DESIGN

174 FIFTH AVENUE, NEW YORK, N.Y. 10010 TEL. (212) 674 8020

PROJECT: DRAWING TITLE: PROJECT NO.: DRAWN BY: CHECKED BY: MS RM SCALE: DATE: 10.24.2017 17003

EXISTING FRONT ELEVATION

1

slide-6
SLIDE 6
  • EL. +38'-10"

TOP OF BUILDING

  • EL. +23'-6"

THIRD FLOOR

  • EL. +12'-11 1/2"

SECOND FLOOR

  • EL. +2'-8"

FIRST FLOOR

  • EL. +0'-0"

ENTRY GRADE ROOF

01

3/16"=1'-0"

PROPOSED FRONT ELEVATION & RENDERING PROPOSED FACADE

FACADE RECONSTRUCTION

181 BLEECKER STREET NEW YORK, NY 10012

DWG NO.: ARCHITECT:

MISRA & ASSOCIATES P.C.

ARCHITECTURE PLANNING INTERIOR DESIGN

174 FIFTH AVENUE, NEW YORK, N.Y. 10010 TEL. (212) 674 8020

PROJECT: DRAWING TITLE: PROJECT NO.: DRAWN BY: CHECKED BY: MS RM SCALE: DATE: 10.24.2017 17003

PROPOSED FRONT ELEVATION

1

slide-7
SLIDE 7

MEETING RAIL HEAD SILL

REMOVE EXISTING BRICK INFILL TO RESTORE ORIGINAL M.O.(TYP.) REMOVE EXISTING BRICK SILL (TYP.)

01

1 1/2"=1'-0"

  • EXIST. WINDOW DETAIL

PLAN & ELEVATION

FACADE RECONSTRUCTION

181 BLEECKER STREET NEW YORK, NY 10012

DWG NO.: ARCHITECT:

MISRA & ASSOCIATES P.C.

ARCHITECTURE PLANNING INTERIOR DESIGN

174 FIFTH AVENUE, NEW YORK, N.Y. 10010 TEL. (212) 674 8020

PROJECT: DRAWING TITLE: PROJECT NO.: DRAWN BY: CHECKED BY: MS RM SCALE: DATE: 10.24.2017 17003

PROPOSED WINDOW DETAIL - SECTION 1

  • EXIST. WINDOW DETAIL - PLAN

2

  • EXIST. WINDOW ELEVATION - A

3

slide-8
SLIDE 8

MEETING RAIL

LOW EXPANSION FOAM SEALANT NEW SHEETROCK ENCLOSURE NEW WALL CONSTRUCTION PERIMETER BLOCKING SHIM&LEVEL PERIMETER SEALANT BEADED BRICKMOULD BACKER ROD&SEALANT

HEAD

NEW WALL CONSTRUCTION CONTINUOUS LINE OF SEALANT FLAT BRICKMOULD PERIMETER SEALANT NEW SHEETROCK ENCLOSURE NEW BROWNSTONE LINTEL

SILL

NEW SHEETROCK ENCLOSURE CONTINUOUS LINE OF SEALANT FACTORY WOOD SUBSILL BACKER ROD&SEALANT SHIM&LEVEL NEW WALL CONSTRUCTION NEW BROWNSTONE SILL

01

1 1/2"=1'-0"

PROPOSED WINDOW DETAIL PLAN & ELEVATION

FACADE RECONSTRUCTION

181 BLEECKER STREET NEW YORK, NY 10012

DWG NO.: ARCHITECT:

MISRA & ASSOCIATES P.C.

ARCHITECTURE PLANNING INTERIOR DESIGN

174 FIFTH AVENUE, NEW YORK, N.Y. 10010 TEL. (212) 674 8020

PROJECT: DRAWING TITLE: PROJECT NO.: DRAWN BY: CHECKED BY: MS RM SCALE: DATE: 10.24.2017 17003

NEW WINDOW ELEVATION - A 3

PROPOSED WINDOW DETAIL - SECTION

1

PROPOSED WINDOW DETAIL - PLAN

2

slide-9
SLIDE 9
  • EL. +38'-10"

TOP OF BUILDING

  • EL. +23'-6"

THIRD FLOOR

  • EL. +12'-11 1/2"

SECOND FLOOR

  • EL. +2'-8"

FIRST FLOOR

  • EL. +0'-0"

ENTRY ROOF

BLEECKER STREET

AREA OF PROPOSED EXTERIOR WORK

NO WORK IN THIS AREA

BLEECKER STREET

EXIST. EXIST. EXIST.

  • EL. +38'-10"

TOP OF BUILDING

  • EL. +23'-6"

THIRD FLOOR

  • EL. +12'-11 1/2"

SECOND FLOOR

  • EL. +2'-8"

FIRST FLOOR

  • EL. +0'-0"

ENTRY ROOF

  • EL. +38'-10"

TOP OF BUILDING

  • EL. +23'-6"

THIRD FLOOR

  • EL. +12'-11 1/2"

SECOND FLOOR

  • EL. +2'-8"

FIRST FLOOR

  • EL. +0'-0"

ENTRY ROOF

NO WORK IN THIS AREA

BLEECKER STREET

01

3/16"=1'-0"

SECTION& WALL DETAIL SECTIONS

FACADE RECONSTRUCTION

181 BLEECKER STREET NEW YORK, NY 10012

DWG NO.: ARCHITECT:

MISRA & ASSOCIATES P.C.

ARCHITECTURE PLANNING INTERIOR DESIGN

174 FIFTH AVENUE, NEW YORK, N.Y. 10010 TEL. (212) 674 8020

PROJECT: DRAWING TITLE: PROJECT NO.: DRAWN BY: CHECKED BY: MS RM SCALE: DATE: 10.24.2017 17003

SECTION

1

  • EXIST. WALL DETAIL SECTION

2

PROPOSED WALL DETAIL SECTION

3
