Delaunay Triangulation: Applications Reconstruction Meshing 1 - - PowerPoint PPT Presentation

1

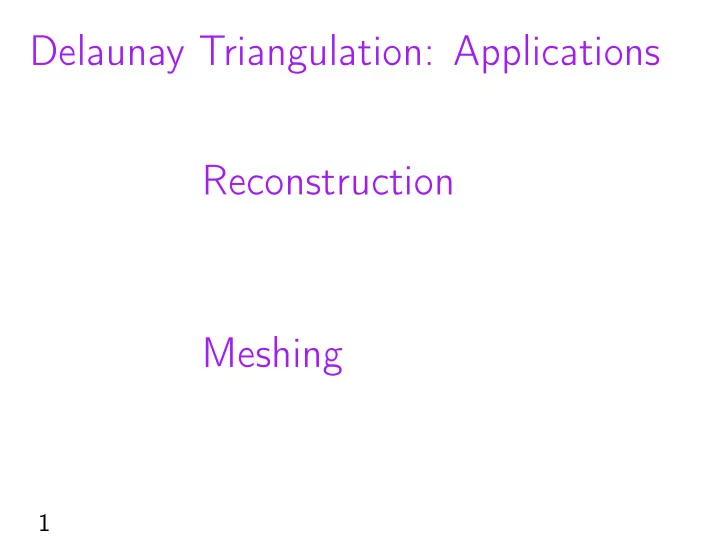

Delaunay Triangulation: Applications Reconstruction Meshing

2 - 1

Reconstruction

From points

2 - 2

Reconstruction

From points to shape

2 - 3

Reconstruction

From points

2 - 4

Reconstruction

From points to shape

2 - 5 From points

Reconstruction

2 - 6 From points to shape

Reconstruction

3

Reconstruction

Context Delaunay is a good start

(wanted result ⇢ Delaunay)

Crust 2D 0.4 sample ) wanted result ⇢ crust 0.25 sample ) crust ⇢ wanted result Algorithm 3D

4 - 1

Reconstruction

Context Sensor Point set (no structure or unknown)

4 - 2

Reconstruction

Context Medical Images

4 - 3

Reconstruction

Context Medical Images

4 - 4

Reconstruction

Context Childbirth simulation Surgery planning Radiotherapy planing Endoscopy simulation

4 - 5

Reconstruction

Context Childbirth simulation Surgery planning Radiotherapy planing Endoscopy simulation

4 - 6

Reconstruction

Context Sensor Point set (no structure or unknown) Scanner

4 - 7

Reconstruction

Context Sensor Point set (no structure or unknown) Scanner Endoscope

4 - 8

Reconstruction

Context Cultural heritage

4 - 9

Reconstruction

Context Cultural heritage

4 - 10

Reconstruction

Context

4 - 11

Reconstruction

Context Reverse engineering

4 - 12

Reconstruction

Context Reverse engineering Prototyping (3D print) Quality control

4 - 13

Reconstruction

Context Sensor Point set (no structure or unknown)

4 - 14

Reconstruction

Context Sensor Point set (no structure or unknown) Laser illuminate in a plane

4 - 15

Reconstruction

Context Sensor Point set (no structure or unknown) Laser illuminate in a plane Camera

4 - 16

Reconstruction

Context Sensor Point set (no structure or unknown) Laser illuminate in a plane Camera Image

4 - 17

Reconstruction

Context Sensor Point set (no structure or unknown) Laser illuminate in a plane Camera Get 3D position

4 - 18

Reconstruction

Context Geology

4 - 19

Reconstruction

Context Sensor Point set (no structure or unknown) Geology

4 - 20

Reconstruction

Context Sensor Point set (no structure or unknown) Abstract 3D problem that we can solve in 2D section

4 - 21

Reconstruction

Context Sensor Point set (no structure or unknown) Abstract 3D problem that we can solve in 2D section

4 - 22

Reconstruction

Context Sensor Point set (no structure or unknown) Abstract 3D problem that we can solve in 2D section

4 - 23

Reconstruction

Context Sensor Point set (no structure or unknown) Abstract 3D problem that we can solve in 2D section

4 - 24

Reconstruction

Context Sensor Point set (no structure or unknown) Abstract 3D problem that we can solve in 2D section Can be solve using Voronoi diagrams

4 - 25

Reconstruction

Context Sensor Point set (no structure or unknown) Abstract 3D problem that we can solve in 2D section

4 - 26

Reconstruction

Context Sensor Point set (no structure or unknown) Abstract 3D problem that we can solve in 2D section

4 - 27

Reconstruction

Context Sensor Point set (no structure or unknown) Abstract 3D problem that we can solve in 2D section

4 - 28

Reconstruction

Context Sensor Point set (no structure or unknown) Abstract 3D problem that we can solve in 2D section

4 - 29

Reconstruction

Context Sensor Point set (no structure or unknown) Abstract 3D problem that we can solve in 2D section

4 - 30

Reconstruction

Context Sensor Point set (no structure or unknown) Abstract 3D problem that we can solve in 2D section

5 - 1

Reconstruction

Delaunay is a good start Medial axis of a curve (surface in 3D) Locus of center of bitangent spheres

5 - 2

Reconstruction

Delaunay is a good start Medial axis of a curve (surface in 3D) Locus of center of bitangent spheres

5 - 3

Reconstruction

Delaunay is a good start Medial axis of a curve (surface in 3D) Locus of center of bitangent spheres

5 - 4

Reconstruction

Delaunay is a good start Medial axis of a curve (surface in 3D) Locus of center of bitangent spheres

5 - 5

Reconstruction

Delaunay is a good start Medial axis of a curve (surface in 3D) Locus of center of bitangent spheres

5 - 6

Reconstruction

Delaunay is a good start Medial axis of a curve (surface in 3D) Locus of center of bitangent spheres

5 - 7

Reconstruction

Delaunay is a good start Medial axis of a curve (surface in 3D) Locus of center of bitangent spheres

5 - 8

Reconstruction

Delaunay is a good start Medial axis of a curve (surface in 3D) Locus of center of bitangent spheres

6 - 1

Reconstruction

Delaunay is a good start ✏-sample of a curve Local feature size:

6 - 2

Reconstruction

Delaunay is a good start ✏-sample of a curve Local feature size: x lfs(x) =

6 - 3

Reconstruction

Delaunay is a good start ✏-sample of a curve Local feature size: x lfs(x) = distance(x, medial axis) lfs(x)

6 - 4

Reconstruction

Delaunay is a good start ✏-sample of a curve Local feature size: Sample is an

6 - 5

Reconstruction

Delaunay is a good start ✏-sample of a curve Local feature size: x lfs(x) = distance(x, medial axis) lfs(x) Sample is an if 8x, Disk(x, ✏·lfs(x))\Sample6= ;

7 - 1

Reconstruction

Delaunay is a good start 8 Disk, Disk\Curve has a single connected component

• r Disk\Medial axis6= ;

Lemma:

7 - 2

Reconstruction

Delaunay is a good start 8 Disk, Disk\Curve has a single connected component

• r Disk\Medial axis6= ;

Lemma:

7 - 3

Reconstruction

Delaunay is a good start 8 Disk, Disk\Curve has a single connected component

• r Disk\Medial axis6= ;

Lemma:

7 - 4

Reconstruction

Delaunay is a good start 8 Disk, Disk\Curve has a single connected component

• r Disk\Medial axis6= ;

Lemma: Disk\Curve has 2 cc A and B A B c

7 - 5

Reconstruction

Delaunay is a good start 8 Disk, Disk\Curve has a single connected component

• r Disk\Medial axis6= ;

Lemma: Disk\Curve has 2 cc A and B A B a = closest of c on Curve(wlog on A) b = closest of c on B b a c

7 - 6

Reconstruction

Delaunay is a good start 8 Disk, Disk\Curve has a single connected component

• r Disk\Medial axis6= ;

Lemma: Disk\Curve has 2 cc A and B A B a = closest of c on Curve(wlog on A) b = closest of c on B b a Moving from c to a dist to B % c

7 - 7

Reconstruction

Delaunay is a good start 8 Disk, Disk\Curve has a single connected component

• r Disk\Medial axis6= ;

Lemma: Disk\Curve has 2 cc A and B A B a = closest of c on Curve(wlog on A) b = closest of c on B b a Moving from c to a dist to B % reach center of bitangent disk a0 c

8 - 1 x

Reconstruction

Delaunay is a good start If Sample is a ✏-sample, ✏ < 1 neighboring points along Curve are Delaunay neighbors Theorem x0

8 - 2 x

Reconstruction

Delaunay is a good start If Sample is a ✏-sample, ✏ < 1 neighboring points along Curve are Delaunay neighbors Theorem disks centered on Curve, through x x0 Two neighboring points along curve

8 - 3 x

Reconstruction

Delaunay is a good start If Sample is a ✏-sample, ✏ < 1 neighboring points along Curve are Delaunay neighbors Theorem disks centered on Curve, through x x0 Two neighboring points along curve

8 - 4 x

Reconstruction

Delaunay is a good start If Sample is a ✏-sample, ✏ < 1 neighboring points along Curve are Delaunay neighbors Theorem disks centered on Curve, through x x0 Two neighboring points along curve

8 - 5 x

Reconstruction

Delaunay is a good start If Sample is a ✏-sample, ✏ < 1 neighboring points along Curve are Delaunay neighbors Theorem x0 xx0 neighbors on curve ) no points on cc xx0 in

8 - 6 x

Reconstruction

Delaunay is a good start If Sample is a ✏-sample, ✏ < 1 neighboring points along Curve are Delaunay neighbors Theorem 1-sampling ) ⇢ x0 xx0 neighbors on curve ) no points on cc xx0 in

8 - 7 x

Reconstruction

Delaunay is a good start If Sample is a ✏-sample, ✏ < 1 neighboring points along Curve are Delaunay neighbors Theorem 1-sampling ) ⇢ x0 xx0 neighbors on curve ) no points on cc xx0 in Lemma }) no other cc \

8 - 8 x

Reconstruction

Delaunay is a good start If Sample is a ✏-sample, ✏ < 1 neighboring points along Curve are Delaunay neighbors Theorem 1-sampling ) ⇢ x0 xx0 neighbors on curve ) no points on cc xx0 in Lemma }) no other cc \ ) empty

9 - 1

Reconstruction

Delaunay is a good start Given a sampling

9 - 2

Reconstruction

Delaunay is a good start Given a sampling Compute Delaunay

9 - 3

Reconstruction

Delaunay is a good start Given a sampling Compute Delaunay Search the good sequence of edges there

10 - 1

Reconstruction

Delaunay is a good start 1-sample is not enough

10 - 2

Reconstruction

Delaunay is a good start 1-sample is not enough

10 - 3

Reconstruction

Delaunay is a good start 1-sample is not enough

10 - 4

Reconstruction

Delaunay is a good start 1-sample is not enough

11 - 1

Reconstruction

Crust 2D Algorithm

11 - 2

Reconstruction

Crust 2D Algorithm Compute Voronoi diagram

11 - 3

Reconstruction

Crust 2D Algorithm Keep Voronoi vertices

11 - 4

Reconstruction

Crust 2D Algorithm Keep Voronoi vertices Compute Delaunay triangulation

11 - 5

Reconstruction

Crust 2D Algorithm Keep Voronoi vertices Compute Delaunay triangulation Keep edges between original points

11 - 6

Reconstruction

Crust 2D Algorithm Keep edges between original points

12 - 1

Reconstruction

Crust 2D Algorithm

12 - 2

Reconstruction

Crust 2D Algorithm

12 - 3

Reconstruction

Crust 2D Algorithm

12 - 4

Reconstruction

Crust 2D Algorithm

12 - 5

Reconstruction

Crust 2D Algorithm

12 - 6

Reconstruction

Crust 2D Algorithm

12 - 7

Reconstruction

Crust 2D Algorithm

12 - 8

Reconstruction

Crust 2D Algorithm

13 - 1

Reconstruction

Crust 2D

0.4 sample ) wanted result ⇢ crust

0.4 sample ) wanted result ⇢ crust

Theorem:

13 - 2

Reconstruction

Crust 2D

0.4 sample ) wanted result ⇢ crust

0.4 sample ) wanted result ⇢ crust

Theorem: x x0 x, x0 two neighboring points on Curve Curve Circle thru x and x0 centered on Curve

13 - 3

Reconstruction

Crust 2D

0.4 sample ) wanted result ⇢ crust

0.4 sample ) wanted result ⇢ crust

Theorem: x x0 x, x0 two neighboring points on Curve Curve Circle thru x and x0 centered on Curve By contradiction assume v 2 v

13 - 4

Reconstruction

Crust 2D

0.4 sample ) wanted result ⇢ crust

0.4 sample ) wanted result ⇢ crust

Theorem: x x0 x, x0 two neighboring points on Curve Curve Circle thru x and x0 centered on Curve By contradiction assume v 2 v intersects another cc of curve

(by Lemma)

13 - 5

Reconstruction

Crust 2D

0.4 sample ) wanted result ⇢ crust

0.4 sample ) wanted result ⇢ crust

Theorem: x x0 x, x0 two neighboring points on Curve Curve Circle thru x and x0 centered on Curve By contradiction assume v 2 v intersects another cc of curve

(by Lemma) ✓

R  2r sin ✓

2

13 - 6

Reconstruction

Crust 2D

0.4 sample ) wanted result ⇢ crust

0.4 sample ) wanted result ⇢ crust

Theorem: x x0 x, x0 two neighboring points on Curve Curve Circle thru x and x0 centered on Curve By contradiction assume v 2 v intersects another cc of curve

(by Lemma) ✓

R  2r sin ✓

2

✓  lfs

13 - 7 tangent disk is empty

Reconstruction

Crust 2D

0.4 sample ) wanted result ⇢ crust

0.4 sample ) wanted result ⇢ crust

Theorem: x x0 x, x0 two neighboring points on Curve Curve Circle thru x and x0 centered on Curve By contradiction assume v 2 v intersects another cc of curve

(by Lemma) ✓

R  2r sin ✓

2

✓  lfs

13 - 8

Reconstruction

Crust 2D

0.4 sample ) wanted result ⇢ crust

0.4 sample ) wanted result ⇢ crust

Theorem: x x0 x, x0 two neighboring points on Curve Curve Circle thru x and x0 centered on Curve By contradiction assume v 2 v intersects another cc of curve

(by Lemma) ✓

R  2r sin ✓

2

✓  lfs ✏ wlog lfs=1 and r  ✏

13 - 9

Reconstruction

Crust 2D

0.4 sample ) wanted result ⇢ crust

0.4 sample ) wanted result ⇢ crust

Theorem: x x0 x, x0 two neighboring points on Curve Curve Circle thru x and x0 centered on Curve By contradiction assume v 2 v intersects another cc of curve

(by Lemma) ✓

R  2r sin ✓

2

✓  lfs ✏ 1 r wlog lfs=1 and r  ✏

13 - 10

Reconstruction

Crust 2D

0.4 sample ) wanted result ⇢ crust

0.4 sample ) wanted result ⇢ crust

Theorem: x x0 x, x0 two neighboring points on Curve Curve Circle thru x and x0 centered on Curve By contradiction assume v 2 v intersects another cc of curve

(by Lemma) ✓

R  2r sin ✓

2

✓ 

↵ 2

r r = 2 sin ↵

2

13 - 11

Reconstruction

Crust 2D

0.4 sample ) wanted result ⇢ crust

0.4 sample ) wanted result ⇢ crust

Theorem: x x0 x, x0 two neighboring points on Curve Curve Circle thru x and x0 centered on Curve By contradiction assume v 2 v intersects another cc of curve

(by Lemma) ✓

R  2r sin ✓

2

✓ 

↵ 2

x0 x

• = ⇡ ⇡↵

2

1 r r r = 2 sin ↵

2

13 - 12

Reconstruction

Crust 2D

0.4 sample ) wanted result ⇢ crust

0.4 sample ) wanted result ⇢ crust

Theorem: x x0 x, x0 two neighboring points on Curve Curve Circle thru x and x0 centered on Curve By contradiction assume v 2 v intersects another cc of curve

(by Lemma) ✓

R  2r sin ✓

2

 ⇡

2 + arcsin r 2

✓ 

↵ 2

x0 x

• = ⇡ ⇡↵

2

r r = 2 sin ↵

2

13 - 13

Reconstruction

Crust 2D

0.4 sample ) wanted result ⇢ crust

0.4 sample ) wanted result ⇢ crust

Theorem: x x0 x, x0 two neighboring points on Curve Curve Circle thru x and x0 centered on Curve By contradiction assume v 2 v intersects another cc of curve

(by Lemma) ✓

R  2r sin ✓

2

✓  ⇡

2 + arcsin r 2

 +

13 - 14

Reconstruction

Crust 2D

0.4 sample ) wanted result ⇢ crust

0.4 sample ) wanted result ⇢ crust

Theorem: x x0 x, x0 two neighboring points on Curve Curve Circle thru x and x0 centered on Curve By contradiction assume v 2 v intersects another cc of curve

(by Lemma) ✓

R  2r sin ✓

2

✓  ⇡

2 + arcsin r 2

 +  r + 2r sin ⇡

4 + 1 2arcsin r 2

13 - 15

Reconstruction

Crust 2D

0.4 sample ) wanted result ⇢ crust

0.4 sample ) wanted result ⇢ crust

Theorem: x x0 x, x0 two neighboring points on Curve Curve Circle thru x and x0 centered on Curve By contradiction assume v 2 v intersects another cc of curve

(by Lemma) ✓

R  2r sin ✓

2

✓  ⇡

2 + arcsin r 2

 +  r + 2r sin ⇡

4 + 1 2arcsin r 2

• lfs= 1 contradiction is reached

if

13 - 16

Reconstruction

Crust 2D

0.4 sample ) wanted result ⇢ crust

0.4 sample ) wanted result ⇢ crust

Theorem: x x0 x, x0 two neighboring points on Curve Curve Circle thru x and x0 centered on Curve By contradiction assume v 2 v intersects another cc of curve

(by Lemma) ✓

R  2r sin ✓

2

✓  ⇡

2 + arcsin r 2

 +  r + 2r sin ⇡

4 + 1 2arcsin r 2

• lfs= 1 contradiction is reached

if

r + 2r sin ⇡

4 + 1 2arcsin r 2

• Plot

13 - 17

Reconstruction

Crust 2D

0.4 sample ) wanted result ⇢ crust

0.4 sample ) wanted result ⇢ crust

Theorem:

14 - 1

Reconstruction

Crust 2D

0.25 sample ) crust ⇢ wanted result

Theorem:

0.25 sample ) crust ⇢ wanted result

14 - 2

Reconstruction

Crust 2D

0.25 sample ) crust ⇢ wanted result

Theorem:

0.25 sample ) crust ⇢ wanted result

x x0

14 - 3

Reconstruction

Crust 2D

0.25 sample ) crust ⇢ wanted result

Theorem:

0.25 sample ) crust ⇢ wanted result

x x0 Assume empty circle

14 - 4

Reconstruction

Crust 2D

0.25 sample ) crust ⇢ wanted result

Theorem:

0.25 sample ) crust ⇢ wanted result

x x0 Assume empty circle No Voronoi vertices there = )

14 - 5

Reconstruction

Crust 2D

0.25 sample ) crust ⇢ wanted result

Theorem:

0.25 sample ) crust ⇢ wanted result

x x0 Assume empty circle No Voronoi vertices there = ) No sample points there

14 - 6

Reconstruction

Crust 2D

0.25 sample ) crust ⇢ wanted result

Theorem:

0.25 sample ) crust ⇢ wanted result

x x0 Assume empty circle

14 - 7

Reconstruction

Crust 2D

0.25 sample ) crust ⇢ wanted result

Theorem:

0.25 sample ) crust ⇢ wanted result

 ⇡

2 + 2arcsin r 2 ↵ 4

= ⇡ ⇡↵

2

r ' 2 sin ↵

4

r

14 - 8

Reconstruction

Crust 2D

0.25 sample ) crust ⇢ wanted result

Theorem:

0.25 sample ) crust ⇢ wanted result

 ⇡

2 + 2arcsin r 2 ↵ 4

= ⇡ ⇡↵

2

r ' 2 sin ↵

4

r

14 - 9

Reconstruction

Crust 2D

0.25 sample ) crust ⇢ wanted result

Theorem:

0.25 sample ) crust ⇢ wanted result

x x0 Assume empty circle ⇡

4 2 arcsin r 2

biggest of two angles

14 - 10

Reconstruction

Crust 2D

0.25 sample ) crust ⇢ wanted result

Theorem:

0.25 sample ) crust ⇢ wanted result

x x0 Assume empty circle ⇡

4 2 arcsin r 2

biggest of two angles 2 y kxyk 2 sin

14 - 11

Reconstruction

Crust 2D

0.25 sample ) crust ⇢ wanted result

Theorem:

0.25 sample ) crust ⇢ wanted result

x x0 Assume empty circle ⇡

4 2 arcsin r 2

biggest of two angles 2 y kxyk 2 sin By Lemma, circle xx0yintersects medial axis

14 - 12

Reconstruction

Crust 2D

0.25 sample ) crust ⇢ wanted result

Theorem:

0.25 sample ) crust ⇢ wanted result

x x0 Assume empty circle ⇡

4 2 arcsin r 2

biggest of two angles 2 y kxyk 2 sin Compute ✏ to ensure that

1 ✏ ⇥

encloses

15 - 1

Reconstruction

3D

15 - 2

Reconstruction

3D Difficulty: sliver

15 - 3

Reconstruction

3D Difficulty: sliver small sphere

15 - 4

Reconstruction

3D Difficulty: sliver small sphere four sample points

15 - 5

Reconstruction

3D Difficulty: sliver small sphere four sample points almost flat Delaunay tetrahedron

15 - 6

Reconstruction

3D Difficulty: sliver small sphere four sample points almost flat Delaunay tetrahedron Which triangle belongs to reconstruction ?

15 - 7

Reconstruction

3D Difficulty: sliver small sphere four sample points almost flat Delaunay tetrahedron Which triangle belongs to reconstruction ? Crust: Voronoi vertices may kill useful triangles

16 - 1

Reconstruction

3D

16 - 2

Reconstruction

3D

16 - 3

Reconstruction

3D

16 - 4

Reconstruction

3D Pole = farthest of seed

16 - 5

Reconstruction

3D Pole = farthest of seed 2nd pole= farthest of 1st pole

16 - 6

Reconstruction

3D Pole = farthest of seed 2nd pole= farthest of 1st pole Approximate normal Approximate medial axis ! crust

16 - 7

Reconstruction

3D Pole = farthest of seed 2nd pole= farthest of 1st pole Approximate normal Approximate medial axis ! crust Do not kill slivers

41

T h e e n d
