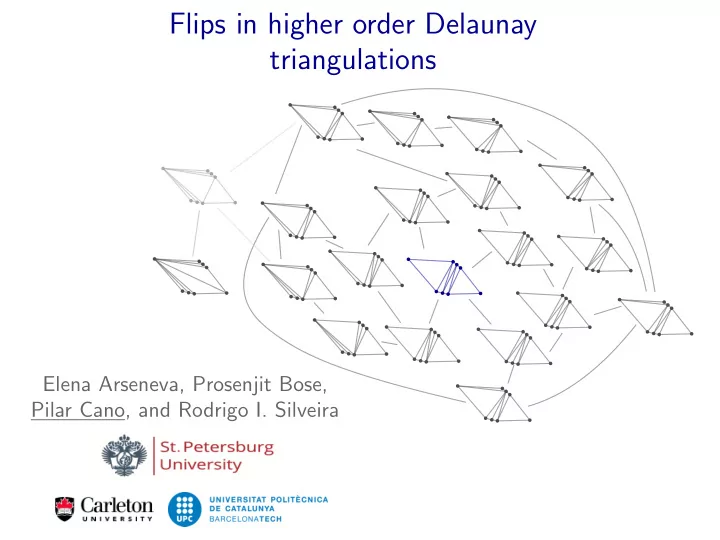

SLIDE 1

Flips in higher order Delaunay triangulations

Elena Arseneva, Prosenjit Bose, Pilar Cano, and Rodrigo I. Silveira

SLIDE 2

Delaunay triangulations

SLIDE 3

Delaunay triangulations

S

SLIDE 4

Delaunay triangulations

DT(S)

SLIDE 5

Delaunay triangulations

DT(S)

SLIDE 6

Delaunay triangulations

DT(S)

The DT(S) is unique

SLIDE 7

Delaunay triangulations

SLIDE 8

Delaunay triangulations

Dual of the Voronoi diagram

SLIDE 9

Delaunay triangulations

Dual of the Voronoi diagram
Contains the minimum spanning tree of a point set

SLIDE 10

Delaunay triangulations

Dual of the Voronoi diagram
Contains the minimum spanning tree of a point set
Maximizes the minimum angle

SLIDE 11

Delaunay triangulations

Dual of the Voronoi diagram
Contains the minimum spanning tree of a point set
Maximizes the minimum angle

Many applications in Graphics, GIS, mesh generation, among others

“well-shaped” triangles

SLIDE 12

Higher order Delaunay triangulations

Yet...

Picture from: Gudmundsson, J., Hammar, M., van Kreveld, M.: Higher order Delaunay triangulations. Comput.

Geom. 23(1), 8598 (2002)

SLIDE 13

Higher order Delaunay triangulations

Yet...

Picture from: Gudmundsson, J., Hammar, M., van Kreveld, M.: Higher order Delaunay triangulations. Comput.

Geom. 23(1), 8598 (2002)

SLIDE 14

Higher order Delaunay triangulations

S

SLIDE 15

Higher order Delaunay triangulations

SLIDE 16

Higher order Delaunay triangulations

SLIDE 17

Higher order Delaunay triangulations

SLIDE 18

Higher order Delaunay triangulations

Also called order-k triangulations

SLIDE 19

Higher order Delaunay triangulations

=

SLIDE 20

The flip graph

SLIDE 21

The flip graph

Flip

SLIDE 22

The flip graph

Flip

SLIDE 23

The flip graph

Flip graph

SLIDE 24

The flip graph and the Delaunay triangulation

Illegal edge

SLIDE 25

The flip graph and the Delaunay triangulation

SLIDE 26

The flip graph and the Delaunay triangulation

Any triangulation can be transformed into the DT

by flipping only illegal edges.

SLIDE 27

The flip graph and the Delaunay triangulation

Any triangulation can be transformed into the DT

by flipping only illegal edges.

The flip graph of any point set S, denoted T (S), is

connected.

The distance in T (S) between any two

triangulations of S is O(n2).

SLIDE 28

The flip graph and order-k triangulations

SLIDE 29

The flip graph and order-k triangulations

Abe and Okamoto observed that the flip graph of
rder-k triangulations of a point set S, denoted

Tk(S), is connected for k ≤ 2.

SLIDE 30

The flip graph and order-k triangulations

Abe and Okamoto observed that the flip graph of
rder-k triangulations of a point set S, denoted

Tk(S), is connected for k ≤ 2.

rder-3 edge

SLIDE 31

The flip graph and order-k triangulations

Abe and Okamoto observed that the flip graph of
rder-k triangulations of a point set S, denoted

Tk(S), is connected for k ≤ 2.

rder-3 edge
rder-k triangulation
rder-k edges

SLIDE 32

The flip graph and order-k triangulations

Abe and Okamoto observed that the flip graph of
rder-k triangulations of a point set S, denoted

Tk(S), is connected for k ≤ 2.

rder-3 edge
rder-k triangulation
rder-k edges

SLIDE 33

The flip graph and order-k triangulations

Abe and Okamoto observed that the flip graph of
rder-k triangulations of a point set S, denoted

Tk(S), is connected for k ≤ 2. About the flip graph of triangulations with order-k edges, Abellans et al. showed:

SLIDE 34

The flip graph and order-k triangulations

Abe and Okamoto observed that the flip graph of
rder-k triangulations of a point set S, denoted

Tk(S), is connected for k ≤ 2. About the flip graph of triangulations with order-k edges, Abellans et al. showed:

Is connected when k ≤ 1
Might be disconnected when k ≥ 2
For any k, the flip graph is connected when S is in

convex position

SLIDE 35

The flip graph and order-k triangulations

Abe and Okamoto observed that the flip graph of
rder-k triangulations of a point set S, denoted

Tk(S), is connected for k ≤ 2. About the flip graph of triangulations with order-k edges, Abellans et al. showed:

Is connected when k ≤ 1
Might be disconnected when k ≥ 2
For any k, the flip graph is connected when S is in

convex position exponential upper bound

n the flip distance

SLIDE 36

Our results

SLIDE 37

Our results

For any k there exists a point set S in convex position where

Tk(S) is disconnected. Moreover, k − 1 flips are sometimes necessary in order to transform an order-k triangulation of S into another.

SLIDE 38

Our results

For any k there exists a point set S in convex position where

Tk(S) is disconnected. Moreover, k − 1 flips are sometimes necessary in order to transform an order-k triangulation of S into another.

For any order-k triangulation of a point set in convex position

there exists an order-k triangulation at distance at most k − 1 in T2k−2(S)

SLIDE 39

Our results

For any k there exists a point set S in convex position where

Tk(S) is disconnected. Moreover, k − 1 flips are sometimes necessary in order to transform an order-k triangulation of S into another.

For any order-k triangulation of a point set in convex position

there exists an order-k triangulation at distance at most k − 1 in T2k−2(S)

Let k = 2, 3, 4, 5. For any order-k triangulation of a point set

in general position there exists an order-k triangulation at distance at most k − 1 in T2k−2(S)

SLIDE 40

Our results

For any k there exists a point set S in convex position where

Tk(S) is disconnected. Moreover, k − 1 flips are sometimes necessary in order to transform an order-k triangulation of S into another.

For any order-k triangulation of a point set in convex position

there exists an order-k triangulation at distance at most k − 1 in T2k−2(S)

Let k = 2, 3, 4, 5. For any order-k triangulation of a point set

in general position there exists an order-k triangulation at distance at most k − 1 in T2k−2(S)

SLIDE 41

A lower bound

SLIDE 42

A lower bound

u v

SLIDE 43

A lower bound

u v p1

SLIDE 44

A lower bound

u v p1 q1

SLIDE 45

A lower bound

u v p1 q1

SLIDE 46

A lower bound

u v p1 q1

SLIDE 47

A lower bound

u v p1 q1 p2 p3 q2 q3

SLIDE 48

A lower bound

u v p1 q1 p2 p3 q2 q3

SLIDE 49

A lower bound

u v p1 q1 p2 p3 q2 q3

SLIDE 50

A lower bound

SLIDE 51

A lower bound

Theorem. For any k > 2 there is a set Sk of 2k + 2 points in

convex position such that G(Tk(Sk)) is not connected. Moreover, there is a triangulation Tk in Tk(Sk) such that in order to transform Tk into any other triangulation in Tk(Sk) one needs to perform at least k − 1 flips.

SLIDE 52

An upper bound for convex position

SLIDE 53

An upper bound for convex position

Theorem. For a point set S in convex position and k ≥ 2, let

T = DT(S) be a triangulation in Tk(S). Then, there exists T ′ in Tk(S) such that there is a path between T and T ′ in G(T2k−2(S))

f length at most k − 1, where each edge of the path corresponds

to flipping an illegal edge.

SLIDE 54

An upper bound for convex position

SLIDE 55

An upper bound for convex position

SLIDE 56

An upper bound for convex position

SLIDE 57

An upper bound for convex position

SLIDE 58

An upper bound for convex position

SLIDE 59

An upper bound for convex position

Theorem. For a point set S in convex position and k ≥ 2, let

T = DT(S) be a triangulation in Tk(S). Then, there exists T ′ in Tk(S) such that there is a path between T and T ′ in G(T2k−2(S))

f length at most k − 1, where each edge of the path corresponds

to flipping an illegal edge.

SLIDE 60

Summary

SLIDE 61

We showed that k − 1 flips might be necessary for transforming
ne k-order triangulation to any other k-order triangulation
For k ≥ 2, we showed that any order-k triangulation can be

transformed into some other order-k triangulation by at most k − 1 flips of only illegal edges, such that the intermediate triangulations are of order 2k − 2, in the following settings: a) For any k ≥ 2 and points in convex position b) For k = 2, 3, 4, 5 and points in general position

Summary

SLIDE 62

We showed that k − 1 flips might be necessary for transforming
ne k-order triangulation to any other k-order triangulation
For k ≥ 2, we showed that any order-k triangulation can be

transformed into some other order-k triangulation by at most k − 1 flips of only illegal edges, such that the intermediate triangulations are of order 2k − 2, in the following settings: a) For any k ≥ 2 and points in convex position b) For k = 2, 3, 4, 5 and points in general position

Consequences

Summary

SLIDE 63

We showed that k − 1 flips might be necessary for transforming
ne k-order triangulation to any other k-order triangulation
For k ≥ 2, we showed that any order-k triangulation can be

transformed into some other order-k triangulation by at most k − 1 flips of only illegal edges, such that the intermediate triangulations are of order 2k − 2, in the following settings: a) For any k ≥ 2 and points in convex position b) For k = 2, 3, 4, 5 and points in general position

Consequences

Any order-k triangulation can be transformed into another by

O(kn) flips

An efficient enumeration algorithm of order-k triangulations

Summary

SLIDE 64

We showed that k − 1 flips might be necessary for transforming
ne k-order triangulation to any other k-order triangulation
For k ≥ 2, we showed that any order-k triangulation can be

transformed into some other order-k triangulation by at most k − 1 flips of only illegal edges, such that the intermediate triangulations are of order 2k − 2, in the following settings: a) For any k ≥ 2 and points in convex position b) For k = 2, 3, 4, 5 and points in general position

Consequences

Any order-k triangulation can be transformed into another by

O(kn) flips

An efficient enumeration algorithm of order-k triangulations
