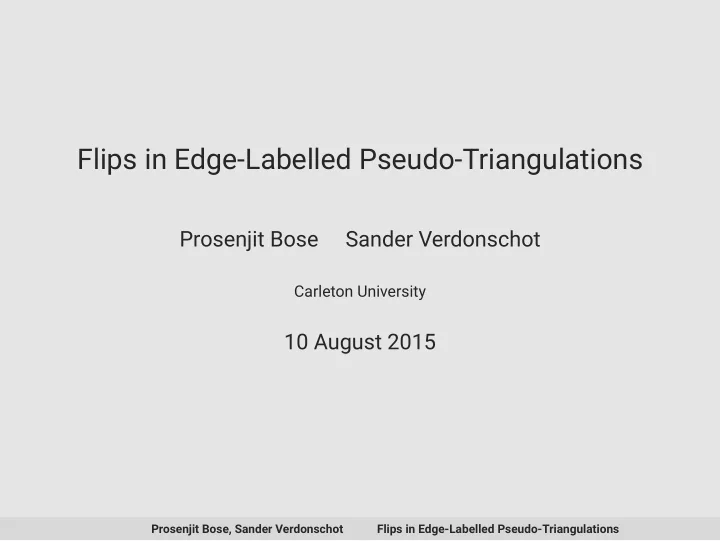

Flips in Edge-Labelled Pseudo-Triangulations

Prosenjit Bose Sander Verdonschot

Carleton University

10 August 2015

Prosenjit Bose, Sander Verdonschot Flips in Edge-Labelled Pseudo-Triangulations

slide-2
SLIDE 2

Pseudo-triangulations

  • All faces are pseudo-triangles
  • Pointed: all vertices are incident to a reflex angle (

)

Prosenjit Bose, Sander Verdonschot Flips in Edge-Labelled Pseudo-Triangulations

slide-3
SLIDE 3

Pseudo-triangulations

  • All faces are pseudo-triangles
  • Pointed: all vertices are incident to a reflex angle (> π)

Prosenjit Bose, Sander Verdonschot Flips in Edge-Labelled Pseudo-Triangulations

slide-4
SLIDE 4

Pseudo-triangulations

  • All faces are pseudo-triangles
  • Pointed: all vertices are incident to a reflex angle (> π)

Prosenjit Bose, Sander Verdonschot Flips in Edge-Labelled Pseudo-Triangulations

slide-5
SLIDE 5

Flips

  • Remove edge, leaving a pseudo-quadrilateral
  • Find corners opposite removed edge
  • Insert connecting geodesic

Prosenjit Bose, Sander Verdonschot Flips in Edge-Labelled Pseudo-Triangulations

slide-6
SLIDE 6

Previous work

.

Theorem (Bereg, 2004)

. . Any pointed pseudo-triangulation can be transformed into any

  • ther with O(n log n) flips.
  • What happens when edges are labelled?

Prosenjit Bose, Sander Verdonschot Flips in Edge-Labelled Pseudo-Triangulations

slide-7
SLIDE 7

Previous work

.

Theorem (Bereg, 2004)

. . Any pointed pseudo-triangulation can be transformed into any

  • ther with O(n log n) flips.
  • What happens when edges are labelled?

Prosenjit Bose, Sander Verdonschot Flips in Edge-Labelled Pseudo-Triangulations

slide-8
SLIDE 8

Upper bound

  • Transform T1 into T2
  • Via canonical form TC
  • We only need to show T

TC

Prosenjit Bose, Sander Verdonschot Flips in Edge-Labelled Pseudo-Triangulations

slide-9
SLIDE 9

Upper bound

  • Transform T1 into T2
  • Via canonical form TC
  • We only need to show T

TC

Prosenjit Bose, Sander Verdonschot Flips in Edge-Labelled Pseudo-Triangulations

slide-10
SLIDE 10

Upper bound

  • Transform T1 into T2
  • Via canonical form TC
  • We only need to show T → TC

Prosenjit Bose, Sander Verdonschot Flips in Edge-Labelled Pseudo-Triangulations

slide-11
SLIDE 11

Transform into canonical

  • Ignore labels
  • Move labels around

Prosenjit Bose, Sander Verdonschot Flips in Edge-Labelled Pseudo-Triangulations

slide-12
SLIDE 12

Left-shelling pseudo-triangulation

  • Add vertices in clockwise order around bottom vertex
  • Connect to bottom (bottom edge)
  • Add tangent to convex hull (top edge)

Prosenjit Bose, Sander Verdonschot Flips in Edge-Labelled Pseudo-Triangulations

slide-13
SLIDE 13

Tools

  • Sweep: exchange labels on top and bottom pairs
  • Shuffle: reorder bottom labels

Prosenjit Bose, Sander Verdonschot Flips in Edge-Labelled Pseudo-Triangulations

slide-14
SLIDE 14

Algorithm

  • Identify out-of-place top and bottom labels

Prosenjit Bose, Sander Verdonschot Flips in Edge-Labelled Pseudo-Triangulations

slide-15
SLIDE 15

Algorithm

  • Pair these up (Shuffle)

Prosenjit Bose, Sander Verdonschot Flips in Edge-Labelled Pseudo-Triangulations

slide-16
SLIDE 16

Algorithm

  • Exchange them (Sweep)

Prosenjit Bose, Sander Verdonschot Flips in Edge-Labelled Pseudo-Triangulations

slide-17
SLIDE 17

Algorithm

  • Sort bottom labels (Shuffle)

Prosenjit Bose, Sander Verdonschot Flips in Edge-Labelled Pseudo-Triangulations

slide-18
SLIDE 18

Algorithm

  • Sort bottom labels (Shuffle)

Prosenjit Bose, Sander Verdonschot Flips in Edge-Labelled Pseudo-Triangulations

slide-19
SLIDE 19

Algorithm

  • Move all top labels down (Sweep)

Prosenjit Bose, Sander Verdonschot Flips in Edge-Labelled Pseudo-Triangulations

slide-20
SLIDE 20

Algorithm

  • Move all top labels down (Sweep)

Prosenjit Bose, Sander Verdonschot Flips in Edge-Labelled Pseudo-Triangulations

slide-21
SLIDE 21

Algorithm

  • Sort them (Shuffle)

Prosenjit Bose, Sander Verdonschot Flips in Edge-Labelled Pseudo-Triangulations

slide-22
SLIDE 22

Algorithm

  • Move them back (Sweep)

Prosenjit Bose, Sander Verdonschot Flips in Edge-Labelled Pseudo-Triangulations

slide-23
SLIDE 23

Upper bound

.

Theorem

. . We can sort the labels of a left-shelling pseudo-triangulation with O(1) shuffles and sweeps.

  • How do we shuffle and sweep?

Prosenjit Bose, Sander Verdonschot Flips in Edge-Labelled Pseudo-Triangulations

slide-24
SLIDE 24

Upper bound

.

Theorem

. . We can sort the labels of a left-shelling pseudo-triangulation with O(1) shuffles and sweeps.

  • How do we shuffle and sweep?

Prosenjit Bose, Sander Verdonschot Flips in Edge-Labelled Pseudo-Triangulations

slide-25
SLIDE 25

Sweep

  • Easy for degree-2 vertices:
  • Idea: make every vertex degree-2 at some point

Prosenjit Bose, Sander Verdonschot Flips in Edge-Labelled Pseudo-Triangulations

slide-26
SLIDE 26

Sweep

  • Shoot a ray from vbottom to the right

When it passes a vertex:

  • Swap the top and bottom edge, if necessary
  • Flip the top edge

Prosenjit Bose, Sander Verdonschot Flips in Edge-Labelled Pseudo-Triangulations

slide-27
SLIDE 27

Sweep

  • Sweep it counter-clockwise through the point set

When it passes a vertex:

  • Swap the top and bottom edge, if necessary
  • Flip the top edge

Prosenjit Bose, Sander Verdonschot Flips in Edge-Labelled Pseudo-Triangulations

slide-28
SLIDE 28

Sweep

  • When it passes a vertex:
  • Swap the top and bottom edge, if necessary
  • Flip the top edge

Prosenjit Bose, Sander Verdonschot Flips in Edge-Labelled Pseudo-Triangulations

slide-29
SLIDE 29

Sweep

  • When it passes a vertex:
  • Swap the top and bottom edge, if necessary
  • Flip the top edge

Prosenjit Bose, Sander Verdonschot Flips in Edge-Labelled Pseudo-Triangulations

slide-30
SLIDE 30

Sweep

  • When it passes a vertex:
  • Swap the top and bottom edge, if necessary
  • Flip the top edge

Prosenjit Bose, Sander Verdonschot Flips in Edge-Labelled Pseudo-Triangulations

slide-31
SLIDE 31

Sweep

  • When it passes a vertex:
  • Swap the top and bottom edge, if necessary
  • Flip the top edge

Prosenjit Bose, Sander Verdonschot Flips in Edge-Labelled Pseudo-Triangulations

slide-32
SLIDE 32

Sweep

  • When it passes a vertex:
  • Swap the top and bottom edge, if necessary
  • Flip the top edge

Prosenjit Bose, Sander Verdonschot Flips in Edge-Labelled Pseudo-Triangulations

slide-33
SLIDE 33

Sweep

  • When it passes a vertex:
  • Swap the top and bottom edge, if necessary
  • Flip the top edge

Prosenjit Bose, Sander Verdonschot Flips in Edge-Labelled Pseudo-Triangulations

slide-34
SLIDE 34

Sweep

  • When it passes a vertex:
  • Swap the top and bottom edge, if necessary
  • Flip the top edge

Prosenjit Bose, Sander Verdonschot Flips in Edge-Labelled Pseudo-Triangulations

slide-35
SLIDE 35

Sweep

  • When it passes a vertex:
  • Swap the top and bottom edge, if necessary
  • Flip the top edge

Prosenjit Bose, Sander Verdonschot Flips in Edge-Labelled Pseudo-Triangulations

slide-36
SLIDE 36

Sweep

  • When it passes a vertex:
  • Swap the top and bottom edge, if necessary
  • Flip the top edge

Prosenjit Bose, Sander Verdonschot Flips in Edge-Labelled Pseudo-Triangulations

slide-37
SLIDE 37

Sweep

  • When it passes a vertex:
  • Swap the top and bottom edge, if necessary
  • Flip the top edge

Prosenjit Bose, Sander Verdonschot Flips in Edge-Labelled Pseudo-Triangulations

slide-38
SLIDE 38

Sweep

  • When it passes a vertex:
  • Swap the top and bottom edge, if necessary
  • Flip the top edge

Prosenjit Bose, Sander Verdonschot Flips in Edge-Labelled Pseudo-Triangulations

slide-39
SLIDE 39

Sweep

  • When it passes a vertex:
  • Swap the top and bottom edge, if necessary
  • Flip the top edge

Prosenjit Bose, Sander Verdonschot Flips in Edge-Labelled Pseudo-Triangulations

slide-40
SLIDE 40

Sweep

  • When it passes a vertex:
  • Swap the top and bottom edge, if necessary
  • Flip the top edge

Prosenjit Bose, Sander Verdonschot Flips in Edge-Labelled Pseudo-Triangulations

slide-41
SLIDE 41

Sweep

  • When it passes a vertex:
  • Swap the top and bottom edge, if necessary
  • Flip the top edge

Prosenjit Bose, Sander Verdonschot Flips in Edge-Labelled Pseudo-Triangulations

slide-42
SLIDE 42

Sweep

  • When it passes a vertex:
  • Swap the top and bottom edge, if necessary
  • Flip the top edge

Prosenjit Bose, Sander Verdonschot Flips in Edge-Labelled Pseudo-Triangulations

slide-43
SLIDE 43

Sweep

  • When it passes a vertex:
  • Swap the top and bottom edge, if necessary
  • Flip the top edge

Prosenjit Bose, Sander Verdonschot Flips in Edge-Labelled Pseudo-Triangulations

slide-44
SLIDE 44

Sweep

  • When it passes a vertex:
  • Swap the top and bottom edge, if necessary
  • Flip the top edge

Prosenjit Bose, Sander Verdonschot Flips in Edge-Labelled Pseudo-Triangulations

slide-45
SLIDE 45

Sweep

  • When it passes a vertex:
  • Swap the top and bottom edge, if necessary
  • Flip the top edge

Prosenjit Bose, Sander Verdonschot Flips in Edge-Labelled Pseudo-Triangulations

slide-46
SLIDE 46

Tools

  • Sweep: exchange labels on top and bottom pairs — O(n)
  • Shuffle: reorder bottom labels

Prosenjit Bose, Sander Verdonschot Flips in Edge-Labelled Pseudo-Triangulations

slide-47
SLIDE 47

Shuffle

  • Swap consecutive bottom edges
  • Easy if third pseudo-triangle is a triangle
  • Otherwise, flip top edge first
  • We can do insertion sort!

Prosenjit Bose, Sander Verdonschot Flips in Edge-Labelled Pseudo-Triangulations

slide-48
SLIDE 48

Shuffle

  • Swap consecutive bottom edges
  • Easy if third pseudo-triangle is a triangle
  • Otherwise, flip top edge first
  • We can do insertion sort!

Prosenjit Bose, Sander Verdonschot Flips in Edge-Labelled Pseudo-Triangulations

slide-49
SLIDE 49

Shuffle

  • Swap consecutive bottom edges
  • Easy if third pseudo-triangle is a triangle
  • Otherwise, flip top edge first
  • We can do insertion sort!

Prosenjit Bose, Sander Verdonschot Flips in Edge-Labelled Pseudo-Triangulations

slide-50
SLIDE 50

Tools

  • Sweep: exchange labels on top and bottom pairs — O(n)
  • Shuffle: reorder bottom labels — O(n2)

Prosenjit Bose, Sander Verdonschot Flips in Edge-Labelled Pseudo-Triangulations

slide-51
SLIDE 51

Upper bound

.

Theorem

. . We can sort the labels of a left-shelling pseudo-triangulation with O(1) shuffles and sweeps. .

Theorem

. . We can transform any edge-labelled pointed pseudo-triangulation into any other with O(n2) flips.

Prosenjit Bose, Sander Verdonschot Flips in Edge-Labelled Pseudo-Triangulations

slide-52
SLIDE 52

All pseudo-triangulations

  • Number of edges differs
  • We need edge-insertion and edge-deletion flips
  • Edge label is drawn from / placed into pool of free labels

Prosenjit Bose, Sander Verdonschot Flips in Edge-Labelled Pseudo-Triangulations

slide-53
SLIDE 53

All pseudo-triangulations

  • Number of edges differs
  • We need edge-insertion and edge-deletion flips
  • Edge label is drawn from / placed into pool of free labels

Prosenjit Bose, Sander Verdonschot Flips in Edge-Labelled Pseudo-Triangulations

slide-54
SLIDE 54

All pseudo-triangulations

  • Swap edges incident to degree-2 vertices

Prosenjit Bose, Sander Verdonschot Flips in Edge-Labelled Pseudo-Triangulations

slide-55
SLIDE 55

All pseudo-triangulations

  • Swap edges incident to degree-2 vertices

Prosenjit Bose, Sander Verdonschot Flips in Edge-Labelled Pseudo-Triangulations

slide-56
SLIDE 56

All pseudo-triangulations

  • Swap edges incident to degree-2 vertices

Prosenjit Bose, Sander Verdonschot Flips in Edge-Labelled Pseudo-Triangulations

slide-57
SLIDE 57

All pseudo-triangulations

  • Swap edges incident to degree-2 vertices

Prosenjit Bose, Sander Verdonschot Flips in Edge-Labelled Pseudo-Triangulations

slide-58
SLIDE 58

All pseudo-triangulations

  • Swap edges incident to degree-2 vertices

Prosenjit Bose, Sander Verdonschot Flips in Edge-Labelled Pseudo-Triangulations

slide-59
SLIDE 59

Upper bound

.

Theorem

. . Using insertion and deletion flips, we can shuffle with O(n log n) flips. .

Theorem

. . We can transform any edge-labelled pseudo-triangulation into any other with O(n log n) flips.

Prosenjit Bose, Sander Verdonschot Flips in Edge-Labelled Pseudo-Triangulations

slide-60
SLIDE 60

Lower bound

  • Triangulation of convex polygon

= pointed pseudo-triangulation .

Theorem

. . There are pairs of edge-labelled pointed pseudo-triangulations such that we need at least Ω(n log n) flips to transform one into the other.

Prosenjit Bose, Sander Verdonschot Flips in Edge-Labelled Pseudo-Triangulations

slide-61
SLIDE 61

Summary

  • Pointed pseudo-triangulations (only exchanging flips)

Ω(n log n) and O(n2)

  • All pseudo-triangulations (all three flip types)

Θ(n log n)

Prosenjit Bose, Sander Verdonschot Flips in Edge-Labelled Pseudo-Triangulations
