EXPERIENCE IN DATA ACQUISITION DCS AND IMAGES LRIT IN GUATEMALA HISTORY OF DCS DATA ACQUISITION IN GUATAMALA FROM HURRICANE MITCH IN 2000, GUATEMALA PURCHASED BY HIS FIRST DONATION BY SEASONS HYDROMETEOROLOGICAL USGS. AGATHA

slide-1
SLIDE 1

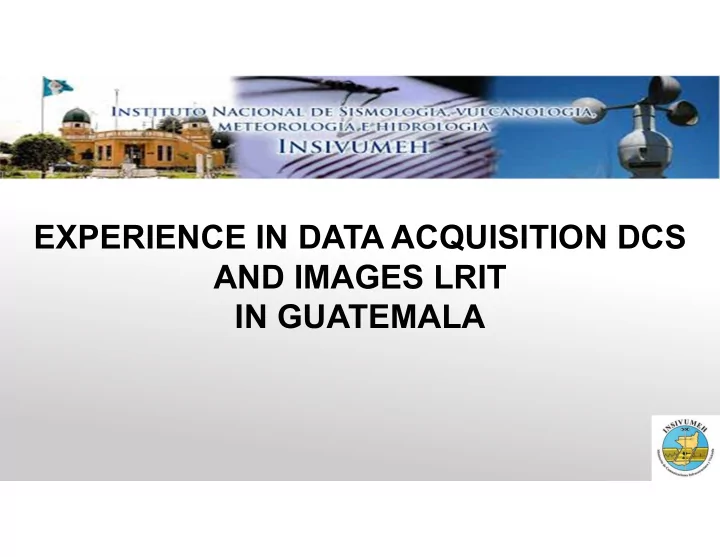

EXPERIENCE IN DATA ACQUISITION DCS AND IMAGES LRIT IN GUATEMALA

slide-2
SLIDE 2

HISTORY OF DCS DATA ACQUISITION IN GUATAMALA

  • FROM

HURRICANE MITCH IN 2000, GUATEMALA PURCHASED BY HIS FIRST DONATION BY SEASONS HYDROMETEOROLOGICAL USGS. AGATHA STORM THEN LOST ALMOST 75% OF THE SEASONS DUE TO FLOOD THE CURRENTLY WORK THESE 100 BAUD AND HAVE NOT BEEN ABLE TO REPLACE DUE TO LACK OF BUDGET.

  • FROM THE YEAR 2010 HAS STRENGTHENED THE MONITORING NETWORK THROUGH

THE AUTOMATIC HYDROMETEOROLOGICAL BCIE-1656 PROJECT FUNDED THROUGH A CENTRAL BANK LOAN OF ECONOMIC INTEGRATION BCIE-1656.

  • ALSO PURCHASED EQUIPMENT FOR RECEIPT OF SATELLITE IMAGES FOR LRIT TO

MAKE OUR OWN MAPS.

  • THE YEAR 2012 THE IOC AND UNESCO ENDOWED OF STATION FOR MONITORING

MAREOGRAPHIC CARIBBEAN TSUNAMI GUATEMALTECO.

  • IN THE YEAR 2015 WILL BE RUNNING THE FIRST BAND RADAR S DUAL POLARITY

FOR MONITORING WEATHER.

slide-3
SLIDE 3

CURRENTLY HAS A TOTAL OF 68 HYDROMETEOROLOGICAL STATIONS MAKING UP THE AUTOMATIC MONITORING NETWORK INSIVUMEH. INSIVUMEH CURRENTLY USED AS THE MAIN SYSTEM DATA ACQUISITION IN ITS AUTOMATIC STATIONS FOR THE RECEPTION SYSTEM GOES DCS DATA. AND DATA ROUTE GPRS REDUNDANT THAT ARE STORED IN THE SERVERS POWER SYSTEM IN YOUR DATA CENTER OF INSIVUMEH. AND IS EXPECTED TO HAVE A NATIONAL FORECAST CENTER WITH HIGH TECH EQUIPMENT FOR MONITORING AND ANALYSIS OF ATMOSPHERIC PHENOMENA.

slide-4
SLIDE 4
slide-5
SLIDE 5

DATA RECEPTION DCS

slide-6
SLIDE 6

REDUNDANT SYSTEM DATA RECEPTION GPRS

slide-7
SLIDE 7

GOES satellite

COMMUNICATIONS SYSTEM AND GOES TO THE SEASONS AUTOMATIC GPRS (detailed)

RECEPTOR LRIT‐

DCS/EMWIN/Images

Signal Separator RECEIVER GVAR SYNCHROMESH DATA SCSI interface

Server Images Linux Redhat / ASAP / Sistem 9000

LAN LNB down converter reception UPS Unity, kva, keyboard and lcd

Windows server XRIT‐LRGS / Hydras / SQL SERVER

slide-8
SLIDE 8
slide-9
SLIDE 9

VIS NORTH IR FULL IR NORTH IR SPECIAL VIS FULL VIS SPECIAL WV FULL WV NORTH

LRIT PRODUCTS USED FOR MONITORING IN GUATEMALA

slide-10
SLIDE 10

GVAR PRODUCTS USED FOR MONITORING IN GUATEMALA

slide-11
SLIDE 11

CURRENTLY INSTALLED ENDING THIS WEATHER RADAR S BAND DUAL POLARITY ALLOWED TO HAVE A BETTER MONITORING OF ATMOSPHERIC PHENOMENA IN THE COUNTRY COVERING MUCH OF HOMELAND (RANGE SCAN WITHIN A MAXIMUM POWER: 400 KMS)

slide-12
SLIDE 12

THANK YOU FOR YOUR ATTENTION

NATIONAL INSTITUTE OF SEISMOLOGY, VOLCANOLOGY, METEOROLOGY AND HYDROLOGY

  • INSIVUMEH-

GUATEMALA, C.A.

  • TEL. 502-23105000

Email: indireccion@insivumeh.gob.gt svega@insivumeh.gob.gt Web page: www.insivumeh.gob.gt

Greenbelt, Maryland, Washington D.C, Estados Unidos Abril 2015
