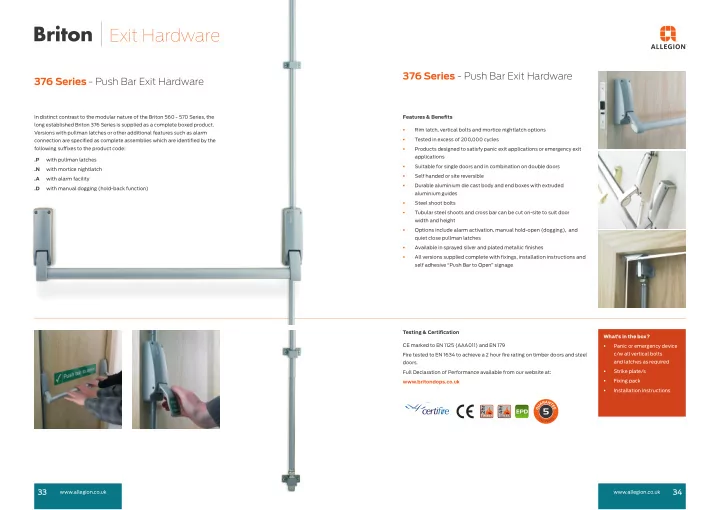

376 Series - Push Bar Exit Hardware

In distinct contrast to the modular nature of the Briton 560 - 570 Series, the long established Briton 376 Series is supplied as a complete boxed product. Versions with pullman latches or other additional features such as alarm connection are specifjed as complete assemblies which are identifjed by the following suffjxes to the product code: .P with pullman latches .N with mortice nightlatch .A with alarm facility .D with manual dogging (hold-back function) ƒ ƒ Rim latch, vertical bolts and mortice nightlatch options ƒ ƒ Tested in excess of 200,000 cycles ƒ ƒ Products designed to satisfy panic exit applications or emergency exit applications ƒ ƒ Suitable for single doors and in combination on double doors ƒ ƒ Self handed or site reversible ƒ ƒ Durable aluminium die cast body and end boxes with extruded aluminium guides ƒ ƒ Steel shoot bolts ƒ ƒ Tubular steel shoots and cross bar can be cut on-site to suit door width and height ƒ ƒ Options include alarm activation, manual hold-open (dogging), and quiet close pullman latches ƒ ƒ Available in sprayed silver and plated metallic fjnishes ƒ ƒ All versions supplied complete with fjxings, installation instructions and self adhesive “Push Bar to Open” signage Features & Benefits CE marked to EN 1125 (AAA011) and EN 179 Fire tested to EN 1634 to achieve a 2 hour fjre rating on timber doors and steel doors. Full Declaration of Performance available from our website at: www.britondops.co.uk Testing & Certification What’s in the box? ƒ ƒ Panic or emergency device c/w all vertical bolts and latches as required ƒ ƒ Strike plate/s ƒ ƒ Fixing pack ƒ ƒ Installation instructions

376 Series - Push Bar Exit Hardware

EPD

Exit Hardware

34

www.allegion.co.uk

33

www.allegion.co.uk

36

www.allegion.co.uk

35

www.allegion.co.uk

Exit Hardware

Panic Exit Bolt Briton 376 ƒ ƒ Vertical panic bolt activation ƒ ƒ Two point locking for extra security ƒ ƒ Anti-thrust device, prevents forced latch retraction ƒ ƒ Suitable for single and double door applications ƒ ƒ Optional models available (see chart page 183) Panic Exit Latch Briton 378 ƒ ƒ Rim panic latch with single point latching ƒ ƒ Suitable for single and double doors in combination with Briton 376 panic bolt ƒ ƒ Hand reversed on site ƒ ƒ Optional models available (see chart page 183) Mortice Panic Nightlatch Briton 379.N ƒ ƒ Mortice panic nightlatch ƒ ƒ For single doors and the fjrst

• pening leaf of double doors

ƒ ƒ Hand reversed on site ƒ ƒ Supplied with dual profjle cylinder mortice nightlatch, (cylinder not supplied) ƒ ƒ Anti-thrust device prevents forced latch retraction

376 Series - Push Bar Panic Exit Hardware

Panic Exit for Double Doors Briton 377 ƒ ƒ Double door combination ƒ ƒ Suitable for rebated double doors ƒ ƒ Comprises 376 rim latch and 378 vertical bolt devices ƒ ƒ 378DDS double door strike included Briton 376 - Double door applications

378DDS

Non rebated doors Rebated doors Non rebated doors - mortice nightlatch

1st opening leaf

Options with pullman latches, alarm or hold-back feature

Part No.

Briton 376 + options

Part No.

Briton 376 + options

Part No.

Briton 376 + options

Part No.

Briton 379.N + options

Part No.

Briton 377

1st opening leaf

Part No.

Briton 376 + options

Part No.

Briton 378 + options

Rebated doors Options and accessories Most of the 376 Series panic exit devices can be ordered with additional functions of built in alarm, hold-open (dogging) function or with quiet close pullman latches. Please refer to the product selector overleaf. A series of accessories is also available to suit application to metal doors.
