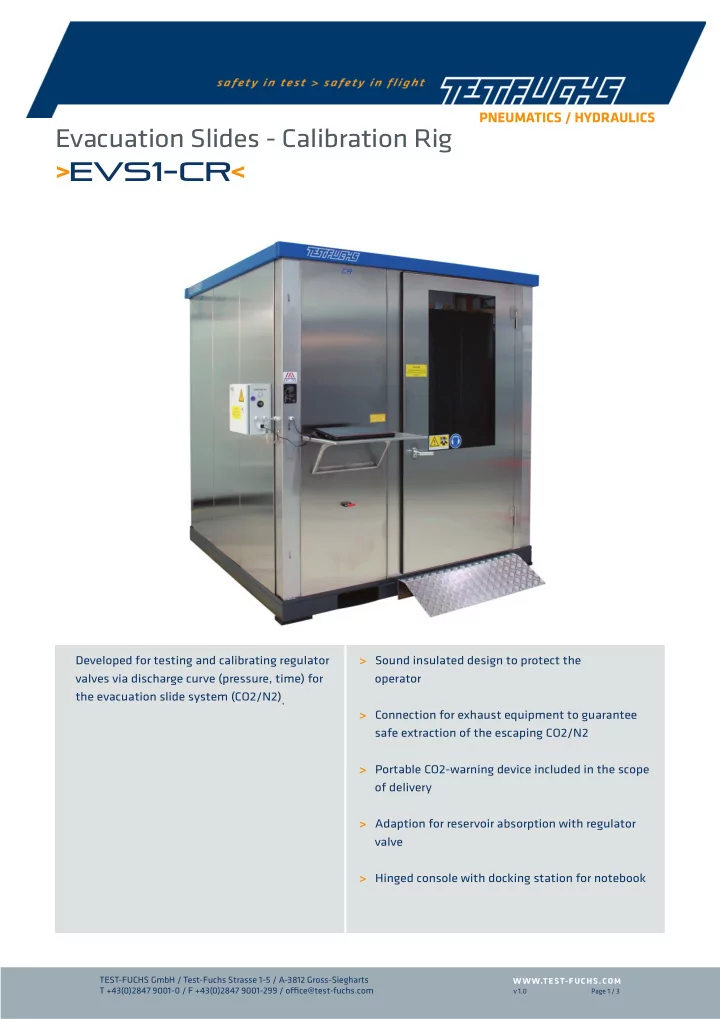

Evacuation Slides - Calibration Rig >EVS1-CR<

Developed for testing and calibrating regulator valves via discharge curve (pressure, time) for the evacuation slide system (CO2/N2). > Sound insulated design to protect the

• perator

> Connection for exhaust equipment to guarantee safe extraction of the escaping CO2/N2 > Portable CO2-warning device included in the scope

• f delivery

> Adaption for reservoir absorption with regulator valve > Hinged console with docking station for notebook

Page 1 / 3

PNEUMATICS / HYDRAULICS

WWW.TEST-FUCHS.COM

TEST-FUCHS GmbH / Test-Fuchs Strasse 1-5 / A-3812 Gross-Siegharts T +43(0)2847 9001-0 / F +43(0)2847 9001-299 / offjce@test-fuchs.com

MAKO/BEKO >EVS1-CR<

GENERAL INFORMATION

> Notebook with TEST-FUCHS software and pressure sensor > Rail and tube clamping locks for test procedure > Integrated fork lift access points for transport via fork lift truck > Access door to test chamber with safety glass window for optimal observation > Checkered plate ramp for easy access to the test chamber > Tray lamp for optimal illumination of the test chamber > Opening for activation rope > Cable winch or cable winch mechanics optionally available (not included in the standard scope of delivery) > “Special Tools“ are not included in the standard scope of delivery

Page 2 / 3

OPTIONS

Various options are available to meet our customers’ requirements. Adaption for reservoir absorption with regulator valve Hinged console with docking station for notebook

WWW.TEST-FUCHS.COM

>EVS1-CR<

TEST-FUCHS GmbH / Test-Fuchs Strasse 1-5 / A-3812 Gross-Siegharts T +43(0)2847 9001-0 / F +43(0)2847 9001-299 / offjce@test-fuchs.com

Page 3 / 3 Technical data are subject to change!

TECHNICAL DATA

> Hydraulic and pneumatic supplies (requirements):

• Exhaust equipment

Tube diameter: 300mm (11.8in) > Electrical supply (requirements): Mains connection: 1/N/PE AC 50Hz 230V Performance: 0.23kVA Nominal current: max. 1A Back-up fuse: 16AgG NH-type > Measurements: Pressure: 0 to 110bar (0 to 1595psi) ±0.15% of the measuring range > Dimensions and weight:

• External measurements:

Width: approx. 2,200mm (approx. 86.6in) Depth: approx. 2,500mm (approx. 98.4in) Height: approx. 2,300mm (approx. 90.6in)

• Internal dimensions:

Width: approx. 1,650mm (approx. 65in) Depth: approx. 1,650mm (approx. 65in) Height: approx. 2,000mm (approx. 78.7in)

• Weight: approx. 980kg (approx. 2,161lb)

> Conditions of service: Operating temperature: 5 to 35°C (41 to 95°F) Storage temperature: 0 to 60°C (32 to 140°F) Height: up to 1,000m (3,280ft) over MSL

• Rel. air humidity: 5 to 95% (non-condensing)

Installation: Non-Ex-Area
