Estimation of Cloud Droplet Number Concentration of Shallow Trade-Wind Cumulus using Synergistic Airborne Remote Sensing Kevin Wolf [1] , Andr Ehrlich [1] , Susanne Crewell [2] , Marek Jacob [2] , Martin Wirth [3] and Manfred Wendisch [1] [1]

slide-1
SLIDE 1

1

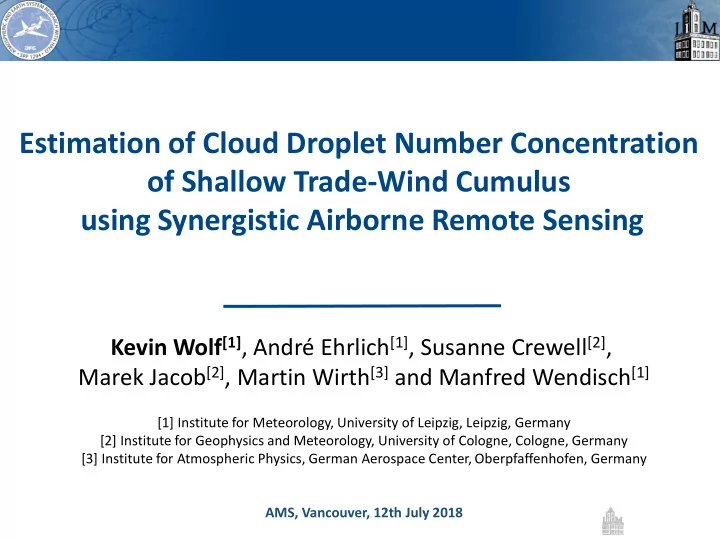

Estimation of Cloud Droplet Number Concentration

  • f Shallow Trade-Wind Cumulus

using Synergistic Airborne Remote Sensing

Kevin Wolf[1], André Ehrlich[1], Susanne Crewell[2], Marek Jacob[2], Martin Wirth[3] and Manfred Wendisch[1]

[1] Institute for Meteorology, University of Leipzig, Leipzig, Germany [2] Institute for Geophysics and Meteorology, University of Cologne, Cologne, Germany [3] Institute for Atmospheric Physics, German Aerospace Center, Oberpfaffenhofen, Germany AMS, Vancouver, 12th July 2018

slide-2
SLIDE 2

AMS, Vancouver, 12th July 2018, kevin.wolf@uni-leipzig.de

Trade-wind cumulus in Global Climate Models

01

slide-3
SLIDE 3

AMS, Vancouver, 12th July 2018, kevin.wolf@uni-leipzig.de

Trade-wind cumulus in Global Climate Models

The ‘too few, too bright‘ tropical low-cloud problem….

(Nam, C. et al., Geophys, Res. Lett. 2012 )

01

slide-4
SLIDE 4

AMS, Vancouver, 12th July 2018, kevin.wolf@uni-leipzig.de

Trade-wind cumulus in Global Climate Models

Poorly represented due to:

  • Sub-grid size
  • Structural variability
  • Boundary layer interactions

The ‘too few, too bright‘ tropical low-cloud problem….

(Nam, C. et al., Geophys, Res. Lett. 2012 )

01

slide-5
SLIDE 5

AMS, Vancouver, 12th July 2018, kevin.wolf@uni-leipzig.de

Sensitivity Studies

532 nm Liquid water path Cloud droplet number concentration Cloud top albedo / Cloud top reflectivity R = f(LWP,CDNC, T,p,q)

02

slide-6
SLIDE 6

AMS, Vancouver, 12th July 2018, kevin.wolf@uni-leipzig.de

Sensitivity Studies

I

532 nm Liquid water path Cloud droplet number concentration Cloud top albedo / Cloud top reflectivity R = f(LWP,CDNC, T,p,q) I) CDNC driven: change of CDNC dominates

02

slide-7
SLIDE 7

AMS, Vancouver, 12th July 2018, kevin.wolf@uni-leipzig.de

Sensitivity Studies

II I

I) CDNC driven: change of CDNC dominates II) LWP driven: change of LWP dominates 532 nm Liquid water path Cloud droplet number concentration Cloud top albedo / Cloud top reflectivity R = f(LWP,CDNC, T,p,q)

02

slide-8
SLIDE 8

AMS, Vancouver, 12th July 2018, kevin.wolf@uni-leipzig.de

Sensitivity Studies

II I

532 nm How to separate the radiative effect from varying environmental conditions? Liquid water path Cloud droplet number concentration Cloud top albedo / Cloud top reflectivity R = f(LWP,CDNC, T,p,q)

02

slide-9
SLIDE 9

AMS, Vancouver, 12th July 2018, kevin.wolf@uni-leipzig.de

CDNC retrievals

τ and reff from bi-spectral retrieval (Nakajima and King, 1990) Cloud top T and p Assumptions: i) Adiabatic cloud profile ii) Vertically constant CDNC

T, p LWC

Common satellite

  • Brenguier, J.-L. et al., 2000
  • Grosvenor, D. P. et al., 2018
  • Wood, R. et al., 2006
  • Zheng, R. et al., 2008

Height

03

slide-10
SLIDE 10

AMS, Vancouver, 12th July 2018, kevin.wolf@uni-leipzig.de

CDNC retrievals

τ and reff from bi-spectral retrieval (Nakajima and King, 1990) Cloud top T and p Assumptions: i) Adiabatic cloud profile ii) Vertically constant CDNC Shortcomings:

  • Large scale averaging (T and LWP)
  • Sub-pixel heterogeneity
  • Precipitation ?

T, p

?

Common satellite

  • Brenguier, J.-L. et al., 2000
  • Grosvenor, D. P. et al., 2018
  • Wood, R. et al., 2006
  • Zheng, R. et al., 2008

LWC Height

03

slide-11
SLIDE 11

AMS, Vancouver, 12th July 2018, kevin.wolf@uni-leipzig.de

CDNC retrievals

τ and reff from bi-spectral retrieval (Nakajima and King, 1990) Cloud top T and p Assumptions: i) Adiabatic cloud profile ii) Vertically constant CDNC Shortcomings:

  • Large scale averaging (T and LWP)
  • Sub-pixel heterogeneity
  • Precipitation ?

T, p

Common satellite

Combined airborne passive and active remote sensing

?

LWC Height

03

slide-12
SLIDE 12

AMS, Vancouver, 12th July 2018, kevin.wolf@uni-leipzig.de

Campaign

  • Platform:

Area:

  • Time: 08. August – 31. August 2016
  • Objectives:
  • Trade-wind cumulus in the ITC region
  • Radiative effects
  • Structure
  • Evolution

Stevens, B. et al., 2018: (in prep.)

High Altitude and Long Range Research Aircraft (HALO)

Flight tracks of HALO during NARVAL-II 04

slide-13
SLIDE 13

AMS, Vancouver, 12th July 2018, kevin.wolf@uni-leipzig.de

Instrumentation of HALO

Combination of active and passive remote sensing instruments

WALES

  • Differential Absorption

and High Spectral Resolution Lidar

  • Cloud top height

05

slide-14
SLIDE 14

AMS, Vancouver, 12th July 2018, kevin.wolf@uni-leipzig.de

Instrumentation of HALO

Combination of active and passive remote sensing instruments

WALES

  • Differential Absorption

and High Spectral Resolution Lidar

  • Cloud top height

HAMP

  • Microwave radiometer
  • Cloud radar
  • Liquid water path
  • Radar reflectivity
  • Temperature +

humidity profiles

05

slide-15
SLIDE 15

AMS, Vancouver, 12th July 2018, kevin.wolf@uni-leipzig.de

Instrumentation of HALO

SMART

  • Passive cloud

spectrometer

Combination of active and passive remote sensing instruments

HAMP

  • Microwave radiometer
  • Cloud radar

WALES

  • Differential Absorption

and High Spectral Resolution Lidar

  • Cloud top height
  • Liquid water path
  • Radar reflectivity
  • Temperature +

humidity profiles

  • Irradiances
  • Optical thickness
  • Effective radius
  • Cloud top reflectivity

05

slide-16
SLIDE 16

AMS, Vancouver, 12th July 2018, kevin.wolf@uni-leipzig.de

Synergistic retrieval approach

SMART (Method A)

Cloud top reflectivity Effective Radius

dz LWC Height

γad

06

slide-17
SLIDE 17

AMS, Vancouver, 12th July 2018, kevin.wolf@uni-leipzig.de

Synergistic retrieval approach

SMART (Method A)

Cloud top reflectivity Effective Radius

HAMP (Method B)

Liquid Water Path Effective Radius Cloud base height

WALES (Method C)

Cloud top height

dz LWC Height

γad γmeas

06

slide-18
SLIDE 18

AMS, Vancouver, 12th July 2018, kevin.wolf@uni-leipzig.de

Synergistic retrieval approach

SMART (Method A)

Cloud top reflectivity Effective Radius

HAMP (Method B)

Liquid Water Path Effective Radius Cloud base height Radar reflectivity Precipitation flag

WALES (Method C)

Cloud top height

dz LWC Height

γad γmeas

06

slide-19
SLIDE 19

AMS, Vancouver, 12th July 2018, kevin.wolf@uni-leipzig.de

Synthetic measurements

07

slide-20
SLIDE 20

AMS, Vancouver, 12th July 2018, kevin.wolf@uni-leipzig.de

Synthetic measurements

07

slide-21
SLIDE 21

AMS, Vancouver, 12th July 2018, kevin.wolf@uni-leipzig.de

Synthetic measurements

07

slide-22
SLIDE 22

AMS, Vancouver, 12th July 2018, kevin.wolf@uni-leipzig.de

Synthetic measurements

uncorrected adiabaticity

07

slide-23
SLIDE 23

AMS, Vancouver, 12th July 2018, kevin.wolf@uni-leipzig.de

Synthetic measurements

corrected adiabaticity

07

slide-24
SLIDE 24

AMS, Vancouver, 12th July 2018, kevin.wolf@uni-leipzig.de

Measurement Example

Date: 19.08.2016 Time: 12:29 – 20:52 UTC Duration: 8h 23 min Weather situation:

  • moderate convection
  • larger fields of

shallow trade-wind cumulus

  • zonaly winds

Meteosat satellite image of 19:30 UTC

08

slide-25
SLIDE 25

AMS, Vancouver, 12th July 2018, kevin.wolf@uni-leipzig.de

Correlation Reflectivity - CDNC

Simulated Cloud top reflectivity

532 nm 532 nm

uncorrected adiabaticity

08

slide-26
SLIDE 26

AMS, Vancouver, 12th July 2018, kevin.wolf@uni-leipzig.de

Correlation Reflectivity - CDNC

Simulated Cloud top reflectivity

532 nm 532 nm

corrected adiabaticity

09

slide-27
SLIDE 27

AMS, Vancouver, 12th July 2018, kevin.wolf@uni-leipzig.de

Correlation Reflectivity - CDNC

Simulated Cloud top reflectivity

532 nm 532 nm 532 nm

b) a)

09

slide-28
SLIDE 28

AMS, Vancouver, 12th July 2018, kevin.wolf@uni-leipzig.de

Simulated Cloud top reflectivity

532 nm 532 nm

Conclusion

How to separate the radiative effect from varying environmental conditions?

  • Reflectance measurements
  • Independent Cloud Droplet Number Concentration
  • Separated for Liquid water path and droplet size
  • Correct adiabatic assumption (calc. adiabaticity)
  • Precipitation flag

10

slide-29
SLIDE 29

AMS, Vancouver, 12th July 2018, kevin.wolf@uni-leipzig.de

Additional slides

slide-30
SLIDE 30

AMS, Vancouver, 12th July 2018, kevin.wolf@uni-leipzig.de

References

slide-31
SLIDE 31

AMS, Vancouver, 12th July 2018, kevin.wolf@uni-leipzig.de

Measurement Example

slide-32
SLIDE 32

AMS, Vancouver, 12th July 2018, kevin.wolf@uni-leipzig.de

Measurement Example

slide-33
SLIDE 33

AMS, Vancouver, 12th July 2018, kevin.wolf@uni-leipzig.de

Measurement Example

slide-34
SLIDE 34

AMS, Vancouver, 12th July 2018, kevin.wolf@uni-leipzig.de

Measurement Example

slide-35
SLIDE 35

AMS, Vancouver, 12th July 2018, kevin.wolf@uni-leipzig.de

Measurement Example

slide-36
SLIDE 36

AMS, Vancouver, 12th July 2018, kevin.wolf@uni-leipzig.de

Measurement Example

slide-37
SLIDE 37

AMS, Vancouver, 12th July 2018, kevin.wolf@uni-leipzig.de

Measurement Example

slide-38
SLIDE 38

AMS, Vancouver, 12th July 2018, kevin.wolf@uni-leipzig.de

Cloud top height

slide-39
SLIDE 39

AMS, Vancouver, 12th July 2018, kevin.wolf@uni-leipzig.de

Propability function of CDNC

slide-40
SLIDE 40

AMS, Vancouver, 12th July 2018, kevin.wolf@uni-leipzig.de

Liquid water path

slide-41
SLIDE 41

AMS, Vancouver, 12th July 2018, kevin.wolf@uni-leipzig.de

Effective radius

slide-42
SLIDE 42

AMS, Vancouver, 12th July 2018, kevin.wolf@uni-leipzig.de

Simulated Cloud top reflectivity Why:

  • Sub-adiabaticity
  • 3D radiative effects
  • Cloud heterogenieties
  • Cloud size
  • Surface albedo
  • Droplet size distribution

Correlation Reflectivity - CDNC

532 nm 532 nm

slide-43
SLIDE 43

AMS, Vancouver, 12th July 2018, kevin.wolf@uni-leipzig.de

Synergistic retrieval approach

SMART HAMP (Microwave profiler + radar WALES Dropsonde Cloud optical thickness Effective radius Liquid Water Path Cloud top height Cloud base height Radar reflectivity

  • Cloud geometric

thickness

slide-44
SLIDE 44

AMS, Vancouver, 12th July 2018, kevin.wolf@uni-leipzig.de

Common CDNC satellite retrieval

τ and reff from bi-spectral retrieval (Nakajima and King) Cloud top T and p Assumptions: i) Adiabatic cloud profile ii) Vertically constant DNC

T, p LWC

slide-45
SLIDE 45

AMS, Vancouver, 12th July 2018, kevin.wolf@uni-leipzig.de

Common CDNC satellite retrieval

τ and reff from bi-spectral retrieval (Nakajima and King) Cloud top T and p Assumptions: i) Adiabatic cloud profile ii) Vertically constant DNC Disadvantage: Large scale averaging (T and LWP)

T, p LWC

slide-46
SLIDE 46

AMS, Vancouver, 12th July 2018, kevin.wolf@uni-leipzig.de

Spectral Modular Airborne Radiation measurement sysTem

Wendisch, M. et al., 2001: An airborne spectral albedometer with active horizontal stabilization, J. Atmos. Oceanic Technol., 18, 1856-1866, doi: 10.1175/1520- 0426(2001)018<1856:AASAWA>2.0.CO;2

Cloud radiative forcing Retrieval of:

  • Optical thickness
  • Effective radius
  • Cloud top phase
  • Zeiss grating spectrometers
  • Temporal resolution: 2 – 5 Hz
  • Spatial resolution: 2°FOV 120mx110 m (@ 220 m s-1 10 000m)
  • Wavelength range: 300 – 2200 nm
  • Spectral resolution: 2 – 16 nm FWHM

46

slide-47
SLIDE 47

AMS, Vancouver, 12th July 2018, kevin.wolf@uni-leipzig.de

HALO Microwave Package

Cloud Radar MIRA-36 Frequency: 35.563 GHz Temporal resolution: 1 a Range resolution: 30 m Footprint: 130 m Parameters: Radar reflectivity, Doppler velocity, spectral width, Depolarization ratio Microwave Profiler Frequency: 26 Frequencies [22.24 – 183.31 ±12.5 GHz] Temporal resolution: 1 a Footrint: 130 m Parameters: Brightness temperature and humidity profiles

Mech, M. et al., 2014: HAMP – the microwave package on the High Altitude and Long range research aircraft (HALO), J. Atmos. Meas Tech., 7, 4539-4553, doi: 10.5194/amt-7-4539-2014

slide-48
SLIDE 48

AMS, Vancouver, 12th July 2018, kevin.wolf@uni-leipzig.de

Instrumentation Overview

48 Passive Instruments Active Instruments SMART Albedometer

  • Spectral solar Fup, Fdw, Iup (220-2200

nm)

  • Radiation budget
  • Cloud microphysics

Cloud Radar

  • Vertical radar reflectivity
  • Doppler reflectivity

Microwave Radiometer

  • Vertical temperature and humidity

profiles

  • Column integrated properties (LWP)
  • Rain rate

Lidar

  • Backscatter ratio @ 532nm
  • Depol. ratio
  • Cloud top height
slide-49
SLIDE 49

AMS, Vancouver, 12th July 2018, kevin.wolf@uni-leipzig.de

Multi-wavelength water vapor differential absorption Lidar WALES

Wirth, M. et al., 2009: The airborne multi-wavelength water vapor differential absorption lidar WALES: system design and performance, Appl. Phys. B., 96, 201-213, doi: 10.1007/s00340-009-3365-7
