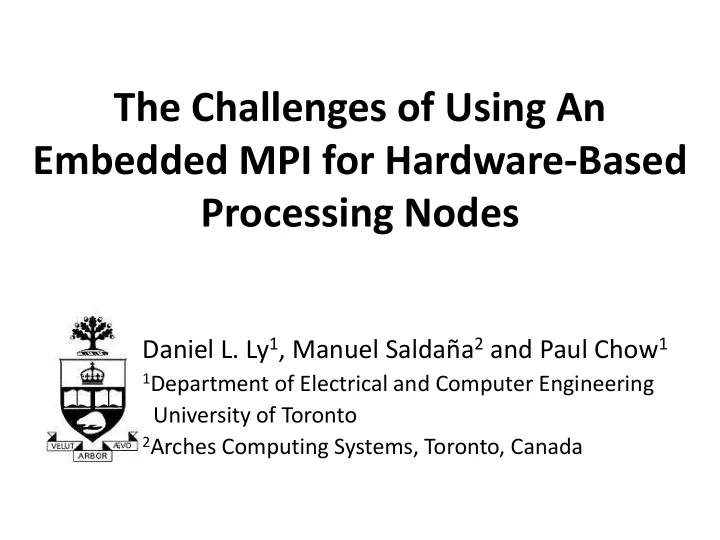

The Challenges of Using An Embedded MPI for Hardware-Based Processing Nodes

Daniel L. Ly1, Manuel Saldaña2 and Paul Chow1

1Department of Electrical and Computer Engineering

University of Toronto

2Arches Computing Systems, Toronto, Canada

Outline

• Background and Motivation
• Embedded Processor-Based Optimizations
• Hardware Engine-Based Optimizations
• Conclusions and Future Work

Ly D, Saldaña M, Chow P. FPT 2009 2

Motivation

• Message Passing Interface (MPI) is a programming

model for distributed memory systems

• Popular in high performance computing (HPC),

cluster-based systems

Ly D, Saldaña M, Chow P. FPT 2009 3

Motivation

• Message Passing Interface (MPI) is a programming

model for distributed memory systems

• Popular in high performance computing (HPC),

cluster-based systems

Ly D, Saldaña M, Chow P. FPT 2009 4

Processor 1 Memory Processor 2 Memory

for (i = 1; i <= 100; i++) sum += i;

Problem: sum of numbers from 1 to 100

Motivation

• Message Passing Interface (MPI) is a programming

model for distributed memory systems

• Popular in high performance computing (HPC),

cluster-based systems

Ly D, Saldaña M, Chow P. FPT 2009 5

Processor 1 Memory Processor 2 Memory

sum1 = 0; for (i = 1; i <= 50; i++) sum1 += i; MPI_Recv(sum2, ...); sum = sum1 + sum2; sum1 = 0; for (i = 51; i <= 100; i++) sum1 += i; MPI_Send(sum1, ...);

Motivation

• Message Passing Interface (MPI) is a programming

model for distributed memory systems

• Popular in high performance computing (HPC),

cluster-based systems

Ly D, Saldaña M, Chow P. FPT 2009 6

Processor 1 Memory Processor 2 Memory

sum1 = 0; for (i = 0; i <= 50; i++) sum1 += i; MPI_Recv(sum2, ...); sum = sum1 + sum2; sum1 = 0; for (i = 51; i <= 100; i++) sum1 += i; MPI_Send(sum1, ...);

Motivation

• Message Passing Interface (MPI) is a programming

model for distributed memory systems

• Popular in high performance computing (HPC),

cluster-based systems

Ly D, Saldaña M, Chow P. FPT 2009 7

Processor 1 Memory Processor 2 Memory

sum1 = 0; for (i = 1; i <= 50; i++) sum1 += i; MPI_Recv(sum2, ...); sum = sum1 + sum2; sum1 = 0; for (i = 51; i <= 100; i++) sum1 += i; MPI_Send(sum1, ...);

Motivation

• Message Passing Interface (MPI) is a programming

model for distributed memory systems

• Popular in high performance computing (HPC),

cluster-based systems

Ly D, Saldaña M, Chow P. FPT 2009 8

Processor 1 Memory Processor 2 Memory

sum1 = 0; for (i = 1; i <= 50; i++) sum1 += i; MPI_Recv(sum2, ...); sum = sum1 + sum2; sum1 = 0; for (i = 51; i <= 100; i++) sum1 += i; MPI_Send(sum1, ...);

Motivation

• Strong interest in adapting MPI for embedded designs:

– Increasingly difficult to interface heterogeneous resources as FPGA chip size increases

• MPI provides key benefits:

– Unified protocol – Low weight and overhead – Abstraction of end points (ranks) – Easy prototyping

Ly D, Saldaña M, Chow P. FPT 2009 9

Motivation

Property HPC Cluster Embedded FPGA Processor Clock Rate 2-3 GHz 100-200 MHz Memory Size per node > 1GB 1-20 MB Interconnect Protocol Robustness High None Latency 10μs (20k cycles) 100ns (10 cycles) Bandwidth 125 MB/s 400-800 MB/s Components Processing Nodes Homogenous Heterogeneous

Ly D, Saldaña M, Chow P. FPT 2009 10

Motivation

• Interaction classes arising from heterogeneous designs:

– Class I: Software-software interactions

• Collections of embedded processors
• Thoroughly investigated; will not be discussed

– Class II: Software-hardware interactions

• Embedded processors with hardware engines
• Large variety in processing speed

– Class III: Hardware-hardware interactions

• Collections of hardware engines
• Hardware engines are capable of significant

concurrency compared to processors

Ly D, Saldaña M, Chow P. FPT 2009 11

Background

• Work builds on TMD-MPI[1]

– Subset implementation of the MPI standard – Allows hardware engines to be part of the message passing network – Ported to Amirix PCI, BEE2, BEE3, Xilinx ACP – Software libraries for MicroBlaze, PowerPC, Intel X86

[1] M. Saldaña et al., “MPI as an abstraction for software-hardware interaction for HPRCs,” HPRCTA, Nov. 2008.

Ly D, Saldaña M, Chow P. FPT 2009 12

Class II: Processor-based Optimizations

• Background
• Direct Memory Access MPI Hardware Engine
• Non-Interrupting, Non-Blocking Functions
• Series of MPI Messages
• Results and Analysis

Ly D, Saldaña M, Chow P. FPT 2009 13

Class II: Processor-based Optimizations

Background

• Problem 1

– Standard message paradigm for HPC systems

• Plentiful memory but high message latency
• Favours combining data into a few, large messages,

which are stored in memory and retrieved as needed – Embedded designs provide different trade-off

• Little memory but short message latency
• ‘Just-in-time’ paradigm is preferred

–Sending just enough data for one unit of computation on demand

Ly D, Saldaña M, Chow P. FPT 2009 14

Class II: Processor-based Optimizations

Background

• Problem 2

– Homogeneity of HPC systems

• Each rank has similar processing capabilities

– Heterogeneity of FPGA systems

• Hardware engines are tailored for a specific set of

functions – extremely fast processing

• Embedded processors play vital role of control

and memory distribution – little processing

Ly D, Saldaña M, Chow P. FPT 2009 15

Class II: Processor-based Optimizations

Background

• ‘Just-in-time’ + Heterogeneity = producer-

consumer model

– Processors produce messages for hardware engines to consume – Generally, the message production rate of the processor is the limiting factor

Ly D, Saldaña M, Chow P. FPT 2009 16

Class II: Processor-based Optimizations

Direct Memory Access MPI Engine

• Typical MPI implementations use only software
• DMA engine offloads time-consuming, message

tasks: memory transfers

– Frees processor to continue execution – Can implement burst memory transactions – Time required to prepare a message is independent

• f message length

– Allows messages to be queued

Ly D, Saldaña M, Chow P. FPT 2009 17

Class II: Processor-based Optimizations

Direct Memory Access MPI Engine

Ly D, Saldaña M, Chow P. FPT 2009 18

Class II: Processor-based Optimizations

Direct Memory Access MPI Engine

Ly D, Saldaña M, Chow P. FPT 2009 19

Class II: Processor-based Optimizations

Direct Memory Access MPI Engine

Ly D, Saldaña M, Chow P. FPT 2009 20

MPI_Send(...)

• 1. Processor writes 4 words
• destination rank
• address of data buffer
• message size
• message tag
• 2. PLB_MPE decodes message header
• 3. PLB_MPE transfers data from memory

Class II: Processor-based Optimizations

Direct Memory Access MPI Engine

Ly D, Saldaña M, Chow P. FPT 2009 21

MPI_Send(...)

• 1. Processor writes 4 words
• destination rank
• address of data buffer
• message size
• message tag
• 2. PLB_MPE decodes message header
• 3. PLB_MPE transfers data from memory

Class II: Processor-based Optimizations

Direct Memory Access MPI Engine

Ly D, Saldaña M, Chow P. FPT 2009 22

MPI_Send(...)

• 1. Processor writes 4 words
• destination rank
• address of data buffer
• message size
• message tag
• 2. PLB_MPE decodes message header
• 3. PLB_MPE transfers data from memory

Class II: Processor-based Optimizations

Direct Memory Access MPI Engine

Ly D, Saldaña M, Chow P. FPT 2009 23

MPI_Send(...)

• 1. Processor writes 4 words
• destination rank
• address of data buffer
• message size
• message tag
• 2. PLB_MPE decodes message header
• 3. PLB_MPE transfers data from memory

Class II: Processor-based Optimizations

Direct Memory Access MPI Engine

Ly D, Saldaña M, Chow P. FPT 2009 24

MPI_Send(...)

• 1. Processor writes 4 words
• destination rank
• address of data buffer
• message size
• message tag
• 2. PLB_MPE decodes message header
• 3. PLB_MPE transfers data from memory

Class II: Processor-based Optimizations

Direct Memory Access MPI Engine

Ly D, Saldaña M, Chow P. FPT 2009 25

MPI_Send(...)

• 1. Processor writes 4 words
• destination rank
• address of data buffer
• message size
• message tag
• 2. PLB_MPE decodes message header
• 3. PLB_MPE transfers data from memory

Class II: Processor-based Optimizations

Direct Memory Access MPI Engine

Ly D, Saldaña M, Chow P. FPT 2009 26

MPI_Send(...)

• 1. Processor writes 4 words
• destination rank
• address of data buffer
• message size
• message tag
• 2. PLB_MPE decodes message header
• 3. PLB_MPE transfers data from memory

Class II: Processor-based Optimizations

Direct Memory Access MPI Engine

Ly D, Saldaña M, Chow P. FPT 2009 27

MPI_Send(...)

• 1. Processor writes 4 words
• destination rank
• address of data buffer
• message size
• message tag
• 2. PLB_MPE decodes message header
• 3. PLB_MPE transfers data from memory

Class II: Processor-based Optimizations

Direct Memory Access MPI Engine

Ly D, Saldaña M, Chow P. FPT 2009 28

MPI_Send(...)

• 1. Processor writes 4 words
• destination rank
• address of data buffer
• message size
• message tag
• 2. PLB_MPE decodes message header
• 3. PLB_MPE transfers data from memory

Class II: Processor-based Optimizations

Direct Memory Access MPI Engine

Ly D, Saldaña M, Chow P. FPT 2009 29

MPI_Send(...)

• 1. Processor writes 4 words
• destination rank
• address of data buffer
• message size
• message tag
• 2. PLB_MPE decodes message header
• 3. PLB_MPE transfers data from memory

Class II: Processor-based Optimizations

Direct Memory Access MPI Engine

Ly D, Saldaña M, Chow P. FPT 2009 30

MPI_Send(...)

• 1. Processor writes 4 words
• destination rank
• address of data buffer
• message size
• message tag
• 2. PLB_MPE decodes message header
• 3. PLB_MPE transfers data from memory

Class II: Processor-based Optimizations

Direct Memory Access MPI Engine

Ly D, Saldaña M, Chow P. FPT 2009 31

MPI_Send(...)

• 1. Processor writes 4 words
• destination rank
• address of data buffer
• message size
• message tag
• 2. PLB_MPE decodes message header
• 3. PLB_MPE transfers data from memory

Class II: Processor-based Optimizations

Direct Memory Access MPI Engine

Ly D, Saldaña M, Chow P. FPT 2009 32

MPI_Recv(...)

• 1. Processor writes 4 words
• source rank
• address of data buffer
• message size
• message tag
• 2. PLB_MPE decodes message header
• 3. PLB_MPE transfers data to memory
• 4. PLB_MPE notifies processor

Class II: Processor-based Optimizations

Direct Memory Access MPI Engine

Ly D, Saldaña M, Chow P. FPT 2009 33

MPI_Recv(...)

• 1. Processor writes 4 words
• source rank
• address of data buffer
• message size
• message tag
• 2. PLB_MPE decodes message header
• 3. PLB_MPE transfers data to memory
• 4. PLB_MPE notifies processor

Class II: Processor-based Optimizations

Direct Memory Access MPI Engine

Ly D, Saldaña M, Chow P. FPT 2009 34

MPI_Recv(...)

• 1. Processor writes 4 words
• source rank
• address of data buffer
• message size
• message tag
• 2. PLB_MPE decodes message header
• 3. PLB_MPE transfers data to memory
• 4. PLB_MPE notifies processor

Class II: Processor-based Optimizations

Direct Memory Access MPI Engine

Ly D, Saldaña M, Chow P. FPT 2009 35

MPI_Recv(...)

• 1. Processor writes 4 words
• source rank
• address of data buffer
• message size
• message tag
• 2. PLB_MPE decodes message header
• 3. PLB_MPE transfers data to memory
• 4. PLB_MPE notifies processor

Class II: Processor-based Optimizations

Direct Memory Access MPI Engine

Ly D, Saldaña M, Chow P. FPT 2009 36

MPI_Recv(...)

• 1. Processor writes 4 words
• source rank
• address of data buffer
• message size
• message tag
• 2. PLB_MPE decodes message header
• 3. PLB_MPE transfers data to memory
• 4. PLB_MPE notifies processor

Class II: Processor-based Optimizations

Direct Memory Access MPI Engine

Ly D, Saldaña M, Chow P. FPT 2009 37

MPI_Recv(...)

• 1. Processor writes 4 words
• source rank
• address of data buffer
• message size
• message tag
• 2. PLB_MPE decodes message header
• 3. PLB_MPE transfers data to memory
• 4. PLB_MPE notifies processor

Class II: Processor-based Optimizations

Direct Memory Access MPI Engine

Ly D, Saldaña M, Chow P. FPT 2009 38

MPI_Recv(...)

• 1. Processor writes 4 words
• source rank
• address of data buffer
• message size
• message tag
• 2. PLB_MPE decodes message header
• 3. PLB_MPE transfers data to memory
• 4. PLB_MPE notifies processor

Class II: Processor-based Optimizations

Direct Memory Access MPI Engine

Ly D, Saldaña M, Chow P. FPT 2009 39

MPI_Recv(...)

• 1. Processor writes 4 words
• source rank
• address of data buffer
• message size
• message tag
• 2. PLB_MPE decodes message header
• 3. PLB_MPE transfers data to memory
• 4. PLB_MPE notifies processor

Class II: Processor-based Optimizations

Direct Memory Access MPI Engine

Ly D, Saldaña M, Chow P. FPT 2009 40

MPI_Recv(...)

• 1. Processor writes 4 words
• source rank
• address of data buffer
• message size
• message tag
• 2. PLB_MPE decodes message header
• 3. PLB_MPE transfers data to memory
• 4. PLB_MPE notifies processor

Class II: Processor-based Optimizations

Direct Memory Access MPI Engine

Ly D, Saldaña M, Chow P. FPT 2009 41

MPI_Recv(...)

• 1. Processor writes 4 words
• source rank
• address of data buffer
• message size
• message tag
• 2. PLB_MPE decodes message header
• 3. PLB_MPE transfers data to memory
• 4. PLB_MPE notifies processor

Class II: Processor-based Optimizations

Direct Memory Access MPI Engine

Ly D, Saldaña M, Chow P. FPT 2009 42

MPI_Recv(...)

• 1. Processor writes 4 words
• source rank
• address of data buffer
• message size
• message tag
• 2. PLB_MPE decodes message header
• 3. PLB_MPE transfers data to memory
• 4. PLB_MPE notifies processor

Class II: Processor-based Optimizations

Direct Memory Access MPI Engine

Ly D, Saldaña M, Chow P. FPT 2009 43

MPI_Recv(...)

• 1. Processor writes 4 words
• source rank
• address of data buffer
• message size
• message tag
• 2. PLB_MPE decodes message header
• 3. PLB_MPE transfers data to memory
• 4. PLB_MPE notifies processor

Class II: Processor-based Optimizations

Direct Memory Access MPI Engine

Ly D, Saldaña M, Chow P. FPT 2009 44

MPI_Recv(...)

• 1. Processor writes 4 words
• source rank
• address of data buffer
• message size
• message tag
• 2. PLB_MPE decodes message header
• 3. PLB_MPE transfers data to memory
• 4. PLB_MPE notifies processor

Class II: Processor-based Optimizations

Direct Memory Access MPI Engine

Ly D, Saldaña M, Chow P. FPT 2009 45

MPI_Recv(...)

• 1. Processor writes 4 words
• source rank
• address of data buffer
• message size
• message tag
• 2. PLB_MPE decodes message header
• 3. PLB_MPE transfers data to memory
• 4. PLB_MPE notifies processor

Class II: Processor-based Optimizations

Direct Memory Access MPI Engine

• DMA engine is completely transparent to the

user

– Exact same MPI functions are called – DMA setup is handled by the implementation

Ly D, Saldaña M, Chow P. FPT 2009 46

Class II: Processor-based Optimizations

Non-Interrupting, Non-Blocking Functions

Ly D, Saldaña M, Chow P. FPT 2009 47

• Two types of MPI message functions

– Blocking functions: returns only when buffer can be safely reused – Non-blocking functions: returns immediately

• Request handle is required so the message

status can be checked later

• Non-blocking functions are used to overlap

communication and computation

Class II: Processor-based Optimizations

Non-Interrupting, Non-Blocking Functions

Ly D, Saldaña M, Chow P. FPT 2009 48

• Typical HPC non-blocking use case:

MPI_Request request; ... MPI_Isend(..., &request); prepare_computation(); MPI_Wait(&request, ...); finish_computation();

Class II: Processor-based Optimizations

Non-Interrupting, Non-Blocking Functions

Ly D, Saldaña M, Chow P. FPT 2009 49

• Class II interactions have a different use case

– Hardware engines are responsible for computation – Embedded processors only need to send messages as fast as possible

• DMA hardware allow messages to be queued
• ‘Fire-and-forget’ message model

– Message status is not important – Request handles are serviced by expensive, interrupts

Class II: Processor-based Optimizations

Non-Interrupting, Non-Blocking Functions

Ly D, Saldaña M, Chow P. FPT 2009 50

• Standard MPI protocol provides a mechanism

for ‘fire-and-forget’:

MPI_Request request_dummy; ... MPI_Isend(..., &request_dummy); MPI_Request_free(&request_dummy);

Class II: Processor-based Optimizations

Non-Interrupting, Non-Blocking Functions

Ly D, Saldaña M, Chow P. FPT 2009 51

• Standard implementation still incurs overhead:

– Setup the interrupt – Remove the interrupt – Extra function call overhead – Memory space for the MPI_Request data structure

• For the ‘just-in-time’ message model on

embedded processors, these overheads create a bottleneck

Class II: Processor-based Optimizations

Non-Interrupting, Non-Blocking Functions

Ly D, Saldaña M, Chow P. FPT 2009 52

• Proposed modification to the MPI protocol:

#define MPI_REQUEST_NULL NULL; ... MPI_Isend(..., MPI_REQUEST_NULL);

• Non-blocking functions check that the request

pointer is valid before setting interrupts

• Circumvents the overhead
• Not standard, but minor modification that works

well for embedded processors with DMA

Class II: Processor-based Optimizations

Series of messages – MPI_Coalesce()

Ly D, Saldaña M, Chow P. FPT 2009 53

• MPI message without DMA

Legend Non-MPI Code Function Preamble/Postamble MPI Function Code

Class II: Processor-based Optimizations

Series of messages – MPI_Coalesce()

Ly D, Saldaña M, Chow P. FPT 2009 54

• MPI message without DMA

MPI_Send() Legend Non-MPI Code Function Preamble/Postamble MPI Function Code

Class II: Processor-based Optimizations

Series of messages – MPI_Coalesce()

Ly D, Saldaña M, Chow P. FPT 2009 55

• MPI message without DMA

MPI_Send() Legend Non-MPI Code Function Preamble/Postamble MPI Function Code

Class II: Processor-based Optimizations

Series of messages – MPI_Coalesce()

Ly D, Saldaña M, Chow P. FPT 2009 56

• MPI message without DMA

MPI_Send() Transfer data words Legend Non-MPI Code Function Preamble/Postamble MPI Function Code

Class II: Processor-based Optimizations

Series of messages – MPI_Coalesce()

Ly D, Saldaña M, Chow P. FPT 2009 57

• MPI message without DMA

MPI_Send() Transfer data words return Legend Non-MPI Code Function Preamble/Postamble MPI Function Code

Class II: Processor-based Optimizations

Series of messages – MPI_Coalesce()

Ly D, Saldaña M, Chow P. FPT 2009 58

• MPI message without DMA

MPI_Send() Transfer data words return Legend Non-MPI Code Function Preamble/Postamble MPI Function Code

Class II: Processor-based Optimizations

Series of messages – MPI_Coalesce()

Ly D, Saldaña M, Chow P. FPT 2009 59

• MPI message without DMA

MPI_Send() Transfer data words return Legend Non-MPI Code Function Preamble/Postamble MPI Function Code

Class II: Processor-based Optimizations

Series of messages – MPI_Coalesce()

Ly D, Saldaña M, Chow P. FPT 2009 60

• MPI message without DMA

MPI_Send() Transfer lots of data words return Legend Non-MPI Code Function Preamble/Postamble MPI Function Code

Class II: Processor-based Optimizations

Series of messages – MPI_Coalesce()

Ly D, Saldaña M, Chow P. FPT 2009 61

• MPI message with DMA

MPI_Send() Transfer four words, regardless of message length return Legend Non-MPI Code Function Preamble/Postamble MPI Function Code

Class II: Processor-based Optimizations

Series of messages – MPI_Coalesce()

Ly D, Saldaña M, Chow P. FPT 2009 62

• MPI message with DMA

55.6% Legend Non-MPI Code Function Preamble/Postamble MPI Function Code 28.7% 15.6%

Class II: Processor-based Optimizations

Series of messages – MPI_Coalesce()

Ly D, Saldaña M, Chow P. FPT 2009 63

• MPI message with DMA

55.6% Legend Non-MPI Code Function Preamble/Postamble MPI Function Code 28.7% 15.6% + = 44.3%

Class II: Processor-based Optimizations

Series of messages – MPI_Coalesce()

Ly D, Saldaña M, Chow P. FPT 2009 64

• MPI message with DMA

– Message queueing

Legend Non-MPI Code Function Preamble/Postamble MPI Function Code msg 1 msg 2 msg 3

Class II: Processor-based Optimizations

Series of messages – MPI_Coalesce()

Ly D, Saldaña M, Chow P. FPT 2009 65

• Inline all MPI functions?

Legend Non-MPI Code Function Preamble/Postamble MPI Function Code msg 1 msg 2 msg 3

Class II: Processor-based Optimizations

Series of messages – MPI_Coalesce()

Ly D, Saldaña M, Chow P. FPT 2009 66

• Inline all MPI functions?

Legend Non-MPI Code Function Preamble/Postamble MPI Function Code msg 1 msg 2 msg 3

Class II: Processor-based Optimizations

Series of messages – MPI_Coalesce()

Ly D, Saldaña M, Chow P. FPT 2009 67

• Inline all MPI functions?

Legend Non-MPI Code Function Preamble/Postamble MPI Function Code msg 1 msg 2 msg 3

Class II: Processor-based Optimizations

Series of messages – MPI_Coalesce()

Ly D, Saldaña M, Chow P. FPT 2009 68

• Inline all MPI functions?

– Increases program length!

Legend Non-MPI Code Function Preamble/Postamble MPI Function Code msg 1 msg 2 msg 3

Class II: Processor-based Optimizations

Series of messages – MPI_Coalesce()

Ly D, Saldaña M, Chow P. FPT 2009 69

• Standard MPI Functions

void *msg_buf; int msg_size; ... MPI_Isend(msg_buf, msg_size, ...); MPI_Irecv(msg_buf, msg_size, ...);

Class II: Processor-based Optimizations

Series of messages – MPI_Coalesce()

Ly D, Saldaña M, Chow P. FPT 2009 70

void MPI_Coalesce ( //MPI_Coalesce specific arguments MPI_Function *mpi_fn, int mpi_fn_count, //Array of point-to-point MPI function arguments void **msg_buf, int *msg_size, ... ) { for(int i = 0; i < mpi_fn_count; i++) { if (mpi_fn[i] == MPI_Isend) inline MPI_Isend(msg_buf[i], msg_size[i], ...); else if (mpi_fn[i] == MPI_Irecv) inline MPI_Irecv(msg_buf[i], msg_size[i], ...); } }

Class II: Processor-based Optimizations

Series of messages – MPI_Coalesce()

Ly D, Saldaña M, Chow P. FPT 2009 71

void MPI_Coalesce ( //MPI_Coalesce specific arguments MPI_Function *mpi_fn, int mpi_fn_count, //Array of point-to-point MPI function arguments void **msg_buf, int *msg_size, ... ) { for(int i = 0; i < mpi_fn_count; i++) { if (mpi_fn[i] == MPI_Isend) inline MPI_Isend(msg_buf[i], msg_size[i], ...); else if (mpi_fn[i] == MPI_Irecv) inline MPI_Irecv(msg_buf[i], msg_size[i], ...); } }

Class II: Processor-based Optimizations

Series of messages – MPI_Coalesce()

Ly D, Saldaña M, Chow P. FPT 2009 72

void MPI_Coalesce ( //MPI_Coalesce specific arguments MPI_Function *mpi_fn, int mpi_fn_count, //Array of point-to-point MPI function arguments void **msg_buf, int *msg_size, ... ) { for(int i = 0; i < mpi_fn_count; i++) { if (mpi_fn[i] == MPI_Isend) inline MPI_Isend(msg_buf[i], msg_size[i], ...); else if (mpi_fn[i] == MPI_Irecv) inline MPI_Irecv(msg_buf[i], msg_size[i], ...); } }

Class II: Processor-based Optimizations

Series of messages – MPI_Coalesce()

Ly D, Saldaña M, Chow P. FPT 2009 73

void MPI_Coalesce ( //MPI_Coalesce specific arguments MPI_Function *mpi_fn, int mpi_fn_count, //Array of point-to-point MPI function arguments void **msg_buf, int *msg_size, ... ) { for(int i = 0; i < mpi_fn_count; i++) { if (mpi_fn[i] == MPI_Isend) inline MPI_Isend(msg_buf[i], msg_size[i], ...); else if (mpi_fn[i] == MPI_Irecv) inline MPI_Irecv(msg_buf[i], msg_size[i], ...); } }

Class II: Processor-based Optimizations

Series of messages – MPI_Coalesce()

Ly D, Saldaña M, Chow P. FPT 2009 74

void MPI_Coalesce ( //MPI_Coalesce specific arguments MPI_Function *mpi_fn, int mpi_fn_count, //Array of point-to-point MPI function arguments void **msg_buf, int *msg_size, ... ) { for(int i = 0; i < mpi_fn_count; i++) { if (mpi_fn[i] == MPI_Isend) inline MPI_Isend(msg_buf[i], msg_size[i], ...); else if (mpi_fn[i] == MPI_Irecv) inline MPI_Irecv(msg_buf[i], msg_size[i], ...); } }

Class II: Processor-based Optimizations

Series of messages – MPI_Coalesce()

Ly D, Saldaña M, Chow P. FPT 2009 75

void MPI_Coalesce ( //MPI_Coalesce specific arguments MPI_Function *mpi_fn, int mpi_fn_count, //Array of point-to-point MPI function arguments void **msg_buf, int *msg_size, ... ) { for(int i = 0; i < mpi_fn_count; i++) { if (mpi_fn[i] == MPI_Isend) inline MPI_Isend(msg_buf[i], msg_size[i], ...); else if (mpi_fn[i] == MPI_Irecv) inline MPI_Irecv(msg_buf[i], msg_size[i], ...); } }

Class II: Processor-based Optimizations

Series of messages – MPI_Coalesce()

Ly D, Saldaña M, Chow P. FPT 2009 76

• MPI_Coalesce

Legend Non-MPI Code Function Preamble/Postamble MPI Function Code msg 1 msg 2 msg 3 For loop

Class II: Processor-based Optimizations

Series of messages – MPI_Coalesce()

Ly D, Saldaña M, Chow P. FPT 2009 77

• MPI_Coalesce

Legend Non-MPI Code Function Preamble/Postamble MPI Function Code msg 1 msg 2 msg 3 For loop

Class II: Processor-based Optimizations

Series of messages – MPI_Coalesce()

Ly D, Saldaña M, Chow P. FPT 2009 78

• MPI_Coalesce

Legend Non-MPI Code Function Preamble/Postamble MPI Function Code msg 1 msg 2 msg 3 For loop

Class II: Processor-based Optimizations

Series of messages – MPI_Coalesce()

Ly D, Saldaña M, Chow P. FPT 2009 79

• MPI_Coalesce

Legend Non-MPI Code Function Preamble/Postamble MPI Function Code msg 1 msg 2 msg 3 For loop

Class II: Processor-based Optimizations

Series of messages – MPI_Coalesce()

• MPI_Coalesce is not part of the MPI Standard
• Behaviour can be easily reproduced

– Even when source code is not available

• Maintains compatibility with MPI code

Ly D, Saldaña M, Chow P. FPT 2009 80

Class II: Processor-based Optimizations

Results

81

• Application: Restricted Boltzmann Machines[2]

– Neural network FPGA implementation – Platform: Berkeley Emulation Engine 2 (BEE2)

• Five Xilinx II-Pro XC2VP70 FPGA
• Inter-FPGA communication:

–Latency: 6 cycles –Bandwidth: 1.73GB/s

[1] D. Ly et al., “A Multi-FPGA Architecture for Restricted Boltzmann Machines,” FPL, Sept. 2009.

Ly D, Saldaña M, Chow P. FPT 2009

Class II: Processor-based Optimizations

Results

82 Ly D, Saldaña M, Chow P. FPT 2009

Class II: Processor-based Optimizations

Results

83 Ly D, Saldaña M, Chow P. FPT 2009

Message # Source Destination Size [# of words] 1 R0 R1 2 R0 R1 3 3 R0 R6 4 R0 R6 3 5 R0 R11 6 R0 R11 3 7 R0 R16 8 R0 R16 3 9 R0 R1 4 10 R0 R6 4 11 R0 R11 4 12 R0 R16 4

Class II: Processor-based Optimizations

Results

Ly D, Saldaña M, Chow P. FPT 2009 84

Class II: Processor-based Optimizations

Results

Ly D, Saldaña M, Chow P. FPT 2009 85

Class II: Processor-based Optimizations

Results

Ly D, Saldaña M, Chow P. FPT 2009 86

2.33x

Class II: Processor-based Optimizations

Results

Ly D, Saldaña M, Chow P. FPT 2009 87

2.33x

Class II: Processor-based Optimizations

Results

Ly D, Saldaña M, Chow P. FPT 2009 88

2.33x 3.94x

Class II: Processor-based Optimizations

Results

Ly D, Saldaña M, Chow P. FPT 2009 89

2.33x 3.94x

Class II: Processor-based Optimizations

Results

Ly D, Saldaña M, Chow P. FPT 2009 90

2.33x 3.94x 5.32x

Class III: Hardware-based Optimizations

• Background
• Dataflow Message Passing Model

– Case Study: Vector Addition

Ly D, Saldaña M, Chow P. FPT 2009 91

Class III: Hardware-based Optimizations

Background

• Processor-based, software model

– Function calls are atomic – Program flow is quantized in message function units – Cannot execute communication and computation simultaneously

• Hardware engines

– Significantly more parallelism – Communication and computations can be simultaneous

Ly D, Saldaña M, Chow P. FPT 2009 92

Class III: Hardware-based Optimizations

Dataflow Message Passing Model

• Standard message processing model

MPI_Recv(...); compute(); MPI_Send(...);

• Hardware uses dataflow-model

Ly D, Saldaña M, Chow P. FPT 2009 93

Logic

Class III: Hardware-based Optimizations

Case Study: Vector Addition

• Vector Addition:
• va comes from Rank 1, vb comes from Rank 2
• Compute vc, send result back to Rank 1 and 2

Ly D, Saldaña M, Chow P. FPT 2009 94

b a c

v v v   

i b i a i c

v v v

, , ,

Class III: Hardware-based Optimizations

Case Study: Vector Addition

• Software model:

int va[N], vb[N], vc[N]; MPI_Recv(va, N, MPI_INT, rank1, ...); MPI_Recv(vb, N, MPI_INT, rank2, ...); for(int i = 0; i < N; i++) vc[i] = va[i] + vb[i]; MPI_Send(vc, N, MPI_INT, rank1, ...); MPI_Send(vc, N, MPI_INT, rank2, ...);

Ly D, Saldaña M, Chow P. FPT 2009 95

Class III: Hardware-based Optimizations

Case Study: Vector Addition

Ly D, Saldaña M, Chow P. FPT 2009 96

Class III: Hardware-based Optimizations

Case Study: Vector Addition

Ly D, Saldaña M, Chow P. FPT 2009 97

Class III: Hardware-based Optimizations

Case Study: Vector Addition

Ly D, Saldaña M, Chow P. FPT 2009 98

Class III: Hardware-based Optimizations

Case Study: Vector Addition

Ly D, Saldaña M, Chow P. FPT 2009 99

Class III: Hardware-based Optimizations

Case Study: Vector Addition

Ly D, Saldaña M, Chow P. FPT 2009 100

Class III: Hardware-based Optimizations

Case Study: Vector Addition

Ly D, Saldaña M, Chow P. FPT 2009 101

Class III: Hardware-based Optimizations

Case Study: Vector Addition

Ly D, Saldaña M, Chow P. FPT 2009 102

Class III: Hardware-based Optimizations

Case Study: Vector Addition

Ly D, Saldaña M, Chow P. FPT 2009 103

Class III: Hardware-based Optimizations

Case Study: Vector Addition

Ly D, Saldaña M, Chow P. FPT 2009 104

Class III: Hardware-based Optimizations

Case Study: Vector Addition

Ly D, Saldaña M, Chow P. FPT 2009 105

Class III: Hardware-based Optimizations

Case Study: Vector Addition

Ly D, Saldaña M, Chow P. FPT 2009 106

• Message transfer are atomic

– Serializes computation and communication

• Vector addition has great data locality

– Entire message is not required for computation – Only one element of each vector is required

• Higher granularity is required

– Hardware dataflow approach would use pipelined computation

Class III: Hardware-based Optimizations

Case Study: Vector Addition

Ly D, Saldaña M, Chow P. FPT 2009 107

Class III: Hardware-based Optimizations

Case Study: Vector Addition

Ly D, Saldaña M, Chow P. FPT 2009 108

Class III: Hardware-based Optimizations

Case Study: Vector Addition

Ly D, Saldaña M, Chow P. FPT 2009 109

Class III: Hardware-based Optimizations

Case Study: Vector Addition

Ly D, Saldaña M, Chow P. FPT 2009 110

Class III: Hardware-based Optimizations

Case Study: Vector Addition

Ly D, Saldaña M, Chow P. FPT 2009 111

Class III: Hardware-based Optimizations

Case Study: Vector Addition

Ly D, Saldaña M, Chow P. FPT 2009 112

Class III: Hardware-based Optimizations

Dataflow Message Passing Model

Ly D, Saldaña M, Chow P. FPT 2009 113

• Natural extension of MPI for hardware designers

– Increased granularity  increased performance – Supports pipelining

• Single processing element represents multiple

ranks

– Capable of transferring data from multiple sources – Supports data streaming

• Full-duplex data transfer

Conclusion and Future Work

• MPI can be very effective for FPGA designs

– FPGAs have different trade-offs than HPC

• Considerations to deal with FPGA MPI

– Class II: DMA, Non-Blocking, MPI_Coalesce() – Class III: Dataflow Message Passing Model

• Attempts to maintain compatibility with MPI standard

– Some incremental optimizations do not comply – Can be reduced to legitimate MPI code

• Limit of where current MPI standard applies
• Future work: message passing using fine-grain

parallelism

Ly D, Saldaña M, Chow P. FPT 2009 114

Thank you

• Special thanks to:

Ly D, Saldaña M, Chow P. FPT 2009 115

Hardware Debugging Interfaces

• Background
• Tee Cores
• Message Watchdog Timers

Ly D, Saldaña M, Chow P. FPT 2009 116

• Code compatibility allows traditional MPI

software-only debugging

• Porting to FPGA designs can still produce errors

– Improper on-chip network setup – Message passing flaws in hardware cores

• Hardware has limited visibility

– No debuggers – No standard output/printf()

Ly D, Saldaña M, Chow P. FPT 2009 117

Hardware Debugging Interfaces

Background

• Networks typically consists of point-to-point

FIFOs

Ly D, Saldaña M, Chow P. FPT 2009 118

Hardware Debugging Interfaces

Tee Cores

MPI Core MPI Core

• Networks typically consists of point-to-point

FIFOs

• Tee Cores:

Ly D, Saldaña M, Chow P. FPT 2009 119

Hardware Debugging Interfaces

Tee Cores

MPI Core MPI Core MPI Core MPI Core

• Networks typically consists of point-to-point

FIFOs

• Tee Cores:

Ly D, Saldaña M, Chow P. FPT 2009 120

Hardware Debugging Interfaces

Tee Cores

MPI Core MPI Core MPI Core MPI Core Processor

• Transparent and does not affect original

network performance

• Allows direct tracing of data link layer

– Simple communication protocols – Easy to follow message transmissions

Ly D, Saldaña M, Chow P. FPT 2009 121

Hardware Debugging Interfaces

Tee Cores

Rank 1 Rank n

• Transparent and does not affect original

network performance

• Allows direct tracing of data link layer

– Simple communication protocols – Easy to follow message transmissions

Ly D, Saldaña M, Chow P. FPT 2009 122

Hardware Debugging Interfaces

Tee Cores

Rank 1 Rank n

• Unresponsive embedded systems cannot be

recovered

• Message watchdog timers that are integrated

with MPI implementation source code

– Snoops incoming messages in a transparent manner – If there’s no activity after the timer expires, the processor gets interrupted and control is returned

• Excellent for post-mortem analysis

– Connect with Tee Cores for a terse debugging report

Ly D, Saldaña M, Chow P. FPT 2009 123

Hardware Debugging Interfaces

Message Watchdog Timers
