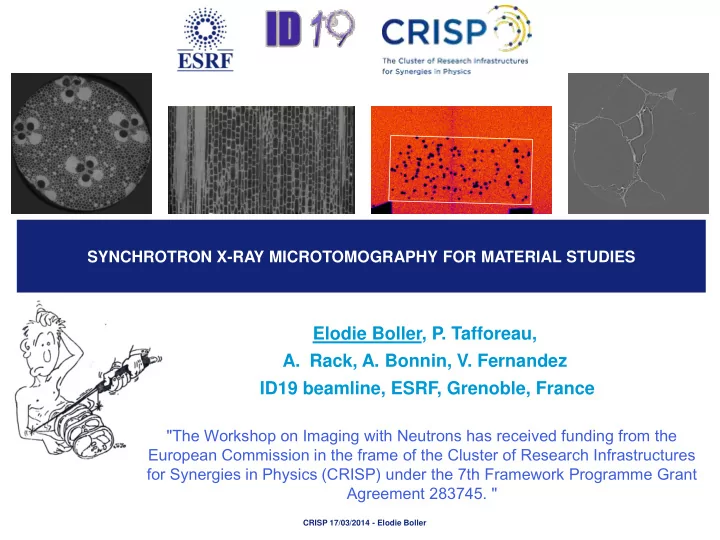

SYNCHROTRON X-RAY MICROTOMOGRAPHY FOR MATERIAL STUDIES Elodie Boller, P. Tafforeau, A. Rack, A. Bonnin, V. Fernandez ID19 beamline, ESRF, Grenoble, France "The Workshop on Imaging with Neutrons has received funding from the European


slide-1
SLIDE 1

SYNCHROTRON X-RAY MICROTOMOGRAPHY FOR MATERIAL STUDIES

Elodie Boller, P. Tafforeau,

  • A. Rack, A. Bonnin, V. Fernandez

ID19 beamline, ESRF, Grenoble, France

CRISP 17/03/2014 - Elodie Boller

"The Workshop on Imaging with Neutrons has received funding from the European Commission in the frame of the Cluster of Research Infrastructures for Synergies in Physics (CRISP) under the 7th Framework Programme Grant Agreement 283745. "

slide-2
SLIDE 2

CONTENT

CRISP 17/03/2014 - Elodie Boller

1 - Introduction

  • Microtomography at ESRF
  • ID19 beamline : dedicated to imaging techniques
  • Suitable instrument to study material microstructure

2 – Material applications using the different approaches:

  • High/medium resolution (0.17-50 microns)
  • Monochromatic / pink beam (high energy)
  • Absorption microtomography
  • Phase contrast imaging – Paganin approach
  • Multiresolution
  • Fast acquisition (1s / 3D image)

3 – Nanotomography 4 – Conclusion and perspectives

slide-3
SLIDE 3

Introduction: From MACRO to NANO

Ultra- structure Micro- structure Macro- structure

mm nm m cm µm

Composition Collagene, Crystal Atomic structure

IMAGING TECHNIQUES

CRISP 17/03/2014 - Elodie Boller

slide-4
SLIDE 4

Lambert-Beer law:



 dx I I

exp

, linear attenuation coefficient Technique based on radiography X-Rays Sample 2D detector

Io I

x PRINCIPLE

CRISP 17/03/2014 - Elodie Boller

slide-5
SLIDE 5

N projections 0° 180° N z x Filtrered backprojection algorithm PyHST2 Z reconstructed slices x y z

FROM 2D TO 3D: TOMOGRAPHIC RECONSTRUCTION

CRISP 17/03/2014 - Elodie Boller

Commonly 10 minutes Commonly 3 minutes Using GPU cluster For 20483 volume

slide-6
SLIDE 6

MICROTOMOGRAPHY @ ESRF

CRISP 17/03/2014 - Elodie Boller

ID22 Micro-XRF/XRD/XAS Combined to tomo  NiNa Project (ID16) ID16 NiNa Available in May 2014 ID17 Tomography Large field ID19 Beamline mainly dedicated to Microtomography ID15 Tomography high energy Ultrafast tomography BM05 Two additional setups for Microtomography ID11 DCT setup

slide-7
SLIDE 7

MICROTOMOGRAPHY: COMPARISON X-RAY LAB/SYNCHROTRON

CRISP 17/03/2014 - Elodie Boller

X-ray Lab Synchrotron – ID19 Low flux High Flux Acquisition time decreased Local tomography Not really monochromatic Monochromaticity Huge energy range Quantitative No coherent beam Coherent beam = holotomography Cone beam = Magnification Parallel beam = no magnification But different optics available Pixel size from 0.17m to 50m

slide-8
SLIDE 8

MICROTOMOGRAPHY: COMPARISON X-RAY LAB/SYNCHROTRON

CRISP 17/03/2014 - Elodie Boller

Beam hardening problem... + possibility to reach much higher resolution + much higher signal to noise ratio 12 million years tooth

slide-9
SLIDE 9

PHASE CONTRAST IMAGING

CRISP 17/03/2014 - Elodie Boller

n ~ 0.999999 n = 1 -  + i 

Absorption Phase

  phase   absorption

 << 

sample plane monochromatic wave monochromatic beam detector ABSORPTION

PHASE

D ABSORPTION

PHASE

PHASE

ABSORPTION

Abs A

Aeiᵩ

Phase

slide-10
SLIDE 10

4 distances: absorption + 0.2 m, 0.5 m and 0.9 m 800 angular positions multilayer as monochromator: total time  40 minutes Rheology of aluminium alloys in the semisolid state

E = 18 keV

Absorption -map

100 µm

edge enhancement Direct Imaging D = 0.6 m Phase contrast Al/Si Al -map

HOLOTOMOGRAPHY ON AN AL-AL/SI SYSTEM

CRISP 17/03/2014 - Elodie Boller

slide-11
SLIDE 11
  • 0.04
  • 0.02

0.02 20 40 60 80

relative  (*106) distance (µm)

Absorption Phase contrast -map -map

E = 18 keV 50 µm

0.005 0.0055 0.006 0.0065 0.007 20 40 60 80

 (*106) distance (µm)

 ≈ 3.5 10-8

 ≈ 0.05 g/cm3

(*10-6)

al~2.7g/cm3

% 2    

Luc Salvo (SIMAP, Grenoble) Peter Cloetens (ESRF)

Abs A Phase

CRISP 17/03/2014 - Elodie Boller

slide-12
SLIDE 12

ID19 IMAGING TECHNIQUES

CRISP 17/03/2014 - Elodie Boller

Microtomography – Phase contrast imaging Laminography – Interferometry: Radiography Diffraction contrast tomography: Diffraction Compton scattering: Diffusion

Different « inhouse » groups :

  • Bone (F. Peyrin)
  • Fast imaging/Interferometry (A. Rack)
  • Laminography (L.Helfen)
  • Paleontology (P. Tafforeau/V.Fernandez)
  • DCT (W. Ludwig) moved on ID11
  • Compton scattering (A. Bonnin)

Long beamline: 145 m Coherent beam Beam size: 15*50 mm2 Homogeneous beam Large energy range: 7 - 250 keV Team of around 20 people

slide-13
SLIDE 13

DEDICATED INSTRUMENTS

CRISP 17/03/2014 - Elodie Boller

Precise rotation 0-360º (cables integrated) and translation Sample Big translation Detector

specially designed at ESRF FReLoN CCD camera Commercial Optique Peter device: X/visible conversion Objectives x20 x10 x4 x2 Eye-pieces x4 x3.3 x2.5 x2

High resolution 2.8-0.17 microns

slide-14
SLIDE 14

DEDICATED INSTRUMENTS

CRISP 17/03/2014 - Elodie Boller

New sample stages for “big” samples:

  • up to 50 kg
  • up to 40 cm large
  • z stroke of 50 cm

1) One in our experimental hutch 2) One in our monochromatic hutch, allowing longer propagation distance (13 m! ) for medium resolution and high energies 3) One on BM05: additional setup 4) One on ID17 (very large sample)  standardisation

Medium resolution 50 - 3.5 microns

slide-15
SLIDE 15

COMPATIBLE SAMPLE ENVIRONMENTS TO ADD A FOURTH DIMENSION

CRISP 17/03/2014 - Elodie Boller

2 Furnaces Collaboration with SIMAP Tmax=800°C Al alloys Collaboration with ENSMP Tmax=1600°C Ceramics, glass solidification Minimum scan time for a 3D image

  • n ID19 using CMOS camera: 0.2s

1 ms on ID15 beamline!

slide-16
SLIDE 16

CRISP 17/03/2014 - Elodie Boller

 Cold cell (-150°C/50°C)  Cryostat, cryostream

Snow, ice, ice cream, trees Collaboration with EFPG-3S Laboratory

 Hygrometry control device

Paper Collaboration with CEN Météo France

slide-17
SLIDE 17

CRISP 17/03/2014 - Elodie Boller

 Tension/compression stage  Fatigue stage  Hot traction device

Al/Mg alloys, steel Collaboration with MATEIS Collaboration with ENSMA

 a new cooling/heating (-20°C/200°C)

cell developed with the ESRF sample environment laboratory Composite for aerospace, soap

Possibility of real in situ experiments

slide-18
SLIDE 18

2- MATERIAL APPLICATIONS: SEVERAL APPROACHES

CRISP 17/03/2014 - Elodie Boller

Monochromatic Beam Quantitative analysis Pink beam Qualitative analysis Fast acquisition Absorption contrast A Phase contrast

Holotomography At least 3 distances Quantitative Density Paganin approach 1 distance Fast acquisition In situ Sample sensitive to dose Medium resolution 50 - 3.5 microns

slide-19
SLIDE 19

CRISP 17/03/2014 - Elodie Boller

Multiresolution: 3 different pixel sizes Fully automatized Pink beam Qualitative analysis Fast acquisition Phase contrast

Holotomography At least 3 distances Quantitative Density Monochromatic Beam Quantitative analysis Absorption contrast A Paganin approach 1 distance Fast acquisition In situ Sample sensitive to dose High resolution 2.8-0.17 microns

slide-20
SLIDE 20

2- APPLICATIONS

CRISP 17/03/2014 - Elodie Boller

Polyurethane foams (mattresses)

30 mm 7 mm 1 mm Abs Multires Multiscale application

slide-21
SLIDE 21

TABLET SWELLING

CRISP 17/03/2014 - Elodie Boller

Courtesy of Dr Pete Laity University of Cambridge

35 keV - 2 minutes per scan 30 micron pixel size Glass microspheres to understand the process

(a) 2.5 min. (b) 4.9 min. (c) 14 min (d) 24 min. (e) 46 min (f) 72 min (g) 172 min (h) 322 min

Abs Medium resolution Pink beam

slide-22
SLIDE 22

500 µm

Air Biscuit Biscuit

> High performance 3D-digitisation > High resolution virtual slicing

Abs Pink beam High resolution

slide-23
SLIDE 23

NI NA Length 185 meters 165 meters Spatial Res. 10 – 100 nm 1 0.01 Energy range Main goals Main fields 50 nm -1 mm DE/E (%) Discrete 11 – 17 – 33 keV Scanning 5 → 70 keV XRF, coherent XRI-2D/3D Cryo environment XAS, XRD, XRF, XRI-2D/3D in-situ experiments Biology & Life Sciences Nanotechnology & Nanomedicine Biology, environmental sciences, geoscience, materials sciences, ...

X-ray ultra-microscopy and nano-spectroscopy

Long beamline with 2 independant branches: ■ ID16A-NI: ultimate pink beam focus for imaging and XRF ■ ID16B-NA: nanofocus monochromatic beam for spectroscopy

3- NANOTOMOGRAPHY : NINA ON ID16

CRISP 17/03/2014 - Elodie Boller

slide-24
SLIDE 24

ID16A-NI

Bone ultrastructure; Langer et al, PloS One

Biomedical Engineering: Tissue-level Biomedical Research: Sub-cellular processes

Anti-malarian drugs Hemozoin crystal Dubar et al, Chem. Commun.

Nano/Micro-Technology: 3D Integration

Voids in Through-Si-via Bleuet et al (CEA-Leti)

ID16A-NI: NANO-IMAGING

CRISP 17/03/2014 - Elodie Boller

Scientific drivers

Courtesy of P. Cloetens

slide-25
SLIDE 25

X-ray Fluorescence Microscopy (2D/3D) (Trace) Element distributions

Experimental techniques

Magnified HoloTomography Electron Density distribution Ptychographic Nano-Tomography (ultimate resolution)

Probe Object

With P. Thibault et al.

ID16A-NI

EXPERIMENTAL SETUPS

CRISP 17/03/2014 - Elodie Boller

slide-26
SLIDE 26

3 - CONCLUSIONS

CRISP 17/03/2014 - Elodie Boller

Synchrotron Radiation enlarges considerably the applicability and sensitivity of the method High Intensity – resolution Short acquisition time Coherent beam – phase contrast imaging Huge energy range Sample environment

For industrials: microtomography experiments mainly at ID19/BM05 Full service provided, quick access, total confidentiality Other BLs also accessible (ie ID15, NiNa soon) Image processing in collaboration with 3D data analysis specialists

slide-27
SLIDE 27

ESRF UPGRADE

CRISP 17/03/2014 - Elodie Boller

ESRF Upgrade Programme: 2009-2015 Phase I To keep/improve our specificities:

  • Possibility to image bigger samples at higher energies
  • Higher flux at high resolution (transfocator)
  • New multimodal monochromator
  • Graphical user interface
  • Fast acquisition: online reconstruction, …
  • Detector efficiency improvements: scintillators, optics, camera coating, …
  • Sample environment
  • Nanotomography: NINA project (Mid 2014)

Instrument in constant evolution

To reach our goal: Providing new imaging techniques with best possible image quality

slide-28
SLIDE 28

THANK YOU FOR YOUR KIND ATTENTION

CRISP 17/03/2014 - Elodie Boller
