ELODIE & SOPHIE spectrographs: 20 years of continuous - - PDF document

Twenty years of giant exoplanets - Proceedings of the Haute Provence Observatory Colloquium, 5-9 October 2015 Edited by I. Boisse, O. Demangeon, F. Bouchy & L. Arnold

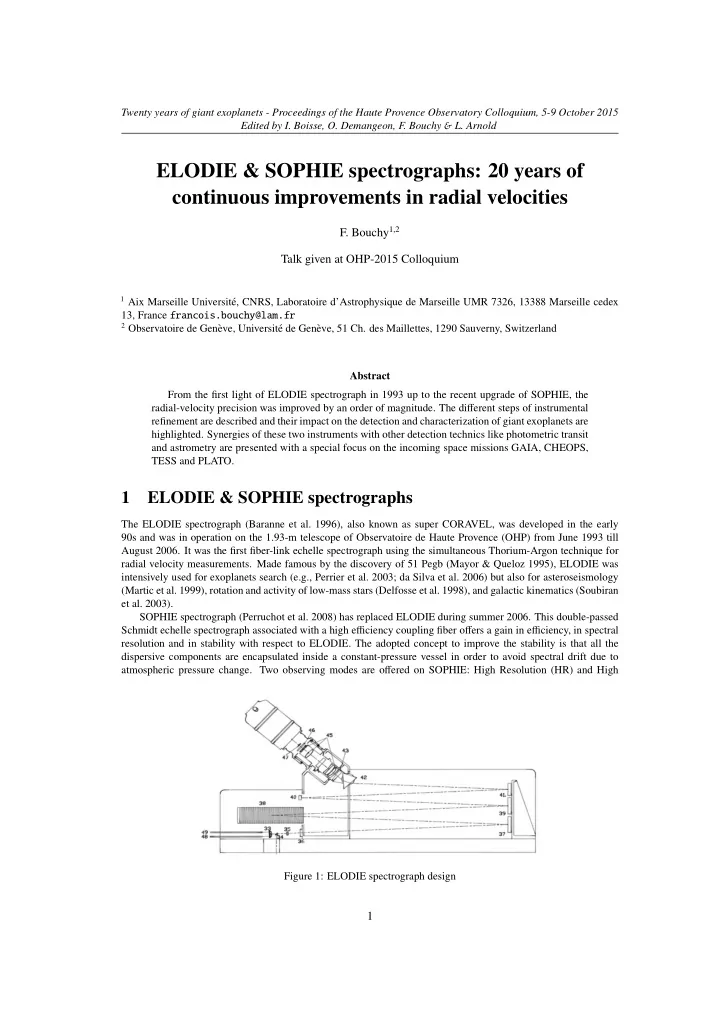

ELODIE & SOPHIE spectrographs: 20 years of continuous improvements in radial velocities

• F. Bouchy1,2

Talk given at OHP-2015 Colloquium

1 Aix Marseille Universit´

e, CNRS, Laboratoire d’Astrophysique de Marseille UMR 7326, 13388 Marseille cedex 13, France francois.bouchy@lam.fr

2 Observatoire de Gen`

eve, Universit´ e de Gen` eve, 51 Ch. des Maillettes, 1290 Sauverny, Switzerland Abstract From the first light of ELODIE spectrograph in 1993 up to the recent upgrade of SOPHIE, the radial-velocity precision was improved by an order of magnitude. The different steps of instrumental refinement are described and their impact on the detection and characterization of giant exoplanets are

• highlighted. Synergies of these two instruments with other detection technics like photometric transit

and astrometry are presented with a special focus on the incoming space missions GAIA, CHEOPS, TESS and PLATO.

1 ELODIE & SOPHIE spectrographs

The ELODIE spectrograph (Baranne et al. 1996), also known as super CORAVEL, was developed in the early 90s and was in operation on the 1.93-m telescope of Observatoire de Haute Provence (OHP) from June 1993 till August 2006. It was the first fiber-link echelle spectrograph using the simultaneous Thorium-Argon technique for radial velocity measurements. Made famous by the discovery of 51 Pegb (Mayor & Queloz 1995), ELODIE was intensively used for exoplanets search (e.g., Perrier et al. 2003; da Silva et al. 2006) but also for asteroseismology (Martic et al. 1999), rotation and activity of low-mass stars (Delfosse et al. 1998), and galactic kinematics (Soubiran et al. 2003). SOPHIE spectrograph (Perruchot et al. 2008) has replaced ELODIE during summer 2006. This double-passed Schmidt echelle spectrograph associated with a high efficiency coupling fiber offers a gain in efficiency, in spectral resolution and in stability with respect to ELODIE. The adopted concept to improve the stability is that all the dispersive components are encapsulated inside a constant-pressure vessel in order to avoid spectral drift due to atmospheric pressure change. Two observing modes are offered on SOPHIE: High Resolution (HR) and High Figure 1: ELODIE spectrograph design

1

Twenty years of giant exoplanets - Proceedings of the Haute Provence Observatory Colloquium, 5-9 October 2015 Edited by I. Boisse, O. Demangeon, F. Bouchy & L. Arnold Figure 2: SOPHIE spectrograph design Efficiency (HE). Both instrument designs are shown on Figures 1 and 2. Main characteristics of both instruments are listed on Table 1.

2 Continuous improvements of SOPHIE spectrograph

During the first years of operation, SOPHIE has showed a clear limitation in radial velocity (RV) precision with a level in the range 5-7 m/s (Bouchy et al. 2009a, 2013). Several instrumental limitations were identified. The CCD Charge Transfer Inefficiency (CTI) effect introduces a spectral shift as function of the flux level for the low S/N exposures. This effect was described by Bouchy et al. (2009b) and a software correction is applied in order to minimize its impact. An empirical correction directly applied on the radial velocities was also proposed by Santerne et al. (2012). The atmospheric-dispersion corrector (ADC) was suffering a spurious displacement and was introducing both a decentering and a chromatic effect at the fiber entrance. This effect was identified and repaired Table 1: ELODIE & SOPHIE characteristics

ELODIE SOPHIE spectral range 390-681 nm (67 orders) 387-694 nm (39 orders) spectral resolution 42 000 75 000 (HR) / 40 000 (HE) Pupill diameter / aperture 100 mm 200 mm Cross disperser Grism Prism Environment thermal controlled dispersive elements at constant pressure CCD detector 1k×1k – 24 µm 2k×4k – 15 µm ´ echelle grating R4 – 31 gr.mm−1 R2 – 52.6 gr.mm−1 fiber size & acceptance 100 µm – 2 arcsec 100 µm – 3 arcsec S/N1 in 20 mn 150 for V=7.5 230 for V=7.5 (HR) σRV phot 3 m s−1 0.7 m s−1 RV precision 8 m s−1 2 m s−1

1 Signal-to-noise ratio per bin of 3 km s−1 at 550 nm

2

Twenty years of giant exoplanets - Proceedings of the Haute Provence Observatory Colloquium, 5-9 October 2015 Edited by I. Boisse, O. Demangeon, F. Bouchy & L. Arnold

• n 2008. A new guiding camera for centering and guiding on the fiber entrance was installed in 2009 with an

accuracy better than 0.3 arcsec. A continuous N2 filling was implemented in 2010 to avoid thermo-mechanical shocks on the dewar of the

• detector. Octagonal-section fibers were implemented in 2011 and 2012 to remove guiding and seeing effects due to

insufficient scrambling of standard fibers (Bouchy et al. 2013). This upgrade permitted a significant improvement

• f the radial velocity precision down to the level of 2 m s−1. A calibration unit was developed on 2014 to remove

all the lamps from the Cassegrain fiber adapter and to install them on a thermal-controlled room. This calibration unit includes a laser-driven light source (LDLS) for spectral flat field, two Thorium-Argon Hallow-Cathode lamps and a visitor slot. In 2015 a complete upgrade of electronic and control-command of Cassegrain Fiber Adapter was realized. Several improvements are foreseen for 2016 including the installation of Fabry-P´ erot etalon in the calibration unit for drift measurement, a new thermal control to remove thermal bridge with the telescope pillar, and the adaptation of the last version of the HARPS data-reduction software.

3 Exoplanets search surveys

The ELODIE Planet Search Survey, was an extensive radial-velocity survey of dwarf stars in the northern hemi-

• sphere. It was initiated in 1994 by M. Mayor and D. Queloz with the aim to detect very low-mass stellar compan-
• ions. ELODIE survey, which allowed the discovery of the first extra-solar planet 51Pegb orbiting a solar-type star

(Mayor & Queloz 1995), is described by Perrier et al. (2003) The SOPHIE search for northern extrasolar planets program (Bouchy et al. 2009a) started in October 2006 with the aim of covering a large part of the exoplanetary science. The observing strategies and target samples were

• ptimized to achieve a variety of science goals and to solve several issues like : 1) planetary statistical properties

to constrain the formation and evolution models; 2) relationships between planets and the physical and chemical properties of their stars; 3) detection of exoplanets around nearby stars, allowing space and ground-based follow-up. All these aspects are treated through the five following complementary subprograms: SP1 : High-precision search for Neptunes and Super-Earths SP2 : Giant planets survey on a volume-limited sample SP3 : Search for exoplanets around M dwarfs SP4 : Search for exoplanets around early-type main sequence stars SP5 : Extension of ELODIE survey to search for Jupiter analogs This large program totalizes about 150 nights per year and includes in total more than 2500 stars. Figure 3 displays the minimum mass and orbital semi-major axis of giant planets known so far. Among the detections made with ELODIE and SOPHIE (red dots), one can emphasize particular objects like 51Pegb (Mayor & Queloz 1995), HD189733b (Bouchy et al. 2005), HD80606b (Naef et al. 2001; Moutou et al. 2009); some massive

• bjects at the transition with brown-dwarf like HD16760b (Bouchy et al. 2009a) and HD22781b (D´

ıaz et al. 2012); some Jupiter analogs like HD24040b and HD222155b (Boisse et al. 2012); and several giant planets in multiple systems like HD74156bc (Naef et al. 2004), HD9446bc (H´ ebrard et al. 2010), HD13908bc (Moutou et al. 2014).

4 Follow-up of transiting planets

SOPHIE is a key instrument for the follow-up and characterization of transiting planets. WASP-1b and WASP- 2b (Collier Cameron et al. 2007) were established and their masses measured with SOPHIE during the science- verification phase in august and september 2006. SOPHIE is routinely used for the follow-up of transiting candi- dates from SWAPS, HAT, CoRoT, Kepler, and K2 surveys. SOPHIE helps to the identification of false positives, the mass and orbital eccentricity measurements, the host star spectroscopic classification, the spin-orbit obliquity (through the Rossiter-McLaughlin effect), and the long term follow-up to search for additional distant exoplanets. The SOPHIE transit consortium led by G. H´ ebrard uses about 70 nights per year for the follow-up of transiting planets. Figure 4 displays the mass and radius of transiting giant planets detected so far. Among the highlights made with SOPHIE, one can emphasize inflated hot Jupiters WASP-12b (Hebb et al. 2009) and Kepler-435 (Almenara et al. 2015); massive giants at the transition with brown-dwarfs like CoRoT-3b (Deleuil et al. 2008) and Kepler- 39b (Bouchy et al. 2011), the first misaligned spin-orbit system XO-3b (H´ ebrard et al. 2008), the Saturn-like giant WASP-21b (Bouchy et al. 2010) and Kepler-425b (H´ ebrard et al. 2014).

3

Twenty years of giant exoplanets - Proceedings of the Haute Provence Observatory Colloquium, 5-9 October 2015 Edited by I. Boisse, O. Demangeon, F. Bouchy & L. Arnold Figure 3: Msini - semi-major axis diagram of giant planets detected by radial velocity. Red points correspond to planets detected with ELODIE and/or SOPHIE. Figure 4: Mass - radius diagram of transiting giant planets. Red points correspond to planets measured with SOPHIE.

4

Twenty years of giant exoplanets - Proceedings of the Haute Provence Observatory Colloquium, 5-9 October 2015 Edited by I. Boisse, O. Demangeon, F. Bouchy & L. Arnold

5 Synergies with incoming space missions

SOPHIE will continue to play an important contribution for exoplanet programs in the coming years. SOPHIE is benefiting of several strengths and advantages :

• The 1.93-m OHP telescope is almost entirely dedicated to exoplanet science.
• A significant large number of allocated nights can be devoted to the exoplanet studies.
• The regroupement of sub-programs with a common pool of observers permit a very high flexibility and reactivity.
• The radial velocity precision, now close to 2 m s−1, permits to explore the domain of low-mass exoplanets.
• The maintenance and the on-going improvement of the instrument secures the long term exploitation.
• Real time data reduction at the telescope allows a very fast reactivity and an optimization of the observing strategy.

Several synergies with incoming space missions are foreseen. CHEOPS (Fortier et al. 2014) is an ESA small- class mission dedicated to search for exoplanetary transits by performing ultra-high precision photometry on bright stars already known to host planets. The CHEOPS science goals are to measure the bulk density of super-Earths and Neptunes and to provide suitable targets for future in-depth characterization. SOPHIE is identified as a provider of RV planets for CHEOPS and is also used to refine the ephemeris of low-mass RV planets in order to minimize the

• bservational window around the expected transit.

The space mission GAIA will soon provide astrometric measurements with a precision allowing the detection

• f giant planetary companions with orbital periods of few years (Sozzetti et al. 2015). The combination of radial

velocity measurements and GAIA astrometric measurements will permit to increase the number of detection as well as to refine orbital parameters of giant exoplanets (Neveu et al. 2012). The Transiting Exoplanet Survey Satellite (TESS) (Ricker et al. 2015) will employ 4 x 10-cm telescopes to

• bserve all the sky with 26 sectors covering 24 x 96 degrees in a two-year survey. TESS will monitor more than

200000 stars and is expected to discover thousands of exoplanets ranging from Earth size to gas giants. Thanks to overlaps, ecliptic poles will benefit of continuous observation up to almost one year. From TESS simulations (Sullivan et al. 2015), about 1700 exoplanets are expected to be discovered. PLATO (Rauer et al. 2014), recently selected for ESA M3 mission, will consist of 34 small aperture telescopes providing a wide FoV and large pho- tometric dynamic range. PLATO will focus on bright stars to detect and characterize planets down to Earth size. Asteroseismology will allow to derive accurate stellar parameters. The combination of high precision, seismology and ground-based follow-up will result in high accuracy on the bulk planet parameters. For these two space mis- sions devoted to search for transiting exoplanets, SOPHIE will play a crucial role for the screening of candidates as well as for the mass determination of giant and Neptune-like planets.

6 ELODIE and SOPHIE spectroscopic archives

ELODIE has produced over 35500 spectra on about 8000 distinct identifiers. 26300 spectra have measured radial

• velocities. Data are available on the archive web site http://atlas.obs-hp.fr/elodie/. Publications making use of the

ELODIE Archive should refer to Moultaka et al. (2004). Publications making use of the ELODIE Library should refer to Prugniel & Soubiran (2001). SOPHIE has produced so far over 81500 spectra on more than 6100 distinct objects. 56000 spectra are now fully public and available on the archive web site http://atlas.obs-hp.fr/sophie/. In addition, 20000 spectra are available with the time information masked (5-year protection), and 5500 spectra are still under the normal 1-year

• embargo. Cross-correlation information now exists for 80000 spectra, corresponding to 5700 distinct object names,
• nly available for data having cleared the 1-year embargo.

Acknowledgments: The author acknowledges the Programme National de Plan´ etologie (telescope time attribution and financial support) of CNRS/INSU, the Swiss National Science Foundation, and the Agence Nationale de la Recherche (grant ANR-08-JCJC-0102-01) for their support. He warmly thanks the OHP staff for their support on the 1.93 m telescope.

5

Twenty years of giant exoplanets - Proceedings of the Haute Provence Observatory Colloquium, 5-9 October 2015 Edited by I. Boisse, O. Demangeon, F. Bouchy & L. Arnold

References

Almenara, J. M., Damiani, C., Bouchy, F., et al. 2015, A&A, 575, A71 Baranne, A., Queloz, D., Mayor, M., et al. 1996, A&AS, 119, 373 Boisse, I., Pepe, F., Perrier, C., et al. 2012, A&A, 545, A55 Bouchy, F., Bonomo, A. S., Santerne, A., et al. 2011, A&A, 533, A83 Bouchy, F., D´ ıaz, R. F., H´ ebrard, G., et al. 2013, A&A, 549, A49 Bouchy, F., Hebb, L., Skillen, I., et al. 2010, A&A, 519, A98 Bouchy, F., H´ ebrard, G., Udry, S., et al. 2009a, A&A, 505, 853 Bouchy, F., Isambert, J., Lovis, C., et al. 2009b, in EAS Publications Series, Vol. 37, EAS Publications Series, ed.

• P. Kern, 247–253

Bouchy, F., Udry, S., Mayor, M., et al. 2005, A&A, 444, L15 Collier Cameron, A., Bouchy, F., H´ ebrard, G., et al. 2007, MNRAS, 375, 951 da Silva, R., Udry, S., Bouchy, F., et al. 2006, A&A, 446, 717 Deleuil, M., Deeg, H. J., Alonso, R., et al. 2008, A&A, 491, 889 Delfosse, X., Forveille, T., Perrier, C., & Mayor, M. 1998, A&A, 331, 581 D´ ıaz, R. F., Santerne, A., Sahlmann, J., et al. 2012, A&A, 538, A113 Fortier, A., Beck, T., Benz, W., et al. 2014, European Planetary Science Congress 2014, EPSC Abstracts, Vol. 9,

• id. EPSC2014-376, 9, EPSC2014

Hebb, L., Collier-Cameron, A., Loeillet, B., et al. 2009, ApJ, 693, 1920 H´ ebrard, G., Bonfils, X., S´ egransan, D., et al. 2010, A&A, 513, A69 H´ ebrard, G., Bouchy, F., Pont, F., et al. 2008, A&A, 488, 763 H´ ebrard, G., Santerne, A., Montagnier, G., et al. 2014, A&A, 572, A93 Martic, M., Schmitt, J., Lebrun, J.-C., et al. 1999, A&A, 351, 993 Mayor, M. & Queloz, D. 1995, Nature, 378, 355 Moultaka, J., Ilovaisky, S. A., Prugniel, P., & Soubiran, C. 2004, PASP, 116, 693 Moutou, C., H´ ebrard, G., Bouchy, F., et al. 2014, A&A, 563, A22 Moutou, C., H´ ebrard, G., Bouchy, F., et al. 2009, A&A, 498, L5 Naef, D., Latham, D. W., Mayor, M., et al. 2001, A&A, 375, L27 Naef, D., Mayor, M., Beuzit, J. L., et al. 2004, A&A, 414, 351 Neveu, M., Sahlmann, J., Queloz, D., & S´ egransan, D. 2012, in Orbital Couples: Pas de Deux in the Solar System and the Milky Way, ed. F. Arenou & D. Hestroffer, 81–85 Perrier, C., Sivan, J.-P., Naef, D., et al. 2003, A&A, 410, 1039 Perruchot, S., Kohler, D., Bouchy, F., et al. 2008, in SPIE, Vol. 7014, Ground-based and Airborne Instrumentation for Astronomy II, 70140J

6

Twenty years of giant exoplanets - Proceedings of the Haute Provence Observatory Colloquium, 5-9 October 2015 Edited by I. Boisse, O. Demangeon, F. Bouchy & L. Arnold Prugniel, P. & Soubiran, C. 2001, A&A, 369, 1048 Rauer, H., Catala, C., Aerts, C., et al. 2014, Experimental Astronomy, 38, 249 Ricker, G. R., Winn, J. N., Vanderspek, R., et al. 2015, Journal of Astronomical Telescopes, Instruments, and Systems, 1, 014003 Santerne, A., D´ ıaz, R. F., Moutou, C., et al. 2012, A&A, 545, A76 Soubiran, C., Bienaym´ e, O., & Siebert, A. 2003, A&A, 398, 141 Sozzetti, A., Bonavita, M., Desidera, S., Gratton, R., & Lattanzi, M. G. 2015, in IAU Symposium, Vol. 314, Young Stars & Planets Near the Sun, ed. J. H. Kastner, B. Stelzer, & S. A. Metchev, 264–269 Sullivan, P. W., Winn, J. N., Berta-Thompson, Z. K., et al. 2015, ApJ, 809, 77

7
