Eliminating Channel Feedback in Next Generation Cellular Networks Deepak Vasisht Swarun Kumar, Hariharan Rahul, Dina Katabi Cellular Traffic is Increasing Global mobile data traffic will increase 8 fold in 2015-2020 CISCO 30 (Exabytes/month)

slide-1
SLIDE 1

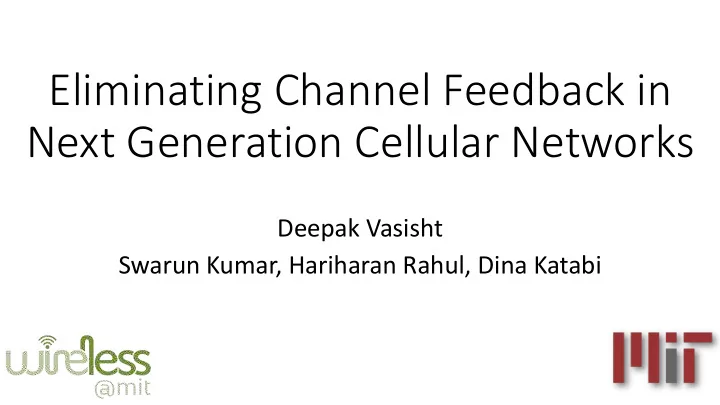

Eliminating Channel Feedback in Next Generation Cellular Networks

Deepak Vasisht Swarun Kumar, Hariharan Rahul, Dina Katabi

slide-2
SLIDE 2

Cellular Traffic is Increasing

Global mobile data traffic will increase 8 fold in 2015-2020 CISCO

10 20 30 2015 2016 2017 2018 2019 2020 Data Demand (Exabytes/month)

Spectrum cannot accommodate this increase

slide-3
SLIDE 3

LTE standard body, 3GPP, is proposing multi-antenna solutions in new releases:

  • Beamforming
  • Coordinated Multi-point
  • Full-Dimensional MIMO

Base station needs to know channels to client

More Antennas

slide-4
SLIDE 4

Channel Acquisition

Use feedback from the client

Feedback overhead is overwhelming

…

slide-5
SLIDE 5

Feedback is Overwhelming

  • Large in current networks, uses lossy compression [3GPP TS

36.211 2010, Irmer et al IEEE Communications 2011]

  • Prohibitive for future deployments with up to 32 antennas
  • According to LTE standard body, 3GPP:

“Identifying the potential issues of CSI acquisition and developing the proper solutions are of great importance”

slide-6
SLIDE 6

R2F2

  • Uses uplink channels to estimate downlink channels
  • Removes feedback overhead
  • Evaluated indoors and outdoors in white spaces

640 660 680 700 720 740

Frequency (MHz) R2F2 testbed Commercial Carriers

slide-7
SLIDE 7

Idea: Use Reciprocity Like in WiFi

In WiFi, Uplink Channel = Downlink Channel

slide-8
SLIDE 8

Idea: Use Reciprocity Like in WiFi

Does not work for cellular networks: Uplink and downlink on different frequencies

In WiFi, Uplink Channel = Downlink Channel

slide-9
SLIDE 9

Problem Statement

How do we estimate channels on one frequency from channels on a different frequency?

slide-10
SLIDE 10

Problem Statement

Uplink Channels at Frequency 1 Downlink Channels at Frequency 2

slide-11
SLIDE 11

Idea: Same Paths on Uplink & Downlink

Uplink Channels at Frequency 1 Downlink Channels at Frequency 2 Paths along which signal is received

slide-12
SLIDE 12

RF-based Localization Systems

−1 −0.5 0.5 1 0.5 1

cos θ Amplitude

600 𝑁𝐼𝑨 User 𝜄 Base Station

slide-13
SLIDE 13

RF-based Localization Systems

−1 −0.5 0.5 1 0.5 1

cos θ Amplitude

−1 −0.5 0.5 1 0.5 1

cos θ Amplitude

600 𝑁𝐼𝑨 650 𝑁𝐼𝑨 User 𝜄 Base Station

Localization systems don’t directly apply

slide-14
SLIDE 14

Idea: Same Paths on Uplink & Downlink

Uplink Channels at Frequency 1 Downlink Channels at Frequency 2 Paths along which signal is received

slide-15
SLIDE 15

Paths to Channels: Ideal Representation

User Base Station 𝜄)

−1 −0.5 0.5 1 0.2 0.4 0.6 0.8 1

cos θ Amplitude

𝜚) 𝜚+

slide-16
SLIDE 16

Paths to Channels: Measured Representation

User Base Station 𝜄)

−1 −0.5 0.5 1 0.2 0.4 0.6 0.8 1

cos θ Amplitude

Limited number

  • f antennas leads

to convolution with sinc

𝜚) 𝜚+

𝑇-(𝑏), 𝜚), 𝜄)) 𝑇-(𝑏+, 𝜚+, 𝜄+)

slide-17
SLIDE 17

Paths to Channels: Superposition

User Base Station 𝜄)

−1 −0.5 0.5 1 0.2 0.4 0.6 0.8 1

cos θ Amplitude

𝑇- 𝑏), 𝜚), 𝜄) + 𝑇-(𝑏+, 𝜚+, 𝜄+)

slide-18
SLIDE 18

Paths to Channels: FFT

User Base Station 𝜄)

−1 −0.5 0.5 1 0.2 0.4 0.6 0.8 1

cos θ Amplitude

ℎ) F 𝐺𝐺𝑈(𝑇- 𝑏), 𝜚), 𝜄) + 𝑇-(𝑏+, 𝜚+, 𝜄+))

slide-19
SLIDE 19

−1 −0.5 0.5 1 0.2 0.4 0.6 0.8 1

cos θ Amplitude

−1 −0.5 0.5 1 0.2 0.4 0.6 0.8 1

cos θ Amplitude

−1 −0.5 0.5 1 0.2 0.4 0.6 0.8 1

cos θ Amplitude

−1 −0.5 0.5 1 0.2 0.4 0.6 0.8 1

cos θ Amplitude

User

Base Station

ℎ) ℎ+

𝜄)

F F

Uplink to Downlink Channels

Uplink (f) Downlink (f’)

slide-20
SLIDE 20

−1 −0.5 0.5 1 0.2 0.4 0.6 0.8 1

cos θ Amplitude

−1 −0.5 0.5 1 0.2 0.4 0.6 0.8 1

cos θ Amplitude

−1 −0.5 0.5 1 0.2 0.4 0.6 0.8 1

cos θ Amplitude

−1 −0.5 0.5 1 0.2 0.4 0.6 0.8 1

cos θ Amplitude

User

Base Station

F F

Uplink to Downlink Channels

Uplink (f) Downlink (f’)

ℎ) ℎ+ ? ?

𝜄)

slide-21
SLIDE 21

−1 −0.5 0.5 1 0.2 0.4 0.6 0.8 1

cos θ Amplitude

−1 −0.5 0.5 1 0.2 0.4 0.6 0.8 1

cos θ Amplitude

User

Base Station

F

Channels to Paths

Uplink (f)

ℎ) Goal: To find a set of paths, that can produce channels ℎ) Recall: Each path is represented by (𝑏, 𝜚, 𝜄)

𝜄)

slide-22
SLIDE 22

−1 −0.5 0.5 1 0.2 0.4 0.6 0.8 1

cos θ Amplitude

−1 −0.5 0.5 1 0.2 0.4 0.6 0.8 1

cos θ Amplitude

User

Base Station

F

Channels to Paths

Uplink (f)

ℎ) Goal: To find {𝑏7, 𝜚7, 𝜄7}79)

: , that can produce channels ℎ) 𝜄)

Recall: Each path is represented by (𝑏, 𝜚, 𝜄)

slide-23
SLIDE 23

Channels to Paths

Goal: To find {𝑏7, 𝜚7, 𝜄7}79)

: , that can produce channels ℎ)

ℎ;<= = 𝐺𝐺𝑈 ? 𝑇- 𝑏7, 𝜚7, 𝜄7

: 79)

{𝑏7, 𝜚7, 𝜄7}79)

: = 𝑏𝑠𝑕𝑛𝑗𝑜{EF,GF,HF} ℎ) − ℎ;<= +

slide-24
SLIDE 24

Getting Paths from Wireless Channels

  • Optimization is non-linear and constrained
  • Solved using standard interior point method
  • Approximate initialization using RF-localization methods
slide-25
SLIDE 25

−1 −0.5 0.5 1 0.2 0.4 0.6 0.8 1

cos θ Amplitude

−1 −0.5 0.5 1 0.2 0.4 0.6 0.8 1

cos θ Amplitude

−1 −0.5 0.5 1 0.2 0.4 0.6 0.8 1

cos θ Amplitude

−1 −0.5 0.5 1 0.2 0.4 0.6 0.8 1

cos θ Amplitude

User

Base Station

F F

Uplink to Downlink Channels

Uplink (f) Downlink (f’)

ℎ) ℎ+

𝜄)

slide-26
SLIDE 26

Evaluation

Goal: To measure the accuracy of R2F2 channel estimates

slide-27
SLIDE 27

Experimental Setup

  • Used USRP N210 software radios as clients and base stations
  • Implemented a 5 antenna LTE base station
  • Located base station close to a commercial base station
slide-28
SLIDE 28

Frequency Separation

  • Used frequencies from 640 to 690 MHz in the White Spaces
  • Evaluation at 30 MHz Uplink-Downlink separation
  • Same as major AT&T and Verizon deployments

640 660 680 700 720 740

Frequency (MHz) R2F2 testbed Commercial Carriers

slide-29
SLIDE 29

100 m 50 m

Indoor Testbed

Base Station Client

slide-30
SLIDE 30

80 m 60 m

Outdoor Testbed

Base Station Client

slide-31
SLIDE 31

Beamforming

slide-32
SLIDE 32

Beamforming

slide-33
SLIDE 33

Beamforming Comparison

0.2 0.4 0.6 0.8 1

  • 5

5 15 25 CDF SNR (dB)

No Beam Ground Truth (Explicit Feedback) R2F2

R2F2 delivers 90% of the MIMO SNR gains, with zero feedback

slide-34
SLIDE 34

Beamforming Comparison: Data Rate

0.2 0.4 0.6 0.8 1 10 20 30 40 50 60 CDF Datarate (Mbps)

No Beam Ground Truth R2F2

R2F2’s achieves 1.7x data rate improvement

slide-35
SLIDE 35

Comparison with RF-localization

0.2 0.4 0.6 0.8 1

  • 5

5 15 25 CDF SNR (dB)

No Beam Ground Truth R2F2 RF-Loc

Delivers only 40% of MIMO SNR gains

slide-36
SLIDE 36

Effect of Frequency Separation

1 2 3 4 5 6 7 8 10 20 30 40 50 SNR Gain (dB) Frequency Separation (MHz)

slide-37
SLIDE 37

Application: Edge Client Nulling

slide-38
SLIDE 38

Application: Edge Client Nulling

BS 1 BS 2 Client 2 Client 1

slide-39
SLIDE 39

Edge Nulling

0.2 0.4 0.6 0.8 1

  • 5

5 10 15 CDF INR(dB) Original After Nulling

  • 5. 3 dB
slide-40
SLIDE 40

Related Work

  • Cellular Networks: Channel feedback compression [Shuang

et al VTC 11, Rao et al 14, Xu et al Access IEEE 14], Statistical channel prediction across frequency bands [Han et al CHINACOM 10, Hugl et al COST 02…]

  • Beyond Cellular Networks: Channel quality prediction [Sen

et al Mobicom 13, Shi et al NSDI 14, Radunovic et al CONEXT 11…], Temporal channel predictions [Cao et al PMRC 04, Wong et al GLOBECOM’05, Dong et al GLOBECOM’01]

slide-41
SLIDE 41

Conclusion

  • R2F2 estimates channels on one frequency from channels on a

different frequency

  • R2F2 accurately estimates downlink LTE channels from uplink

LTE channels

  • R2F2 enables MIMO techniques for FDD systems with zero

channel feedback
