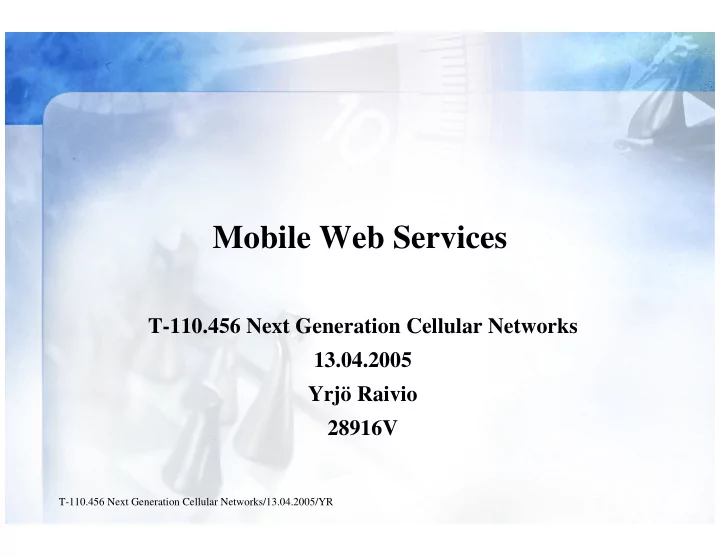

Mobile Web Services

T-110.456 Next Generation Cellular Networks 13.04.2005 Yrjö Raivio 28916V

T-110.456 Next Generation Cellular Networks/13.04.2005/YR

Contents

• Motivation
• Standardization bodies
• Web Services Interoperability Organization (WS-I)
• Web Services Discovery
• Liberty Alliance Project
• Drivers
• Architecture
• PAOS
• Open Web Services Architecture
• Examples
• Conclusions

T-110.456 Next Generation Cellular Networks/13.04.2005/YR

Mobile Circle of Trust – Single Sign On

T-110.456 Next Generation Cellular Networks/13.04.2005/YR

Challenge with the Mobile Services

Mobile Operators

High integration cost for new xSP to join operator portal. Less revenue from services and traffic.

Terminals

Less services available. Lower value to the subscriber. Difficult to use services. Lack of privacy.

xSP’s

High integration costs for authentication, charging, personalization. Services not attractive to subscriber.

Presence, Location

xSP 1 xSP 2

Application Development Fragmentation, loss of mass- market appeal

Charging Profile Messaging Authentication

T-110.456 Next Generation Cellular Networks/13.04.2005/YR

Mobile Operators

Easy integration. Easy for xSP to join operator portal. More revenue from services & traffic.

Terminals

More value for the subscribers because more services and better user experience. Privacy protection.

xSP’s

Easy integration. xSP more independent from operator. Services more attractive through single sign-on, personalization, privacy. Standard WS (& IdM) Framework

Presence, Location Charging Profile Messaging Authentication

Solution: Web Services and Identity Management

xSP 1 xSP 2

Application Development

T-110.456 Next Generation Cellular Networks/13.04.2005/YR

Mobile Operators Terminals

Even more value for the subscriber/terminal

xSP’s

Even more attractive services

Next step: WEB services entering the phone

xSP 1 xSP 2

Application Development

WS Framework WS Framework

Web services

T-110.456 Next Generation Cellular Networks/13.04.2005/YR

Mobile Web Services Standardization bodies

• W3C: XML, SOAP, WSDL
• IETF: HTTP
• OASIS: UDDI, WS-Security
• WS-I: Interoperability of the basic functions
• MS, IBM, Nokia
• Liberty Alliance Project:
• ID-FF, Identity Federation Framework
• ID-SIS, Identity Service Interface Specifications
• ID-WSF, Identity Web Services Framework
• OMA/Mobile Web Services WG: Defines that the Mobile Web

Services suit to the OMA Architecture

• Java Community/J2ME Web Services - support for Java based

mobile application development

T-110.456 Next Generation Cellular Networks/13.04.2005/YR

Web Services Interoperability Org. (WS-I)

WS-I’s Work to Date

Composition/Orchestration Business Process Orchestration Portals Management XML, SOAP XML Schema, WSDL, UDDI, SOAP with Attachments HTTP, HTTPS, Others Invocation Description Transports Composable Service Elements Transactionality WS-Security Reliable Messaging Endpoint Identification, Publish/Subscribe Messaging Additional Capabilities

T-110.456 Next Generation Cellular Networks/13.04.2005/YR

Web Services Discovery

• Methods to find Web Services:
• By being told about it out of band
• Examples include obtaining the information from a service provider by e-

mail, or by being dynamically informed about the service during an HTTP transaction (for example, by using the Liberty Reverse HTTP Binding for SOAP Specification)

• Through a visit to a well-known location
• Knowledge of this location can be, for example, shared out of band, discovered
• n a Web site, or shared as ‘metadata’
• By using a centralized directory, such as a UDDI (Universal

Distribution, Discovery and Integration) directory

• By using an identity-based discovery service
• ID-WSF Discovery
• How the service provider will find MY services such as

Identity Provider, Payment, Messaging etc.

T-110.456 Next Generation Cellular Networks/13.04.2005/YR

Liberty Alliance Project

• Need to be connected anytime, anyplace - without compromising

security or control of personal information

• Liberty Alliance provides the technology, knowledge and

certifications to build identity into the foundation of mobile and Web-based communications

• Not mobile specific but mobile aware
• 150+ diverse member organizations, from banks to operators and

service providers

• Identity Management framework
• To solve privacy issues
• Link different identities (telco, internet) with each other
• Authenticate and authorize transactions in non-trusted /unsecured environment
• Facilitate easy of use-avoiding multiple registrations to services
• Easy and standard interfacing to 3rd parties using main stream Internet

technologies (Web Services, XML/SOAP -> Liberty ID-FF/ID-WSF)

T-110.456 Next Generation Cellular Networks/13.04.2005/YR

Liberty Alliance Project - Architecture

Liberty specifications build on existing standards (SAML, SOAP, WS-Security, XML, etc.)

Liberty Identity Federation Framework (ID-FF) Security Assertion Markup Language (SAML) 2.0

Enables identity federation and management through features such as

• identity/account linkage
• simplified sign on
• simple session management

Liberty Identity Services Inter- face Specifications (ID-SIS)

Enables interoperable identity services such as personal identity profile service, contact book service, geo- location service, presence service etc.

Liberty Identity Web Services Framework (ID-WSF)

Provides the framework for building interoperable identity services, permis- sion based attribute sharing, identity service description and discovery, and the associated security profiles.

T-110.456 Next Generation Cellular Networks/13.04.2005/YR

PAOS – Reverse HTTP Binding for SOAP

• Most devices equipped with HTTP client but not with HTTP

server, like mobiles

• However, mobile devices could offer valuable services to other

parties, like calendar and profile service

• Such services could be especially valuable when such devices

interact with an HTTP-based server (or service)

• When a user of a mobile terminal visits a web site, that web site

could use some of the data from a personal profile service to personalize the offered content

• The primary difference from the normal HTTP binding for

SOAP is that here a SOAP request is bound to a HTTP response and vice versa

• Hence the name Reversed HTTP binding for SOAP. The

(informal) abbreviation for this binding specification is "PAOS"

T-110.456 Next Generation Cellular Networks/13.04.2005/YR

Personal Portal Service

T-110.456 Next Generation Cellular Networks/13.04.2005/YR

Open Web Services Architecture

T-110.456 Next Generation Cellular Networks/13.04.2005/YR

Operator control and Web Services

• Today connections from the internet towards mobile devices or

directly between them are blocked due to security risks and fear

• f losing control => Full utilization of WS not possible yet
• Operators do not have any specific control points in the game,

but they do have interesting data (location, profile, presence) and huge register base

• Operators have not (yet) opened their services through WS IFs
• Operators and banks are both interested about the Identity

Provider (IDP) business; no common views, scattered solutions by operators, banks and governments

• PAOS enables operator independent services but requires that

terminal has the data!

• Symbian terminals will soon have Web Services support

T-110.456 Next Generation Cellular Networks/13.04.2005/YR

Roles in the Service Business

Web Service Consumers Web Service Providers

Device roles:

Web Service Consumers Web Service Providers Web Service Provider

Authentication Discovery Profile Location Charging Messaging Presence

Mobile operator roles:

Web Service Consumer

Web sites and Applications roles:

Service protocols

T-110.456 Next Generation Cellular Networks/13.04.2005/YR

Examples

• AOL developed Radio@AOL and

Album@AOL services based on open WEB Services standards

• Client can utilize platform WEB

Services API’s

• I.e. easier to develop
• Less memory consumption
• Amazon has opened WS API to their

product catalogue

• Piranha Java SW utilises this API and

can check any product and price Amazon supports

• Amazon gets 17% commission of 3rd

party product turnover; 22% of Amazon incomes

T-110.456 Next Generation Cellular Networks/13.04.2005/YR

Demo: “WSP” on the mobile

Gateway Web Server BT Pan Firewall Internet GPRS

T-110.456 Next Generation Cellular Networks/13.04.2005/YR

Conclusions

• Mobile Web Services offer interesting opportunities for mobile

service developers

• Standardization setup is pretty complex, over engineered => de

facto standards?

• Banks and operators are competing with each other => scattered,

nation wide identity solutions

• Mobile operators have been too slow and have not utilized their

strengths: Customer base, Trust, Authentication, Billing, Profile, Location, Messaging, Presence…

• Open APIs needed – New business possibilities for all parties

T-110.456 Next Generation Cellular Networks/13.04.2005/YR

References

• SOAP and XML specifications: www.w3c.org
• SAML and UDDI specifications: www.oasis-open.org, www.uddi.org
• WS-I: www.ws-i.org
• Liberty Alliance, PAOS: www.projectliberty.org
• OMA MWS WG: www.openmobilealliance.org/tech/wg_committees/mws.html
• White Papers

Available at: http://www.nokia.com/nokia/0,,56843,00.html

• Identity Federation and Web services – technical use cases for mobile operators,

Nokia & Sun, 12/2004.

• Nokia Web Services Framework for Devices – a Service-oriented Architecture,

Nokia, 03/2004.

Available at: http://www.sun.com/webservices

• Deploying Mobile Web Services using Liberty Alliance’s Identity Web Services

Framework (ID-WSF), Nokia & Sun, 06/2004.

• Developers: www.forum.nokia.com, www.developers.sun.com
