Elektroline signaling systems Jan Chromec, Elektroline Inc. - PowerPoint PPT Presentation

May 02, 2023 •23 likes •273 views

Elektroline signaling systems Jan Chromec, Elektroline Inc. (chromec@elektroline.cz) Elektroline signaling systems Elektroline (Prague, Czech Republic) Established in 1991 Approx. 250 employees, $40M turnover Part of ALPIQ group

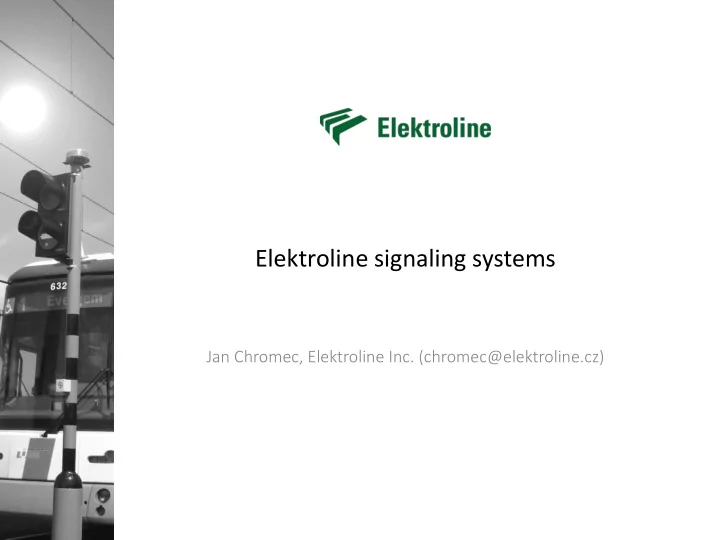

  1. Elektroline signaling systems Jan Chromec, Elektroline Inc. (chromec@elektroline.cz)

  2. Elektroline signaling systems Elektroline (Prague, Czech Republic) • Established in 1991 • Approx. 250 employees, $40M turnover • Part of ALPIQ group (Zurich, Switzerland)

  3. Elektroline signaling systems Elektroline (Prague, Czech Republic) tbus/tram catenary tramway signaling railway systems

  4. Elektroline signaling systems Elektroline worldwide • Prague, Czech Republic • Blackpool, United Kingdom • Portland, USA • Brussels, Belgium • Amsterdam, Netherlands • Warsaw, Poland • Moscow, Russia • Melbourne, Australia • Goteborg, Sweden • Athens, Greece • Szeged, Hungary • Suzhou, China • and many others...

  5. Elektroline signaling systems Tramway signaling systems switch control signaling systems depot signaling system TSC point machines tram-to-wayside communication track circuit BRC switch heating system VETRA

  6. Elektroline signaling systems Switch control system TSC • SIL 3 safety • Microprocessor-based • Maintenance-free • Event log, Online connectivity resonant track circuit | | point machine TSH login VETRA antenna | | logout VETRA antenna switch control system TSC | | point position indicator GPRS connection | | Internet connection

  7. Elektroline signaling systems Switch control system TSC

  8. Elektroline signaling systems Signals / Point position indicators • Points position + blocking • On catenary or pole • Custom-made • LED, auto luminosity control

  9. Elektroline signaling systems Signaling systems • SIL 3 safety • Maintenance-free • Event log, Online connectivity • Custom design (flexible system) mechanical point machine TSM | stop/proceed signal | first logout track circuit | point position indicator | logout confirmation | login VETRA antenna | | blocking track circuit login track circuit | blocking/login/logout track circuit | signaling system cabinet | bidirectional track |

  10. Elektroline signaling systems Depot management - EYAS • Automatic depot control • Interface to scheduling system (parking plan) • Highly customizable system • Well-proven system

  11. Elektroline signaling systems Pankrac depot, Prague, Czech Republic (2004)

  12. Elektroline signaling systems Lekstraat depot, Amsterdam, Netherlands (2011)

  13. Elektroline signaling systems Franowo depot, Poznan, Poland

  14. Elektroline signaling systems Preston depot, Melbourne, Australia (2015)

  15. Elektroline signaling systems Electro-hydraulic point machine TSH 100 series • SIL 3 safety • Trailable • Watertight (IP68) • Maintenance-free • Flat design

  16. Elektroline signaling systems Electro-hydraulic point machine TSH 070 series • For depots and low-speed areas • Fully trailable • Watertight (IP68) • Maintenance-free • Flat design

  17. Elektroline signaling systems Manual point machine TSM 070 series • Watertight (IP68) • Trailing or sprung point • Maintenance-free • Very silent • Flat design

  18. Elektroline signaling systems VETRA system (tram-to-wayside communication) • 2.4GHz bidirectional tram-to-wayside communication • Commonly used as track-mounted or catenary-mounted • For tram speed up to 100 km/h • Install anywhere (no constraints, even in a track circuit)

  19. Elektroline signaling systems VETRA system (onboard equipment)

  20. Elektroline signaling systems VETRA system (wayside equipment)

  21. Elektroline signaling systems VETRA system (wayside VETRA antennae)

  22. Elektroline signaling systems Track circuit BRC • SIL2/SIL3 safety level • combined axle shunt + mass detection • open interface (easy-to-implement) • automatic self-adjustments (weather changes) • flexible configurations

  23. Elektroline signaling systems Track circuit BRC (types of track circuit) rectangular TC complex TC twincap TC metal detector

  24. Elektroline signaling systems Track circuits (easy installation) • Extremely easy installation • Less points of connection to the rails

  25. Elektroline signaling systems Switch heating • integrated as part of the TSC system (points controller) or stand- alone system • air temp, rail temp, precipitation sensors • remote diagnostics and alarms reporting • proven in the most demanding weather conditions (Russia, Poland, Czech Republic, Netherlands, etc.)
