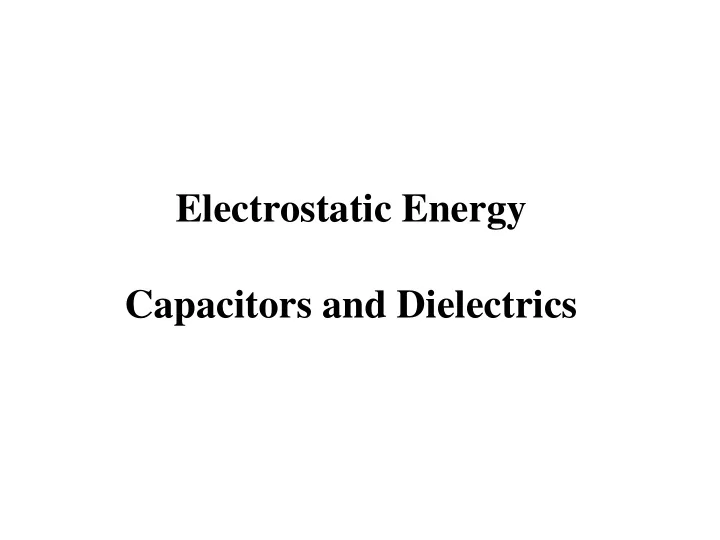

Electrostatic Energy Capacitors and Dielectrics Energy of a Charge - - PowerPoint PPT Presentation
Electrostatic Energy Capacitors and Dielectrics Energy of a Charge - - PowerPoint PPT Presentation
Electrostatic Energy Capacitors and Dielectrics Energy of a Charge Distribution How much energy ( work) is required to assemble a charge distribution ? CASE I: Two Charges Bringing the first charge does not require energy ( work) Energy
SLIDE 2
SLIDE 3
Energy of a Charge Distribution
CASE I: Two Charges Bringing the second charge requires to perform work against the field of the first charge.
r Q1 Q2 W = Q2 V1 with V1 = (1/4πε0) (Q1/r) ⇒ W = (1/4πε0) (Q1 Q2 /r) = U U = (1/4πε0) (Q1 Q2 /r)
U = potential energy of two point charges
SLIDE 4
Energy of a Charge Distribution
CASE II: Several Charges
Uij = (1/4πε0) (Qi Qj /r)
Uij = potential energy of a pair of point charges
Q Q Q Q
How much energy is stored in this square charge distribution?, or … What is the electrostatic potential energy of the distribution?, or … How much work is needed to assemble this charge distribution? The three statements represent the same question. To answer it is necessary to add up the potential energy of each pair of charges
⇒ U = ∑ Uij where:
SLIDE 5
Capacitor
One particular form of capacitor is the parallel plate capacitor shown in the figure: to parallel conducting plates, each of area A, separated by a distance d
d A
Two conductors, separated by a finite distance constitute a capacitor
SLIDE 6
Capacitance
- Q
+Q V d A
The ratio C = Q / V is called the capacitance
C = Q / V
[Units: Coulomb /Volt = Farad] If a potential difference V is applied between the plates, charges + Q and – Q appear on the plates. The charge Q is proportional to the applied voltage V
SLIDE 7
The potential difference between the plates is V = E d = Q d / A εo
Parallel Plate Capacitor
The electric field between the plates is E = Q / A ε0 ⇒ The relation between Q and V is V = Q d / A ε0 or Q = V A ε0 /d and the ratio C = Q / V = A ε0 / d is the capacitance of the parallel plate capacitor
- Q
+Q
E
d A V C = ε0 A / d
SLIDE 8
Capacitance
C = Q / V
The relationship C = Q / V is valid for any charge configuration (Indeed this is the definition of capacitance or electric capacity) In the particular case of a parallel plate capacitor C = Q / V = ε0 A / d The capacitance is directly proportional to the area of the plates and inversely proportional to the separation between the plates
- Q
+Q
E
d A V
SLIDE 9
Given that: A = 0.0280 m2, d = 0.550 mm, and V = 20.1 V, find the magnitude of the charge Q on each plate.
SLIDE 10
- Suppose we fill the space between the plates of a capacitor
with an insulating material (a “dielectric”):
- The material will be “polarized” - electrons are pulled away
from atom cores
- Consequently the E field within the capacitor will be reduced
Dielectrics in Capacitors
- Q
+Q
- +
- +
- +
- +
- +
- +
- +
- +
- +
- +
- +
- +
- +
- +
- +
- +
SLIDE 11
Effect of a dielectric on the electric field of a capacitor The dielectric decreases the electric field between the plates, as well as the voltage between the plates, and consequently increases the capacitance of the capacitor
C = Q/V
SLIDE 12
Effect of a dielectric on a capacitor V0 = E0 d C0 = Q / V0 E = E0 / κ κ: dielectric constant When the dielectric is inserted: E E d V V Ed d κ κ κ ⎛ ⎞ = = = = ⎜ ⎟ ⎝ ⎠ and for the capacitance:
Q Q Q C C V V V κ κ κ = = = = ⎛ ⎞ ⎜ ⎟ ⎝ ⎠
C = κ C0 : The capacitance increases when the dielectric is present
SLIDE 13
- A dielectric reduces the electric field by a factor κ [E = E0/κ]
- A dielectric reduces the voltage by a factor of κ [V = V0/κ]
- and C = Q/V is increased by κ [C = C0 κ]
- Adding a dielectric increases the capacitance.
Effect on Capacitance
SLIDE 14
Parallel plate capacitor filled with dielectric
0A
C d κε =
Water 80.4 Neoprene 6.7 Pyrex 5.6 Mica 5.4 Paper 3.7 Mylar 3.1 Teflon 2.1 Air 1.00059 Vacuum 1
Dielectric constant κ
- f some common
substances
SLIDE 15
Given A = 0.0280 m2, d = 0.550 mm, V = 12 V, and Q = 3.62x10-8 C: Find κ What is the value of the capacitance when there is no dielectric ?
SLIDE 16
What Does a Capacitor Do?
- Stores electrical charge.
- Stores electrical energy.
Capacitors are basic elements of electrical circuits both macroscopic (as discrete elements) and microscopic (as parts of integrated circuits). Capacitors are used when a sudden release of energy is needed (such as in a photographic flash). Electrodes with capacitor-like configurations are used to control charged particle beams (ions, electrons).
SLIDE 17
What Does a Capacitor Do?
- Stores electrical charge.
- Stores electrical energy.
The charge is easy to see. If a certain potential, V, is applied to a capacitor C, it must store a charge Q = C V
V
- Q
+Q
C
(Symbol for a capacitor)
SLIDE 18
What Does a Capacitor Do?
- Stores electrical charge.
- Stores electrical energy.
- Q
+Q
C V
- +
+ +
It takes a certain amount of energy to charge the capacitor. This energy resides in the capacitor until it is discharged.
SLIDE 19
Energy Stored in a Capacitor
Suppose we have a capacitor with charge q (+ and -) Then we transfer the charge Δq from the – to the + plate We must do work ΔW = V Δq to increase the charge The potential energy of the capacitor increases as it gets charged Since the voltage increases linearly with charge, the total energy U stored in the capacitor charged with charge Q can be written as:
U = Q VAVE = ½ Q V
- Q
+Q
C V
- +
+ +
SLIDE 20
Energy Stored in a Capacitor
The total energy U stored in a charged capacitor with charge Q and potential difference V is:
U = ½ Q V U = ½ CV2 U = Q2/2C
All these three expressions are equivalent, they give the energy in terms of different variables
- Q
+Q
C V
- +
+ +
SLIDE 21
Energy Density.
In the case of a parallel plate capacitor Q = ε0 EA and V = Ed The total energy stored is U = ½ QV = ½ (ε0 EA) (Ed)
- r U = ½ ε0 E2 (Ad), where Ad is the volume between the plates,
and uE = ½ ε0 E2 is the electric energy density (energy per unit volume)
- Q
+Q
E
d A V
SLIDE 22
Energy Density.
The electric potential energy can be thought of as stored in the electric field existing between the plates of the capacitor. This result is valid for any electric field (not just that produced by a parallel plate capacitor) There is an electric energy density uE = ½ ε0 E2 associated with an electric field The energy is stored in the electric field
- Q
+Q
E
d A V
SLIDE 23
Parallel and Series Parallel Series
SLIDE 24
- Q
+Q
C
(Symbol for a capacitor)
Capacitors in Circuits
A piece of metal in equilibrium has a constant value of potential. Thus, the potential of a plate and attached wire is the same. The potential difference between the ends of the wires is V, the same as the potential difference between the plates.
V
SLIDE 25
Capacitors in Parallel
- Suppose there is a potential
difference V between a and b.
- Then q1 V = C1 & q2 V = C2
C1 - q1 C2 - q2
a b
V
- We want to replace C1 and C2 with an
equivalent capacitance C = q V
- The charge on C is q = q1 + q2
- Then C = q V = (q1 + q2 ) V = q1 V + q2 V = C1 + C2
C = C1 + C2
- This is the equation for capacitors in parallel.
- Increasing the number of capacitors increases the capacitance.
a b C - q
SLIDE 26
Capacitors in Series
- Here the total potential difference between a and b is V = V1 + V2
- Also V1 = (1/C1) q and V2 = (1/C2) q
- The charge on every plate (C1 and C2) must be the same (in
magnitude)
- Then: V = V1 + V2 = q / C1 +q / C2 = [(1/C1) + (1/C2)] q
- or, V = (1/C) q ⇒
C2 C1 a b V1 V2 +q
- q
a b C V
- q
- q
+q +q 1 / C = 1 / C1 + 1 / C2
- This is the equation for capacitors in series.
- Increasing the number of capacitors decreases the capacitance.
SLIDE 27
CASE III: Parallel Plate Capacitor
Energy of a Charge Distribution
- Q
+Q d E A Electric Field ⇒ E = σ / ε0 = Q / ε0 A (σ = Q / A) Potential Difference ⇒ V = E d = Q d / ε0 A
SLIDE 28
CASE III: Parallel Plate Capacitor
Energy of a Charge Distribution
- Q
+Q d E A W = U = d Q2 / 2 ε0 A
The work done in charging the plates ends up as stored potential energy of the final charge distribution Where is the energy stored ? The energy is stored in the electric field
SLIDE 29
CASE III: Parallel Plate Capacitor
Energy of a Charge Distribution
- Q
