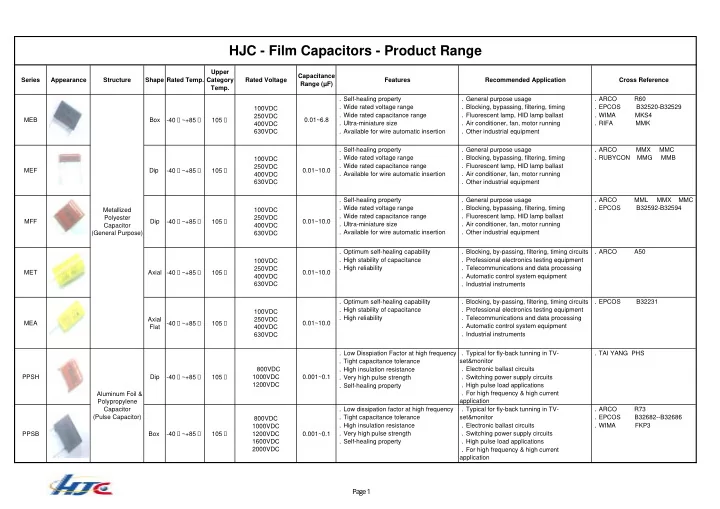

Series Appearance Structure Shape Rated Temp. Upper Category Temp. Rated Voltage Capacitance Range (µF) Features Recommended Application Cross Reference MEB Box

• 40℃~+85℃

105℃ 100VDC 250VDC 400VDC 630VDC 0.01~6.8 ．Self-healing property ．Wide rated voltage range ．Wide rated capacitance range ．Ultra-miniature size ．Available for wire automatic insertion ．General purpose usage ．Blocking, bypassing, filtering, timing ．Fluorescent lamp, HID lamp ballast ．Air conditioner, fan, motor running ．Other industrial equipment ．ARCO R60 ．EPCOS B32520-B32529 ．WIMA MKS4 ．RIFA MMK MEF Dip

• 40℃~+85℃

105℃ 100VDC 250VDC 400VDC 630VDC 0.01~10.0 ．Self-healing property ．Wide rated voltage range ．Wide rated capacitance range ．Available for wire automatic insertion ．General purpose usage ．Blocking, bypassing, filtering, timing ．Fluorescent lamp, HID lamp ballast ．Air conditioner, fan, motor running ．Other industrial equipment ．ARCO MMX MMC ．RUBYCON MMG MMB MFF Dip

• 40℃~+85℃

105℃ 100VDC 250VDC 400VDC 630VDC 0.01~10.0 ．Self-healing property ．Wide rated voltage range ．Wide rated capacitance range ．Ultra-miniature size ．Available for wire automatic insertion ．General purpose usage ．Blocking, bypassing, filtering, timing ．Fluorescent lamp, HID lamp ballast ．Air conditioner, fan, motor running ．Other industrial equipment ．ARCO MML MMX MMC ．EPCOS B32592-B32594 MET Axial -40℃~+85℃ 105℃ 100VDC 250VDC 400VDC 630VDC 0.01~10.0 ．Optimum self-healing capability ．High stability of capacitance ．High reliability ．Blocking, by-passing, filtering, timing circuits ．Professional electronics testing equipment ．Telecommunications and data processing ．Automatic control system equipment ．Industrial instruments ．ARCO A50 MEA Axial Flat

• 40℃~+85℃

105℃ 100VDC 250VDC 400VDC 630VDC 0.01~10.0 ．Optimum self-healing capability ．High stability of capacitance ．High reliability ．Blocking, by-passing, filtering, timing circuits ．Professional electronics testing equipment ．Telecommunications and data processing ．Automatic control system equipment ．Industrial instruments ．EPCOS B32231 PPSH Dip

• 40℃~+85℃

105℃ 800VDC 1000VDC 1200VDC 0.001~0.1 ．Low Disspiation Factor at high frequency ．Tight capacitance tolerance ．High insulation resistance ．Very high pulse strength ．Self-healing property ．Typical for fly-back tunning in TV- set&monitor ．Electronic ballast circuits ．Switching power supply circuits ．High pulse load applications ．For high frequency & high current application ．TAI YANG PHS PPSB Box

• 40℃~+85℃

105℃ 800VDC 1000VDC 1200VDC 1600VDC 2000VDC 0.001~0.1 ．Low dissipation factor at high frequency ．Tight capacitance tolerance ．High insulation resistance ．Very high pulse strength ．Self-healing property ．Typical for fly-back tunning in TV- set&monitor ．Electronic ballast circuits ．Switching power supply circuits ．High pulse load applications ．For high frequency & high current application ．ARCO R73 ．EPCOS B32682--B32686 ．WIMA FKP3

HJC - Film Capacitors - Product Range

Metallized Polyester Capacitor (General Purpose) Aluminum Foil & Polypropylene Capacitor (Pulse Capacitor)

P a g e 1

Series Appearance Structure Shape Rated Temp. Upper Category Temp. Rated Voltage Capacitance Range (µF) Features Recommended Application Remark MPP Dip

• 40℃~+85℃

105℃ 100VDC 250VDC 400VDC 630VDC 0.01~10.0 ．Low dissipation facotr at high frequency ．High stability of capacitance & DF ．Self-healing property ．High insulation resistance ．Typical for S-correction in TV-set ．Electronic ballast circuits ．Switching power supply circuits ．Video tape recorder ．EPCOS B32612--B32614 MPB Box

• 40℃~+85℃

105℃ 100VDC 250VDC 400VDC 630VDC 1000VDC 0.01~10.0 ．Low dissipation facotr at high frequency ．High stability of capacitance & DF ．Self-healing property ．High insulation resistance ．Typical for S-correction in TV-set ．Electronic ballast circuits ．Switching power supply circuits ．Video tape recorder ．ARCO R75 ．EPCOS B32651--B32656 MPT Axial -40℃~+85℃ 105℃ 250VDC 400VDC 630VDC 0.01~10.0 ．Low dissipation facotr at high frequency ．High stability of capacitance & DF ．Self-healing property ．High insulation resistance ．Timing, tuned, oscillator circuits ．Temperature compensation circuits ．Telecommunications and data processing ．Professional electronic testing equipment ．Industrial instruments ．ARCO A72 MPA Axial Flat

• 40℃~+85℃

105℃ 250VDC 400VDC 630VDC 0.01~10.0 ．Low dissipation facotr at high frequency ．High stability of capacitance & DF ．Self-healing property ．High insulation resistance ．Timing, tuned, oscillator circuits ．Temperature compensation circuits ．Telecommunications and data processing ．Professional electronic testing equipment ．Industrial instruments ．EPCOS B32231 MP2 Dip

• 40℃~+85℃

105℃ 300VAC 400VAC 500VAC 700VAC 900VAC 0.001~0.1 ．Low Disspiation Factor at high frequency ．Excellent corona voltage ．Very high puse strength ．Small size ．Electronic lighting (ballast&car headlamp) ．Switching power supply circuits ．Pulse applications with high AC voltage&current ．ARCO R77 ．RIFA PHE450 ．VISHAY MMKP383 ．WIMA MKP10 MP3 Box

• 40℃~+85℃

105℃ 300VAC 400VAC 500VAC 700VAC 900VAC 0.001~0.1 ．Low Disspiation Factor at high frequency ．Excellent corona voltage ．Very high puse strength ．Small size ．Electronic lighting (ballast&car headlamp) ．Switching power supply circuits ．Pulse applications with high AC voltage&current ．ARCO R77 ．RIFA PHE450 ．VISHAY MMKP383 ．WIMA MKP10 MP3S Box ~+85℃ for Vr(DC), ~+75℃ for Vr(AC) 105℃ 400VDC(250VAC) 630VDC(400VAC) 1000VDC(600VAC) 0.001~1.5 ．Low Disspiation Factor at high frequency ．Excellent corona voltage ．Very high puse strength ．Small size ．Electronic lighting (ballast&car headlamp) ．Switching power supply circuits ．Pulse applications with high AC voltage&current ．ARCO R76 ．RIFA PHE450 ．VISHAY MMKP383 ．WIMA MKP10 Metallized Polypropylene Capacitor (General Pulse) Double-side Metallized Polypropylene Capacitor

P a g e 2

Series Appearance Structure Shape Rated Temp. Upper Category Temp. Rated Voltage Capacitance Range (µF) Features Recommended Application Remark MP4 Dip

• 40℃~+85℃

105℃ 300VAC 400VAC 500VAC 700VAC 900VAC 0.001~0.1 ．Low Disspiation Factor at high frequency ．Excellent corona voltage ．High puse strength ．Small size ．Electronic lighting (ballast&car headlamp) ．Switching power supply circuits ．Pulse applications with high AC voltage&current ．ARCO R74 ．EPCOS B32612--B32614 MP5 Box

• 40℃~+85℃

105℃ 300VAC 400VAC 500VAC 700VAC 900VAC 0.001~0.1 ．Low Disspiation Factor at high frequency ．Excellent corona voltage ．High puse strength ．Small size ．Electronic lighting (ballast&car headlamp) ．Switching power supply circuits ．Pulse applications with high AC voltage&current ．EPCOS B32671--B32672 ．EPCOS B32671L--B32672L ．EPCOS B32651--B32656 MKP-X2 (Standard) Box

• 40℃~+110℃

110℃ UL/CUL-310VAC ENEC275VAC/305V AC CQC 0.01~10.0 ．Self-healing property ．Inaccordance with UL, CSA, ENEC, CQC safety regulations ．Class X2 ．Interference suppressors ．Antenna coupling ．Across the line ．Line-by-pass ．EMI filter ．ARCO R46 ．EPCOS B32921-6 *MKP-104K0275AB1151 - part number example for standard MKP- X2 series. MKP-X2 (Mini Size) Box

• 40℃~+110℃

110℃ UL/CUL-310VAC ENEC275VAC/305V AC CQC 0.01~10.0 ．Self-healing property ．Inaccordance with UL, CSA, ENEC, CQC safety regulations ．Class X2 ．Smaller version of MKP-X2 type ．Interference suppressors ．Antenna coupling ．Across the line ．Line-by-pass ．EMI filter ．ARCO R46 ．EPCOS B32921-6 *MKP-104K0275AB1151-P - part number example for MKP-X2 mini size MKP-X2 (THB) Box

• 40℃~+110℃

110℃ UL/CUL-310VAC ENEC275VAC/305V AC CQC 0.047~2.2 ．Excellent longterm stability under tough environmental conditions, such as high ambient temperature and high humidity ．Self-healing property ．Inaccordance with UL, CSA, ENEC, CQC safety regulations ．Test condition: 85degC/85%, 240Vac, Tol <10% for 1000hrs ．All applications with high demand on excellent longterm stability, such as:

• Power meters
• Capacitive power supply applications
• Outdoor applications
• Automotive electronics
• For connection in series with the mains

．EPCOS B32932-6 *MKP-104K0275AB1151U - part number example for MKP-X2 THB version Y2 Interference Suppression Capacitor (Y2 Class) Box

• 40℃~+110℃

110℃ UL/CUL310VAC ENEC300VAC CQC 0.001~0.22 ．Self-healing property ．Inaccordance with UL, CSA, ENEC, CQC safety regulations ．Class Y2 ．Interference suppressors ．Antenna coupling ．Across the line ．Line to ground ．EMI filter ．ARCO R41 ．EPCOS B32021--B32026 ．RIFA PHE8 50 ．OKAYA YE ．VISHAY F1710 MFTD Dip

• 40℃~+85℃

110℃ 450VDC 0.068~3.3 ．Self-healing property ．Safe-film construction ．Materials conform to RoSH ．Ultra-miniature size ．Power factor correction (PFC) usage ．NITSUKO MDST MMD MFTB Box

• 40℃~+85℃

110℃ 450VDC 0.068~3.3 ．Self-healing property ．safe-film construction ． Materials conform to RoSH ．Ultra-miniature size ．Power factor correction (PFC) usage ．ARCO MMC ．EPCOS B32592 Interference Suppression Capacitor (X2 Class) Fuse-Type Metallized Polyester Capacitor (PFC Purpose) Single-side Metallized Polypropylene Capacitor

P a g e 3

Series Appearance Structure Shape Rated Temp. Upper Category Temp. Rated Voltage Capacitance Range (µF) Features Recommended Application Remark MPPN Dip

• 40℃~+85℃

110℃ 450VDC 0.1~2.2 ．Self-healing property ．Low noise ．Materials conform to RoSH ．Ultra-miniature size ．Power factor correction (PFC) usage ．RUBXCON MPS MPB MPH MPBN Box

• 40℃~+85℃

110℃ 450VDC 0.1~2.2 ．Self-healing property ．Low noise ．Materials conform to RoSH ．Ultra-miniature size ．Power factor correction (PFC) usage ．ARCO R71 ．EPCOS B3267X MPN2 Dip

• 40℃~+85℃

110℃ 450VDC 0.22~1.5 ．Self-healing property ．Low noise ．Materials conform to RoSH ．Smaller version of MPPN type ．Power factor correction (PFC) usage ．NITSUKO FPA FPS MPN3 Box

• 40℃~+85℃

110℃ 450VDC 0.22~1.5 ．Self-healing property ．Low noise ．Materials conform to RoSH ．Smaller version of MPBN type ．Power factor correction (PFC) usage ．NITSUKO FPA FPS MEBH Metallized Polyester Capacitor (Automotive) Box

• 55℃~+125℃

150℃ 100VDC 250VDC 0.1~22 ．High temperature type for automotive applications ．Automotive applications EPB Metallized Polypropylene Capacitor (DC-Link) Box

• 40℃~+85℃

105℃ 700VDC~1300VDC 1.0~60 ．Stable DC voltage after filtering ．Absorb ripple current between power

• utput and inverter

．Prevent the effect to inverter from DC- link pulse and instantaneous voltage ．Switching power supply ．Frequency Converter ．UPS ．Solar inverter ．Wind inverter ．Hybrid vehicle ．ARCO C4AE ．EPCOS B32774--B32778 Metallized Polypropylene Capacitor (PFC Purpose)
