slide-1
SLIDE 1

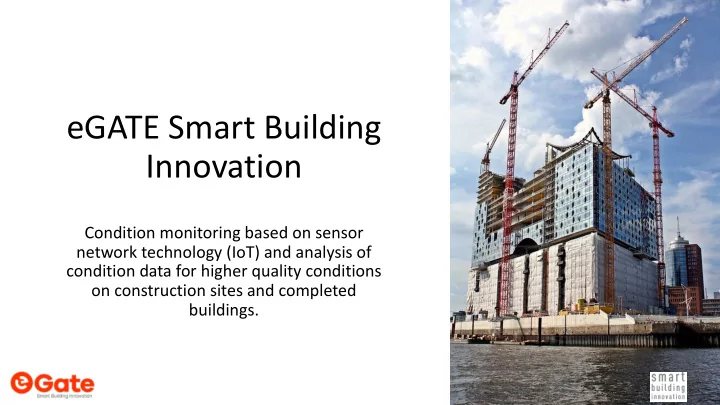

eGATE Smart Building Innovation

Condition monitoring based on sensor network technology (IoT) and analysis of condition data for higher quality conditions

  • n construction sites and completed

buildings.

slide-2
SLIDE 2

Background in brief

  • Business Finland project (2015-2020)
  • eGate service version 1.0 ready for production:

1/2018

  • 12/2018 Establishment of eGate Smart Building

Innovation Oy

  • eGate 2.0 system development phase 1: 10/2019-

6/2020

  • Integrations: 5-6/2020
  • Internationalization: 9/2020
slide-3
SLIDE 3

Building lifecycle condition monitoring

  • Wireless sensors and measurement devices

measuring multiple variables integrated into a cloud- based platform

  • Measurement of conditions from structures and

air

  • E.g. air temperature and relative humidity,

carbon dioxide concentration, particles, VOC, concrete humidity/temperature, structure RH-T, differential pressure

  • Wirelessly, reliably, accurately
  • eGate 2.0 launch in summer 2020
slide-4
SLIDE 4

eGate measurement device features

  • 100% wireless (no coverage problems)
  • Used by, for example, all major building constructors
  • eGate 2.0 developed in collaboration with users
  • Real-time (10-15 min broadcast interval)
  • Extremely accurate
  • Cloud-based service (SaaS)
  • Made in Finland
  • The number of measurable variables is constantly

increasing, for example according to customer needs.

slide-5
SLIDE 5

Transparent and accessible information for different stakeholders

  • Cloud service automatically generates visualizations, reports and alerts to the

customer based on the data.

  • The service enables transparency and efficient utilization of data on the conditions
  • f the contractors, building constructors, operators monitoring/assuring the

conditions, and ultimately the end-users of the buildings

  • Intuitive and easy to use
  • Integration strategy supports own software development: Data can be exported to

another platform, for example as part of a building automation system or other service/platform in use.

slide-6
SLIDE 6

Terminal-independent and real-time

  • Real-time data transfer
  • Extensive reporting features and alerts
  • All data is retained, and can be retrieved, stored

and printed for any period of time for any location

  • r measurement point at any time
  • All data can be imported to, e.g. Excel, as PDF..
  • Also accessible with mobile devices
  • E.g. on site foreman's smart phone, supervisor's

monitors, or info screens on the construction site / schools / office buildings / temporary facilities

slide-7
SLIDE 7

Measurement device configurations

  • Concrete coating capability:
  • RH-T
  • Measurements from structures:
  • RH-T
  • Measurements from air:
  • RH-T
  • RH-T-CO2
  • RH-T-TVOC
  • RH-T-DUST PM 0.35-40
  • DP
  • Combination device: RH-T-TVOC-C02-DP
slide-8
SLIDE 8

Coming into production in spring 2020

  • RH-T measurement device for under floor covering
slide-9
SLIDE 9

Integrations with other systems

slide-10
SLIDE 10

Data integration with another system

  • eGate condition data can be easily integrated with

another system. (iframe API)

  • The aim is to make condition data available to all

actors

  • Data analytics and BI as key value-added objectives
  • Agreements on integration with, for example: Congrid,

Evianet, Platform of Trust, Stora Enso HEAL, etc.

slide-11
SLIDE 11

eGate- Congrid integration (5/2020)

slide-12
SLIDE 12

To whom is the service suitable?

slide-13
SLIDE 13

Builders

  • In addition to measuring the coating capacity of

concrete on the site, eGate provides a new measurement of particles/dusts according to EU Regulation and TVOC. Measurement of differential pressure enables e.g. monitoring the differential pressure in compartmented spaces. For example relative humidity can be measured from air. https://www.e- gate.fi/2020/01/17/uusi-eu- direktiivi-velvoittaa- mittaamaan-syopavaarallisia- tekijoita/

  • Cramo sells and installs eGate on sites in Finland:

https://www.e-gate.fi/2019/09/24/cramon- tuotekortit-tyomaan-olosuhdevalvontaan-seka- sisailman-seurantaan/

slide-14
SLIDE 14

Developers

  • Developers are encouraged to require the builder to

use real-time and comprehensive condition monitoring by contract during the construction site to monitor, verify and report on the conditions.

  • The parties using eGate service will have access to

comprehensive reports on site condition developments over a desired period directly from the system.

  • https://www.e-gate.fi/2020/01/17/uusi-eu-

direktiivi-velvoittaa-mittaamaan-syopavaarallisia- tekijoita/

slide-15
SLIDE 15

Supervising organisations

  • Real-time and accurate 24-7 on-site condition

monitoring is a versatile and effective tool for the supervisor.

  • In addition to measuring the coating capacity of

concrete on the site, eGate provides a new measurement of particles/dusts according to EU Regulation and TVOC. Measurement of differential pressure enables e.g. monitoring the differential pressure in compartmented spaces. For example relative humidity can be measured from air. https://www.e- gate.fi/2020/01/17/uusi-eu- direktiivi-velvoittaa- mittaamaan-syopavaarallisia- tekijoita/

slide-16
SLIDE 16

Real estate companies, housing companies, industry

  • eGate Oy sells the eGate service to completed

buildings, industry and real estate and housing

  • companies. The objective is to ensure appropriate

conditions in compliance with the Decree of the Ministry of Social Affairs and Health on Health- related Conditions of Housing and Other Residential Buildings and Qualification Requirements for Third- party Experts for the users, and to strive to reduce carbon footprint.

  • During renovation, the spread of dust to the

apartment can be monitored.

  • The service is also suitable, for example, for verifying

clean room conditions in the metal industry.

slide-17
SLIDE 17

Schools, kindergartens, temporary facilities

  • Combi device will be in production from 2/2020.

The measurement device enables temperature, humidity, carbon dioxide, TVOC concentration and differential pressure to be measured with a single device.

  • In addition, if necessary, measurement of

differential pressure, particles, etc.

slide-18
SLIDE 18

eGate 2.0 system launch in 6/2020

slide-19
SLIDE 19
slide-20
SLIDE 20
slide-21
SLIDE 21
slide-22
SLIDE 22
slide-23
SLIDE 23
slide-24
SLIDE 24

Pilot case, casting sensing

  • RH-T sensing at site x at an actual site
  • On-site testing has demonstrated the functionality:

compared to a standard measurement method (Vaisala), the difference in the results was approximately 1.0 - 1.5 percentage points.

  • The sensors were in the same boreholes during the

testing > 2 months without any problems. The data remains reliable.

  • Easy to monitor the coating capability situation -> ease
  • f work management, work planning more efficient
  • Reduces "site" visits, eliminates the need for

drilling

  • Waiting time is reduced or completely eliminated -> cost

effectiveness -> better margin

slide-25
SLIDE 25

SaaS Service Model

  • The service cost for the customer consists of: Device purchase price + license costs +
  • ther services (e.g. potential installation)
  • eGate license
  • Customer's own database for storing data of their sites
  • Measurement devices with a 2-year warranty
  • Service level defined in the contract
  • eGate Smart Building Innovation Oy continuously develops the service in cooperation

with key partners.

slide-26
SLIDE 26

Measuring vs. Big Data: Current situation

  • Covering current measurement needs wirelessly, accurately, in real-time, transparently

(new construction, repair construction, lifecycle projects..)

  • Comparable and high-quality data stored in one place transparently and accessible to all

parties.

  • Better quality of construction.
  • Monitoring the conditions of completed buildings and early intervention, transparency
slide-27
SLIDE 27

Measuring vs. Big Data: Future!

  • The data collected during the entire lifecycle of the building must be accessible, further

processable and analysable in order to develop the processes, quality and business

  • perations.
  • Development of construction processes based on data: From design to implementation.
  • Condition data as part of Smart City projects/data models (BIM)
  • Condition data to contribute to the control of building automation systems
  • Data mining/research as an integral part of the organization's operations
  • = SUPERIOR COMPETITIVE EDGE!
slide-28
SLIDE 28

Re References

slide-29
SLIDE 29

CRAMO

  • Cramo Finland’s condition monitoring project manager

Mika Aalto states that solutions and equipment to protect against humidity, and for drying and heating exist. Now Cramo’s condition management service is packaged into

  • ne entity.
slide-30
SLIDE 30

KOTKA HOSPITAL

  • Cramo's condition monitoring expert,

project manager Mika Aalto states that real-time measurement accurately describes how drying progresses and when the structures are close to being ready for coating.

  • Janita Ojala, Skanska Talonrakennus Oy's

trainee supervisor, also considers the eGate system useful. She actively monitors the results daily “The screen tells you immediately if the concrete is not drying or the temperatures are

  • low. This way we can, for example, adjust heaters to quickly generate more heat.”
slide-31
SLIDE 31

YIT RAKENNUS and CRAMO

  • Humidity management, weather protection

and indoor air quality were managed by utilizing the Cramo Dry Chain10 entity at an expansion site of YIT Rakennus Oy in Jyväskylä.

  • In the picture: Cramo's account manager

Anne Forsman and Juha Mäkelä of YIT Rakennus Oy.

slide-32
SLIDE 32

SRV CENTRAL FINLAND HOSPITAL

  • eGate condition monitoring aboard in the

SRV Central Finland Hospital Nova project

  • SRV has deployed the eGate Smart

Building Innovation service in the Central Finland Hospital Nova project.

  • The aim is to measure the relative

humidity and temperature of the building in different sections of the construction site during the construction phase.

slide-33
SLIDE 33

Abbreviations and concepts

  • T = Temperature
  • RH= Relative humidity
  • CO2 = Carbon dioxide
  • DP = Differential pressure
  • RH-T-DUST PM 0.35-40 = dust particles
  • The sensor measures, and the application calculates the quantity of particles of 0.35-40 micrometres
  • Quantity per cubic meter of air or micrograms per m3 of air.
  • Particles are, for example, small emissions of traffic, etc. (the most harmful to humans because they are partly

emanated to the pulmonary alveolus, bloodstream, etc.)

  • VOC = Volatile organic compounds
  • Smog factor, as they react with nitrogen oxides in the presence of sunlight, thus forming troposphere ozone
  • Ozone in the troposphere is harmful to humans, animals and vegetation
  • TVOC = total voc concentration
  • Does not specify what and how much, but how much volatile organic compounds are in the air
  • TVOC = total voc concentration
slide-34
SLIDE 34

In partnership with

slide-35
SLIDE 35

eGATE Smart Building Innovation key personnel

slide-36
SLIDE 36

Latest eGate news

slide-37
SLIDE 37

eGate – Evianet integration eGate Smart Building Innovation Oy and Evianet Solutions Oy have agreed to integrate eGate condition data into the Evianet system. As a result, Evianet users will also benefit from eGate’s quality condition data.

slide-38
SLIDE 38

eGate-Congrid integration situation 1.2.2020 In 2019, we announced that eGate condition data will be incorporated into

  • Congrid. The timetable for the integration project has been refined: Congrid users

will be able to take advantage of eGate features in 5-6/2020. We will inform about the progress of the project on the eGate website and on our LinkedIn site.

www.e-gate.fi/en/2020/02/03/status-of-integration-of-egate-congrid-1-2-2020

slide-39
SLIDE 39

17.1.2020

New EU directive requires the measurement of carcinogens New EU Directive, which will enter into force gradually from 1.1.2020, will make it mandatory to measure and report, for example, dust and VOC emissions and

  • ther carcinogenic substances and emissions at construction sites.

www.e-gate.fi/en/2020/01/17/the-new-eu-directive-requires-the-measurement-of-carcinogens

slide-40
SLIDE 40

21.11.2019

HEAL and eGate to collaborate on material and structure monitoring HEAL, an open business platform co-created by Stora Enso and Trä Group, announces a technology partnership with eGate Smart Building Innovation.

heal.fi/news/egate/

slide-41
SLIDE 41

Contact

Jarkko Haukijärvi, MBA CEO eGate Smart Building Innovation Oy +358 44-5833410 jarkko.haukijarvi@e-gate.fi https://www.e-gate.fi/en/home/ fi.linkedin.com/in/jarkkohaukijarvi/ linkedin.com/company/egate-smart-building-innovation-oy/
