Efficient Structural Adder Pipelining in Transposed Form FIR Filters International Conference on Digital Signal Processing 23 July 2015 Mathias Faust , Martin Kumm * , Chip-Hong Chang and Peter Zipf * Nanyang Technological

slide-1
SLIDE 1

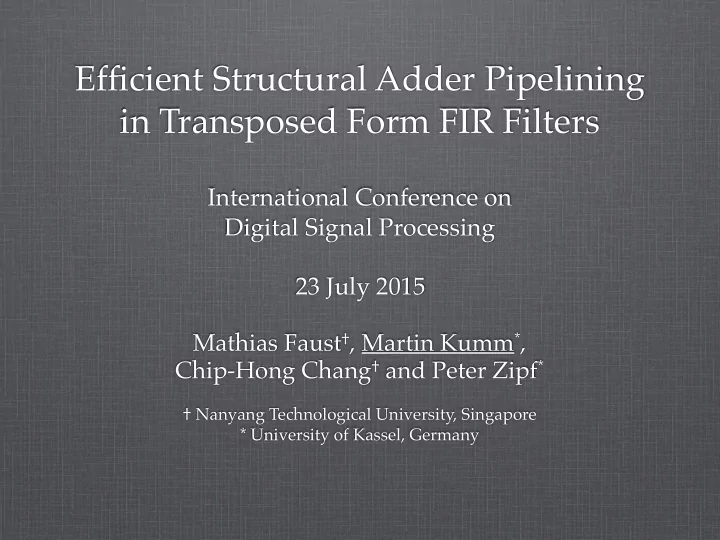

Efficient Structural Adder Pipelining in Transposed Form FIR Filters

International Conference on Digital Signal Processing 23 July 2015

Mathias Faust†, Martin Kumm*, Chip-Hong Chang† and Peter Zipf*

† Nanyang Technological University, Singapore * University of Kassel, Germany

slide-2
SLIDE 2

2

CONTENTS

1. Pipelining FIR Filters 2. Proposed Architecture 3. Results

slide-3
SLIDE 3

FIR FILTERS IN TRANSPOSED FORM

3

slide-4
SLIDE 4

FIR FILTERS IN TRANSPOSED FORM

4

slide-5
SLIDE 5

FIR FILTERS IN TRANSPOSED FORM

5

slide-6
SLIDE 6

FIR FILTERS IN TRANSPOSED FORM

6

slide-7
SLIDE 7

HIGH SPEED FIR FILTERS

The multiplier block is realized by shift-and-add networks for fixed coefficients Efficient pipelining of the multiplier block is well understood
 [Aksoy et al. 2010],[Kumm et al. 2012] Critical path delay often found in structural adders
 (largest word size) Pipelining of structural adders is resource expensive

7

slide-8
SLIDE 8

STRUCTURAL ADDER PIPELINING

8

slide-9
SLIDE 9

STRUCTURAL ADDER PIPELINING

9

slide-10
SLIDE 10

STRUCTURAL ADDER PIPELINING

10

slide-11
SLIDE 11

STRUCTURAL ADDER PIPELINING

11

slide-12
SLIDE 12

STRUCTURAL ADDER PIPELINING

12

slide-13
SLIDE 13

PIPELINED RIPPLE-CARRY ADDER

13

slide-14
SLIDE 14

STRUCTURAL ADDER PIPELINING

Structural adder pipelining is simple… … but is very cost intensive (FFs) to balance the pipeline… … and heavily increases the latency Alternative to speedup is using carry save adders
 ➯ doubles the algorithmic delays

14

slide-15
SLIDE 15

NON-PIPELINED ARCHITECTURE

15

slide-16
SLIDE 16

PROPOSED ARCHITECTURE

16

slide-17
SLIDE 17

PROPOSED ARCHITECTURE

16

partially redundant number representation

slide-18
SLIDE 18

PROPOSED ARCHITECTURE

16

partially redundant number representation

slide-19
SLIDE 19

PROPOSED ARCHITECTURE

16

partially redundant number representation

slide-20
SLIDE 20

PROPOSED ARCHITECTURE

16

pipelined RCA partially redundant number representation

slide-21
SLIDE 21

EXPERIMENTAL RESULTS

VHDL code generator was implemented Filter 1 of [Lim,Parker 1983] was analyzed with following properties: 121 taps, 8 bit input and 25 bit output word length Word length of CPAs varied from 2 to 24 bits Synthesis Results: Synopsys Design Compiler + TSMC 0.18μm

17

slide-22
SLIDE 22

SYNTHESIS RESULTS

18

2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 TC 100000 200000 300000 400000 500000 600000 700000 800000 1 2 3 4 5 6 7 8

Logic Area Register Area Total Area Delay

CPA word size ns µm²

design goal: minimum area

slide-23
SLIDE 23

SYNTHESIS RESULTS

19

sCPA

  • Min. Area
  • Min. Delay

Delay goal 1ns Area [µm2] Inc. [%] Delay [ns] Area [µm2] Delay [ns] Area [µm2] Delay [ns] 2 491056 33.66 1.22 706697 0.84 507343 1.00 3 448645 22.12 1.43 648691 0.86 465506 1.00 4 425586 15.84 1.78 640342 0.84 492716 1.00 5 406812 10.73 1.91 626507 0.88 485262 1.00 6 405422 10.35 2.33 640392 0.91 509322 1.00 7 395605 7.68 2.47 622097 0.96 513486 1.00 8 394770 7.46 2.88 601832 0.96 531505 1.00 9 388114 5.64 3.05 628031 0.97 553144 1.00 10 387210 5.40 3.35 597678 1.02 557621 1.01 11 383793 4.47 3.59 622303 1.02 580999 1.03 12 387532 5.49 3.99 622010 1.03 583953 1.06 13 380876 3.67 4.20 625786 1.04 577197 1.10 14 377756 2.82 4.17 642181 1.04 599354 1.06 15 378381 2.99 4.65 647610 1.05 582792 1.10 16 378415 3.00 4.80 620234 1.08 593862 1.10 17 379389 3.27 5.16 627419 1.11 602847 1.11 18 378561 3.04 5.39 612194 1.12 594315 1.12 19 378288 2.97 5.67 621727 1.14 594694 1.14 20 377270 2.69 5.93 633673 1.13 604567 1.14 21 376073 2.37 6.19 613671 1.17 616372 1.15 22 374609 1.97 6.47 601875 1.18 597877 1.18 23 372653 1.44 6.70 637528 1.18 619662 1.16 24 374213 1.86 7.04 642730 1.18 625629 1.17 TC 367381 – 6.94 620314 1.20 606629 1.20

slide-24
SLIDE 24

SYNTHESIS RESULTS

19

sCPA

  • Min. Area
  • Min. Delay

Delay goal 1ns Area [µm2] Inc. [%] Delay [ns] Area [µm2] Delay [ns] Area [µm2] Delay [ns] 2 491056 33.66 1.22 706697 0.84 507343 1.00 3 448645 22.12 1.43 648691 0.86 465506 1.00 4 425586 15.84 1.78 640342 0.84 492716 1.00 5 406812 10.73 1.91 626507 0.88 485262 1.00 6 405422 10.35 2.33 640392 0.91 509322 1.00 7 395605 7.68 2.47 622097 0.96 513486 1.00 8 394770 7.46 2.88 601832 0.96 531505 1.00 9 388114 5.64 3.05 628031 0.97 553144 1.00 10 387210 5.40 3.35 597678 1.02 557621 1.01 11 383793 4.47 3.59 622303 1.02 580999 1.03 12 387532 5.49 3.99 622010 1.03 583953 1.06 13 380876 3.67 4.20 625786 1.04 577197 1.10 14 377756 2.82 4.17 642181 1.04 599354 1.06 15 378381 2.99 4.65 647610 1.05 582792 1.10 16 378415 3.00 4.80 620234 1.08 593862 1.10 17 379389 3.27 5.16 627419 1.11 602847 1.11 18 378561 3.04 5.39 612194 1.12 594315 1.12 19 378288 2.97 5.67 621727 1.14 594694 1.14 20 377270 2.69 5.93 633673 1.13 604567 1.14 21 376073 2.37 6.19 613671 1.17 616372 1.15 22 374609 1.97 6.47 601875 1.18 597877 1.18 23 372653 1.44 6.70 637528 1.18 619662 1.16 24 374213 1.86 7.04 642730 1.18 625629 1.17 TC 367381 – 6.94 620314 1.20 606629 1.20

2x speed for 5.4% area

  • verhead
slide-25
SLIDE 25

SYNTHESIS RESULTS

19

sCPA

  • Min. Area
  • Min. Delay

Delay goal 1ns Area [µm2] Inc. [%] Delay [ns] Area [µm2] Delay [ns] Area [µm2] Delay [ns] 2 491056 33.66 1.22 706697 0.84 507343 1.00 3 448645 22.12 1.43 648691 0.86 465506 1.00 4 425586 15.84 1.78 640342 0.84 492716 1.00 5 406812 10.73 1.91 626507 0.88 485262 1.00 6 405422 10.35 2.33 640392 0.91 509322 1.00 7 395605 7.68 2.47 622097 0.96 513486 1.00 8 394770 7.46 2.88 601832 0.96 531505 1.00 9 388114 5.64 3.05 628031 0.97 553144 1.00 10 387210 5.40 3.35 597678 1.02 557621 1.01 11 383793 4.47 3.59 622303 1.02 580999 1.03 12 387532 5.49 3.99 622010 1.03 583953 1.06 13 380876 3.67 4.20 625786 1.04 577197 1.10 14 377756 2.82 4.17 642181 1.04 599354 1.06 15 378381 2.99 4.65 647610 1.05 582792 1.10 16 378415 3.00 4.80 620234 1.08 593862 1.10 17 379389 3.27 5.16 627419 1.11 602847 1.11 18 378561 3.04 5.39 612194 1.12 594315 1.12 19 378288 2.97 5.67 621727 1.14 594694 1.14 20 377270 2.69 5.93 633673 1.13 604567 1.14 21 376073 2.37 6.19 613671 1.17 616372 1.15 22 374609 1.97 6.47 601875 1.18 597877 1.18 23 372653 1.44 6.70 637528 1.18 619662 1.16 24 374213 1.86 7.04 642730 1.18 625629 1.17 TC 367381 – 6.94 620314 1.20 606629 1.20

Same delay but 26% more area! 2x speed for 5.4% area

  • verhead
slide-26
SLIDE 26

SYNTHESIS RESULTS

19

sCPA

  • Min. Area
  • Min. Delay

Delay goal 1ns Area [µm2] Inc. [%] Delay [ns] Area [µm2] Delay [ns] Area [µm2] Delay [ns] 2 491056 33.66 1.22 706697 0.84 507343 1.00 3 448645 22.12 1.43 648691 0.86 465506 1.00 4 425586 15.84 1.78 640342 0.84 492716 1.00 5 406812 10.73 1.91 626507 0.88 485262 1.00 6 405422 10.35 2.33 640392 0.91 509322 1.00 7 395605 7.68 2.47 622097 0.96 513486 1.00 8 394770 7.46 2.88 601832 0.96 531505 1.00 9 388114 5.64 3.05 628031 0.97 553144 1.00 10 387210 5.40 3.35 597678 1.02 557621 1.01 11 383793 4.47 3.59 622303 1.02 580999 1.03 12 387532 5.49 3.99 622010 1.03 583953 1.06 13 380876 3.67 4.20 625786 1.04 577197 1.10 14 377756 2.82 4.17 642181 1.04 599354 1.06 15 378381 2.99 4.65 647610 1.05 582792 1.10 16 378415 3.00 4.80 620234 1.08 593862 1.10 17 379389 3.27 5.16 627419 1.11 602847 1.11 18 378561 3.04 5.39 612194 1.12 594315 1.12 19 378288 2.97 5.67 621727 1.14 594694 1.14 20 377270 2.69 5.93 633673 1.13 604567 1.14 21 376073 2.37 6.19 613671 1.17 616372 1.15 22 374609 1.97 6.47 601875 1.18 597877 1.18 23 372653 1.44 6.70 637528 1.18 619662 1.16 24 374213 1.86 7.04 642730 1.18 625629 1.17 TC 367381 – 6.94 620314 1.20 606629 1.20

Same delay but 26% more area! 7x speed for 26.7% area

  • verhead

2x speed for 5.4% area

  • verhead
slide-27
SLIDE 27

CONCLUSION

Drastically delay reductions are possible by small overhead in area Experiments showed: 2x speedup with 5.4% area overhead 7x speedup with 26.7% area overhead The latency overhead is very small compared to conventional pipelining (only a single pipelined RCA)

20
