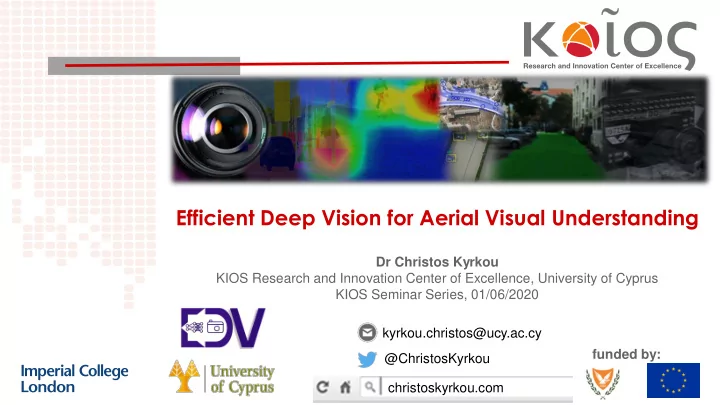

Efficient Deep Vision for Aerial Visual Understanding

Dr Christos Kyrkou KIOS Research and Innovation Center of Excellence, University of Cyprus KIOS Seminar Series, 01/06/2020 kyrkou.christos@ucy.ac.cy @ChristosKyrkou christoskyrkou.com

Dr Christos Kyrkou, “Efficient Deep Vision for Aerial Visual Understanding”, RCML2020, 4 September 2020

2

Computer Vision (CV) finally works. Now What?

Similarly large accuracy improvements on tasks such as

• Semantic Segmentation
• Object Detection
• 3D reconstruction
• …and so on

Mostly Deeper Networks Intricate Structures Millions of training images

Dr Christos Kyrkou, “Efficient Deep Vision for Aerial Visual Understanding”, RCML2020, 4 September 2020

3

CV/DL Deployment accelerating Rapidly

Image Sensor Mobile PC/Workstation Cloud

Benefits ! Security/Privacy Cost Saving Requirements: Less Power Consumption  Less Memory Usage Fast Response

Dr Christos Kyrkou, “Efficient Deep Vision for Aerial Visual Understanding”, RCML2020, 4 September 2020

4

Markets Demands Scalability for Machine Learning

1000s of classes Large Workloads Highly Efficient

• (Performance/W)

Varying Accuracy Server Form Factor <10 classes Frame Rate: 15-30 fps Power 1W-5W Cost: Low Varying Accuracy Custom Form Factor

Cloud Analytics Edge Intelligence

Dr Christos Kyrkou, “Efficient Deep Vision for Aerial Visual Understanding”, RCML2020, 4 September 2020

5

Small Models have Big Advantages #1

Fewer parameter weights means bigger opportunities for scaling training Bigger networks increase the cost of communication between machines for distributed training

Credit: Forrest Iandola “Small Deep Neural Networks - Their Advantages, and Their Design”

Dr Christos Kyrkou, “Efficient Deep Vision for Aerial Visual Understanding”, RCML2020, 4 September 2020

6

Small Models have Big Advantages #2

Smaller number of weights enables complete on-chip integration

• f CNN model with weights – no need for off-chip memory
• Dramatically reduces the energy for computing inference
• Gives the potential for pushing the data-processing close to the

data gathering (e.g., onboard cameras and other sensors)

• Limited memory of embedded devices makes small models

absolutely essential for many applications.

Credit: Song Han “Bandwidth-Efficient Deep Learning ——from Compression to Acceleration”

Dr Christos Kyrkou, “Efficient Deep Vision for Aerial Visual Understanding”, RCML2020, 4 September 2020

7

Small Models Have Big Advantages #3

Small models enable continuous wireless updates of models Each time any sensor discovers a new image/situation that requires retraining, all models should be updated. Data is uploaded to cloud and used for training But… how to update all the vehicles that are running all the model? At <500KB downloading new model parameters is easy.

Credit: Forrest Iandola “Small Deep Neural Networks - Their Advantages, and Their Design”

Continuous Updating of CNN Models

Dr Christos Kyrkou, “Efficient Deep Vision for Aerial Visual Understanding”, RCML2020, 4 September 2020

8

Model + Hardware Specialization

Credit: Song Han, Hardware Design Automation for Efficient Deep Learning, Samsung Forum

• Convolution, ReLU and Pooling
• perations are inherently highly

parallel in nature

• They are best accelerated by

dedicated hardware in the FPGA But how much Convolution, ReLU and Pooling operations is needed?

Dr Christos Kyrkou, “Efficient Deep Vision for Aerial Visual Understanding”, RCML2020, 4 September 2020

9

Application of small DNNs to UAVs

Dr Christos Kyrkou, “Efficient Deep Vision for Aerial Visual Understanding”, RCML2020, 4 September 2020

10

Challenges

 State-of-the-art CV algorithms often require extensive hardware: limited payload!  Remote processing of images: solution?

• Use of ground station
• High bandwidth, minimal latency, ultra reliable

connection

• Severe limitations!
• (especially when targeting autonomous UAVs!)

 On-board processing: specific inherent challenges

• Limited computational power
• Limited weight, power consumption

 Extreme optimization of HW and SW is the solution for on-board processing!

Contradiction!

Dr Christos Kyrkou, “Efficient Deep Vision for Aerial Visual Understanding”, RCML2020, 4 September 2020

11

Autonomous patrolling and recognition

…

Image Sensor Image Acquisition

Embedded Platform

Embedded UAV System

Fire Flood Collapsed Car Crash Fire Flood Collapsed Car Crash Fire Collapsed Building Flood & Collapsed Buildings Flood

Automated Path Planning Software

Dr Christos Kyrkou, “Efficient Deep Vision for Aerial Visual Understanding”, RCML2020, 4 September 2020

12

Vision System for disasters and incidents

Aerial Image Dataset for Emergency Response (AIDER) Order of magnitude more images than previous works

• C. Kyrkou and T. Theocharides, "EmergencyNet: Efficient Aerial Image Classification for Drone-Based Emergency Monitoring Using Atrous Convolutional Feature Fusion," in IEEE JSTARS, vol. 13, pp. 1687-1699, 2020
• C. Kyrkou, T. Theocharides "Deep-Learning-Based Aerial Image Classification for Emergency Response Applications using Unmanned Aerial Vehicles", CVPR 3d International Workshop in Computer Vision for UAVs, Long Beach, CA, 16-20 June, 2019, pp. 517-525.

Dr Christos Kyrkou, “Efficient Deep Vision for Aerial Visual Understanding”, RCML2020, 4 September 2020

13

Pretrained Networks

For transfer learning established networks are used which have also been used in prior works for disaster monitoring[1,2].

[3] K. Simonyan and A. Zisserman, “Very deep convolutional networksfor large-scale image recognition,”CoRR, vol. abs/1409.1556, 2014.[Online]. Available: http://arxiv.org/abs/1409.1556 [4] K. He, X. Zhang, S. Ren, and J. Sun, “Deep residual learning for imagerecognition,”CoRR, vol. abs/1512.03385, 2015. [Online]. Available:http://arxiv.org/abs/1512.03385 [5] A. G. Howard, M. Zhu, B. Chen, D. Kalenichenko, W. Wang, T. Weyand,M. Andreetto, and H. Adam, “Mobilenets: Efficient convolutional neuralnetworks for mobile vision applications,”CoRR, vol. abs/1704.04861,2017. [Online]. Available: http://arxiv.org/abs/1704.04861 [3] [5] [4]

Dr Christos Kyrkou, “Efficient Deep Vision for Aerial Visual Understanding”, RCML2020, 4 September 2020

14

How do you create a small DNN?

Credit: Forrest Iandola “Small Deep Neural Networks - Their Advantages, and Their Design”

Dr Christos Kyrkou, “Efficient Deep Vision for Aerial Visual Understanding”, RCML2020, 4 September 2020

15

Atrous Convolutional Feature Fusion

• C. Kyrkou and T. Theocharides, "EmergencyNet: Efficient Aerial Image Classification for Drone-Based Emergency Monitoring Using Atrous Convolutional Feature Fusion," in IEEE JSTARS, vol. 13, pp. 1687-1699, 2020
• C. Kyrkou, T. Theocharides "Deep-Learning-Based Aerial Image Classification for Emergency Response Applications using Unmanned Aerial Vehicles", CVPR 3d International Workshop in Computer Vision for UAVs, Long Beach, CA, 16-20 June, 2019, pp. 517-525.

Dr Christos Kyrkou, “Efficient Deep Vision for Aerial Visual Understanding”, RCML2020, 4 September 2020

16

Macro-Architecture Design Choices

 Reduced Cost of First Layer and Early downsampling

• 16 channels with strided convolution

 Canonical Architecture

• A progressive reduction of spatial resolution

with an increase in depth of up to 256 channels.

 Fully Convolutional Architecture

• No dense layers

 Network Depth

• 7 main blocks

 Capped leaky ReLU

• Capped from [0,…255] with different modes

during training and inference

255 Training Inference Capped leaky ReLU

• C. Kyrkou and T. Theocharides, "EmergencyNet: Efficient Aerial Image Classification for Drone-Based Emergency Monitoring Using Atrous Convolutional Feature Fusion," in IEEE JSTARS, vol. 13, pp. 1687-1699, 2020
• C. Kyrkou, T. Theocharides "Deep-Learning-Based Aerial Image Classification for Emergency Response Applications using Unmanned Aerial Vehicles", CVPR 3d International Workshop in Computer Vision for UAVs, Long Beach, CA, 16-20 June, 2019, pp. 517-525.

Dr Christos Kyrkou, “Efficient Deep Vision for Aerial Visual Understanding”, RCML2020, 4 September 2020

17

Performance Evaluation

• C. Kyrkou and T. Theocharides, "EmergencyNet: Efficient Aerial Image Classification for Drone-Based Emergency Monitoring Using Atrous Convolutional Feature Fusion," in IEEE JSTARS, vol. 13, pp. 1687-1699, 2020
• C. Kyrkou, T. Theocharides "Deep-Learning-Based Aerial Image Classification for Emergency Response Applications using Unmanned Aerial Vehicles", CVPR 3d International Workshop in Computer Vision for UAVs, Long Beach, CA, 16-20 June, 2019, pp. 517-525.

Dr Christos Kyrkou, “Efficient Deep Vision for Aerial Visual Understanding”, RCML2020, 4 September 2020

18

DroNet – Aerial Vehicle Detection

• Trained with a custom database for vehicle detection
• Processes 512x512 images
• Make use of 3x3 filters and cheaper 1x1 convolutions
• Progressively reduce the feature maps size by a factor of 2
• Lower number of filters at early layers
• Shortcut connections to further improve accuracy for small objects

Christos Kyrkou, George Plastiras, Stylianos Venieris, Theocharis Theocharides, Christos-Savvas Bouganis, "DroNet: Efficient convolutional neural network detector for real-time UAV applications," DATE2018 , pp. 967-972, March 2018.

Dr Christos Kyrkou, “Efficient Deep Vision for Aerial Visual Understanding”, RCML2020, 4 September 2020

19

No free lunch!

• UAVs equipped with high resolution cameras and fly in high

altitudes

• Reducing the image size effectively reduces the object

resolution and detail

• Difficult to detect smaller objects such as pedestrians

Resizing Detections Single-shot CNN

DroNet

• r tinyYOLO

Input Image

Dr Christos Kyrkou, “Efficient Deep Vision for Aerial Visual Understanding”, RCML2020, 4 September 2020

20

Selective Tile Processing - Overview

…. …. Input Image Tiling How to process a higher resolution image? What happened in previous frames? Attention Mechanism Which image parts to process? Small Fast CNN

Dr Christos Kyrkou, “Efficient Deep Vision for Aerial Visual Understanding”, RCML2020, 4 September 2020

21

Memory Mechanism

• Keep track of detection metrics in each tile over time
• Relative position of objects will not change significantly over a few successive

frames

• A memory buffer is introduced that keeps track of:
• position of the bounding box with respect to the image
• a detection counter for each bounding box
• the latest tile that it was detected in
• detection confidence
• and the class type (vehicle, pedestrian etc.)

Previous New Compare Across Successive Tiles t=0 t=1 t=2

Dr Christos Kyrkou, “Efficient Deep Vision for Aerial Visual Understanding”, RCML2020, 4 September 2020

22

Tile Selection with Memory – TSM Attention

• Calculate the value of tile 𝑗 based on four main criteria:
• The number of objects detected in each tile – 𝑷𝒋
• Extracted from the CNN
• The cumulative intersection-over-union between

current (𝐶𝑙) and previous (𝐶

𝑘) bounding boxes – 𝑱𝒋

• The number of times not selected for processing
• ver time – 𝑻𝒋
• The number of frames past since selected for

processing – 𝑮𝒋

• Select top 𝑶𝑻 tiles above a threshold for processing

𝑊

𝑗 = 𝑃𝑗 max𝑘(𝑃𝑘) + 1 − 𝐽𝑗 max𝑘 𝐽𝑘

+

𝑇𝑗 max𝑘(𝑇𝑘)+ 𝐺𝑗 max𝑘(𝐺𝑘), ∀𝑘 ∈ [0, … , (𝑂𝑈 − 1)]

𝑱𝒋 = ෍

𝑙=0 𝑃𝑗

max

𝑘 (𝐽𝑝𝑉 𝐶𝑙, 𝐶 𝑘 )

Dr Christos Kyrkou, “Efficient Deep Vision for Aerial Visual Understanding”, RCML2020, 4 September 2020

23

Various Attention Mechanisms

• Select which tiles to be processed by the CNN
• All-Tiles – TA
• Single Tile (Round Robin) – T1
• Selective Tile Processing – STP

Dr Christos Kyrkou, “Efficient Deep Vision for Aerial Visual Understanding”, RCML2020, 4 September 2020

24

Tiling + Quantization

We are selective in our processing but might still process more than one tiles per frame which increases computation demands. Can we make further improvements? Combine quantization and tiling techniques and analyse the impact on Accuracy, Average Processing Time on a UAV-based pedestrian dataset.

• 8-bit integer quantization on both input and weights

Implementation is based on Darknet, a C- and CUDA- based Neural Network Framework[1] with the use of DP4A instruction [2].

24

[1] https://github.com/AlexeyAB/yolo2_light [2] https://developer.nvidia.com/blog/mixed-precision-programming-cuda-8/

Dr Christos Kyrkou, “Efficient Deep Vision for Aerial Visual Understanding”, RCML2020, 4 September 2020

25

Evaluation: Accuracy

Dr Christos Kyrkou, “Efficient Deep Vision for Aerial Visual Understanding”, RCML2020, 4 September 2020

26

Evaluation: Average Processing Time

Dr Christos Kyrkou, “Efficient Deep Vision for Aerial Visual Understanding”, RCML2020, 4 September 2020

27

Edge Intelligence demands Holistic Optimization

Data Selection/Reduction Small DNN search and optimization HW Acceleration

Dr Christos Kyrkou, “Efficient Deep Vision for Aerial Visual Understanding”, RCML2020, 4 September 2020

28

Concluding Remarks

Deep Learning and Computer Vision are moving to the Edge

• Drones are a prime example of a resource-constrained system with

additional challenges for detectability at a distance

Exploration of neural network architectures is key for deployment

• n hardware-constrained devices
• Prepares the model for embedded/FPGA applications

Prior knowledge can further push performance

Small Efficient CNNs Search Strategies Prior Knowledge and sensor information

Efficient Deep Vision

Dr Christos Kyrkou, “Efficient Deep Vision for Aerial Visual Understanding”, RCML2020, 4 September 2020

29

Thank you for your attention!
