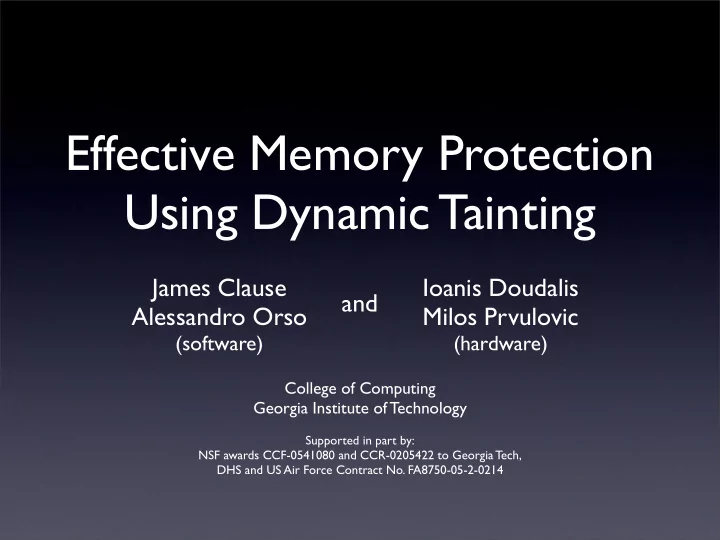

Effective Memory Protection Using Dynamic Tainting

Ioanis Doudalis Milos Prvulovic

(hardware)

James Clause Alessandro Orso

(software)

and

slide-2
SLIDE 2

void main() {

  • 1. int *np, n, i, *buf;
  • 2. np = &n;
  • 3. printf(“Enter size: “);
  • 4. scanf(“%d”, np);
  • 5. buf = malloc(n * sizeof(int));
  • 6. for(i = 0; i <= n; i++)
  • 7. *(buf + i) = rand()%10;

... }

Illegal memory accesses (IMA)

Memory

slide-3
SLIDE 3

void main() {

  • 1. int *np, n, i, *buf;
  • 2. np = &n;
  • 3. printf(“Enter size: “);
  • 4. scanf(“%d”, np);
  • 5. buf = malloc(n * sizeof(int));
  • 6. for(i = 0; i <= n; i++)
  • 7. *(buf + i) = rand()%10;

... }

Illegal memory accesses (IMA)

Memory

slide-4
SLIDE 4

void main() {

  • 1. int *np, n, i, *buf;
  • 2. np = &n;
  • 3. printf(“Enter size: “);
  • 4. scanf(“%d”, np);
  • 5. buf = malloc(n * sizeof(int));
  • 6. for(i = 0; i <= n; i++)
  • 7. *(buf + i) = rand()%10;

... }

Illegal memory accesses (IMA)

Memory

slide-5
SLIDE 5

void main() {

  • 1. int *np, n, i, *buf;
  • 2. np = &n;
  • 3. printf(“Enter size: “);
  • 4. scanf(“%d”, np);
  • 5. buf = malloc(n * sizeof(int));
  • 6. for(i = 0; i <= n; i++)
  • 7. *(buf + i) = rand()%10;

... }

Illegal memory accesses (IMA)

Memory

buf: np: i: n:

slide-6
SLIDE 6

void main() {

  • 1. int *np, n, i, *buf;
  • 2. np = &n;
  • 3. printf(“Enter size: “);
  • 4. scanf(“%d”, np);
  • 5. buf = malloc(n * sizeof(int));
  • 6. for(i = 0; i <= n; i++)
  • 7. *(buf + i) = rand()%10;

... }

Illegal memory accesses (IMA)

Memory

buf: np: i: n:

slide-7
SLIDE 7

void main() {

  • 1. int *np, n, i, *buf;
  • 2. np = &n;
  • 3. printf(“Enter size: “);
  • 4. scanf(“%d”, np);
  • 5. buf = malloc(n * sizeof(int));
  • 6. for(i = 0; i <= n; i++)
  • 7. *(buf + i) = rand()%10;

... }

Illegal memory accesses (IMA)

Memory

buf: np: i: n:

slide-8
SLIDE 8

void main() {

  • 1. int *np, n, i, *buf;
  • 2. np = &n;
  • 3. printf(“Enter size: “);
  • 4. scanf(“%d”, np);
  • 5. buf = malloc(n * sizeof(int));
  • 6. for(i = 0; i <= n; i++)
  • 7. *(buf + i) = rand()%10;

... }

Illegal memory accesses (IMA)

Memory

buf: np: i: n:

slide-9
SLIDE 9

void main() {

  • 1. int *np, n, i, *buf;
  • 2. np = &n;
  • 3. printf(“Enter size: “);
  • 4. scanf(“%d”, np);
  • 5. buf = malloc(n * sizeof(int));
  • 6. for(i = 0; i <= n; i++)
  • 7. *(buf + i) = rand()%10;

... }

Illegal memory accesses (IMA)

Memory

buf: np: i: n: 3

slide-10
SLIDE 10

void main() {

  • 1. int *np, n, i, *buf;
  • 2. np = &n;
  • 3. printf(“Enter size: “);
  • 4. scanf(“%d”, np);
  • 5. buf = malloc(n * sizeof(int));
  • 6. for(i = 0; i <= n; i++)
  • 7. *(buf + i) = rand()%10;

... }

Illegal memory accesses (IMA)

Memory

buf: np: i: n: 3

slide-11
SLIDE 11

void main() {

  • 1. int *np, n, i, *buf;
  • 2. np = &n;
  • 3. printf(“Enter size: “);
  • 4. scanf(“%d”, np);
  • 5. buf = malloc(n * sizeof(int));
  • 6. for(i = 0; i <= n; i++)
  • 7. *(buf + i) = rand()%10;

... }

Illegal memory accesses (IMA)

Memory

buf: np: i: n: 3

slide-12
SLIDE 12

void main() {

  • 1. int *np, n, i, *buf;
  • 2. np = &n;
  • 3. printf(“Enter size: “);
  • 4. scanf(“%d”, np);
  • 5. buf = malloc(n * sizeof(int));
  • 6. for(i = 0; i <= n; i++)
  • 7. *(buf + i) = rand()%10;

... }

Illegal memory accesses (IMA)

Memory

buf: np: i: n: 3

slide-13
SLIDE 13

void main() {

  • 1. int *np, n, i, *buf;
  • 2. np = &n;
  • 3. printf(“Enter size: “);
  • 4. scanf(“%d”, np);
  • 5. buf = malloc(n * sizeof(int));
  • 6. for(i = 0; i <= n; i++)
  • 7. *(buf + i) = rand()%10;

... }

Illegal memory accesses (IMA)

Memory

buf: np: i: n: 9 3

slide-14
SLIDE 14

void main() {

  • 1. int *np, n, i, *buf;
  • 2. np = &n;
  • 3. printf(“Enter size: “);
  • 4. scanf(“%d”, np);
  • 5. buf = malloc(n * sizeof(int));
  • 6. for(i = 0; i <= n; i++)
  • 7. *(buf + i) = rand()%10;

... }

Illegal memory accesses (IMA)

Memory

buf: np: i: n: 9 8 2 3 2

slide-15
SLIDE 15

void main() {

  • 1. int *np, n, i, *buf;
  • 2. np = &n;
  • 3. printf(“Enter size: “);
  • 4. scanf(“%d”, np);
  • 5. buf = malloc(n * sizeof(int));
  • 6. for(i = 0; i <= n; i++)
  • 7. *(buf + i) = rand()%10;

... }

Illegal memory accesses (IMA)

Memory

i <= n ➜ i < n buf: np: i: n: 9 8 2 3 2

slide-16
SLIDE 16

void main() {

  • 1. int *np, n, i, *buf;
  • 2. np = &n;
  • 3. printf(“Enter size: “);
  • 4. scanf(“%d”, np);
  • 5. buf = malloc(n * sizeof(int));
  • 6. for(i = 0; i <= n; i++)
  • 7. *(buf + i) = rand()%10;

... }

Illegal memory accesses (IMA)

Memory

buf: np: i: n: 9 8 2 3 2

slide-17
SLIDE 17

void main() {

  • 1. int *np, n, i, *buf;
  • 2. np = &n;
  • 3. printf(“Enter size: “);
  • 4. scanf(“%d”, np);
  • 5. buf = malloc(n * sizeof(int));
  • 6. for(i = 0; i <= n; i++)
  • 7. *(buf + i) = rand()%10;

... }

Illegal memory accesses (IMA)

Memory

buf: np: i: n: 9 8 2 3 2

slide-18
SLIDE 18

void main() {

  • 1. int *np, n, i, *buf;
  • 2. np = &n;
  • 3. printf(“Enter size: “);
  • 4. scanf(“%d”, np);
  • 5. buf = malloc(n * sizeof(int));
  • 6. for(i = 0; i <= n; i++)
  • 7. *(buf + i) = rand()%10;

... }

Illegal memory accesses (IMA)

Memory

buf: np: i: n: 9 8 2 3 3 7

slide-19
SLIDE 19

void main() {

  • 1. int *np, n, i, *buf;
  • 2. np = &n;
  • 3. printf(“Enter size: “);
  • 4. scanf(“%d”, np);
  • 5. buf = malloc(n * sizeof(int));
  • 6. for(i = 0; i <= n; i++)
  • 7. *(buf + i) = rand()%10;

... }

Illegal memory accesses (IMA)

Memory

buf: np: i: n: 9 8 2 3 3 7

slide-20
SLIDE 20

void main() {

  • 1. int *np, n, i, *buf;
  • 2. np = &n;
  • 3. printf(“Enter size: “);
  • 4. scanf(“%d”, np);
  • 5. buf = malloc(n * sizeof(int));
  • 6. for(i = 0; i <= n; i++)
  • 7. *(buf + i) = rand()%10;

... }

Illegal memory accesses (IMA)

Memory

buf: np: i: n: 9 8 2 3 3 7

Illegal memory accesses

  • Caused by common programming mistakes
  • Cause non-deterministic failures
  • Cause security vulnerabilities
slide-21
SLIDE 21

Previous work

Static techniques

  • Language based

e.g., Jim et al. 02, Necula et al. 05

  • Analysis based

e.g., Dor et al. 03, Hallem et al. 02, Heine and Lam 03, Xie et al. 03

Dynamic techniques

  • Analysis based

e.g., Dhurjati and Adve 06, Ruwase and Lam 04, Xu et al. 04, Hastings and Joyce 92, Seward and Nethercote 05

  • Hardware based

e.g., Qin et al. 05, Venkataramani et al. 07, Crandall and Chong 04, Dalton et al. 07, Vachharajani et al. 04

slide-22
SLIDE 22

Previous work

Static techniques

  • Language based

e.g., Jim et al. 02, Necula et al. 05

  • Analysis based

e.g., Dor et al. 03, Hallem et al. 02, Heine and Lam 03, Xie et al. 03

Dynamic techniques

  • Analysis based

e.g., Dhurjati and Adve 06, Ruwase and Lam 04, Xu et al. 04, Hastings and Joyce 92, Seward and Nethercote 05

  • Hardware based

e.g., Qin et al. 05, Venkataramani et al. 07, Crandall and Chong 04, Dalton et al. 07, Vachharajani et al. 04

}

Require source code

slide-23
SLIDE 23

Previous work

Static techniques

  • Language based

e.g., Jim et al. 02, Necula et al. 05

  • Analysis based

e.g., Dor et al. 03, Hallem et al. 02, Heine and Lam 03, Xie et al. 03

Dynamic techniques

  • Analysis based

e.g., Dhurjati and Adve 06, Ruwase and Lam 04, Xu et al. 04, Hastings and Joyce 92, Seward and Nethercote 05

  • Hardware based

e.g., Qin et al. 05, Venkataramani et al. 07, Crandall and Chong 04, Dalton et al. 07, Vachharajani et al. 04

}

}

Require source code Unacceptable overhead

slide-24
SLIDE 24

Previous work

Static techniques

  • Language based

e.g., Jim et al. 02, Necula et al. 05

  • Analysis based

e.g., Dor et al. 03, Hallem et al. 02, Heine and Lam 03, Xie et al. 03

Dynamic techniques

  • Analysis based

e.g., Dhurjati and Adve 06, Ruwase and Lam 04, Xu et al. 04, Hastings and Joyce 92, Seward and Nethercote 05

  • Hardware based

e.g., Qin et al. 05, Venkataramani et al. 07, Crandall and Chong 04, Dalton et al. 07, Vachharajani et al. 04

}

}

Require source code Unacceptable overhead

}

Extensive modification

slide-25
SLIDE 25

Previous work

Static techniques

  • Language based

e.g., Jim et al. 02, Necula et al. 05

  • Analysis based

e.g., Dor et al. 03, Hallem et al. 02, Heine and Lam 03, Xie et al. 03

Dynamic techniques

  • Analysis based

e.g., Dhurjati and Adve 06, Ruwase and Lam 04, Xu et al. 04, Hastings and Joyce 92, Seward and Nethercote 05

  • Hardware based

e.g., Qin et al. 05, Venkataramani et al. 07, Crandall and Chong 04, Dalton et al. 07, Vachharajani et al. 04

}

}

Require source code Unacceptable overhead We define our approach to overcome these limitations

  • Operate at the binary level
  • Use hardware to reduce overhead
  • Minimal, practical modifications

}

Extensive modification

slide-26
SLIDE 26

Approach overview

slide-27
SLIDE 27

1 Assign

taint marks

Approach overview

slide-28
SLIDE 28

1 Assign

taint marks

Approach overview

P1 A

slide-29
SLIDE 29

P1 1 A 1

1 Assign

taint marks

Approach overview

slide-30
SLIDE 30

1 Assign

taint marks

Approach overview

P1 P2 1 2 A B 1 2

slide-31
SLIDE 31

1 Assign

taint marks

Approach overview

P3 P1 P2 3 1 2 A C B 1 2 3

slide-32
SLIDE 32

1 Assign

taint marks

Approach overview

P3 P1 P2 3 1 2 P5 A C B 1 2 3 P4

slide-33
SLIDE 33

1 Assign

taint marks

Approach overview

2 Propagate

taint marks P3 P1 P2 3 1 2 P5 A C B 1 2 3 P4

slide-34
SLIDE 34

1 Assign

taint marks

Approach overview

2 Propagate

taint marks P3 P1 P2 3 1 2 P5 A C B 1 2 3 P4

slide-35
SLIDE 35

1 Assign

taint marks

Approach overview

2 Propagate

taint marks P3 P1 P2 3 1 2 P5 3 A C B 1 2 3 P4 1

slide-36
SLIDE 36

1 Assign

taint marks

Approach overview

3 Check

taint marks

2 Propagate

taint marks P3 P1 P2 3 1 2 P5 3 A C B 1 2 3 P4 1

slide-37
SLIDE 37

1 Assign

taint marks

Approach overview

3 Check

taint marks

2 Propagate

taint marks P3 P1 P2 3 1 2 P5 3 A C B 1 2 3 P4 1

slide-38
SLIDE 38

1 Assign

taint marks

Approach overview

3 Check

taint marks

2 Propagate

taint marks P3 P1 P2 3 1 2 P5 3 A C B 1 2 3 P4 1

slide-39
SLIDE 39

1 Assign

taint marks

Approach overview

3 Check

taint marks

2 Propagate

taint marks P3 P1 P2 3 1 2 P5 3 A C B 1 2 3 P4 1

slide-40
SLIDE 40

1 Assign

taint marks

Approach overview

3 Check

taint marks

2 Propagate

taint marks P3 P1 P2 3 1 2 A C B 1 2 3 P4 P5 3 1

slide-41
SLIDE 41

1 Assign

taint marks

Approach overview

3 Check

taint marks

2 Propagate

taint marks P3 P1 P2 3 1 2 A C B 1 2 3 P4 P5 3 1

slide-42
SLIDE 42

1 Assign

taint marks

Approach overview

3 Check

taint marks

2 Propagate

taint marks P3 P1 P2 3 1 2 A C B 1 2 3 P4

  • P5

3 1

slide-43
SLIDE 43

Outline

  • Our approach
  • 1. Assigning taint marks
  • 2. Propagating taint marks
  • 3. Checking taint marks
  • Empirical evaluation
  • Conclusions
slide-44
SLIDE 44

Memory Pointers

1 Assigning taint marks

Static Dynamic

slide-45
SLIDE 45

Memory Pointers

1 Assigning taint marks

Static Dynamic

slide-46
SLIDE 46

Memory Pointers

1 Assigning taint marks

Static Dynamic

buf: np: i: n:

slide-47
SLIDE 47

Memory Pointers

1 Assigning taint marks

Static Dynamic

buf: np: i: n:

{

[&np, &np + sizeof(int *))

slide-48
SLIDE 48

Memory Pointers

1 Assigning taint marks

Static Dynamic

buf: np: i: n:

slide-49
SLIDE 49

Memory Pointers

1 Assigning taint marks

Static Dynamic

buf: np: i: n: 4 3 2 1

slide-50
SLIDE 50

Memory Pointers

1 Assigning taint marks

Static Dynamic

slide-51
SLIDE 51

Memory Pointers

1 Assigning taint marks

Static Dynamic

slide-52
SLIDE 52

Memory Pointers

1 Assigning taint marks

Static Dynamic

address-of operator (&)

slide-53
SLIDE 53

Memory Pointers

1 Assigning taint marks

Static Dynamic

slide-54
SLIDE 54

Memory Pointers

1 Assigning taint marks

Static Dynamic

buf: np: i: n: 4 3 2 1

slide-55
SLIDE 55

Memory Pointers

1 Assigning taint marks

Static Dynamic

slide-56
SLIDE 56

Memory Pointers

1 Assigning taint marks

Static Dynamic

slide-57
SLIDE 57

Memory Pointers

1 Assigning taint marks

Static Dynamic

slide-58
SLIDE 58

Memory Pointers

1 Assigning taint marks

Static Dynamic

buf: np: i: n: 4 2 3 2 1 3

slide-59
SLIDE 59

Memory Pointers

1 Assigning taint marks

Static Dynamic

buf: np: i: n: 4 2 3 2 1 3 [ret, ret + arg0)

{

slide-60
SLIDE 60

Memory Pointers

1 Assigning taint marks

Static Dynamic

buf: np: i: n: 4 2 3 2 1 3

slide-61
SLIDE 61

Memory Pointers

1 Assigning taint marks

Static Dynamic

buf: np: i: n: 4 2 3 2 1 5 5 5 3

slide-62
SLIDE 62

Memory Pointers

1 Assigning taint marks

Static Dynamic

slide-63
SLIDE 63

Memory Pointers

1 Assigning taint marks

Static Dynamic

slide-64
SLIDE 64

Memory Pointers

1 Assigning taint marks

Static Dynamic

return value of malloc

slide-65
SLIDE 65

Memory Pointers

1 Assigning taint marks

Static Dynamic

slide-66
SLIDE 66

Memory Pointers

1 Assigning taint marks

Static Dynamic

buf: np: i: n: 4 2 3 2 1 5 5 5 3

slide-67
SLIDE 67

Memory Pointers

1 Assigning taint marks

Static Dynamic

slide-68
SLIDE 68

Memory Pointers

1 Assigning taint marks

Static Dynamic

slide-69
SLIDE 69

AND Addition, Subtraction Overview

Propagating taint marks

2

Multiplication, Division, OR, XOR

Overview P1 1 P2

slide-70
SLIDE 70

AND Addition, Subtraction Overview

Propagating taint marks

2

Multiplication, Division, OR, XOR

Overview

+, , , ÷,

and, or, xor, ... P1 1 P2

slide-71
SLIDE 71

AND Addition, Subtraction Overview

Propagating taint marks

2

Multiplication, Division, OR, XOR

Overview

+, , , ÷,

and, or, xor, ... P1 1 P2 Should the result be tainted? If so, how?

slide-72
SLIDE 72

AND Addition, Subtraction Overview

Propagating taint marks

2

Multiplication, Division, OR, XOR

Overview

  • Propagation must take into account both
  • peration semantics and programmer intent

+, , , ÷,

and, or, xor, ... P1 1 P2 Should the result be tainted? If so, how?

slide-73
SLIDE 73

AND Addition, Subtraction Overview

Propagating taint marks

2

Multiplication, Division, OR, XOR

Overview

  • Propagation must take into account both
  • peration semantics and programmer intent
  • Our policy is based on knowledge of

C/C++/assembly and patterns observed in real software

+, , , ÷,

and, or, xor, ... P1 1 P2 Should the result be tainted? If so, how?

slide-74
SLIDE 74

AND Addition, Subtraction Overview

Propagating taint marks

2

Multiplication, Division, OR, XOR

Addition, Subtraction

A +/− B = C

A B C

Most common use of addition and subtraction is to add or subtract a pointer and an offset 1 1 1

/

1

no taint

...

slide-75
SLIDE 75

AND Addition, Subtraction Overview

Propagating taint marks

2

Multiplication, Division, OR, XOR

AND The result of anding a pointer and a mask should be treated differently depending on the value of the mask c = a & 0xffffff00 - base address c = a & 0x000000ff - offset

A & B = C

A B C

1

  • r

1

no taint

...

slide-76
SLIDE 76

AND Addition, Subtraction Overview

Propagating taint marks

2

Multiplication, Division, OR, XOR Multiplication, Division, OR, XOR

We found zero cases where the result of any of these operations was a pointer

slide-77
SLIDE 77

Checking taint marks

When memory is accessed through a pointer: compare the memory taint mark and the pointer taint mark

3

Pointer Memory IMA?

no yes yes yes yes 1 2 2 2 3 3

slide-78
SLIDE 78

Preventing IMAs

void main() {

  • 1. int *np, n, i, *buf;
  • 2. np = &n;
  • 3. printf(“Enter size: “);
  • 4. scanf(“%d”, np);
  • 5. buf = malloc(n * sizeof(int));
  • 6. for(i = 0; i <= n; i++)
  • 7. *(buf + i) = rand()%10;

... }

slide-79
SLIDE 79

Preventing IMAs

void main() {

  • 1. int *np, n, i, *buf;
  • 2. np = &n;
  • 3. printf(“Enter size: “);
  • 4. scanf(“%d”, np);
  • 5. buf = malloc(n * sizeof(int));
  • 6. for(i = 0; i <= n; i++)
  • 7. *(buf + i) = rand()%10;

... }

slide-80
SLIDE 80

Preventing IMAs

void main() {

  • 1. int *np, n, i, *buf;
  • 2. np = &n;
  • 3. printf(“Enter size: “);
  • 4. scanf(“%d”, np);
  • 5. buf = malloc(n * sizeof(int));
  • 6. for(i = 0; i <= n; i++)
  • 7. *(buf + i) = rand()%10;

... }

slide-81
SLIDE 81

Preventing IMAs

void main() {

  • 1. int *np, n, i, *buf;
  • 2. np = &n;
  • 3. printf(“Enter size: “);
  • 4. scanf(“%d”, np);
  • 5. buf = malloc(n * sizeof(int));
  • 6. for(i = 0; i <= n; i++)
  • 7. *(buf + i) = rand()%10;

... } buf: np: i: n: 4 3 2 1

slide-82
SLIDE 82

Preventing IMAs

void main() {

  • 1. int *np, n, i, *buf;
  • 2. np = &n;
  • 3. printf(“Enter size: “);
  • 4. scanf(“%d”, np);
  • 5. buf = malloc(n * sizeof(int));
  • 6. for(i = 0; i <= n; i++)
  • 7. *(buf + i) = rand()%10;

... } buf: np: i: n: 4 3 2 1

slide-83
SLIDE 83

Preventing IMAs

void main() {

  • 1. int *np, n, i, *buf;
  • 2. np = &n;
  • 3. printf(“Enter size: “);
  • 4. scanf(“%d”, np);
  • 5. buf = malloc(n * sizeof(int));
  • 6. for(i = 0; i <= n; i++)
  • 7. *(buf + i) = rand()%10;

... } buf: np: i: n: 4 2 3 2 1

slide-84
SLIDE 84

Preventing IMAs

void main() {

  • 1. int *np, n, i, *buf;
  • 2. np = &n;
  • 3. printf(“Enter size: “);
  • 4. scanf(“%d”, np);
  • 5. buf = malloc(n * sizeof(int));
  • 6. for(i = 0; i <= n; i++)
  • 7. *(buf + i) = rand()%10;

... } buf: np: i: n: 4 2 3 2 1

slide-85
SLIDE 85

Preventing IMAs

void main() {

  • 1. int *np, n, i, *buf;
  • 2. np = &n;
  • 3. printf(“Enter size: “);
  • 4. scanf(“%d”, np);
  • 5. buf = malloc(n * sizeof(int));
  • 6. for(i = 0; i <= n; i++)
  • 7. *(buf + i) = rand()%10;

... } buf: np: i: n: 4 2 3 2 1

slide-86
SLIDE 86

Preventing IMAs

void main() {

  • 1. int *np, n, i, *buf;
  • 2. np = &n;
  • 3. printf(“Enter size: “);
  • 4. scanf(“%d”, np);
  • 5. buf = malloc(n * sizeof(int));
  • 6. for(i = 0; i <= n; i++)
  • 7. *(buf + i) = rand()%10;

... } buf: np: i: n: 4 2 3 2 1

slide-87
SLIDE 87

Preventing IMAs

void main() {

  • 1. int *np, n, i, *buf;
  • 2. np = &n;
  • 3. printf(“Enter size: “);
  • 4. scanf(“%d”, np);
  • 5. buf = malloc(n * sizeof(int));
  • 6. for(i = 0; i <= n; i++)
  • 7. *(buf + i) = rand()%10;

... } buf: np: i: n: 4 2 3 2 1

slide-88
SLIDE 88

Preventing IMAs

void main() {

  • 1. int *np, n, i, *buf;
  • 2. np = &n;
  • 3. printf(“Enter size: “);
  • 4. scanf(“%d”, np);
  • 5. buf = malloc(n * sizeof(int));
  • 6. for(i = 0; i <= n; i++)
  • 7. *(buf + i) = rand()%10;

... } buf: np: i: n: 4 2 3 2 1 3

slide-89
SLIDE 89

Preventing IMAs

void main() {

  • 1. int *np, n, i, *buf;
  • 2. np = &n;
  • 3. printf(“Enter size: “);
  • 4. scanf(“%d”, np);
  • 5. buf = malloc(n * sizeof(int));
  • 6. for(i = 0; i <= n; i++)
  • 7. *(buf + i) = rand()%10;

... } buf: np: i: n: 4 2 3 2 1 3

slide-90
SLIDE 90

Preventing IMAs

void main() {

  • 1. int *np, n, i, *buf;
  • 2. np = &n;
  • 3. printf(“Enter size: “);
  • 4. scanf(“%d”, np);
  • 5. buf = malloc(n * sizeof(int));
  • 6. for(i = 0; i <= n; i++)
  • 7. *(buf + i) = rand()%10;

... } buf: np: 5 i: n: 4 2 3 2 1 5 5 5 3

slide-91
SLIDE 91

Preventing IMAs

void main() {

  • 1. int *np, n, i, *buf;
  • 2. np = &n;
  • 3. printf(“Enter size: “);
  • 4. scanf(“%d”, np);
  • 5. buf = malloc(n * sizeof(int));
  • 6. for(i = 0; i <= n; i++)
  • 7. *(buf + i) = rand()%10;

... } buf: np: 5 i: n: 4 2 3 2 1 5 5 5 3

slide-92
SLIDE 92

Preventing IMAs

void main() {

  • 1. int *np, n, i, *buf;
  • 2. np = &n;
  • 3. printf(“Enter size: “);
  • 4. scanf(“%d”, np);
  • 5. buf = malloc(n * sizeof(int));
  • 6. for(i = 0; i <= n; i++)
  • 7. *(buf + i) = rand()%10;

... } buf: np: 5 i: n: 4 2 3 2 1 5 5 5 3

slide-93
SLIDE 93

Preventing IMAs

void main() {

  • 1. int *np, n, i, *buf;
  • 2. np = &n;
  • 3. printf(“Enter size: “);
  • 4. scanf(“%d”, np);
  • 5. buf = malloc(n * sizeof(int));
  • 6. for(i = 0; i <= n; i++)
  • 7. *(buf + i) = rand()%10;

... } + = 5 5 buf: np: 5 i: n: 4 2 3 2 1 5 5 5 3

slide-94
SLIDE 94

Preventing IMAs

void main() {

  • 1. int *np, n, i, *buf;
  • 2. np = &n;
  • 3. printf(“Enter size: “);
  • 4. scanf(“%d”, np);
  • 5. buf = malloc(n * sizeof(int));
  • 6. for(i = 0; i <= n; i++)
  • 7. *(buf + i) = rand()%10;

... } + = 5 5 buf: np: 5 i: n: 4 2 3 2 1 5 5 5 3

slide-95
SLIDE 95

Preventing IMAs

void main() {

  • 1. int *np, n, i, *buf;
  • 2. np = &n;
  • 3. printf(“Enter size: “);
  • 4. scanf(“%d”, np);
  • 5. buf = malloc(n * sizeof(int));
  • 6. for(i = 0; i <= n; i++)
  • 7. *(buf + i) = rand()%10;

... } buf: np: 5 i: n: 4 2 3 2 1 5 5 5 3

slide-96
SLIDE 96

Preventing IMAs

void main() {

  • 1. int *np, n, i, *buf;
  • 2. np = &n;
  • 3. printf(“Enter size: “);
  • 4. scanf(“%d”, np);
  • 5. buf = malloc(n * sizeof(int));
  • 6. for(i = 0; i <= n; i++)
  • 7. *(buf + i) = rand()%10;

... } buf: np: 5 i: n: 4 2 3 2 1 5 5 5 9 3

slide-97
SLIDE 97

Preventing IMAs

void main() {

  • 1. int *np, n, i, *buf;
  • 2. np = &n;
  • 3. printf(“Enter size: “);
  • 4. scanf(“%d”, np);
  • 5. buf = malloc(n * sizeof(int));
  • 6. for(i = 0; i <= n; i++)
  • 7. *(buf + i) = rand()%10;

... } buf: np: 5 i: n: 4 2 3 2 1 5 5 5 9 8 2 3 2

slide-98
SLIDE 98

Preventing IMAs

void main() {

  • 1. int *np, n, i, *buf;
  • 2. np = &n;
  • 3. printf(“Enter size: “);
  • 4. scanf(“%d”, np);
  • 5. buf = malloc(n * sizeof(int));
  • 6. for(i = 0; i <= n; i++)
  • 7. *(buf + i) = rand()%10;

... } buf: np: 5 i: n: 4 2 3 2 1 5 5 5 9 8 2 3 2

slide-99
SLIDE 99

Preventing IMAs

void main() {

  • 1. int *np, n, i, *buf;
  • 2. np = &n;
  • 3. printf(“Enter size: “);
  • 4. scanf(“%d”, np);
  • 5. buf = malloc(n * sizeof(int));
  • 6. for(i = 0; i <= n; i++)
  • 7. *(buf + i) = rand()%10;

... } buf: np: 5 i: n: 4 2 3 2 1 5 5 5 9 8 2 3 3 + = 5 5

slide-100
SLIDE 100

Preventing IMAs

void main() {

  • 1. int *np, n, i, *buf;
  • 2. np = &n;
  • 3. printf(“Enter size: “);
  • 4. scanf(“%d”, np);
  • 5. buf = malloc(n * sizeof(int));
  • 6. for(i = 0; i <= n; i++)
  • 7. *(buf + i) = rand()%10;

... } buf: np: 5 i: n: 4 2 3 2 1 5 5 5 9 8 2 3 3 + = 5 5

slide-101
SLIDE 101

Limiting the number of taint marks

An unlimited number of taint marks makes a hardware implementation infeasible

  • increases the overhead (time and space)
  • complicates the design
slide-102
SLIDE 102

Limiting the number of taint marks

An unlimited number of taint marks makes a hardware implementation infeasible

  • increases the overhead (time and space)
  • complicates the design

➡ Assign taint marks from a limited, reusable

pool

slide-103
SLIDE 103

Effects on the approach

With an random assignment of n taint marks the

detection probability is:

IMAs are detected probabilistically

p = 1 − 1 n

slide-104
SLIDE 104

Effects on the approach

With an random assignment of n taint marks the

detection probability is:

IMAs are detected probabilistically

2 marks = 50%, 4 marks = 75%, 16 marks = 93.75%, 256 marks = 99.6%

p = 1 − 1 n

slide-105
SLIDE 105

Effects on the approach

With an random assignment of n taint marks the

detection probability is:

  • 1. The technique can be tuned by increasing or decreasing

the number of taint marks

IMAs are detected probabilistically

2 marks = 50%, 4 marks = 75%, 16 marks = 93.75%, 256 marks = 99.6%

p = 1 − 1 n

slide-106
SLIDE 106

Effects on the approach

With an random assignment of n taint marks the

detection probability is:

  • 1. The technique can be tuned by increasing or decreasing

the number of taint marks

  • 2. In practice the approach is successful with only a small

number (2) of taint marks

IMAs are detected probabilistically

2 marks = 50%, 4 marks = 75%, 16 marks = 93.75%, 256 marks = 99.6%

p = 1 − 1 n

slide-107
SLIDE 107

Empirical evaluation

RQ1: Is the efficiency of our approach sufficient for it to be applied to deployed software? RQ2: What is the effectiveness of our technique when using limited number of taint marks?

slide-108
SLIDE 108

RQ1: experimental method

  • Hardware implementation
  • Cycle accurate simuator (SESC)
  • Treat taint marks as first class citizens
  • Subjects
  • SPEC CPU2000 benchmark (12 applications)
  • Calculate the overhead imposed by our

approach for each subject application

slide-109
SLIDE 109

RQ1: experimental method

  • Hardware implementation
  • Cycle accurate simuator (SESC)
  • Treat taint marks as first class citizens
  • Subjects
  • SPEC CPU2000 benchmark (12 applications)
  • Calculate the overhead imposed by our

approach for each subject application

Current implementation assigns taint marks only to dynamically allocated memory, but propagation and checking are fully implemented

slide-110
SLIDE 110

RQ1: results

5 10 15 20 25 30 b z i p 2 c r a f t y e

  • n

g a p g c c g z i p m c f p a r s e r p e r l b m k t w

  • l

f v

  • r

t e x v p r a v e r a g e % overhead (time)

2 marks 8 marks 16 marks 256 marks

slide-111
SLIDE 111

RQ1: results

5 10 15 20 25 30 b z i p 2 c r a f t y e

  • n

g a p g c c g z i p m c f p a r s e r p e r l b m k t w

  • l

f v

  • r

t e x v p r a v e r a g e % overhead (time)

2 marks 8 marks 16 marks 256 marks

  • Even with 256 marks, the average overhead is

in the single digits

slide-112
SLIDE 112

RQ1: results

5 10 15 20 25 30 b z i p 2 c r a f t y e

  • n

g a p g c c g z i p m c f p a r s e r p e r l b m k t w

  • l

f v

  • r

t e x v p r a v e r a g e % overhead (time)

2 marks 8 marks 16 marks 256 marks

  • All attacks were detected with two taint marks
  • Even with 256 marks, the average overhead is

in the single digits

slide-113
SLIDE 113

RQ1: results

5 10 15 20 25 30 b z i p 2 c r a f t y e

  • n

g a p g c c g z i p m c f p a r s e r p e r l b m k t w

  • l

f v

  • r

t e x v p r a v e r a g e % overhead (time)

2 marks 8 marks 16 marks 256 marks

  • All attacks were detected with two taint marks
  • Software-only implementations impose two
  • rders of magnitude more overhead
  • Even with 256 marks, the average overhead is

in the single digits

slide-114
SLIDE 114

RQ2: experimental method

  • Software implementation
  • Binary instrumenter (Pin)
  • Use instrumentation to assign, propagate, and check

taint marks

  • Subjects
  • SPEC CPU2000 benchmark (12 applications)
  • 5 applications with 7 known IMAs
  • Run both each applications protected by our

software implementation and check that only the known illegal memory accesses are detected (5 times)

slide-115
SLIDE 115

RQ2: results

Application IMA location Type Detected bc-1.06 more_arrays: 177 buffer overflow ✔ (5/5) bc-1.06 lookup: 577 buffer overflow ✔ (5/5) gnupg-1.4.4 parse_comment: 2095 integer overflow ✔ (5/5) mutt-1.4.2.li utf8_to_utf7: 199 buffer overflow ✔ (5/5) php-5.2.0 php_char_to_str_ex: 3152 integer overflow ✔ (5/5) pine-4.44 rfc882_cat: 260 buffer overflow ✔ (5/5) squid-2.3 ftpBuildTitleUrl: 1024 buffer overflow ✔ (5/5)

Applications with known IMAs

slide-116
SLIDE 116

RQ2: results

Application IMA location Type Detected bc-1.06 more_arrays: 177 buffer overflow ✔ (5/5) bc-1.06 lookup: 577 buffer overflow ✔ (5/5) gnupg-1.4.4 parse_comment: 2095 integer overflow ✔ (5/5) mutt-1.4.2.li utf8_to_utf7: 199 buffer overflow ✔ (5/5) php-5.2.0 php_char_to_str_ex: 3152 integer overflow ✔ (5/5) pine-4.44 rfc882_cat: 260 buffer overflow ✔ (5/5) squid-2.3 ftpBuildTitleUrl: 1024 buffer overflow ✔ (5/5)

Applications with known IMAs

All attacks were detected with two taint marks

slide-117
SLIDE 117

RQ2: results

Application IMA location Type Detected bc-1.06 more_arrays: 177 buffer overflow ✔ (5/5) bc-1.06 lookup: 577 buffer overflow ✔ (5/5) gnupg-1.4.4 parse_comment: 2095 integer overflow ✔ (5/5) mutt-1.4.2.li utf8_to_utf7: 199 buffer overflow ✔ (5/5) php-5.2.0 php_char_to_str_ex: 3152 integer overflow ✔ (5/5) pine-4.44 rfc882_cat: 260 buffer overflow ✔ (5/5) squid-2.3 ftpBuildTitleUrl: 1024 buffer overflow ✔ (5/5) Application IMA location Type Detected vortex SendMsg: 279 null-pointer dereference ✔ (5/5)

Applications with known IMAs SPEC Benchmarks (“IMA free”)

All attacks were detected with two taint marks

slide-118
SLIDE 118

Future work

  • Complete implementation that handles

static memory

  • Additional experiments with a wider range
  • f IMAs
  • Further optimization of the hardware

implementation

slide-119
SLIDE 119

Conclusions

  • Definition of an approach for preventing illegal

memory accesses in deployed software

  • uses dynamic taint analysis to protect memory
  • uses probabilistic detection to achieve acceptable
  • verhead
  • Empirical evaluation showing that the approach
  • is effective at detecting IMA in real applications
  • can be implemented efficiently in hardware
