EFFECT OF ALKALINE PEROXIDE PRETREATMENT ON FIBRE COMPOSITION OF - - PowerPoint PPT Presentation

Apr 03, 2023 222 likes •390 views

EFFECT OF ALKALINE PEROXIDE PRETREATMENT ON FIBRE COMPOSITION OF VARIOUS LIGNOCELLULOSIC RESIDUES Cristina Marzo, J. lvarez, A.B. Daz, I. Caro, A. Blandino University of Cdiz (Spain) e-mail: cristina.marzo@uca.es I NTRODUCTION

slide-1
SLIDE 1

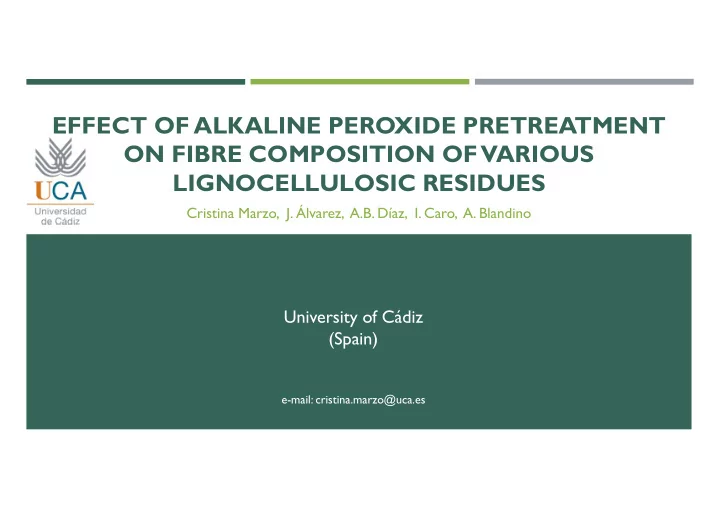

EFFECT OF ALKALINE PEROXIDE PRETREATMENT ON FIBRE COMPOSITION OF VARIOUS LIGNOCELLULOSIC RESIDUES

Cristina Marzo, J. Álvarez, A.B. Díaz, I. Caro, A. Blandino

University of Cádiz (Spain)

e-mail: cristina.marzo@uca.es

slide-2
SLIDE 2

INTRODUCTION

University of Cádiz (Spain) e-mail: cristina.marzo@uca.es 2

Exhausted sugar beet cossettes (ESBC) Rice husk (RH) Wheat straw (WS) Sunflower stalk (SS) Fuels Fuels Polyhydroxyalkanoates (PHAs) Organic acids Low-Cost Abundant

slide-3
SLIDE 3

INTRODUCTION

Lignocellulosic biomass Pretreatment Enzymatic hydrolysis Fermentation

University of Cádiz (Spain) e-mail: cristina.marzo@uca.es 3

Biotechnological process

Alkaline hydrogen peroxide pretreatment The aim is to break down the recalcitrant structure of lignocellulose to make cellulose and hemicellulose more accessible to the enzymes

slide-4
SLIDE 4

INTRODUCTION

This pretreatment is an oxidative process which could significantly improve biomass digestibility.

It selectively removes lignin and deconstructs the cell walls.

University of Cádiz (Spain) e-mail: cristina.marzo@uca.es 4

Alkaline hydrogen peroxide pretreatment

Advantages

Disadvantages

slide-5
SLIDE 5

MATERIAL AND METHODS

UNIVERSITY OF CÁDIZ (SPAIN) E-MAIL: CRISTINA.MARZO@UCA.ES 5

slide-6
SLIDE 6

MATERIAL AND METHODS

University of Cádiz (Spain) e-mail: cristina.marzo@uca.es 6

Exhausted sugar beet cossettes (ESBC) Rice husk (RH) Wheat straw (WS) Sunflower stalk (SS)

Particle size

  • 0 – 0.5 mm
  • 0.5 – 1 mm
  • 1 – 1.5 mm
  • 1.5 – 2 mm

Particle size

  • 0.5 – 1 mm

 All the solids were milled and sieved

slide-7
SLIDE 7

MATERIAL AND METHODS

Alkaline hydrogen peroxide pretreatment

University of Cádiz (Spain) e-mail: cristina.marzo@uca.es 7

Hydrogen peroxide at 4 % (w/v) Solid Incubation 30ºC – 24h Filtration Washing Neutral pH Drying 40ºC - 24h pH 11.5 (NaOH)

Whatman No. 1 filter paper

1:20 (w/v)

slide-8
SLIDE 8

MATERIAL AND METHODS. FIBRE COMPOSITIONAL ANALYSIS

The determination of acid detergent fibre (ADF) and acid detergent lignin (ADL) according to EN ISO 13906:2008

The determination of amylase treated neutral detergent fibre (NDF) according to AOAC 2002:04/ISO 16472:2006.

University of Cádiz (Spain) e-mail: cristina.marzo@uca.es 8

Code Sample fraction Compliant substances Denomination

A removed with acetone Fats, oils, wax fats B+C removed with neutral detergent Proteins, enzymes, pectins, soluble salts, etc. Salts and no cellulosic B no calcined removed soluble salts Salts C calcined removed rest of removable material no saline no cellulosic D removed with acid detergent Hemicellulose, etc. Hemicellulose E removed with concentrated acid Cellulose, soluble lignin Cellulose D+E removed with acid hemicellulose, cellulose and soluble lignin Cellulose and Hemicellulose F calcined not removed insoluble lignin, etc. Lignin G not calcined and not removed insoluble salts, minerals, etc. Minerals B+G total no calcined T

  • tal salts

Salts and minerals

slide-9
SLIDE 9

RESULTS AND DISCUSSION

UNIVERSITY OF CÁDIZ (SPAIN) E-MAIL: CRISTINA.MARZO@UCA.ES 9

slide-10
SLIDE 10

RESULTS AND DISCUSSION. Influence on the solid particle size

University of Cádiz (Spain) e-mail: cristina.marzo@uca.es 10

Before AHP pretreatment After AHP pretreatment AHP pre-treatment was applied on milled rice husk and four different ranges of size were assayed

  • 0 – 0.5 mm
  • 0.5 – 1 mm
  • 1 – 1.5 mm
  • 1.5 – 2 mm

The average weight losses produced after AHP peroxide pre-treatment was 25.31 ± 0.38 % Fibre composition of rice husk

10 20 30 40 50 60 70 Composition (%)

0,0 - 0,5 mm 0,5 -1,0 mm 1,0 - 1,5 mm 1,5 -2,0 mm

10 20 30 40 50 60 70 Composition (%)

0‐0,5 0,5‐1

slide-11
SLIDE 11

RESULTS AND DISCUSSION. Effect on different agro-industrial residues

University of Cádiz (Spain) e-mail: cristina.marzo@uca.es 11

Fibre composition before AHP Fibre composition after AHP

10 20 30 40 50 60 70 Composition (%)

Sunflowers stalks Wheat straw Exhausted sugar beet cossettes Rice husks

10 20 30 40 50 60 70 Composition (%)

Sunflowers stalks Wheat straw Exhausted sugar beet cossettes Rice husks

slide-12
SLIDE 12

10 20 30 40 50 60 70 Composition (%)

Rice husks

Before After

RESULTS AND DISCUSSION. Effect on different agro-industrial residues

University of Cádiz (Spain) e-mail: cristina.marzo@uca.es 12

10 20 30 40 50 60 70 Composition (%)

Sunflowers stalks

Before After 10 20 30 40 50 60 70 Composition (%)

Wheat straw

Before After 10 20 30 40 50 60 70 Composition (%)

Exhausted sugar beet cossettes

Before After

slide-13
SLIDE 13

CONCLUSIONS

UNIVERSITY OF CÁDIZ (SPAIN) E-MAIL: CRISTINA.MARZO@UCA.ES 13

slide-14
SLIDE 14

CONCLUSIONS

Lignocellulosic biomass is a potential raw material for the production of added-value products through fermentation

  • f monomeric sugars. Nevertheless, a previous pretreatment stage is needed to make the polymers more accessible to

the enzymes in the hydrolysis step producing the fermentable sugars

University of Cádiz (Spain) e-mail: cristina.marzo@uca.es 14

Efficient pretreatment to remove a significant amount of lignin

Cellulose fraction was not affected achieving its concentration

Higher concentrations of hydrolysable polymers were attained; higher hydrolysis yields.

slide-15
SLIDE 15

EFFECT OF ALKALINE PEROXIDE PRETREATMENT ON FIBRE COMPOSITION OF VARIOUS LIGNOCELLULOSIC RESIDUES

Cristina Marzo, J. Álvarez, A.B. Díaz, I. Caro, A. Blandino

University of Cádiz (Spain)

e-mail: cristina.marzo@uca.es
