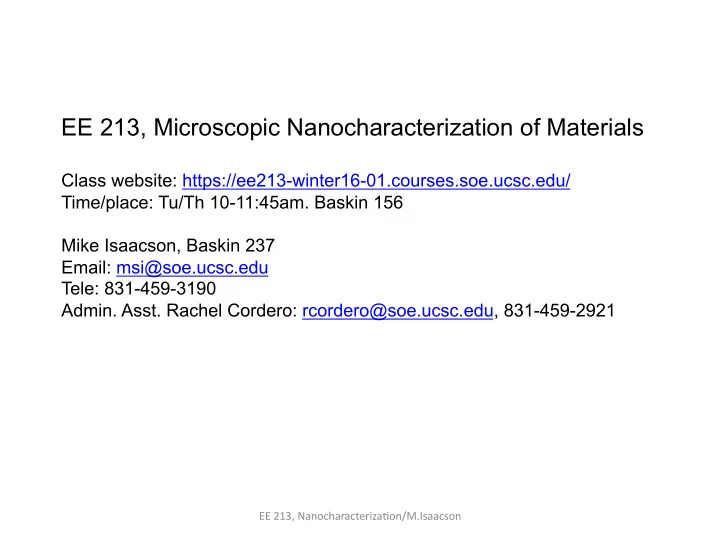

EE 213, Microscopic Nanocharacterization of Materials Class website: https://ee213-winter16-01.courses.soe.ucsc.edu/ Time/place: Tu/Th 10-11:45am. Baskin 156 Mike Isaacson, Baskin 237 Email: msi@soe.ucsc.edu Tele: 831-459-3190 Admin. Asst.

slide-1
SLIDE 1

EE 213, Nanocharacteriza2on/M.Isaacson

EE 213, Microscopic Nanocharacterization of Materials

Class website: https://ee213-winter16-01.courses.soe.ucsc.edu/ Time/place: Tu/Th 10-11:45am. Baskin 156 Mike Isaacson, Baskin 237 Email: msi@soe.ucsc.edu Tele: 831-459-3190

  • Admin. Asst. Rachel Cordero: rcordero@soe.ucsc.edu, 831-459-2921
slide-2
SLIDE 2

EE 213, Nanocharacteriza2on/M.Isaacson

EE 213. Information. W2016

Grading:

  • Approx. 2-3 homework sets

1 final paper about 10 pages long 1 final presentation (15 minutes)

slide-3
SLIDE 3

EE 213, Nanocharacteriza2on/M.Isaacson

Microscopic Nanocharacterization of Materials. 1

TENTATIVE Introduction/Microcharacterization Electron Beam Excitation Methods SEM, STEM, TEM, EFEM, UFEM, etc. Ion Beam Excitation Methods PIXE, RBS, SIMS, HeIM Xray Excitation Methods Microscopy, Microprobe, PEM

slide-4
SLIDE 4

EE 213, Nanocharacteriza2on/M.Isaacson

Microscopic Nanocharacterization of Materials. 2

Photon Beam Excitation Methods Wide Field, Confocal, Two photon microscopy Superresolution Microscopy Lensless Microscopy Point Projection Xrays, Atom Probe Scanned Tip STM, AFM, NSOM, SCM, etc. Tomographic Methods Comparison of Various Techniques

slide-5
SLIDE 5

HOW WE VIEW THE WORLD?

!"#!"$ %&'("$ )*+&'!+'%"$

$ ! !

!"#$%&

"#"$%&'()*+"%,$! &)-,)%,'+! #,*.%/!0&)1/!,'+/! 234!

!'()*&

)$'56%,$)#! &)-,)%,'+! )$'56%,$)#/! 6%"%.'6$'7"!

%'(+$&

("$.)+,$)#/! )%'(,$!8'&$"6! 2%1#56/!9:4!

!,-..&

$."(,$)#! ;'+!$'+-5$%)+$"/! <)+'!$."(,$)#! 6"+6'&!

$ ! ! $ ! !

!

,electrons

slide-6
SLIDE 6
slide-7
SLIDE 7

!!!Microscopy!Through!the!Centuries!

!

!!!d!=!constant!x!!λ/nsinΘ! !

! ! To#get#better#resolution:!

!

1)!Reduce!λ! !!!!!!!!!electrons,!Xrays,!etc.! ! !!!!!!!!!!!!!!!!!!!!!!!!!!!!!2)!Increase!nsinΘ! !!!!!!!better!lenses,!oil!

!

!!!!!!!!!3)!Decrease!constant! !!!!!!!!!!!!!!confocal! !

!!!!!!!4)!Take!away!lenses!

!!!!!!!!!!near!field/scanned!tip!

! !!!!!!!!!!!!!!!!!!!!!!!!!!!!!!5)!Find!the!center/computation!

!!!!!“super!resolution”!

slide-8
SLIDE 8

EE 213, Nanocharacteriza2on/M.Isaacson

slide-9
SLIDE 9

EE 213, Nanocharacteriza2on/M.Isaacson

slide-10
SLIDE 10

Ibn Al-Haytham, “Kitab al-Manazir” (Book

  • f Optics, abt. 1010). Translated into Latin

(1572) as “Opticae Thesaurus” Expanded drawing from Al-Haytham

From: www.islamic-study.org/optics.htm

Principles of the Camera Obscura

slide-11
SLIDE 11

EE 213, Nanocharacteriza2on/M.Isaacson

slide-12
SLIDE 12

Point Projection Microscopy: The Field Ion Microscope

slide-13
SLIDE 13

Field Ion Micrograph: Platinum Tip

  • E. W. Mueller, Science. 149,591 (1965)
slide-14
SLIDE 14
slide-15
SLIDE 15

Near Field Scanning Optical Microscopy (Reflection)

aluminum on silicon Shear force NSOM

400nm

Cline and Isaacson, Ultramicroscopy

EE 213, Nanocharacteriza2on/M.Isaacson

slide-16
SLIDE 16

The Idea of Near Field Op2cal Imaging

From D. McMullan, Proc. RMS. 25(2).1990.p.130

slide-17
SLIDE 17

NSOM Instrument Constructed at Cornell

M.Isaacson, 8/3/10

slide-18
SLIDE 18

60 nm away 600 nm away

Effect of Distance on Spatial Resolution

600 nm

M.Isaacson, et.al. 1990

slide-19
SLIDE 19

There is nothing more deceiving than an image unless you know the rules of translation

Penrose triangle Kanizsa Triangle

EE 213, Nanocharacteriza2on/M.Isaacson

slide-20
SLIDE 20

EE 213, Nanocharacteriza2on/M.Isaacson

Zolner Illusion, 1860, astrophysicist

slide-21
SLIDE 21

10µm

Surface of Moon Rock from Apollo 11 Mission Using Field Emission SEM, (SE image)

  • M. Isaacson, D. Johnson and A.V. Crewe, 1969 EE 213, Nanocharacteriza2on/M.Isaacson
slide-22
SLIDE 22

What does the secondary electron image in the SEM mean?”

EE 213, Nanocharacteriza2on/M.Isaacson

slide-23
SLIDE 23

Nanostructure characterization wide variety of techniques:

(after Brodie)

EE 213, Nanocharacteriza2on/M.Isaacson

slide-24
SLIDE 24

HOW WE VIEW THE WORLD?

!"#!"$ %&'("$ )*+&'!+'%"$

$ ! !

!"#$%&

"#"$%&'()*+"%,$! &)-,)%,'+! #,*.%/!0&)1/!,'+/! 234!

!'()*&

)$'56%,$)#! &)-,)%,'+! )$'56%,$)#/! 6%"%.'6$'7"!

%'(+$&

("$.)+,$)#/! )%'(,$!8'&$"6! 2%1#56/!9:4!

!,-..&

$."(,$)#! ;'+!$'+-5$%)+$"/! <)+'!$."(,$)#! 6"+6'&!

$ ! ! $ ! !

!

,electrons

slide-25
SLIDE 25

EE 213, Nanocharacteriza2on/M.Isaacson

slide-26
SLIDE 26

EE 213, Nanocharacteriza2on/M.Isaacson

slide-27
SLIDE 27

EE 213, Nanocharacteriza2on/M.Isaacson

slide-28
SLIDE 28

EE 213, Nanocharacteriza2on/M.Isaacson

slide-29
SLIDE 29

EE 213, Nanocharacteriza2on/M.Isaacson

slide-30
SLIDE 30

EE 213, Nanocharacteriza2on/M.Isaacson

slide-31
SLIDE 31

EE 213, Nanocharacteriza2on/M.Isaacson

slide-32
SLIDE 32

EE 213, Nanocharacteriza2on/M.Isaacson

slide-33
SLIDE 33

EELS from nucleic acid bases

From: M. Isaacson, 1972 EE 213, Nanocharacteriza2on/M.Isaacson

slide-34
SLIDE 34

Nanodevices Require Atomic Characterization Scanning Transmission Electron Microscope

/ heavy atoms

EE 213, Nanocharacteriza2on/M.Isaacson

slide-35
SLIDE 35

Gold Atoms on 2nm thick amorphous carbon substrate STEM Annular Dark Field Signal, 30KeV

M.Isaacson, M.Ohtsuki, M. Utlaut, D.Kopf and A.V.Crewe, 1979

EE 213, Nanocharacteriza2on/M.Isaacson

slide-36
SLIDE 36

EE 213, Nanocharacteriza2on/M.Isaacson

slide-37
SLIDE 37

EE 213, Nanocharacteriza2on/M.Isaacson

slide-38
SLIDE 38

EE 213, Nanocharacteriza2on/M.Isaacson

For electrons

slide-39
SLIDE 39

EE 213, Nanocharacteriza2on/M.Isaacson

slide-40
SLIDE 40

EE 213, Nanocharacteriza2on/M.Isaacson

slide-41
SLIDE 41

100 nm Aluminum Film Self-Supported on Silicon Fingers

secondary electron image

  • M. Isaacson and K. Lin

SE only SE + SE(BSE)

EE 213, Nanocharacteriza2on/M.Isaacson

slide-42
SLIDE 42

S = NJσYF S = signal in counts/sec

N = # atoms in volume probed J = current density in probe (#/area/sec) σ = cross section for interaction (area) Y = yield of process to be detected F = efficiency of collection

EE 213, Nanocharacteriza2on/M.Isaacson

slide-43
SLIDE 43

EE 213, Nanocharacteriza2on/M.Isaacson

slide-44
SLIDE 44

EE 213, Nanocharacteriza2on/M.Isaacson
