Ecological Restoration: Maintaining biological diversity in a changing world James G. Hallett Executive committee, SER Professor, Eastern Washington University, USA Restauration cologique: Maintien de la diversit biologique dans un monde

slide-1
SLIDE 1

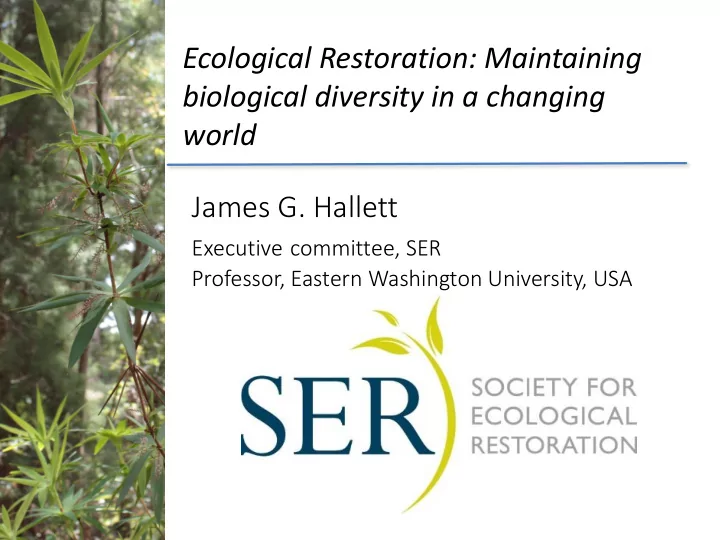

Ecological Restoration: Maintaining biological diversity in a changing world James G. Hallett

Executive committee, SER Professor, Eastern Washington University, USA

slide-2
SLIDE 2

Restauration écologique: Maintien de la diversité biologique dans un monde en mutation James G. Hallett

Executive committee, SER Professor, Eastern Washington University, USA

slide-3
SLIDE 3

To promote ecological restoration… …as a means of sustaining the diversity of life

  • n earth...

Afin de promouvoir la restauration écologique… ...comme un moyen de maintenir la diversité de la vie sur terre…

slide-4
SLIDE 4

…& reestablishing an ecologically healthy relationship between nature and culture et de rétablir une relation saine écologiquement entre nature et culture

slide-5
SLIDE 5

Why scientists must work together to save the world Pourquoi les scientifiques doivent travailler ensemble pour sauver le monde

slide-6
SLIDE 6
slide-7
SLIDE 7

Biodiversity hotspots / Hotspots de la biodiversité High rates of endemism / Taux élevés d’endemisme <30% of original native vegetation / 30% de la vegetation pré-existante

slide-8
SLIDE 8

Forests Grassland Agriculture Abandoned

Land conversion in Tropical Africa

After Ramankutty and Foley. 1999. Global Biogeochem Cycles

slide-9
SLIDE 9
slide-10
SLIDE 10

Cramer et al. 2008. TREE

Losses have accelerated since 1950 worldwide

Rate of abandonment of farmland

slide-11
SLIDE 11

Land degradation consequences

  • Loss of biodiversity
  • Increase in non-native invasive species
  • Reduction or loss of ecosystem services

necessary for human health, food and water security, and culture

  • Strong relationship between poverty and

degree of land degradation

slide-12
SLIDE 12

Cardinale et al. Nature. 2012.

Biodiversity loss reduces the efficiency of ecological communities to capture biologically essential resources, produce biomass, decompose and recycle biologically essential nutrients

slide-13
SLIDE 13

Impact of biodiversity on any single ecosystem process is nonlinear and saturating, such that change accelerates as biodiversity loss increases

Cardinale et al. Nature. 2012.

slide-14
SLIDE 14

Loss of diversity across trophic levels has the potential to influence ecosystem functions even more strongly than diversity loss within trophic levels

Cardinale et al. Nature. 2012.

slide-15
SLIDE 15
  • Biodiversity. 2006.
  • Bioscience. 2009.
slide-16
SLIDE 16

Ecosystem Services 12 (2015) 1-15

slide-17
SLIDE 17

Linkage between human health and biodiversity

  • perates at many scales /

Des liens entre la santé humaine et la biodiversité opérent à plusieurs échelles.

  • Genetic (gene frequencies)
  • Changes in host resistance or pathogen virulence
  • L’echelle génétique (fréquences des gènes)
  • Changements de la résistance de l’hôte, ou de la

virulence des pathogènes

slide-18
SLIDE 18

Linkage between human health and biodiversity

  • perates at many scales /

Des liens entre la santé humaine et la biodiversité

  • pérent à plusieurs échelles.
  • Microbial (internal and external)
  • Host immune response change; range expansion
  • Vector species
  • Contact rates; range expansion
  • L’echelle microbienne (interne et externe)
  • Changement de réponse immunitaire de l’hôte;

expansion de l’aire de distribution

  • L’echelle espèces hôtes
  • Taux de contact; expansion de l’aire de distribution
slide-19
SLIDE 19

Ecological restoration defined: Ecological restoration is the process of assisting the recovery

  • f an ecosystem that

has been degraded, damaged, or destroyed.

Society for Ecological Restoration Primer (2004)

slide-20
SLIDE 20

What is the restoration target?

Ecosystem resumes a trajectory that follows the historic continuity for that ecosystem as guided by a reference model.

Society for Ecological Restoration Primer (2004)

slide-21
SLIDE 21

Restoration is rarely 100% successful

Moreno-Mateos et al. 2012. PLOS

slide-22
SLIDE 22

Success of restoration

Meta-analysis of 89 projects in different ecosystems world-wide

  • Ecological restoration increased provision
  • f biodiversity (44%) and ecosystem

services (25%)

  • Lower relative to intact systems
  • Timescales may be quite long

Benayas et al. 2009. Science

slide-23
SLIDE 23

Land-use change Nitrogen deposition Climate change Biotic invasion CO2 enrichment Synergistic effects Sala et al. Science 287: 1770–1774.

Disturbances of global concern are long-term and large-scale

slide-24
SLIDE 24

Assessment

Steps in the restoration process

Ecological condition and context Stakeholders

slide-25
SLIDE 25

Schoennagel and Nelson 2011

Priority Areas for Restoration

slide-26
SLIDE 26

Data from WHRC.org

Carbon Stocks / Les stocks de carbone

slide-27
SLIDE 27

Data from WHRC.org

Reserves/ Réserves

slide-28
SLIDE 28

Data from WHRC.org

Corridors / Couloirs

slide-29
SLIDE 29

Restoration planning Assessment

Steps in the restoration process

Reference system Definition of

  • bjectives

Selection of restoration measures Implementation plan Monitoring and evaluation plan

slide-30
SLIDE 30

Restoration planning Assessment

Steps in the restoration process

Implementation

slide-31
SLIDE 31

Restoration planning Assessment

Steps in the restoration process

Implementation Monitoring Evaluation allows modification of implementation plan and depends on comparison to a reference model

slide-32
SLIDE 32

Restoration planning Assessment

Steps in the restoration process

Implementation Monitoring Utilization Maintenance Communication of results Recommendations for future projects

slide-33
SLIDE 33

Monitoring is rarely done.

  • Bernhart et al. 2005
slide-34
SLIDE 34

Monitoring is rarely done.

  • Bernhart et al. 2005

CONCLUSIONS

  • comprehensive assessment of restoration progress not

possible with available information

  • < 10% of projects included any type of monitoring.
slide-35
SLIDE 35

Restoration planning Assessment

Steps in the restoration process

Implementation M & E Utilization Maintenance Communication of results Recommendations for future projects

slide-36
SLIDE 36
slide-37
SLIDE 37

After Before

Photos: Duane Davis

Albeni Falls dam in Idaho converted 2627 ha of wetlands to open water

slide-38
SLIDE 38

Wetlands were lost from Morton Slough, Idaho

Photos: KTOI archive

slide-39
SLIDE 39

Assessing change presents several problems

Limited sampling is unlikely to reveal all species in a habitat

?

Communities must be selected for monitoring A reference or baseline condition must be determined

slide-40
SLIDE 40

Water level management

Flying Goose Ranch 1997 2002

Photos: Neil Lockwood

Restoration approaches for mitigation lands

slide-41
SLIDE 41

Exclude grazing Control weeds Restore native vegetation

Photos: Neil Lockwood

Restoration approaches for mitigation lands

slide-42
SLIDE 42

Reference sites were the best representatives of extant vegetation types

Riparian forest

Photos: Neil Lockwood

Riparian shrub

slide-43
SLIDE 43

Multiple reference sites describe spatial variation

Wetland meadow

Photos: Neil Lockwood

Emergent wetland

slide-44
SLIDE 44

Vegetation monitoring began in 2002

Characterize both structure and species composition

Shrub species and volume Trees Cover and diversity of grasses and herbs

slide-45
SLIDE 45

Wildlife monitoring began in 2002

Larval amphibians Birds Small mammals

slide-46
SLIDE 46
  • Comparisons of species richness or

diversity

  • Comparisons of community similarity

How can we determine change in restoration? 1

Least Similar Most

slide-47
SLIDE 47

How can we visualize the similarity relationships of different sampling sites?

Plant ecologists have used ordination techniques for many years. We use non-metric multidimensional scaling because it does not entail assumptions about the distributions of the underlying data

slide-48
SLIDE 48

Similarity patterns for plant cover at reference and mitigation (restoration) sites

reference P

slide-49
SLIDE 49

mitigation reference

Similarity patterns for plant cover at reference and mitigation (restoration) sites

slide-50
SLIDE 50

mitigation reference

Similarity patterns for plant cover at reference and mitigation (restoration) sites

slide-51
SLIDE 51

Communication

Stakeholders Funding agencies Meeting participants

slide-52
SLIDE 52
slide-53
SLIDE 53

Technical Guidelines

  • Primer on Ecological Restoration
  • Guidelines for Developing and Managing

Ecological Restoration Projects

  • Ecological Restoration – A Means of

Conserving Biodiversity and Sustaining Livelihoods (SER and IUCN)

slide-54
SLIDE 54

The Science and Practice of Restoration

slide-55
SLIDE 55

www.ser.org
