Echossential or Echorrhoea? Idle thoughts on some more advanced echocardiographic techniques Dave Dickson BVetMed DVC MRCVS RCVS Specialist in Cardiology DICKSON WHAT I TALK ABOUT WHEN I TALK ABOUT ECHO Atrial thrombus Athletic heart Echo

slide-1
SLIDE 1

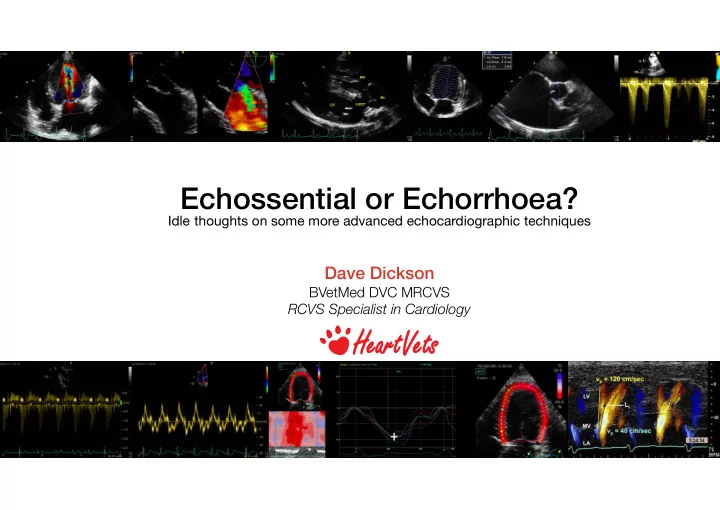

Echossential or Echorrhoea?

Idle thoughts on some more advanced echocardiographic techniques

Dave Dickson

BVetMed DVC MRCVS RCVS Specialist in Cardiology

slide-2
SLIDE 2
slide-3
SLIDE 3

DICKSON

WHAT I TALK ABOUT WHEN I TALK ABOUT ECHO

slide-4
SLIDE 4

Echo courtesy of Liva Vatne

Atrial thrombus Athletic heart Mitral stenosis Pulmonary hypertension

slide-5
SLIDE 5

Can I be getting more from my echo?

slide-6
SLIDE 6

Left ventricular systolic function

Bourguingnon, Dickson, Vatne, Harris, Caivano & Rishniw JVC In Press

slide-7
SLIDE 7

Left ventricular systolic function

SMOD superior to MM at detecting early DCM Sphericity index doesn’t improve upon MM EPSS is sens and spec and comparable to SMOD

slide-8
SLIDE 8

= = =

Tissue Doppler Imaging

slide-9
SLIDE 9

Tissue Doppler Imaging

s’ e’ a’ IVCT Ejection IVRT Filling

slide-10
SLIDE 10

Tissue Doppler Imaging

e’ e’ e’ a’ a’ e’ e’

slide-11
SLIDE 11

Tissue Doppler Imaging

slide-12
SLIDE 12

Tissue Doppler Imaging

slide-13
SLIDE 13

Tissue Doppler Imaging in DMVD and DCM

slide-14
SLIDE 14

Tissue Doppler Imaging

s’ e’ a’

slide-15
SLIDE 15

Speckle Tracking Echocardiography

t0 t1 = -15%

slide-16
SLIDE 16

Speckle Tracking Echocardiography

slide-17
SLIDE 17

Speckle Tracking Echocardiography

s’ e’ a’

slide-18
SLIDE 18

Measuring STE

slide-19
SLIDE 19

Speckle Tracking Echocardiography

GLS GLSRs GLSRe GLSRa

slide-20
SLIDE 20

Speckle Tracking Echocardiography

slide-21
SLIDE 21

Speckle Tracking Echocardiography

slide-22
SLIDE 22

Speckle Tracking Echocardiography

?

slide-23
SLIDE 23

Right Ventricular Function

slide-24
SLIDE 24

Right Ventricular Function

slide-25
SLIDE 25

Tricuspid Annular Plane Systolic Excursion

= =

CRAPSE

TAPSE:Ao >0.65

slide-26
SLIDE 26

TAPSE

iTAPSE <3.3mm/kg^0.3 TAPSE:Ao <0.65 nTAPSE<3.2mm/kg^0.3

slide-27
SLIDE 27

TDI S’

Visser 2015 S’ min > 4.26 cm/s/kg S’N = 4.262 x BW^0.233

slide-28
SLIDE 28

Speckle of the RV

slide-29
SLIDE 29

Thoughts on all this fancy echo stuff

slide-30
SLIDE 30

Wake up, it’s Quiz time!

slide-31
SLIDE 31
slide-32
SLIDE 32

Diastolic Function and Filling Pressures

Isovolumic relaxation Rapid filling

slide-33
SLIDE 33

Diastolic Function and Filling Pressures

E A E A

slide-34
SLIDE 34

Mitral inflow in CHF

MV E vel >1.2-1.4m/s Borgarelli JVIM 2008, Nakamura JVIM 2014, Sargent JVC 2015)

slide-35
SLIDE 35

Mitral inflow velocity

MV E ∝LVFP x LV relaxation (incl age & HR) MV E ∝LAP (LVFP) IVRT ∝ 1/ LV relaxation (incl age & HR) MV E ∝ LVFP x LV relaxation IVRT LV relaxation

E/IVRT ∝ LVFP

slide-36
SLIDE 36

E/IVRT

=

slide-37
SLIDE 37

Tissue Doppler Imaging and diastolic function

MV E ∝LVFP x LV relaxation TDI e’ ∝1/LV relaxation MV E ∝ 1 x LVFP x LV relaxation TDI e’ LV relaxation

E/e’ ∝ LVFP

slide-38
SLIDE 38

Doppler estimates of filling pressure

slide-39
SLIDE 39

DCM

Doppler estimates of filling pressure

Mitral valve disease

E/IVRT >2.5 >1.9

slide-40
SLIDE 40

Case Example

E/IVRT 1.5 “Iolo” LVDDN 2.1 LA:Ao 1.95

slide-41
SLIDE 41

Case Example

Dec 2019 LVDDN = 2 LA:Ao =1.85 MV E = 1m/s IVRT = 78ms E/IVRT = 1.34

slide-42
SLIDE 42

Case Example

Dec 2019 July 2020 July 2020

slide-43
SLIDE 43

Case Example

July 2020 LVDDN 2 LA:Ao 2.1 July 2020 MV E = 1.4m/s IVRT = 48ms E/IVRT = 2.92 Dec 2019 LVDDN = 2 LA:Ao =1.85 MV E = 1m/s IVRT = 78ms E/IVRT = 1.34

slide-44
SLIDE 44

Thoughts on all this fancy echo stuff

slide-45
