April 4-7, 2016 | Silicon Valley DRIVE PX 2 SELF-DRIVING CAR COMPUTER Shri Sundaram, Spring 2016 SELF-DRIVING AND AI SUPERCOMPUTING 2 SELF-DRIVING CAR PLATFORM DRIVEWORKS Perception Localization Planning Visualization NVIDIA DRIVE PX

slide-1

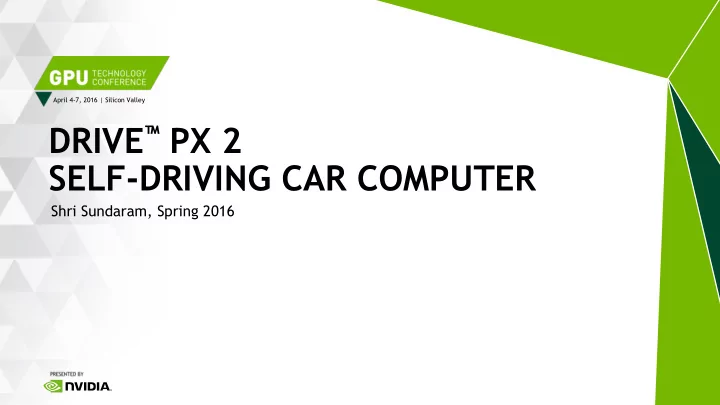

SLIDE 1

April 4-7, 2016 | Silicon Valley

Shri Sundaram, Spring 2016

DRIVE™ PX 2 SELF-DRIVING CAR COMPUTER

slide-2
SLIDE 2

2

SELF-DRIVING AND AI SUPERCOMPUTING

slide-3
SLIDE 3

3

SELF-DRIVING CAR PLATFORM

NVIDIA DRIVE™ PX 2 NVIDIA DIGITS NVIDIA DRIVENET

Localization Planning Visualization Perception

DRIVEWORKS

slide-4
SLIDE 4

4

NVIDIA DRIVE™ PX 2

12 CPU cores | Pascal GPU | 8 TFLOPS | 24 DL TOPS | 16nm FF | Scalable from 1-4 processors World’s First AI Supercomputer for Self-Driving Cars

slide-5
SLIDE 5

5

INTERFACES

Sensor Fusion Interfaces:

GMSL Camera, CAN, GbE, BroadR-Reach, FlexRay, LIN, GPIO

Displays and Cockpit Computer Interfaces

HDMI, FPDLink III and GMSL

Development and Debug Interfaces

HDMI, GbE, 10GbE, USB3, USB 2 (UART/debug), JTAG

70 Gigabits per second of I/O

Auto Grade connectors Debug/Lab interfaces

slide-6
SLIDE 6

6

COMPUTATION ENGINES

  • Scalable + Redundancy Capable

Dual CPU-GPU Cluster Connected over Gigabit Ethernet

  • Independent and specialized

compute Each GPU has dedicated memory

  • Greatly accelerate DNN

performance Specialized Instructions for Discrete GPU

24 DL TOPS, 8 TFLOPS, high performance CPU complex

DRIVE™ PX 2

slide-7
SLIDE 7

7

SOFTWARE

NVIDIA Vibrante Linux & Comprehensive BSP Rich Middleware SDK, Samples and more

A full stack of rich software components

slide-8
SLIDE 8

8

DRIVE™ PX 2

Designed For

Sensor Fusion, Point Cloud etc.

SENSOR PROCESSING

Detection/Perception (DNN Inference), Localization, Path Planning, Visualization

COMPUTATION

Automobile Network

COMMUNICATION

Algorithm development, Hardware in Loop etc.

DATA COLLECTION

slide-9
SLIDE 9

9

READYING FOR PRODUCTION RAPID PROTOTYPING DEVELOPING APPLICATIONS

DRIVE™ PX 2

Built for

Develop applications using DRIVE™ PX 2 Deploy a pre-trained DNN

  • n DRIVE™ PX 2

Migrate applications from PC to DRIVE™ PX 2 Typically in a lab set up or a few cars DRIVE PX™ 2 as reference for custom ECU Safety concept to derive certain Safety Integrity Level Validate algorithms in car with live cameras/sensors Partition existing system (say, PC); include DRIVE™ PX 2 for sensor fusion 10s of cars

slide-10
SLIDE 10

10

SPRINGBOARDS TO PRODUCTION TOOLS & ECOSYSTEM CORE DRIVE™ PX 2 CAPABILITIES

DRIVE™ PX 2

Benefits

Computation & Memory Interfaces & I/O Bandwidth Rich SW & HW Capabilities Functional Safety Automotive HW Automotive SW (RTOS, AUTOSAR & Code Compliance) Product Partnerships (HW & SW)

slide-11
SLIDE 11

11

COMPUTATION & MEMORY

CPU Complex: 2x Denver2 plus 4x Cortex-A57

Fully coherent HMP system; ARM V8 64-bit

Pascal GPU – 5th Gen GPU Architecture

Custom acceleration for deep learning

Separate memory for Tegra (CPU + iGPU) and dGPU

Tegra (CPU + iGPU) to 8GB LPDDR4 (UMA): 50+GB/s Discrete GPU to 4GB GDDR5: 80+ GB/s

24 DL TOPS from GPU; High Perf. CPU

CORE DRIVE™ PX 2 CAPABILITIES

slide-12
SLIDE 12

12

RICH SW/HW CAPABILITIES

Prepared to handle many use-cases

Train on DevBox/DIGITS; Inference on DRIVE™ PX 2 Develop on PC (CUDA); Run on DRIVE™ PX 2 Develop on another NVIDIA embedded platform; Run on DRIVE™ PX 2 …

By making the experience across homogeneous

Unified tool chain (across DevBox, DRIVE™ PX2 and other platforms) Multimedia APIs aligned across all platforms (Linux) Full Open GL (not just ES) Ubuntu Unity desktop CUDA/CuDNN/DL Frameworks …

Binary Compatibility

CORE DRIVE™ PX 2 CAPABILITIES

slide-13
SLIDE 13

13

RICH SW/HW CAPABILITIES

Data Logging

Data Logger DRIVE™ PX 2

Camera Bypass

Vehicle Information Other Sensors CAN/FlexRay Gigabit Ethernet Other Sensors & GPS (LiDAR/Radar) 2x 10 Gigabit Ethernet Uncompressed Camera stream 12x Camera GMSL 2x HDMI (4K/60) as Data pipe Optional: for uncompressed video 10 Gigabit Ethernet Optional: for uncompressed video ECU debug data 12x Camera GMSL

TOOLS & ECOSYSTEM

slide-14
SLIDE 14

14

RICH SW/HW CAPABILITIES

User can define 20 different CAN node IDs between Infineon Aurix and NVIDIA Tegra. No special tool-chain required. Messages defined through configuration files on Linux (running on Tegra A). E.g. one of the 20.

CAN Channel F (on Aurix): Standard Can Id (0x244) - forwarded to Tegra B

CAN Bus configuration – EasyCAN*

* Provided by NVIDIA Partner Elektrobit

TOOLS & ECOSYSTEM

slide-15
SLIDE 15

15

RICH SW/HW CAPABILITIES

Graphics Debugger, System Profiler Multi Process, Multi Node, Multi GPU CUDA tools

Exquisite Developer Tools

TOOLS & ECOSYSTEM

slide-16
SLIDE 16

16

RICH SW/HW CAPABILITIES

DRIVEWORKS

Tools and building blocks to create your autonomous driving applications. Object detection, map localization, path planning and visualization.

TOOLS & ECOSYSTEM

slide-17
SLIDE 17

17

PRODUCT PARTNERSHIPS

Camera, LiDAR and more

USB/GigE Cameras LiDAR Image Sensors Hardware Reference board partners SDKs and frameworks from Partners

TOOLS & ECOSYSTEM

slide-18
SLIDE 18

18

FUNCTIONAL SAFETY

Being developed as SEooC for autonomous driving Developing work products

Functional and Technical Safety Concept – Scheme to achieve certain Safety Integrity Level for a particular use-case. System Design Specification – Functional details of HW / SW components & interfaces that are compliant to various standards (i.e. ISO26262) Hardware-Software Interface Specification – Register level details of HW/SW components Safety Manual – Safety architecture (e.g. RTOS/AUTOSAR) and list of all safety mechanisms and instructions to use them (e.g. DRAM ECC) FMEDA - Documentation of random failure metrics

SEooC & Work Products for DRIVE™ PX 2

SPRINGBOARDS TO PRODUCTION

slide-19
SLIDE 19

19

FUNCTIONAL SAFETY

Certified Hypervisor and foundation partitions Safety OS (CPU Complex, SCE, Safety MCU) Safety supervision framework Safety diagnostics libraries Safety AUTOSAR Stack (SCE, Safety MCU) Applications, Middleware and Libraries

SW architecture

L1SS L2SS L3SS IPC SPI nSAFE WD WD STLib STLib

Tegra

Tegra/Pascal HW

SPRINGBOARDS TO PRODUCTION

slide-20
SLIDE 20

20

AUTOMOTIVE SW

AUTOSAR

DRIVE™ PX comes integrated with AUTOSAR 4.x-compliant software suite from Elektrobit

Running on NVIDIA Tegra and Infineon AURIX™ 32-bit TriCore™ microcontroller Integrated Linux and AUTOSAR apps Functionality to monitor & redundancy management. IPC in safe/reliable execution environment.

Also available reference stacks from other major AUTOSAR solution providers.

SPRINGBOARDS TO PRODUCTION

slide-21
SLIDE 21

21

DRIVE™ PX 2

DRIVE™ PX 2: AI Supercomputer for Self Driving Cars Built for application development, rapid embedded prototyping and to help migrate to series production. Delivers powerful I/O and processing capabilities, rapidly expanding product ecosystem and several means to shorten the path to production.

Closing remarks

slide-22
SLIDE 22

22

REFERENCES

DRIVE™ PX 2 Launch at CES https://youtu.be/C_8MZZ2TZUk (View Part 1 through 9) Deep Learning for Cars (GTC 2016) https://youtu.be/RVmV9SXJeBg & https://youtu.be/YuyT2SDcYrU NVIDIA Self-Driving Car https://youtu.be/5Wr_6Wk0DmY Roborace https://youtu.be/KN_qostst-s

slide-23
SLIDE 23

April 4-7, 2016 | Silicon Valley

THANK YOU

JOIN THE NVIDIA DEVELOPER PROGRAM AT developer.nvidia.com/join
