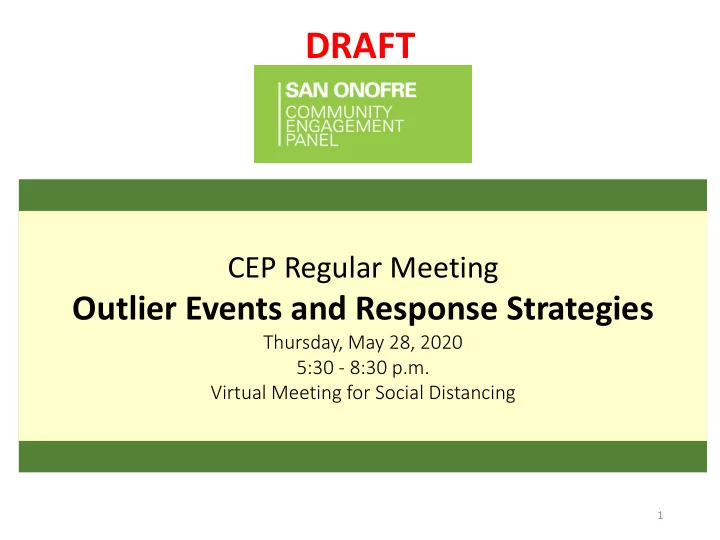

CEP Regular Meeting

Outlier Events and Response Strategies

Thursday, May 28, 2020 5:30 - 8:30 p.m. Virtual Meeting for Social Distancing

DRAFT

2

Submit comments to: nuccomm@songs.sce.com

3

Agenda Topic Presenter Time

CEP and SCE welcome & opening comments

• Skype – how to participate in public comment period
• SONGS pandemic protocol and sewage treatment plant wastewater release

David Victor Doug Bauder 5:30 - 5:35 (5 min) The big picture: SONGS decommissioning

• Fuel transfer operations and dismantlement activities

Doug Bauder 5:35 – 5:40 (5 min) Outlier events and response strategies – Initial comments

• Overview of process and events in and out of scope

David Victor External stakeholders Doug Bauder 5:40 – 5:50 (10 min) “Radiation 101”

• Radiation and contamination
• Spent fuel design and operating experience

Patrick Papin Randall Granaas (SCE) 5:50 – 6:00 (10 min) 6:00 – 6:05 (5 min) Plausible event scenarios and responses - Analysis (probability/consequence), hazards, mitigations, radiation, contamination and dose to the public

• Outliers, experts and perspectives
• Canister degradation
• Terrorism / sabotage
• NRC rulemaking
• San Onofre security

Tom Isaacs Mike Corradini Kevin Crowley Ed Lyman Ross Quam 6:05 – 6:10 (5 min) 6:10 – 6:20 (10 min) 6:20 – 6:30 (10 min) 6:30 – 6:40 (10 min) 6:40 – 6:45 (5 min) Layers of emergency preparedness

• On-site response capabilities
• Off-site response capabilities – local, state, and federal

Kelli Gallion Donna Boston (OC) Stephen Rea (SD Co.) 6:45 – 7:05 (20 min) (7 minutes each) Break 7:05 – 7:15 (10 min) Public comment period (Q&A related to agenda topics and general questions & comments) 7:15 – 8:15 (60 min) Facilitated public dialogue Dan Stetson Jerry Kern 8:15 - 8:30 (15 min) SCE and CEP closing comments Doug Bauder David Victor 8:30 – 8:35 (5 min)

4

Welcome and Opening Comments

David Victor and Doug Bauder

5

Opening Comments David Victor

• Virtual meeting

– Skype format in the interest of public health and safety – Process for public comment

• Questions submitted to nuccomm@songs.sce.com in advance will be addressed first
• Use online form to sign up for public comment: https://on.sce.com/cep
• Dan Stetson and Jerry Kern will review and facilitate the Q&A period
• Welcome expert panelists

Radiation Outlier Scenarios Emergency Response Mike Corradini Kelli Gallion-Sholler Patrick Papin Kevin Crowley Donna Boston Tom Isaacs Stephen Rea Ed Lyman

6

Opening Comments Doug Bauder

• Continuing essential work under requirements of SONGS

pandemic protocol

• Fuel transfers from wet to passive dry storage
• Limited deconstruction work authorized by SCE
• Update on sewage treatment plant
• Wastewater release on March 25
• More information on decommissioning in CEP newsletter on

website www.songscommunity.com

The Big Picture

Doug Bauder

Chief Nuclear Officer and VP Decommissioning

7

Safe and prompt deconstruction Defense-in-depth for on-site storage of spent nuclear fuel Take action in an effort to relocate spent fuel off site

The Big Picture

8

• Transferring spent nuclear fuel to passive dry storage

– 9 of 73 canisters remaining to download as of today – Continuing process improvements and lessons learned – On pace for completion mid-summer

• Limited dismantlement work authorized by SCE continues

– Shipment of low-level waste (Unit 1 reactor pressure vessel) – Continued waste removal (asbestos) – Office trailers for employees during deconstruction

Decommissioning Update

9

10

First Quarterly Update

• Tri-fold mailed in April
• Posted online

https://www.songscommunity.com/about- decommissioning/decommissioning-san-

• nofre-nuclear-generating-station

10

Outlier Topic

• Tonight’s discussion:
• Initial comments by CEP leadership and Working Group
• Basics of Radiation and Contamination - “Radiation 101”
• Experts address top outlier scenarios
• Emergency management experts address response
• Public comment

11

Initial comments: the process David Victor

• Multiple sources of community input for agenda items:
• External stakeholders (CEP comments, petition, correspondence)
• Local city managers
• Working Group
• Three in-person meetings and one via Skype
• Planning, nomination of experts and standard for choosing experts
• Expert-driven assessment
• Experts recommended by National Academies of Sciences
• Contributed to list of scenarios
• Ranked scenarios based on consequences
• Distinguished between ”fast occurring” and “slow emerging” scenarios
• Process summary and online library
• Chairman’s summary of process and documentation available on website [hyperlink]
• Tonight’s focus is on a few scenarios of greatest consequence and public interest
• Other topics covered by online library https://www.songscommunity.com/community-

engagement/meetings/community-engagement-panel-meeting-20200421

12

13

Outlier Events and Response Strategies Initial Comments Roger Johnson

14

Outlier Events and Response Strategies Initial Comments Katie Day Surfrider Foundation

15

Outlier Events and Response Strategies Initial Comments David Victor

Initial comments: ISFSI-only Doug Bauder

• ISFSIs are highly robust, designed with significant

events in mind

• Safe and passive operation
• Compared to operating reactors, ISFSIs are low-risk
• Emergency Action Levels reduced from 82 during
• perations, 18 permanently defueled, to 3 at ISFSI-only
• Zero accident scenarios with offsite radiological release

16

The initial list David Victor

• Canister drop
• Corrosion and/or cracking of a canister due to chloride-

induced stressed corrosion cracking (CISCC)

• Groundwater daylighting
• Postulated crack allows water to enter canister allowing

hydrogen buildup and explosion

• Sea level rise
• Seismic events
• Terrorist attack
• Tsunami
• Vibration from decommissioning and dismantlement

activities

17

Outlier prioritization process David Victor

18

Outlier Scenarios Agenda Topic Library Fast-Occurring Events Terrorism   Insider sabotage   Seismic events   Tsunami   Canister drop  Nearby pipeline explosion  Aircraft impacts/jet fuel fire  Slowly Emerging Events Canister degradation (CISCC)   Postulated undetected through-wall crack, water intrusion, hydrogen build-up, ignition   Postulated zirconium fire  Sea-level rise  Groundwater daylighting  Vibration from dismantlement activities  Postulated staffing shortage due to COVID-19 

Library-only scenarios David Victor

Sea level rise (SLR)

• 2015 Coastal Development permit (reviewed annually)
• Ocean Protection Council’s most extreme scenario (2018 “H++”), does

not represent a threat to the ISFSI through 2035

• SCE will revisit SLR in relation to the Holtec facility in 2035
• The bottom of the new Holtec UMAX spent fuel storage facility sits

three feet above the water table

• Sea water would need to rise three feet, then penetrate three feet of

reinforced concrete and a 3/4 inch stainless steel cavity enclosure container that houses the canister

• Units 2 and 3 were built below the water table and operated for

nearly 30 years with no impact from the water table or sea water https://www.songscommunity.com/search?q=sea-level+rise&s=relevance

19

Library-only scenarios (cont.) David Victor

Groundwater daylighting

• Ground water assessments are performed annually and provided to

CA State Lands Commission

• Ground water projections through 2050 indicate that the bottom of

the Holtec storage facility remains dry with approximately 6 inches margin assuming the H++ SLR scenario

https://www.songscommunity.com/search?q=sea-level+rise&s=relevance

20

Library-only scenarios (cont.) David Victor

• Seismic Safety at San Onofre
• https://www.songscommunity.com/need-to-

know/overview/seismic-safety-at-songs

• Dr. Neal Driscoll presented Scripps seismic research during

February 16, 2017 CEP meeting

• https://www.songscommunity.com/community-

engagement/meetings/regular-meeting-on-the-new- scripps-seismic-research-introduction-of- decommissioning-general-contractor

• Additional information and new studies are available
• https://www.songscommunity.com/safety/seismic-safety

21

Library-only scenarios (cont.) David Victor

• Tsunamis
• “Tsunami Hazard Analysis and Protection” (SCE Position

Paper) - explains how spent nuclear fuel stored at the Independent Spent Fuel Storage Installation and Units 2&3 Spent Fuel Pools is protected against a potential tsunami hazard. The paper summarizes the results of the site-specific tsunami analyses that have been performed, and how protection is assured for the ISFSI and the Spent Fuel Pools.

https://www.songscommunity.com/internal_redirect/cms.ipressroom.co m.s3.amazonaws.com/339/files/20182/PositionPaperTsunami.pdf

• “Independent Spent Fuel Storage Installation (ISFSI) Location” (SCE

Position Paper) - provides the background and basis for SCE’s decision for the location of the ISFSI at San Onofre. A link is provided here.

22

Library-only scenarios (cont.) David Victor

• Canister drop
• Discussed extensively at 2018 and 2019 CEP meetings
• Vibration from dismantlement work
• Well-analyzed, far below levels that could affect ISFSI

23

RADIATION AND CONTAMINATION

SAN ONOFRE NUCLEAR GENERATING STATIO ION COMMUNITY ENGAGEMENT PANEL MAY 28, , 2020

• DR. PATRICK PAPIN

DEPARTMENT OF PHYSICS GRADUATE PROGRAM IN HOMELAND SECURITY SAN DIEGO STATE UNIVERSITY

24

TOPICS OF DIS ISCUSSION

• Radiation
• Exposure and Contamination
• Shielding
• Dose Perspective
• What is Safe?

25

RADIATION

26

• Energy given off by matter in the form of rays or high-

speed particles

• Ionizing radiation removes electrons from atoms,

causing the atoms to become electrically charged ions

• Alpha particles
• Beta particles
• Gamma Rays
• X Rays
• Neutrons

EXPOSURE AND CONTAMINATION

• Exposure
• The act or condition of being subject to radiation
• Minimizing exposure
• Time, distance and shielding (all used SONGS)
• Contamination
• Radioactive material present in any substance, area, or
• n any surface where it is unwanted or unexpected
• Dose
• Absorbed energy and potential biological effects

27

SHIELDING

28

Thick steel and concrete are used for dry storage at San Onofre

DOSE PERSPECTIVE

29

WHAT IS IS SAFE ?

• Radiation annual dose limits
• Federal occupational dose limit

5000 millirem

• (Lower) SONGS worker dose limit

1500 millirem

• NRC and SONGS limits for the public

100 millirem

• Limits set to safe levels by NRC and recommended

by various national and international agencies1

• At these limits there is:
• Nearly no chance of deterministic effects (e.g. hair loss)
• Minimal risk of stochastic effects (e.g. cancer)

30

1 Safe levels are recommended by the National Council on Radiation Protection &

Measurements and the International Commission on Radiological Protection

TO BE CONTINUED……. QUESTIONS?

Contact Info:

ppapin@sdsu.edu https://physics.sdsu.edu/ppapin/ https://homelandsecurity.sdsu.edu/

31

Spent Fuel Design and Operating Experience

Randall Granaas SCE Nuclear Fuel / ISFSI Engineer

32

33

Solid State Spent Nuclear Fuel

• Ceramic uranium dioxide fuel pellets

– Requires 5,000 degrees F to melt – Cooling since 2012 – Decay heat of SONGS hottest spent fuel assembly comparable to a hair dryer (~1500W)

• Sealed within corrosion-resistant

zircaloy rods (“cladding”) and pressurized with helium

• Organized into fuel assemblies
• In dry storage, assemblies are sealed

within stainless steel canisters

34

Operating Reactors vs. SONGS Spent Fuel

• Offsite releases at Chernobyl and Fukushima

due to motive force associated with an

• perating reactor (extreme heat and steam)
• Cesium-137 not volatile at dry storage

temperatures (boiling point of ~1250° F) –

SONGS fuel lacks the energy to volatilize cesium, not directly comparable to Chernobyl and Fukushima

–

No water in dry storage

• Absent a motive force, radioactive

contamination on the surface of the fuel, and fuel particulate, are not very mobile

35

Forced Helium Dehydrator Filter Replacement (Empirical Data)

• Typical replacement of filters

for FHD system

• Helium at 400° F and ~80 psig

circulated through canister for about 24 hours

• Does not result in removal of

significant quantities of radioactive material from the canister, even when drying damaged fuel

• Filters are only mildly

radioactive

35

36

Outlier Events and Response Strategies Expert Introductions David Victor

Outliers, Experts, and Perspectives

Tom Isaacs

SCE Experts Team Chairman, Independent Strategic Advisor for Nuclear Waste, Lead Advisor, Blue Ribbon Commission on America’s Nuclear Future

37

Criteria to Consider

• Plausibility
• Stakeholder interest
• Human judgment, not quantitative analysis
• Most experts approach in a risk-informed way
• Human induced scenarios should consider role
• f human error or deliberate act/terrorism

38

Organizing Outliers

• Naturally occurring
• Human induced
• Fast occurring event
• Situation emerging over time

39

Organizing Outliers

FAST

(Occurrence)

SLOW

(Emergence)

NATURAL Seismic / Tsunami Sea Level Rise / CISCC HUMAN Terrorism / Canister Drop Canister Degradation

(postulated crack and water intrusion)

40

The Initial List

• Canister drop
• Corrosion and/or cracking of a canister due to chloride-induced

stressed corrosion cracking (CISCC)

• Groundwater daylighting
• Postulated crack allows water to enter canister allowing

hydrogen buildup and explosion

• Sea level rise
• Seismic events
• Terrorist attack
• Tsunami
• Vibration from decommissioning and dismantlement activities

41

Defining Scenarios

• Mechanistic: relates to theories that explain

phenomena in purely physical or deterministic terms; by physical process alone

• Postulated: defined as “assume the

existence of”

42

Some Additional Thoughts

• One of the biggest risks is complacency
• Continuous improvement helps maintain vigilance and

expectations

• Earning trust and providing compelling, clear

information are key

• It’s also possible to create unhelpful dread and anxiety

that can lead to bad decision making

43

Scenario:

Postulated-crack/Water-intrusion/H2-burn

Michael Corradini, Emeritus Distinguished Professor of Nuclear Engineering

• Engr. Physics, University of Wisconsin

44

Background

• This evaluation is not mechanistic (not based on any

accident analysis but analyzed for CEP discussion): – Postulated: crack allows water to enter a canister – Postulated: combustible mixture of hydrogen (H2) and oxygen (O2) in the canister due to water intrusion and radiolysis, ignition and combustion – This discussion does not imply that an H2 burn within a dry storage canister is a credible event

– Consulted: Profs. Art Motta (PSU) & Joe Shepherd (CIT)

• Refs: PNNL-6365, CNWRA-NRC–02–07–C–006, 2013

45

Scenario: Postulated-crack/Water-intrusion/H2-burn

Postulated Scenario Events:

• Cracking of spent fuel canister
• Water ingression into canister through a crack
• Water radiolysis => H2 and O2 in the canister
• Combustible gas (H2 and O2) builds up
• Ignition and H2/O2 combustion causes pressure

increase as a challenge to canister integrity

46

Scenario: Postulated-crack/Water-intrusion/H2-burn

Postulated Scenario event: Cracking of Spent Fuel canister

Through-wall crack of canister postulated to come from chloride- induced stress corrosion cracking (CISCC) in coastal environment

• AREVA and HOLTEC systems at SONGS are 316L Stainless steel (5/8”

thick) specifically for coastal environment

• CISCC is a known process that develops slowly and requires specific

conditions to initiate.

• Inspections are done regularly for selected sets of canisters to

detect any corrosion. Should any corrosion be observed, approved/proven remediation techniques would be taken.

• The cracks produced would be likely plug by further oxidation or

would be so small as to prevent the ingress of water.

• This thru-wall crack is postulated, but is highly unlikely

47

Scenario: Postulated-crack/Water-intrusion/H2-burn

Postulated Scenario events: Water ingression & water radiolysis

Radiolysis of water postulated to produce a combustible mixture

• Water ingress into the canister is assumed to occur without

identifying source or any actions taken to preclude event

• Rate of H2/O2 production from steam/water exposure is difficult to

predict as it is a function of radioactive decay emissions, flux and absorption

• Neglects oxygen uptake by oxidation of metallic surfaces
• Time to reach a combustible mixture would take decades within the

canister

• Neglects the escape of H2 through the path from which water

entered.

48

Scenario: Postulated-crack/Water-intrusion/H2-burn

Postulated Scenario event: H2 combustion

Postulate combustion of hydrogen-oxygen mixture causes a pressure rise to challenge canister integrity

• No ignition source exists in the canister, but is assumed
• The limiting event would be a contained combustion of a

flammable mixture Given all of these conservative assumptions, analyses result in combustion pressures less than half of the design pressures for the canisters; there is no gross canister failure

49

Terrorist Attacks on Dry ry Storage Systems for Spent Nucle lear Fuel

Kevin D. Crowley, PhD Retired Former Senior Board Director Nuclear and Radiation Studies Board National Academies of Sciences, Engineering, and Medicine

Dry ry Storage System Vulnerability Assessments

Dry storage system vulnerability assessments have been carried out by governments, national laboratories, nuclear industry, and independent analysts United States

• Assessments of transportation cask sabotage

(1970s-) (e.g., Luna et al., 1999)

• Assessments following 9/11 attacks to inform

potential ISFSI security orders (2003-)

• Assessments to support ISFSI security

rulemaking, now postponed (2012-) International

• Germany: Assessments to address longstanding

concerns about military aircraft crashes and terrorism

• Others

Assessment Topics, Objectives, and Availability

These assessments have improved understanding of potential vulnerabilities, but limited information available in public domain

• Aircraft attacks
• Ground assaults using high-energy devices &

explosives

• Numerical modeling & physical experiments
• Attack sequences, system containment

performance, potential radioactive material releases

• Most results “classified” or otherwise

precluded from public disclosure; some publicly available information pulled back after 9/11

• National Academy of Sciences (NAS) reports

(next slide) provide public summaries of some nonpublic assessments

52

53 NAS, 2006 NAS, 2016

Reports available in library Post-9/11 congressionally mandated review of potential vulnerabilities of dry storage systems to terrorist attacks:

• Aircraft attacks
• Ground assaults with high-energy devices & explosives

Classified study with classified (NAS, 2004) and public (NAS, 2006) reports Post-Fukushima congressionally mandated reevaluation of NAS (2004, 2006) conclusions in light of newer information:

• Classified study with public report (NAS, 2016)
• Reviewed Nuclear Regulatory Commission (NRC) vulnerability

assessments to support ISFSI rulemaking

• NRC assessments still in progress when review completed
• NAS (2016) recommended that NRC give high priority to

completing assessments and ISFSI rulemaking

Example 1: : Shaped Charges

• Shaped charge: Explosive device designed to

focus blast energy; used for cutting hard materials

• Testing of shaped charge anti-tank weapon on

ductile cast iron (Castor) cask (NAS, 2006)

• Bare cask breached (photo)
• Cask with concrete jacket not breached
• Material releases from breach of unjacketed

Castor cask containing simulated fuel elements (Lange et al., 1994)

• 3.6 g (1 g respirable) uranium

particulates released in test

• Calculated inhalation doses were < 50

mSv (5 rem) at 50 m (~160’) from cask

• Note: Material releases could include gases

and particulates; release quantities depend

• n number of damaged fuel elements and
• ther factors

54

NAS, 2006, Figure C.4

Example 2: : Ext xternal Im Impacts

• High-speed impacts on simulated overpacks

for two commercially available dry storage systems (Lee et al., 2014)

• Part of effort to simulate B747 aircraft

engine impacts on dry storage systems

• 110 lb high-strength steel slugs fired at

simulated overpacks from 155 mm cannon

• Slugs penetrated overpacks to different

depths and deformed rear steel liners by about 2”

• Test neglects some important design

features of real overpacks but illustrates the robustness of dry storage systems

55

Photos from Lee et al., 2014

Key Messages Ab About Dry ry Storage System Secu curity

• Robust designs of dry storage systems help protect

spent fuel from terrorist attacks

• Massive physical shielding
• Multiple barriers to radioactive material releases
• No dry storage system provides complete

protection against all attack types (NAS, 2006)

• Any radioactive material releases from attacks

would likely be relatively small

• Jet fuel fires from aircraft attacks would likely be

dispersed and short duration

• Effective dry storage security requires
• Physically robust dry storage systems
• Strong facility security to isolate dry storage

systems from people and vehicles

Key Physical Characteristics of f SONGS Dry ry Storage Systems

• UMAX storage is low profile, partially underground, and

protected by thick reinforced concrete pad and plugs

• NUHOMS storage modules are massive (~ 400,000 lbs

loaded) with thick reinforced concrete shielding

• NUHOMS storage modules partially screened to oceanfront

by UMAX ISFSI

57

Photo from SCE

Clo losing Comments

• Difficult for terrorists to successfully attack dry

storage systems if “success” defined by release

• f radioactive materials
• Robust facility security ESSENTIAL for isolating

stored spent fuel from people & vehicles to keep security risks low (see presentation by Dr. Lyman)

• Continually assess and adjust security posture to

counter newly identified threats

• Continually plan for “what can go wrong” at the

ISFSI and have readily deployable countermeasures available

References

• Lang et al., 1994. Experimental Determination of UO2-Release from Spent Fuel Transport Cask

after Shaped Charge Attack. INMM 35th Annual Meeting Proceedings, 408–413. Available at https://resources.inmm.org/system/files/annual_meeting_proceedings/1994/167.pdf.

• Lee et al., 2014. Impact analyses and tests of concrete overpacks of spent nuclear fuel storage
• casks. Nuclear Engineering and Technology 46(1), 73-80. Available at

https://www.sciencedirect.com/science/article/pii/S1738573315300929.

• Luna et al., 1999. Projected Source Terms for Potential Sabotage Events Related to Spent Fuel
• Shipments. SAND 99-0963. Available at https://www.nrc.gov/docs/ML0106/ML010650451.pdf.
• NAS, 2004. Safety and Security of Commercial Spent Nuclear Fuel Storage (U): National

Academies Press.

• NAS, 2006. Safety and Security of Commercial Spent Nuclear Fuel Storage: Public Report.

National Academies Press. Available at https://www.nap.edu/catalog/11263/safety-and- security-of-commercial-spent-nuclear-fuel-storage-public.

• NAS, 2016. Lessons Learned from the Fukushima Nuclear Accident for Improving Safety and

Security of U.S. Nuclear Plants: Phase 2. National Academies Press. Available at https://www.nap.edu/catalog/21874/lessons-learned-from-the-fukushima-nuclear-accident-for- improving-safety-and-security-of-us-nuclear-plants.

59

Dry cask sabotage: Outlier events

Edwin S. Lyman, PhD Director of Nuclear Power Safety Union of Concerned Scientists Washington, DC

60

Security reductions at decommissioning power reactors

• NRC security regulations are essentially the same for operating and decommissioning reactors
• Power reactors are required to protect against the “design basis threat” of sabotage to the reactor

core or spent fuel

• Requires an armed response force to interdict external attackers
• ISFSIs benefit from the presence of the security force although the NRC has not required that they be

protected to the same level as spent fuel pools

• But NRC has allowed decommissioning reactor licensees such as San Onofre to make changes to

their security plans that (they assert) do not reduce their effectiveness

• Eliminate annual force-on-force exercises (once all spent fuel is in the ISFSI)
• Eliminate cyber security program
• Also, the NRC no longer conducts triennial force-on-force inspections
• As a result, spent fuel pools and ISFSIs become more vulnerable to sabotage at decommissioning

plants

61

Enhancing off-site dose consequences

• As Dr. Crowley has shown, sabotage attacks
• n dry storage casks typically have limited

dose consequences

• Only a small breach that limits particulate

generation and release

• Absence of ongoing processes that would drive

enhanced radionuclide release

• However, the NRC staff has identified

additional modes of sabotage attack that could cause greater radionuclide releases from dry casks than previously assumed

62

NRC Draft Technical Basis for ISFSI Security Rulemaking, Revision 1 (2010)

“Following the events of September 11, 2001, the NRC … evaluated several types of dry storage casks designs that were viewed as being representative of the entire population of dry storage ISFSIs... the assessments did challenge previous NRC conclusions on the ability of a malevolent act to breach shielding and/or confinement barriers and thus release radiation or radioactive material; and indicated that increased security requirements were warranted for specific scenarios such as these … In response to this new information … the NRC staff developed Commission policy paper SECY-07-0148 to update the ISFSI security requirements …” (https://www.nrc.gov/docs/ML0932/ML093280743.pdf)

63

SECY-07-0148 (Enclosure 4), 8/2007

• However, … the [NRC] staff acknowledges that

uncertainty exists on whether additional weapons capabilities may pose a vulnerability to spent fuel storage casks … an adversary's use of certain types of explosive attacks (using either manufactured or improvised devices)—which the Commission has required certain non-reactor licensees, but not ISFSIs, to defend against—may have the potential to breach some cask designs' confinement barrier and thus cause a radiological release that would exceed the 0.05-Sv (5-rem) dose limit at the ISFSI's controlled area boundary. This uncertainty has only been partially assessed by staff, but would involve, for example, adversaries using explosives to create kinetic, shear,

• r hydrodynamic weapons effects.”

64

S.G. Durbin and C.W. Morrow, “Analysis of Dose Consequences Arising from the Release of Spent Nuclear Fuel From Dry Storage Casks,” SAND2013-0533, January 2013

• Rte. 5

65

Additional security measures

• The NRC 2010 Draft Regulatory Basis

proposed that if these enhanced adversary attack modes could result in unacceptable off- site dose consequences (defined as more than 5 rem), the new rule should require additional security measures for ISFSIs, such as

• Increasing distance to controlled area boundary
• Adding engineered security features/barriers
• Shifting to a “denial” protective strategy: preventing

attackers from gaining physical access to the dry storage casks

66

ISFSI security rulemaking history

• 2007: The NRC approved moving forward with a rulemaking to address the

new vulnerability assessment information as well as other issues

• 2009: Staff issued draft regulatory basis
• 2015: The NRC approved staff recommendation to delay rulemaking by five

years

• 2018: The NRC limited the scope of the rulemaking to codifying post-9/11
• rders
• 2019: Staff proposed discontinuing the rule entirely
• 2020: The NRC has not issued a decision but is likely to accept the staff

recommendation

• The vulnerabilities first discovered 15 years ago will not be rigorously addressed
• The ability of the San Onofre ISFSI to withstand enhanced adversary attack modes without causing off-

site doses in excess of 5 rem is not clear 67

SONGS ISFSI-Only Security Plan

Ross Quam Security Manager

68

69

Summary of ISFSI-Only Security

• Purpose: safely protect spent fuel against radiological sabotage
• Key elements:

– Various types of searches can be used – Integrated intrusion detection / video surveillance system – Requirement to interdict and neutralize threats does not apply to the ISFSI; however, SCE will maintain the capability to do so in order to protect security personnel (or others) as appropriate to maintain ISFSI protection – Insider mitigation for all personnel authorized to access ISFSI – Vehicle barrier system to protect against vehicle-borne explosives – Trained on-site response force – Maintain Law Enforcement Response Plan with local law enforcement Above and beyond NRC requirements

SONGS Emergency Planning

Kelli Gallion

• Sr. Manager, Emergency

Planning & Preparedness

70

To protect the health and safety

• f the public and our workers

Our Mission

71

SONGS Emergency Plan

• With all spent fuel in dry storage, there are no accident scenarios that

would result in an offsite radiological release 82 Emergency Action Levels

• Reactors

Operating

18 Emergency Action Levels

• Reactors

Permanently Defueled (2013)

3 Emergency Action Levels

• All Spent Fuel in

Dry Storage (2020)

72

SONGS Emergency Plan

• Emergency Classification Levels

– An operating plant has four classification levels, while decommissioned plants have two (lowest two [least severe] of the four)

• Unusual Event- (Lowest emergency class) Indicates a potential problem with
• peration of the plant. No offsite radioactive release. Officials are notified.

1. Damage to a loaded spent fuel canister » There is no release mechanism for the contamination to go beyond the site boundary. » NUREG-1140 performed accident analyses for dry fuel storage and determined the projected dose to be 3 millirem (one-third of the dose received from a routine dental x-ray) at 100 meters from the ISFSI, which is within the SONGS boundary. 2. Security threat directed at the site

• Alert-Indicates an event that could reduce the plant’s level of safety. No offsite

radioactive release. Officials are notified.

• 3. Hostile Action within the ISFSI

73

SONGS Emergency Plan

• Maintain 24/7 on-shift trained and qualified emergency responders
• Maintain proficiency through required emergency response drills and training

– Emergency classification and notification of offsite agencies – Radiological assessment and mitigation – Fire and Medical response with Camp Pendleton (CPEN) and agreement hospitals

• Ensure prompt notification of state and local agencies (Cal OES, Orange County, San

Diego OES, CPEN)

– 15-minute electronic notification – 60-minute verbal notification

• Maintain Written Agreements with the following Offsite Emergency Response

Organizations

– Camp Pendleton Fire and Medical: Firefighting, Rescue, Medical Response & Transport – Law Enforcement: State Parks, CHP, CPEN, FBI, OCSD – Mission Hospital and Tri-Cities Medical Center: Treatment of contaminated, injured workers

74

SONGS Onsite Emergency Response Actions

• The following actions will be taken in response to a damaged spent fuel
• canister. Let’s assume that an earthquake has been felt and validated.

– On-shift emergency responders will perform radiological surveys at the ISFSI to determine if there is damage to a canister. Damage is determined by a change in radiation levels. – If damage has been determined to have occurred, then prompt notifications will be made to California Office of Emergency Services (OES), Orange County Sheriff Communications (Control One), San Diego OES, Camp Pendleton and the NRC

• Electronic notification within 15-minutes
• Verbal notification within 60-minutes to the 4 agencies listed above including the NRC.

– Once OC has been notified, additional notifications are made to:

• San Clemente, Dana Point, San Juan Capistrano and State Parks
• San Clemente Emergency Management Representative notifies Capistrano Unified School

District.

75

SONGS Onsite Emergency Response Actions

• SCE will provide protective action recommendations to onsite personnel

and offsite agencies, if applicable.

• For example, if it is determined that a canister is damaged, then the Emergency

Director would likely “recommend” evacuation of the state beach adjacent to

• SONGS. California State Parks and Camp Pendleton would assist in the relocation
• f those individuals
• In the very unlikely event of a canister breach, on-site actions will be taken

to control the spread of contamination. Typical controls include wetting, tenting/covering, ventilating and decontaminating.

• The local city/county/school officials make all protective action decisions

deemed necessary to protect the public.

• State, federal, and local agencies will perform independent radiological

monitoring around the site to independently verify radiological conditions. 76

Orange and San Diego Counties Emergency Planning & Response for Offsite Agencies

May 28, 2020 Community Engagement Panel Outlier Events Workshop

77

Local Coordination

• The Counties of Orange and San Diego along with

local jurisdictions will maintain individual emergency response plans specific to the San Onofre Nuclear Generating Station.

• Local jurisdictions will continue to support local

planning, drills, and exercises for nuclear emergency planning and response.

• Local jurisdictions will coordinate joint

emergency planning activities through the Interjurisdictional Planning Committee.

78

Jurisdictional Emergency Plans

• County and City Emergency Operations Plans

– Basic Plans – Functional Annexes – Hazard-Specific Annexes and Appendices

• County SONGS Specific Emergency Plan

– Interjurisdictional Policies – Offsite Dose Assessment – Emergency Protective Actions – Recovery

79

Orange County

• Response to an emergency at SONGS

– Begins with notification of a situation

• Call into Control One (24 hour warning point for Orange County or

9-1-1

– First Responders arrive & simultaneously impacted jurisdictions will be notified by Control One – Incident Commander determines response posture & public protective actions

• Initial size up and protective actions will be determined
• Radiological Monitoring Teams will be organized
• Offsite Dose Assessment Center will be activated
• County EOC may be activated to assist jurisdictions impacted and

coordinate response

80

Emergency Response Actions

• Key Current Procedures

– Law Enforcement – Fire/Rescue – Medical (EMS) – Medical/Public Health – Offsite Radiological Plume Monitoring – Emergency Operations Center Activation – Multi-Agency Coordination – Exercises and Drills – Decontamination – Public Information/ Notification – Training

81

Alert, Warning & Notification in

San Diego & Orange Counties

As related to SONGS Decommissioning

Stephen Rea Assistant Director County of San Diego Office of Emergency Services Stephen.rea@sdcounty.ca.gov

82

Emergency Action Levels

• Current emergency plans call for Edison to notify

San Diego and Orange Counties of an “Unusual Event” or “Alert” at the plant within 15 minutes of the event.

83

Multimodal Alert, Warning and Notification

84

Wireless Emergency Alerts (WEA)

WEA Types:

• Imminent Threat Alerts that include extreme

weather, and other threatening emergencies in your area;

• Public Safety Alerts that are less severe in nature

than Imminent Threat Alerts;

• AMBER Alerts;
• Presidential Alerts during a national emergency; and
• Test Messages that are opt-in messages to support

state and local WEA testing

85

Public Safety Alert

• An emergency may happen

near the plant, members of the public could receive Public Safety messages for these types of incidents.

86

Imminent Threat Alerts

• Emergency evacuation

and sheltering may occur in the vicinity of the decommissioned plant

• Local or State Emergency

87

Cell Tower Map

88

89

Outlier Events and Response Strategies Recap David Victor and Doug Bauder

90

BREAK

91

Public Comment

Submit written comments to: nuccomm@songs.sce.com

For Internal Use Only

CLOSING COMMENTS

DAVID VICTOR AND DOUG BAUDER

For Internal Use Only

For Internal Use Only

2020 CEP Meetings

Planned Focus Topics

1Q CEP Meeting – Decommissioning and fuel transfer operations 2Q CEP Meeting – Outlier events and response strategies 3Q CEP Meeting* 4Q CEP Meeting*

Subject to Change

* Topics to be determined

94

Thank you Stay safe and healthy

For Internal Use Only

For Internal Use Only

Acronyms

For Internal Use Only

APPENDIX

Initial comments Working Group

• Doug Bauder - SCE VP and Chief Nuclear Officer, SONGS Decommissioning
• Donna Boston - County of Orange Emergency Management
• Manuel Camargo - SCE Strategic Planning & Stakeholder Engagement
• Katie Day - Surfrider Foundation
• John Dobken - SCE Public Information Officer
• Kelli Gallion-Sholler - SCE Emergency Planning
• Randall Granaas - SCE Fuels Engineering
• Gary Headrick - San Clemente Green
• Ace Hoffman - San Clemente Resident
• Tom Isaacs - SCE Experts Team & Independent Strategic Advisor for Nuclear Waste
• Roger Johnson - San Clemente Resident
• Torgen Johnson – Solana Beach Resident
• Jerry Kern - CEP Secretary
• Stephen Rea - County of San Diego Emergency Management
• Lorraine Sandstrom - SCE Community Affairs & Relations
• Jerry Stephenson - SCE Manager, ISFSI Engineering
• Dan Stetson - CEP Vice Chairman
• David Victor - CEP Chairman

97

RADIOACTIVITY AND CONTAMINATION

• DR. PATRICK PAPIN

98

APPENDIX

RADIOACTIVE DECAY

• Half-Life (constant value)
• Time required for the number of

radioactive atoms to be decreased by a factor of one half

• Activity (value decreases over time)
• Number of decays (disintegrations) of

the radioactive atom per time elapsed

99

BIO IOLOGICAL DAMAGE

Absorbed Dose x RBE = Dose Equivalent

• Relative Biological Effectiveness (RBE)
• Beta, Gamma, X-Rays = 1
• Neutrons = 10
• Alpha = 20
• Passing radiation encounters living cells.
• May destroy the cells ability to function, repair, or divide normally.
• Most damage results when the radiation absorbed energy breaks

chemical bonds and ionizes molecules.

• Radiation (except in extreme conditions) damage is not due to

heat transfer to the cell.

• Example-a whole-body dose that results in a 50% chance of

death only increases body temperature equivalent to one sip

• f tea!!

100

TIM IME-DISTANCE-SHIELDING

• Basic idea--minimize exposure!
• Minimize your TIME near sources of radiation.
• To reduce the number of radioactive particles you will encounter

at any distance from source.

• Maximize your DISTANCE from a radioactive source.
• Alpha particles can travel 1-2 centimeters in air.
• Beta particles can travel up to 10 feet in air.
• Gamma Radiation and X Rays-
• Intensity decreases similar to how sound and heat intensity

decreases with distance.

• Double the distance and the intensity will decrease by a factor
• f four.
• Neutrons—
• Intensity also decreases similar to how gamma radiation and x-

ray intensity decrease with distance.

101

DOSE

• Absorbed Dose-
• A general term denoting the quantity of energy absorbed in any

material from electromagnetic radiation (x-and gamma ray) and particulate radiation (e.g. alpha particles, beta particles, neutrons).

• Common units-the Rad and the Gray.
• Dose Equivalent.
• Calculated by multiplying the absorbed dose by a factor (RBE) that

depends on the type of radiation.

• Different types of radiation lead to various biological damage.
• Gives us the ability to make relative comparisons of biological

effects as a result of receiving absorbed dose from various radiation types.

• Most significant quantity utilized by regulatory agencies for

determining radiation use guidelines to workers, general public, and the environment.

• Common units-the REM and the Sievert.

10 2

ANNUAL DOSE TO GENERAL PUBLIC IN THE USA (620 mrem)

103

RADIATION DOSE LIMITS

• Federal Occupational Dose Limits
• 5000 mrem per year
• Reference 10CFR 20.1201 https://www.nrc.gov/reading-rm/doc-collections/cfr/part020/part020-1201.html
• SONGS Administrative Dose Limits
• 1500 mrem per year (onsite plus offsite dose)
• Federal and SONGS Limits for a member of the public
• 100 mrem per year
• For a worst-case scenario at the ISFSI, SONGS complies with a 5,000 millirem (5

rem) dose limit at the SCE-controlled “fence line”

• SONGS Effluent limits are very small compared to public limits.
• Reference 10CFR 20.1301 and 10CFR 50 Appendix I
• https://www.nrc.gov/reading-rm/doc-collections/cfr/part020/part020-1301.html
• https://www.nrc.gov/reading-rm/doc-collections/cfr/part050/part050-appi.html

104

SONGS RADIATION DOSE

• SONGS owner controlled area-dose is equivalent

to natural background

• Thermo-luminescent dosimeters (TLD) monitor dose
• TLD are placed within multiple sectors around the plant
• Measured Dose—approx. 80 mrem per year
• Reference: 2018 Annual Radiological Environmental

Operating Report

• Available on the songscommunity.com website
• https://www.songscommunity.com/internal_redirect/c

ms.ipressroom.com.s3.amazonaws.com/339/files/2019 6/2018%20Annual%20SONGS%20Rad%20Enviro%20Op erating%20Report.pdf

105

CONTAMINATION

• Radioactive material present in any substance, area, or
• n any surface where it is unwanted or unexpected
• Can be airborne, within the water supply, and in

general terrestrial

• External – on the outside of the body
• Internal – within the body following an intake by

ingestion, inhalation, skin absorption, or wounds

106

REFERENCES

• Annual Dose Perspective Chart:
• NCRP Report 157, Radiation Protection in Educational Institutions, 2007
• NCRP Report 160, Ionizing Radiation Exposure of the Population of the United

States, 2009

• Nuclear Regulatory Commission, www.nrc.gov
• San Onofre Nuclear Generating Station Annual Radioactive Effluent Release

Reports

• Federal and SONGS Administrative Dose Limits:
• Reference 10CFR 20.1201

https://www.nrc.gov/reading-rm/doc-collections/cfr/part020/part020-1201.html

• Reference 10CFR 20.1301 and 10CFR 50 Appendix I

https://www.nrc.gov/reading-rm/doc-collections/cfr/part020/part020-1301.html https://www.nrc.gov/reading-rm/doc-collections/cfr/part050/part050-appi.html

107

Appendix

• Definitions:

– Mechanistic: relates to theories that explain phenomena in purely physical or deterministic terms; by physical processes alone – Postulated: defined as “assume the existence of” – Radiolysis: molecular decomposition of a substance (H20) by ionizing radiation into elemental species (H2 and O2)

• References:

– PNNL-6365: Evaluation of Cover Gas Impurities and Their Effect

• n Dry Storage of LWR Spent Fuel

– CNWRA-NRC-02-07-C-006, 2013:

• L. Miller et al, “Vacuum Drying Test Plan – Public version”
• H. Jung et al, “Extended Storage: Evaluation of Drying Adequacy”

108
