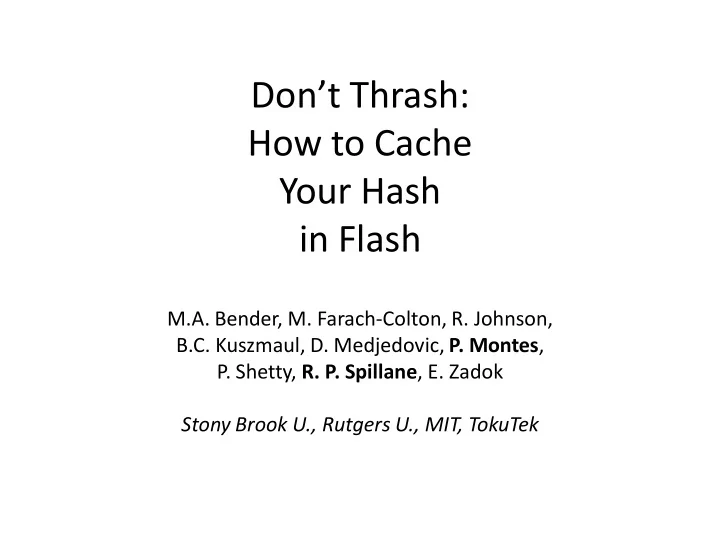

Don’t Thrash: How to Cache Your Hash in Flash M.A. Bender, M. Farach-Colton, R. Johnson, B.C. Kuszmaul, D. Medjedovic, P. Montes , P. Shetty, R. P. Spillane , E. Zadok Stony Brook U., Rutgers U., MIT, TokuTek

Bloom Filter Cache (e.g., RAM) Bit-array 0 1 0 1 1 Store Each element is hashed A B To K positions in the Elements stored bit-array. Here k=2 in the Bloom filter • A Bloom filter is a bit-array + k hash functions • Storing a few bits per element lets the BF stay in RAM, even as the elements are too large Don't Thrash: How to Cache Your Hash in Flash 2

Bloom Filter Lookups & False Positives False positive D C lookup A [ ] = 1 B h 2 ( D ) (C was never inserted) [ ] = 0 B h 1 ( D ) B 0 1 0 1 1 A B ( ) k ( ) » 1 - e kn / m p FP x • False positives unlikely, • No false negatives (no means no) • Allowing false positives is what keeps the BF small Don't Thrash: How to Cache Your Hash in Flash 3

Flash RAM Flash B 0 1 0 1 1 Store A B • Bigger & cheaper than RAM, faster than disk • 8TB of 512B keys needs 16GB of RAM for a ~1% BF • Flash is a good place to cheaply store large BFs Don't Thrash: How to Cache Your Hash in Flash 4

Thrashing Random writes C Flash B 0 1 0 1 1 • Setting random bits to 1 causes random writes • OK in RAM, not in Flash Don't Thrash: How to Cache Your Hash in Flash 5

Summary of Our Results • Cascade Filter (CF), a BF replacement opt. for fast inserts on Flash • Our performance – We do 670,000 inserts/sec (40x of other variants) – We do 530 lookups/sec (1/3x of other variants) • We use Quotient Filters (QF) instead of Bloom Filters – They have better access locality – You can efficiently merge two QFs into a larger QF (w/ same FP rate) • We use merging techniques to compose multiple QFs into a CF Don't Thrash: How to Cache Your Hash in Flash 6

Thrashing is the Problem C Random Writes K Flash • Every insert, you write to K Flash pages • Expensive to write to a Flash page • We can’t do fast insertions without working around this issue Don't Thrash: How to Cache Your Hash in Flash 7

Shaving off K C K Now just one random write, not K Flash • Now you only write one block for each insert instead of K blocks • Two-step hash [Canim et. al., 2010] • This helps a little Don't Thrash: How to Cache Your Hash in Flash 8

Queue Writes D B A RAM We write 5 bits with 3 4 1 3 0 1 only 2 flash writes Flash B 1 1 0 1 1 • This helps a lot [Canim et. al. 2010] • Buffering gives bit-flips a chance to piggy-back • How others have cached hashes in Flashes Don't Thrash: How to Cache Your Hash in Flash 9

We Need Help RAM Flash • Buffering works when the queue is large • Small queues insert ~1 element per flash write • We’re interested in large datasets, and fast insertions (i.e., when buffering doesn’t work) Don't Thrash: How to Cache Your Hash in Flash 10

An Important Problem • Many companies optimize their DBs for large data-sets and fast inserts – Bai-Du Hypertable – Facebook Cassandra – Google BigTable – TokuTek TokuDB – Yahoo! HBase – … and more! • Scaling the trusty Bloom Filter to Flash would be a powerful tool for tackling these problems Don't Thrash: How to Cache Your Hash in Flash 11

Several data structures avoid RWs • A list of the most common methods – Buffered Repository Trees – Cassandra – Cache Oblivious Look-ahead Arrays – Log-structured Merge Trees – …and more • We can try to adapt the general method many of these structures use Don't Thrash: How to Cache Your Hash in Flash 12

The General Method 7 2 4 8 Lookup 8 No RAM 2 4 7 No Found Store 1 3 9 2 Previously flushed buffers Buffers are merged to keep é ù £ log N ê ú 5 6 8 total number of buffers low 1 3 5 6 8 9 • Supports deletes • Composed of many sorted lists • We can use this technique to avoid random writes Don't Thrash: How to Cache Your Hash in Flash 13

Problem: Elements not Bits • This method is used with sorted lists of elements, not Bloom filters • We need a data structure that – Supports insert + lookup – Is as space efficient as a Bloom filter – Can be merged on Flash like a sorted list of elements – Bonus: supports always-working deletes – Bonus: faster than BFs Don't Thrash: How to Cache Your Hash in Flash 14

Our Proposal: Quotient Filters • Supports insert + lookup • Compact like a Bloom filter • Two QFs can be merged into a larger QF • Supports always-working deletes • Faster • We can use this alternative to replace the sorted lists of elements in a write-opt. method Don't Thrash: How to Cache Your Hash in Flash 15

A Quotient Filter 2 or 3 MD bits per element r-bit array 101 000 110 000 r=3 00 01 10 11 address:identity Q[10]=110 A B h( A )=00:101 h( B )=10:110 • fingerprints + quotienting to save space • fingerprint: p-bit hash (p=5) • Compact, only stores r+MD bits per element Don't Thrash: How to Cache Your Hash in Flash 16

A Quotient Filter h( C )=01:010 h( A )=00:101 A C E False positive h( E )=10:110 (E was never inserted) r-bit array 101 000 110 111 r=3 11 00 01 10 Soft collision (push D to the side, use a few MD bits to remember) D A B h( D )= 10 :111 h( B )= 10 :110 • False positive: fingerprint collision size = a - 1 r + MD ( ) 2 q ( ) £ a 1 • p FP x , , or ~1.2x a BF for ~0.1% FP-rate 2 r • Quotient Filters also remain small by allowing false positives Don't Thrash: How to Cache Your Hash in Flash 17

But Will it Merge? 00:101= 5 10:111= 23 10:110= 22 r-bit array 101 000 110 111 r=3 11 00 01 10 A B D • Actually, a compact sorted list of integers Don't Thrash: How to Cache Your Hash in Flash 18

Merge as Integers, Then Insert 101 110 111 100 011 000 001 010 r-bit array 00 01 00 00 00 10 11 00 r=2 001 :01= 5 101:10= 22 101:11= 23 A B C 00 :101= 5 10:110= 22 10:111= 23 101 000 111 000 000 000 110 000 r-bit arrays r=3 00 01 10 11 00 01 10 11 • QFs support Plug-n-Play with wrt.-opt. DSes Don't Thrash: How to Cache Your Hash in Flash 19

Cascade Filter RAM QF Store QF é ù £ log N ê ú QF QF • Just substitute sorted lists of elements with Quotient Filters instead • Now we have fast insertions and a compact representation in Flash Don't Thrash: How to Cache Your Hash in Flash 20

Experimental Setup • Everything was the same (e.g., cache size) • Inserted 8.4 billion hashes • Randomly queried them Don't Thrash: How to Cache Your Hash in Flash 21

Insertion Throughput 9E+09 Number of Fingerprints Inserted Peak append 8E+09 thruput: 8.4MB/S 7E+09 6E+09 Large Merges 5E+09 4E+09 Thruput much higher: 3E+09 40x higher than BBF 2E+09 3000x higher than BF 1E+09 0 0 2000 4000 6000 8000 10000 12000 14000 Seconds Don't Thrash: How to Cache Your Hash in Flash 22

Lookup Throughput 1600 lkus/sec 1600 lkus/sec 10000 530 lkus/sec Lookup Throughput 1000 1/3x 100 10 1 CF Traditional BF Elevator BF Don't Thrash: How to Cache Your Hash in Flash 23

Conclusions • Quotient Filters outperform BFs in RAM – 3x faster inserts, same lookups – Support deletes – Can be dynamically resized • Cascade Filters outperform BFs in Flash – All advantages of Quotient Filters (e.g., deletes) – 40x faster inserts, 1/3x lookups – CPU bound Don't Thrash: How to Cache Your Hash in Flash 24

Future Work • Tweak the CF to handle buffering as well • Measure real index workloads • Can a CF help a write-optimized DB? • There are a lot of exciting boulevards to explore Don't Thrash: How to Cache Your Hash in Flash 25

And That is How… • …you Don’t Thrash, when you Cache Your Hash in Flash • Thank you for listening, Questions? – Pablo Montes: pmontes@cs.stonybrook.edu – Rick Spillane: rick@fsl.cs.sunysb.edu Don't Thrash: How to Cache Your Hash in Flash 26

Insertion Throughput 670,000 ins/sec 1000000 17000 ins/sec 40x 100000 Insertion Throughput 3000x 10000 200 ins/sec 1000 100 10 1 CF Traditional BF Elevator BF Don't Thrash: How to Cache Your Hash in Flash 27

Experimental Setup • Controls: – ~Equal DS cache size, BF given benefit of doubt – Equal RAM in all runs/tests – BF tests run in steady-state for 4+ hours – CF tests run for 8.4 billion insertions (~16GB CF) – Flash partition 60% of Intel X25-Mv2, 90GB • Machine: – Quad-core 2.4GHz Xeon E5530 with 8MB cache – 24GB of RAM (booted with 0.994GB) – 159.4GB Intel X-25M SSD (second generation) Don't Thrash: How to Cache Your Hash in Flash 28

Future Work • Measure CF effectiveness for read-optimized • Measure real index workloads • Can a CF help a write-optimized DB? • Better CPU/GPU optimization • There are a lot of exciting boulevards to explore Don't Thrash: How to Cache Your Hash in Flash 29
