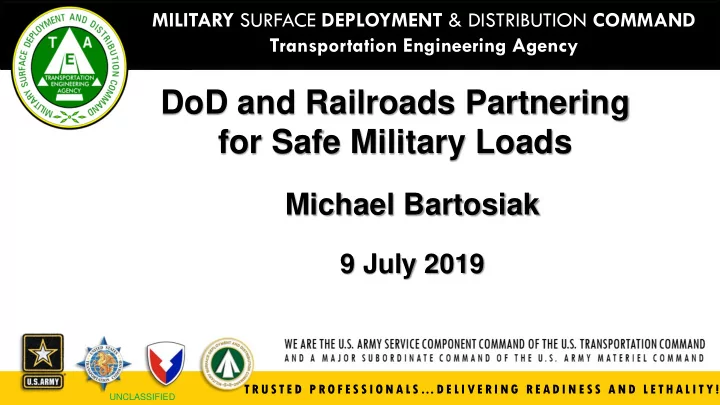

DoD and Railroads Partnering for Safe Military Loads

Michael Bartosiak

9 July 2019

Transportation Engineering Agency

UNCLASSIFIED

TRU STE D PRO FE SSI O N A L S…DE LI VE RI NG RE A D I N E SS A N D LE TH A L I TY!

UNCLASSIFIED

Agenda

• Vehicle Testing
• Interaction with the AAR Open Top Loading

Rules (OTLRs) Committee

• Rail Modal Instructions Supplement OTLRs
• When Guidance is Not Followed

2

Transportation Engineering Agency

UNCLASSIFIED

TRU STE D PRO FE SSI O N A L S…DE LI VE RI NG RE A D I N E SS A N D LE TH A L I TY!

UNCLASSIFIED

Vehicle Testing – Lift & Tiedown Provisions

3

MIL-STD-209

• Military-unique interface requirements

for vehicle lift and tiedown provisions

• Specifies provision sizes and strength

along with required pull testing

• Defines required identification of

provisions

Transportation Engineering Agency

UNCLASSIFIED

TRU STE D PRO FE SSI O N A L S…DE LI VE RI NG RE A D I N E SS A N D LE TH A L I TY!

UNCLASSIFIED

Vehicle Testing – Lift & Tiedown Provisions

MIL-STD-209 requires tiedown provisions pulled longitudinally, laterally, and vertically The standard also requires crane proof testing of the lift provisions

Transportation Engineering Agency

UNCLASSIFIED

TRU STE D PRO FE SSI O N A L S…DE LI VE RI NG RE A D I N E SS A N D LE TH A L I TY!

UNCLASSIFIED

5

Provision Identification

Transportation Engineering Agency

UNCLASSIFIED

TRU STE D PRO FE SSI O N A L S…DE LI VE RI NG RE A D I N E SS A N D LE TH A L I TY!

UNCLASSIFIED

Vehicle Testing – Rail Impact Test

Rail Impact Test is covered under MIL-STD-810, Test Method 526.1 which is essentially the same test required by the AAR OTLRs

Transportation Engineering Agency

UNCLASSIFIED

TRU STE D PRO FE SSI O N A L S…DE LI VE RI NG RE A D I N E SS A N D LE TH A L I TY!

UNCLASSIFIED

Vehicle Testing – Rail Impact Test

Vehicle Suspension and Tire Compression Shock Loading on Chains

Transportation Engineering Agency

UNCLASSIFIED

TRU STE D PRO FE SSI O N A L S…DE LI VE RI NG RE A D I N E SS A N D LE TH A L I TY!

UNCLASSIFIED

Vehicle Testing – Rail Impact Test

Transportation Engineering Agency

UNCLASSIFIED

TRU STE D PRO FE SSI O N A L S…DE LI VE RI NG RE A D I N E SS A N D LE TH A L I TY!

UNCLASSIFIED

9

AAR Open Top Loading Rules

Military rail shipments move on commercial railroads in CONUS.

Members of the AAR Open Top Loading Rules Committee

• Mr. Mike Bartosiak

(non-voting member) DoD Representative

Transportation Engineering Agency

UNCLASSIFIED

TRU STE D PRO FE SSI O N A L S…DE LI VE RI NG RE A D I N E SS A N D LE TH A L I TY!

UNCLASSIFIED

• Section 1 - General Rules for Loading All Commodities
• Section 2 – Metal Products, Including Pipe
• Section 3 – Machinery, Heavy Components, & Miscellaneous

Commodities

• Section 4 – Archived Figures
• Section 5 – Forest Products & Miscellaneous Building Materials
• Section 6 – Military Equipment and Materiel
• Section 7 – Open Top Trailers and Containers

10

Hardcopy of rules are reprinted and issued every 3-4 years

AAR Open Top Loading Rules

Transportation Engineering Agency

UNCLASSIFIED

TRU STE D PRO FE SSI O N A L S…DE LI VE RI NG RE A D I N E SS A N D LE TH A L I TY!

UNCLASSIFIED

11

AAR Open Top Loading Rules

Transportation Engineering Agency

UNCLASSIFIED

TRU STE D PRO FE SSI O N A L S…DE LI VE RI NG RE A D I N E SS A N D LE TH A L I TY!

UNCLASSIFIED

12

Rail Modal Instructions

• Supplements the AAR OTLRs Section 6 Figures
• Covers other general information like:

‒

Safety checklist

‒

Loading and Tiedown checklist

‒

Practical loading tips

‒

Proper use of spanners

‒

Tips for moving battle damaged equipment

Transportation Engineering Agency

UNCLASSIFIED

TRU STE D PRO FE SSI O N A L S…DE LI VE RI NG RE A D I N E SS A N D LE TH A L I TY!

UNCLASSIFIED

13

When Guidance is Not Followed: Armored Door not Properly Restrained

Armored door of a PLS truck fell off during rail transport and struck an electronic track switcher along the side

• f the track.

Published Procedures are not Always Followed

Frankfort, KS June 2013

Transportation Engineering Agency

UNCLASSIFIED

TRU STE D PRO FE SSI O N A L S…DE LI VE RI NG RE A D I N E SS A N D LE TH A L I TY!

UNCLASSIFIED

14

When Guidance is Not Followed: Vandals Mess with Side Skirts

M1 Side Skirts Not Secured

• M1 side skirt armor

latch opened (likely due to vandals) allowing side skirt to swing out.

• The skirt took out

three side train signals before being knocked

• ff the tank.
• It took emergency

repair teams four hours to replace or repair the damaged train signals.

• Due to the damaged

signals, 8 trains were delayed and the major east/west track was shut down.

Skirt Latch

Arizona March 2015

Transportation Engineering Agency

UNCLASSIFIED

TRU STE D PRO FE SSI O N A L S…DE LI VE RI NG RE A D I N E SS A N D LE TH A L I TY!

UNCLASSIFIED

15

When Guidance is Not Followed: Gun Barrel Not Restrained

Barstow, CA July 2018

The Stryker Mobile Gun System did not have its turret secured for transport (locks engaged). As a result, the turret moved while being rail transported and struck something, damaging the turret and gun barrel. Another Stryker vehicle sustained tire damage when being driven over a “dirty” railcar.

Transportation Engineering Agency

UNCLASSIFIED

TRU STE D PRO FE SSI O N A L S…DE LI VE RI NG RE A D I N E SS A N D LE TH A L I TY!

UNCLASSIFIED

16

When Guidance is Not Followed: Paladin Not Properly Restrained

Defiance, NM December 2018

NO NO

Internal Turret Lock on an M109 Paladin UNLOCKED LOCKED Overhead shot triggered by clearance detector External Turret Lock on an M109 Paladin

Transportation Engineering Agency

UNCLASSIFIED

TRU STE D PRO FE SSI O N A L S…DE LI VE RI NG RE A D I N E SS A N D LE TH A L I TY!

UNCLASSIFIED

17

Questions?

Michael Bartosiak

Mechanical Engineer

MILITARY SURFACE DEPLOYMENT AND DISTRIBUTION COMMAND TRANSPORTATION ENGINEERING AGENCY

COMM: (618) 220-5271 DSN: 770-5271 FAX: (618) 220-5551 ATTN: SDTE-DPE 1 Soldier Way, Building 1900W Scott AFB, IL 62225-5006 Email: michael.s.bartosiak.civ@mail.mil WEB PAGE: http://www.sddc.army.mil/sites/tea/Pages/default.aspx
