Unclassified Divers Augmented Vision Display (DAVD) Undersea Defence Technology 2018 Military Diver Capabilities 27 June 2018 SEC, Glasgow Paul D. McMurtrie Naval Sea Systems Command 0038 Diving Equipment RDT&E Program Manager

slide-1
SLIDE 1

Unclassified Unclassified

1

Divers Augmented Vision Display (DAVD)

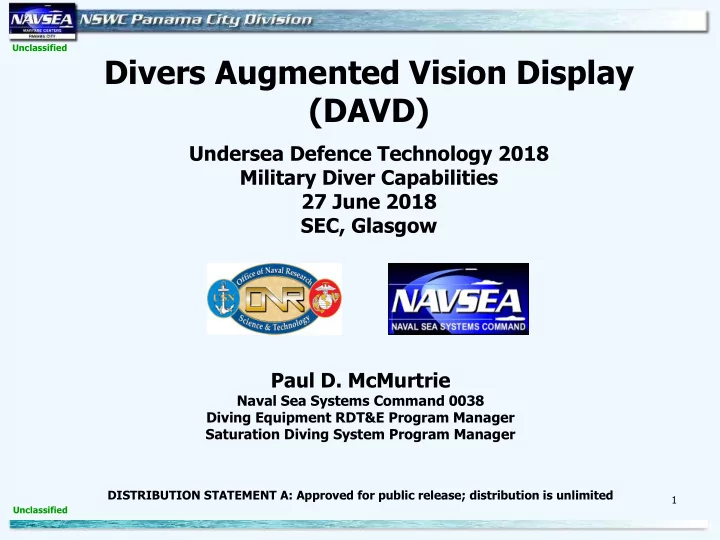

Undersea Defence Technology 2018 Military Diver Capabilities 27 June 2018 SEC, Glasgow Paul D. McMurtrie

Naval Sea Systems Command 0038 Diving Equipment RDT&E Program Manager Saturation Diving System Program Manager

DISTRIBUTION STATEMENT A: Approved for public release; distribution is unlimited

slide-2
SLIDE 2

Unclassified Unclassified

2

ONR Naval S&T Vision and Strategy …develop revolutionary new capabilities… …mature and transition science & technology advances… …invest in breakthrough scientific research and innovative technology... NAVSEA 00C3 Strategic Plan for 2011-2025 …identify, exploit, and develop technology to advance the state-of-the-art in diving equipment…

slide-3
SLIDE 3

Unclassified Unclassified

3

Description:

  • Binocular see-through heads up

display , HUD to provide critical data, (sonar imaging, graphics, augmented & virtual reality (AR/VR), Navigation) in low /zero visibility conditions.

  • Diver locating and positional

tracking for projected 1st and 3rd person perspective to support underwater navigation.

Divers Augmented Visual Display DAVD

“Underwater Night Vision”

slide-4
SLIDE 4

Unclassified Unclassified

4

Lumus Optical (waveguide light optical elements)

slide-5
SLIDE 5

Unclassified Unclassified

Total Internal Reflection (TIR)

See - Thru Image Image Source (Micro Display) Optical Coupling & Magnification Waveguide

Waveguide Optics – The Basics

5

slide-6
SLIDE 6

Unclassified Unclassified

6

Laboratory Testing and Measurements

Key Locator X Y

Eye location measurements

  • Focal Distance
  • Field-of-View
  • Eye Box
  • Image Convergence

Cameras used to simulate the Divers eyes

slide-7
SLIDE 7

Unclassified Unclassified

Generation 1 DAVD Prototype System

7

slide-8
SLIDE 8

Unclassified Unclassified

8

Design Reference Mission Simulations

slide-9
SLIDE 9

Unclassified Unclassified

Military Diver Evaluations

9

Naval Diving & Salvage Training Center (NDSTC) Panama City, Florida USA (Nov 2017) Mobile Diving & Salvage Unit One (MDSU-1) Joint Base, Pearl Harbor, HI (Feb 2018)

3 Tasks:

  • Navigate to and

locate targets

  • Identify specific

target

  • Complete valve

lineup

slide-10
SLIDE 10

Unclassified Unclassified

10

Phased Development and Procurement Approach

  • Generation 1 DAVD capabilities:
  • 2D sonar images for navigation
  • Drawings displayed to assist divers
  • “text messaging”
  • Step by step instructions
slide-11
SLIDE 11

Unclassified Unclassified

11

  • 3 monitor control panel.
  • CODA Octopus sonar 3D view as either 1st or 3rd person (i.e. video game or top down)

to HUD and topside.

  • Diver location and head tracking and positioning.
  • Real time 3D view for diver tracking system.
  • Long range 600’ umbilical
  • Diver CPU platform
  • Close-In Visualization System (CIVS).

Generation 2 DAVD:

slide-12
SLIDE 12

Unclassified Unclassified

Cooperative Research and Development Agreement (CRADA) Exclusive Invention Licensing Agreement

Technology Transition Phase

12

slide-13
SLIDE 13

Unclassified Unclassified

Questions?

CONTACT:

Paul D McMurtrie – Diving Equipment RDT&E Program Manager Naval Sea Systems Command Office of the Director of Ocean Engineering, Supervisor of Diving and Salvage Washington Navy Yard, Washington DC USA Tel: 2703 927-9370 paul.mcmurtrie@navy.mil

13
