Distributed Storage vs. Local Market Clive Tomlinson 05/06/2015 1 Two questions Energy markets tend to be constrained Historical/technical reasons Local markets for many other goods are unconstrained Would an unconstrained

slide-1
SLIDE 1

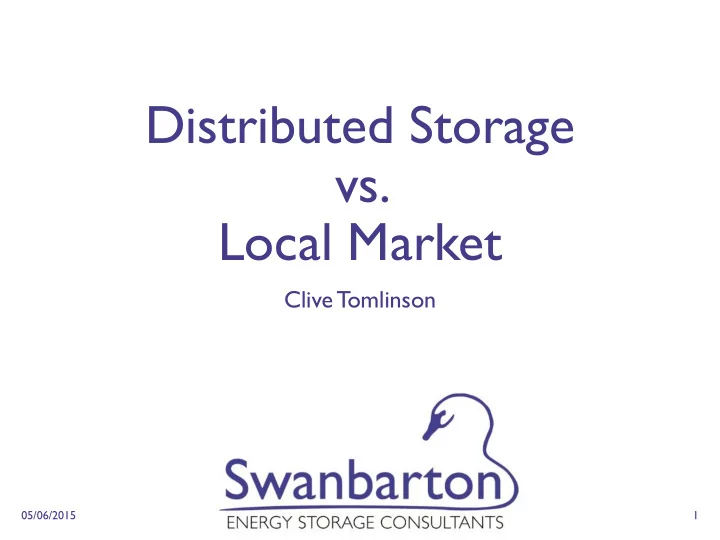

Distributed Storage vs. Local Market

Clive Tomlinson

05/06/2015 1

slide-2
SLIDE 2

Two questions

  • Energy markets tend to be constrained
  • Historical/technical reasons
  • Local markets for many other goods are unconstrained
  • Would an unconstrained local energy market ‘work’?
  • Private storage benefits limited to deferring self-

consumption

  • No benefit without own PV
  • No benefit for other users
  • How would private storage behave in an unconstrained

local market?

05/06/2015 2

slide-3
SLIDE 3

‘Unconstrained’

  • Traders few and central
  • Price set centrally
  • One trade at a time
  • Commit early
  • Trade in 30 minutes++
  • Trade synchronously
  • Bird’s eye view
  • Reliance on forecasting
  • Distorted by FIT
  • Home owner traders
  • Price negotiated per trade
  • Overlapping trades
  • Commit late
  • Trade in shrew’s heartbeat
  • Trade asynchronously
  • Market stall view
  • Abandon forecasting
  • No FIT

05/06/2015 3

slide-4
SLIDE 4

Market model

  • Power network
  • Coincident with low voltage feeder
  • Varying DG and private storage
  • Energy  volt gradient
  • Trading network
  • Traders = households & local businesses
  • Assumes conventional supplier of last resort
  • Trading down to 10s blocks
  • Data network
  • Domestic broadband / Internet
  • Home trading agent

05/06/2015 4

slide-5
SLIDE 5

Economic model

05/06/2015 5

slide-6
SLIDE 6

Data Network Data Network Data Network

Discrete-event simulation

05/06/2015 6

Data Network x 200 Storage management heuristics

Trading models

Price setting heuristics

Simulated demand, generation, storage

slide-7
SLIDE 7

Live network 

05/06/2015 7

slide-8
SLIDE 8

Does it work?

  • Trades happen
  • But not constantly
  • Households make/save money
  • At the expense of the incumbent supplier
  • Benefit to all local participants
  • Storage owners: price arbitrage
  • DG owners: market price > conventional supplier buy price
  • Non-owners: market price < conventional supplier sell price
  • Here are some pictures…

05/06/2015 8

slide-9
SLIDE 9

Local price proxies local abundance

demand response to price without price setting Prices shown are average – there’s no single market price

05/06/2015 9

slide-10
SLIDE 10

Selfish control, network effects

05/06/2015 10 500 1,000 1,500 2,000 2,500 300 600 900 1200 1500 1800 2100 2400 2700 3000 Consumption of energy from OFF-LF (kWh/d)

kWh storage

slide-11
SLIDE 11

Localism  modest ICT

  • even for n * (n-1)

05/06/2015 11

10 20 100 200 1.00E+00 1.00E+01 1.00E+02 1.00E+03 1.00E+04 1.00E+05 10 60 600 3600 86400 Size of LEM Application bytes sent per second, average (whole LEM) Trading interval (s)

slide-12
SLIDE 12

Storage modifies price curve

  • No storage: price curve discontinuous
  • Some storage: price curve smooth,

equilibrium in mid range, local trading increased

  • T
  • o much storage:
  • no shared energy availability pattern,
  • price unstable,
  • local trading decreased

05/06/2015 12

slide-13
SLIDE 13

£££ manage flows

  • Intervene by selling cheap before evening demand peak

05/06/2015 13

  • 20
  • 18
  • 16
  • 14
  • 12
  • 10
  • 8
  • 6
  • 4
  • 2

6 7 8 9 Energy flow out of (into) LEM (kW) Time of day (h)

slide-14
SLIDE 14

Conculsions

Qualitatively tested

  • Numbers depend on so many things…

energyBay?

  • T

echnical 

  • Regulation 
  • Business ambition / consumer desire ?

Good market for storage, but is it best?

  • So many market model nuances
  • That’s a puzzle

05/06/2015 14

slide-15
SLIDE 15

Read the details

  • Proceedings of ICE – Energy,

Volume 168 (2015)

  • Or from clive@swanbarton.com

05/06/2015 15
