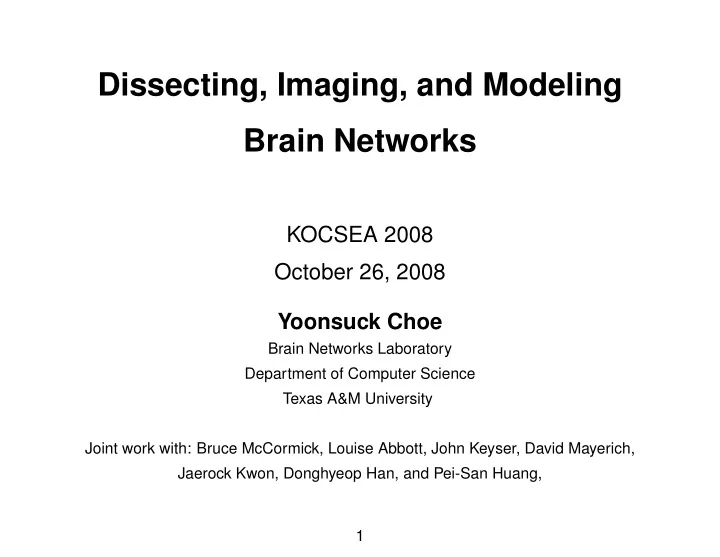

Dissecting, Imaging, and Modeling Brain Networks

KOCSEA 2008 October 26, 2008 Yoonsuck Choe

Brain Networks Laboratory Department of Computer Science Texas A&M University Joint work with: Bruce McCormick, Louise Abbott, John Keyser, David Mayerich, Jaerock Kwon, Donghyeop Han, and Pei-San Huang, 1

slide-2
SLIDE 2

Introduction

Main research questions:

  • 1. How does the brain work?
  • 2. How can we use the knowledge to build intelligent artifacts?

Approach:

  • 1. Computational neuroanatomy

Image source: http://www.nervenet.org/papers/Cerebellum2000.html

2

slide-3
SLIDE 3

Overview

  • Connectomics
  • Knife-Edge Scanning Microscope
  • Structural reconstruction algorithms

3

slide-4
SLIDE 4

Connectomics

4

slide-5
SLIDE 5

Connectomics

  • Connectome: Complete structural description of the connection

matrix of the brain (see e.g. Sporns et al. 2005).

  • Connectomics: Acquisition and mining of the connectome.
  • The only available connectome: that of the C. elegans (White

et al. 1986).

Image source: http://www.mouseatlas.org/data/mouse/stages/t47/view

http://www.nervenet.org/papers/Cerebellum2000.html

5

slide-6
SLIDE 6

Why Connectomics Research?

  • Structure of the nervous system as a foundation of

its function. – Dynamical properties can be estimated from static structure.

  • Intensive study of single neurons and their molecular

properties must be complemented by a system-level, architectural perspective.

  • Discover modules that make up the brain (motifs,

basic circuits).

  • To understand how the brain works!

6

slide-7
SLIDE 7

Goal of the Project

Obtain and reconstruct the full mouse connectome at a sub-micrometer resolution.

  • 77-78d weight 26–30g
  • 13 mm (A-P) × 9.5 mm (M-L) × 6 mm (D-V)
  • 75 million neurons (Williams 2000)

7

slide-8
SLIDE 8

Knife-Edge Scanning Microscope

8

slide-9
SLIDE 9

Knife-Edge Scanning Microscope

  • Designed by Bruce H. McCormick.
  • Diamond microtome, LM optics, high-speed linescan camera,

precision 3-axis stage [Movie]

9

slide-10
SLIDE 10

Operational Principles of the KESM

  • Aerotech precision stage moves resin-embedded brain tissue across knife

(x/y 20 nm, z 25 nm encoder resolution).

  • Back-illumination through diamond knife.
  • Nikon CF1 Flour 10X or 40X objectives (NA 0.3/0.8, water imm.).
  • Dalsa CT-F3 high-speed line scan camera images the tip of the knife at
  • 44KHz. [Movie]

10

slide-11
SLIDE 11

KESM Imaging

Line−scan Camera

M i c r

  • s

c

  • p

e

  • b

j e c t i v e

Diamond knife Light source Specimen

Brain specimen is embedded in plastic block. 11

slide-12
SLIDE 12

KESM Imaging

Line−scan Camera

M i c r

  • s

c

  • p

e

  • b

j e c t i v e

Diamond knife Light source Specimen

Plastic block is moved toward the knife. 12

slide-13
SLIDE 13

KESM Imaging

Line−scan Camera

M i c r

  • s

c

  • p

e

  • b

j e c t i v e

Diamond knife Light source Specimen

Thin tissue slides over knife and gets imaged. 13

slide-14
SLIDE 14

KESM Imaging

Line−scan Camera

M i c r

  • s

c

  • p

e

  • b

j e c t i v e

Diamond knife Light source Specimen

Successive line scan constructs a long image. 14

slide-15
SLIDE 15

KESM Imaging

Line−scan Camera

M i c r

  • s

c

  • p

e

  • b

j e c t i v e

Diamond knife Light source Specimen

One sweep results in a ∼ 4, 000 × 20, 000 image (∼ 80MB). 15

slide-16
SLIDE 16

KESM Imaging

Line−scan Camera

M i c r

  • s

c

  • p

e

  • b

j e c t i v e

Diamond knife Light source Specimen

One brain results in ∼ 25, 000 images. 16

slide-17
SLIDE 17

Stair-Step Cutting

Kwon et al. (2008)

  • Width of the knife and the field of view of the
  • bjective are not wide enough to cut the entire top

facet of the tissue block.

17

slide-18
SLIDE 18

Automated Sectioning/Imaging S/W

  • Automated stage controller and image acquisition system

developed in-house.

  • Fully automated operation without human intervention: 8 hours a

day, 5 days a week.

18

slide-19
SLIDE 19

KESM Data: Golgi Stain

  • Mouse cortex (sagittal section).

19

slide-20
SLIDE 20

KESM Data: India Ink

  • Mouse spinal cord vasculature. [Movie]

20

slide-21
SLIDE 21

KESM Results: Volume Visualization

Nissl (Cortex) India ink (Spinal cord) Golgi (Pyramidal cell) Golgi (Cortex) Golgi (Cerebellum) Golgi (Purkinje cell) [Movie] 21

slide-22
SLIDE 22

Structural Reconstruction Algorithms

22

slide-23
SLIDE 23

Reconstruction Approaches

Raw data or volume visualization is not enough: Structural reconstruction is needed.

  • Segment-then-connect: the most common approach
  • 3D convolutional network: Jain et al. (2007)
  • Template-matching-based vector tracing: Al-Kofahi

et al. (2002)

23

slide-24
SLIDE 24

Reconstruction: Tracing in 2D

*

intensity position

ci ci+1 ci+1 ci ci+2 step i step i+1 ci+2

1 2

Choe et al. (2008)

  • Moving window with cubic tangential trace spline method.
  • Investigates pixels only on the moving window border and on the

interpolated splines for fast processing.

24

slide-25
SLIDE 25

Tracing Results

Seed Can et al. (1999) Haris et al. (1999) Our method

25

slide-26
SLIDE 26

Robustness Comparison

10 20 30 40 50 20 30 40 50 Width Error 20 40 60 80 100 120 20 30 40 50 Width Error

Open diamonds: Harris et al.; Closed diamonds: Can et al.; Closed boxes: Our approach.

  • Accuracy tested based on synthetic data (by varying

fiber width): Linear (left), curvy (right).

  • Much more accurate compared to competing

approaches such as Can et al. (1999); Haris et al. (1999).

26

slide-27
SLIDE 27

Reconstruction: Tracing in 3D

Match!

t = 3 t = 2 t = 1

Template matching Tangential slices Templates (Mayerich and Keyser 2008; Mayerich et al. 2008)

  • Use a moving sphere and trace along points on the

surface of the sphere.

  • Use graphics hardware (GPU) for fast matrix
  • perations during template matching.

27

slide-28
SLIDE 28

Tracing Results

Spinal cord vasculature (KESM) Neuron (Array Tomography, tectum) Vasculature (KESM, cerebellum) 28

slide-29
SLIDE 29

Speeding Up Tracing Using GPU

0.1 1 10 100 1000 10000 1 10 100 1000 10000 Time (ms) Number of Samples Single Core 2.0GHz Quad Core 2.0GHz CPU with GPU Sampling Full GPU GeForce 7300 5 10 15 20 25 1 10 100 1000 10000 Factor Number of Samples Single Core 2.0GHz GPU (Sampling Only)

Run time Speedup

  • Performance figures demonstrate the speedup
  • btained by using GPU computation.
  • Speedup achieved by using the full capacity of

GPUs show an almost 20-fold speedup compared to single-core CPU-based runs.

29

slide-30
SLIDE 30

Preliminary Branching Statistics (vasculature)

Sample Statistics from Reconstructed KESM Brain Vasculature Data (1 mm3 volume)

Region Segments Length Branches Surface Volume Volume 5 5 (mm) (mm2) (mm3) (% of total) Neocortex 11459.7 758.5 9100.0 10.40 0.0140 1.4% Cerebellum 34911.3 1676.4 19034.4 20.0 0.0252 2.5% Spinal Cord 36791.7 1927.6 26449.1 22.2 0.0236 2.4%

  • Geometric structures extracted using the automated

reconstruction algorithms allow us to conduct quantitative investigation of the structural properties

  • f brain microstructures.

30

slide-31
SLIDE 31

Wrap-Up

31

slide-32
SLIDE 32

Discussion and Future Work

  • Main contribution: novel imaging method plus

computational algorithms for automated structural analysis.

  • Future work:

– Full-brain reconstruction and validation – Estimating connectivity from sparsely stained data (cf. Kalisman et al. 2003) – Linking structure to function

32

slide-33
SLIDE 33

Conclusion

  • Understanding brain function requires a system-level

investigation at a microscopic resolution.

  • Innovative microscopy technologies are enabling a

data-driven investigation linking the microstructure to the system.

  • The massive data can only be effectively understood

through automated computational algorithms.

33

slide-34
SLIDE 34

Acknowledgments

  • People:

– Texas A&M: B. McCormick, J. Keyser, L. C. Abbott, D. Mayerich, D. Han, J. Kwon, Y. H. Bai, D. C.-Y. Eng, H.-F. Yang, G. Kazama, K. Manavi, W. Koh, Z. Melek, J. S. Guntupalli, P .-S. Huang, A. Aluri, H. S. Muddana – Stanford: S. J. Smith, K. Micheva, J. Buchanan, B. Busse – UCLA: A. Toga – Others: T. Huffman (Arizona State U), R. Koene (Boston U), Bernard Mesa (Micro Star Technologies)

  • Funded by: NIH/NINDS (#1R01-NS54252); NSF (MRI #0079874 and ITR

#CCR-0220047), Texas Higher Education Coordinating Board (ATP #000512-0146-2001), and the Department of Computer Science, and the Office of the Vice President for Research at Texas A&M University. 34

slide-35
SLIDE 35

In Memory of Bruce H. McCormick

Bruce H. McCormick (1928–2007)

  • Designer of the Knife-Edge Scanning Microscope

35

slide-36
SLIDE 36

References

Al-Kofahi, K. A., Lasek, S., Szarowski, D. H., Pace, C. J., Nagy, G., Turner, J. N., and Roysam, B. (2002). Rapid automated three-dimensional tracing of neurons from confocal image stacks. IEEE Transactions on Information Technology in Biomedicine, 6:171–187. Can, A., Shen, H., Turner, J. N., Tanenbaum, H. L., and Roysam, B. (1999). Rapid automated tracing and feature extraction from retinal fundus images using direct exploratory algorithms. IEEE Transactions on Information Technology in Biomedicine, 3:125–138. Haris, K., Efstratiadis, S., Maglaveras, N., Pappas, C., Gourassas, J., and Louridas, G. (1999). Model-based morphologi- cal segmentation and labeling of coronary angiograms. IEEE Trans. Med. Imag., 18:1003–1015. Jain, V., Murray, J. F ., Roth, F ., Seung, H. S., Turaga, S., Briggman, K., Denk, W., and Helmstaedter, M. (2007). Using machine learning to automate volume reconstruction of neuronal shapes from nanoscale images. In Society for Neuroscience Abstracts. Washington, DC: Society for Neuroscience. Program No. 534.7. Online. Kalisman, N., Silberberg, G., and Markram, H. (2003). Deriving physical connectivity from neuronal morphology. 88:210– 218. Kwon, J., Mayerich, D., Choe, Y., and McCormick, B. H. (2008). Lateral sectioning for knife-edge scanning microscopy. In Proceedings of the IEEE International Symposium on Biomedical Imaging. In press. Mayerich, D., Abbott, L. C., and Keyser, J. (2008). Visualization of cellular and microvessel relationship. IEEE Transactions

  • n Visualization and Computer Graphics (Proceedings of IEEE Visualization). In press.

35-1
