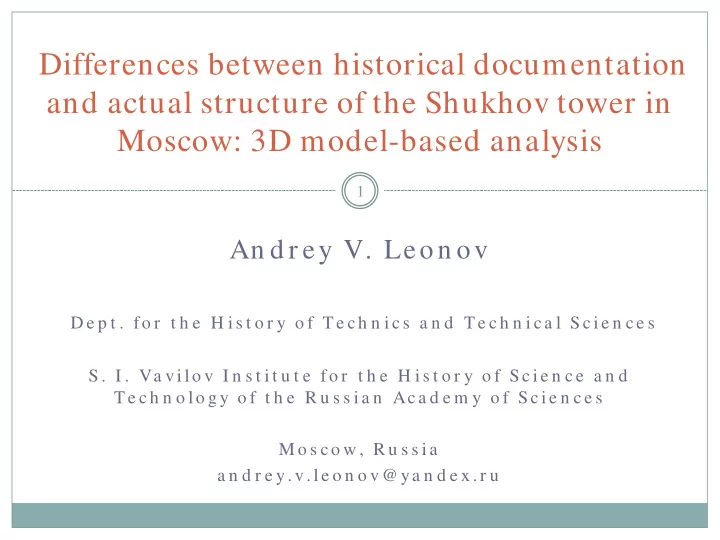

Differences between historical documentation and actual structure of - - PowerPoint PPT Presentation

An d r ey V. Leon ov

D e p t . fo r t h e H i s t o r y o f Te ch n i cs a n d Te ch n i ca l Sci e n ce s

• S. I . Va vi lo v I n s t i t u t e fo r t h e H i s t o r y o f Sci e n ce a n d

Te ch n o lo gy o f t h e R u s s i a n Aca d e m y o f Sci e n ce s M o s co w , R u s s i a a n d r e y. v. le o n o v@ya n d e x. r u

Differences between historical documentation and actual structure of the Shukhov tower in Moscow: 3D model-based analysis

1

Shukhov tower on Shabolovka (Moscow)

2 Stages of creating a virtual 3D m odel

Point cloud 3D model (solid, meshed) Interactive 3D visualization

Laser scanning of the Shukhov tower

3 Mikhail Anikushkin at the level of 10 0 m . Photo by Andrey Leonov, Dec. 1, 20 11.

Creating a virtual 3D model

4

Point cloud (65 mln. points) and precise 3D modeling 4

a) Positioning of cross-sections (channels, angles) in the point cloud; b) Precise 3D modeling based on pre- positioned cross-sections.

Outline of the tower

————— project #1, linear dependence

• f R on H.

‒ ‒ ‒ ‒ ‒ project #2, quadratic dependence

• f R on H (parabola).
• • • • • • • • • actual outline of the tower.

“Outline of the tower. Basic dimension. Cone with variable r that accumulates constant increment; in our case r, 2r, 3r, 4r ... or generally r, r + f, r + 2f, r + 3f, etc.; and variable increment with a continuous increase of slope from the vertical line α. The slope increment is expressed by the formula α × n × (n-1) / 2, where n is the number of the tower section starting from the top. Thus, the following series is obtained: 1) f, 2) 2f + α, 3) 3f + 3α, 4) 4f + 6α, 5) 5f + 10α, 6) 6f + 15α, 7) 7f + 21α, 8) 8f + 28 α etc. where the sizes r, f and α are set. In this case, r = 2.75 m, f = 2.75 m = r, α = 0.25 m and thus the radii get 2.75, 5.75, 9, 12.5, 16.25, 20, 25 (slopes 3 → 3.25 → 3.5 → 3.75 → 4)” (V.G. Shukhov, Feb. 28, 1919)

5

Structure of sections

6

№ of the section Element Structure Workbook (1919) Drawing (1919) Actual (1922) 6 (I from the top) legs 12 double channels No.10 double lines 24 angles 9/8 cm (lower/upper part) ringsa not specified 8 rings 9 rings 5 (II from the top) legs 16 double channels No.12 double lines 24 angles 9 cm ringsa not specified 8 rings 9 rings 4 (III from the top) legs 24 double channels No.12 double lines 48 angles 9 cm ringsa not specified 6 rings 9 rings 3 (IV from the top) legs 24 double channels No.14 double lines 48 angles 12/10 cm (lower/upper part) ringsa not specified 8 rings 7 rings 2 (V from the top) legs 30 double channels No.14 or 36 double channels No.12 double lines 48 double channels

• No. 14

ringsa not specified 4 rings 4 rings 1 (VI from the top) legs 36 double channels No.14 double lines 48 double channels

• No. 14

ringsa not specified 4 rings 4 rings

a) Intermediate rigidity rings

“Connection of the legs of two sections”

The same drawing in the book of G.M. Kovel’man, 1961 (page 157). Drawing of 1919, fragment

7

“Upper ring of the II section”

Drawing of 1919, fragment Drawing of 1947, fragment

Actual joint of 1 and 2 sections

Draving of 1947, fragment

Actual joint of 2 and 3 sections

Чертёж 1947 г., фрагмент.

«Шуховская башня на Шаболовке»

Actual joint of 2 and 3 sections (upper ring of the 2nd section)

12

The current height of the six hyperboloid sections is 144.61 m according to our 2011 laser scanning. In 1991, the upper section was reduced at 0.3 ... 0.36 m. Thus, the true height of the six hyperboloid sections of the tower in 1922-1991 was 144.91 ... 144.97 m. This figure is close to the "round" value of 145 m.

Shukhov’s idea: 145 = 25+25+25+25+25+20 “Sixth section: 16 legs, channel No.10, height 20 m, number of rings 5” (V.G. Shukhov, May 13, 1921).

According to the 1947 survey documentation, the level

• f the upper ring of the 6th section: 144.16 m, and the

level of the lower supporting ring of the 1st section: 0.5

• m. Thus, the total height of the six hyperboloid sections

according to the 1947 docs is 143.66 m. It is a mistake.

The height of the tower

13

Fastening of intermediate rings

Fastening of the 1st intermediate ring of the 1st section to a leg through a U-shaped bracket. Unused holes in the 3rd intermediate ring of the 1st section Unused holes in the 2nd intermediate ring of the 1st section.

14

Conclusions

The 3D-model based analysis helped us to identify a number of differences between the design, working and survey documentation and the actual structure of the tower. In particular, it was found that: A.The actual structure of the Shukhov Tower on Shabolovka (outline, construction of legs and joints) has significant differences from the existing design and working drawings of 1919-1921, as well as the calculations in the workbook of V.G. Shukhov. B.The information on the height of the tower given in the archival documents is more than a meter different from the true value. According to our data, the original height of the six hyperboloid sections without superstructure was approximately 145 m. C.The method of mounting of the intermediate rings was simplified directly during the installation process. The laser scanning and 3D-modeling of the tower allowed us to efficiently detect and analyze the discrepancy between the historical documentation and the actual structure, identify mistakes in the description of the technical monument and raise new questions for further research.

15

Acknowledgment

The author thanks Elena Shukhova, the great-granddaughter of V. G. Shukhov, for providing information from the personal archive (diary of V. G. Shukhov), as well as Andrey Marsavin, deputy chief engineer of the Moscow Regional Center (a branch of RTRS), for providing survey documentation from the 2011 project of the reconstruction of the Shukhov radio tower on Shabolovka. The author also thanks archives (Archive of the RAS, RGANTD, Archive of TzNIIPSK im. Mel’nikova, and Archive of GSPI RTV) for providing the following archival documents:



• V. G. Shukhov, workbook (notes from March 22, 1918 to October 10, 1922), Archive of the RAS, F. 1508, Op. 1, D. 61.
