Public Research Seminars Development of heat insulation solar glass and application on zero energy buildings Prof. Chin-Huai Young National Taiwan University of Science and Technology 1 What is Heat Insulation Solar Glass? 2 HISG (Heat

slide-1
SLIDE 1

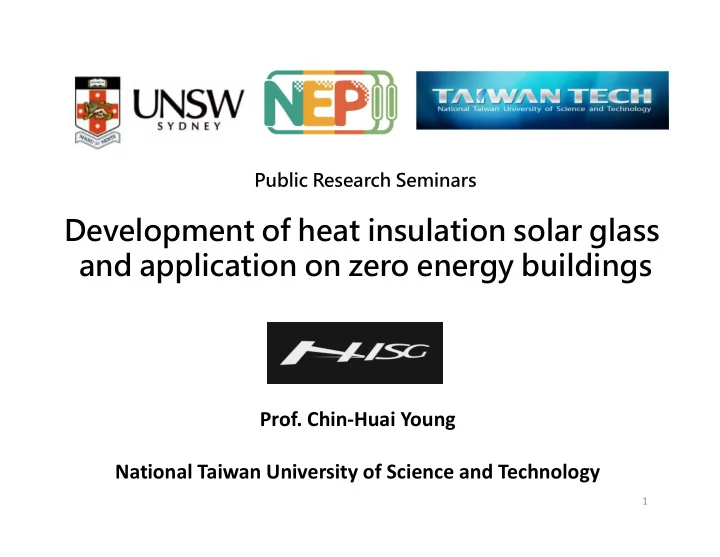

Public Research Seminars

Development of heat insulation solar glass and application on zero energy buildings

1

  • Prof. Chin-Huai Young

National Taiwan University of Science and Technology

slide-2
SLIDE 2

2

What is Heat Insulation Solar Glass?

slide-3
SLIDE 3

HISG (Heat Insulation Solar Glass)

10% see through 50% see through

3

slide-4
SLIDE 4

4

What different?

(demonstration)

For roof (not see through) For window (see through)

slide-5
SLIDE 5

Traditional power required (kWh/m2)

tendency

Zero Energy Buildings (ZEB)

5

Decreasing Energy Consumption Increasing Renewable Energy

slide-6
SLIDE 6

6

What is the menu of solution?

slide-7
SLIDE 7

7

Solution

Zero Energy Buildings

Increase Renewable Energy Supply Decrease Energy Consumption

slide-8
SLIDE 8

8

How to reach the target?

slide-9
SLIDE 9

9

slide-10
SLIDE 10

10

High Power generation + Heat Insulation

824.2 W/m2 34.9 W/m2

Demonstration

slide-11
SLIDE 11

ENERGY EFFICIENCY TEST of Glass House

11

www.hisg.com.tw

slide-12
SLIDE 12

12

Energy saving During summer time

www.hisg.com.tw

slide-13
SLIDE 13

13

www.hisg.com.tw

slide-14
SLIDE 14

14

slide-15
SLIDE 15

15

www.hisg.com.tw

04/2014 05/2014 06/2014 07/2014 08/2014 09/2014 10/2014 11/2014 12/2014 01/2015 02/2015 03/2015

Date 345 182 Ordinary glass house HISG house Total energy saving 48 %

Cooling testing

Energy consumption (kWh)

slide-16
SLIDE 16

16

Only by fan ventilation Reach comfortable indoors

Air condition Fan ventilation

slide-17
SLIDE 17

17

10.07 kWh from grid 1.19 kWh send back to grid Solar Power + Cooling saving

Unique in the world

slide-18
SLIDE 18

18

ENERGY EFFICIENCY TEST of houses

slide-19
SLIDE 19

19

Solar Power + Cooling saving 3 kWh from grid 2.01 kWh from grid 0.32 kWh send back to grid

The Best Performance

slide-20
SLIDE 20

20

From Jan. 2017 to July 2017 Power from grid

Saving 93 %

slide-21
SLIDE 21

21

Compare with other Normal PV

www.hisg.com.tw

slide-22
SLIDE 22

22

Zero Energy Building in Singapore

slide-23
SLIDE 23

Shanghai Taipei Not see through See through

See through effect

23

slide-24
SLIDE 24

Too hot during summer time

date 12:00 ( oC) 14:00 ( oC) 5/11/2009 36.8 38 5/12/2009 35.2 38.8 5/13/2009 30.8 30.5 5/14/2009 32 31.2 5/15/2009 35.3 36.6 5/16/2009 34.9 37.5 5/17/2009 30.3 30.9 Indoor temp. C-Si panel skylight

24

slide-25
SLIDE 25

Use curtain for insulaiton

25

slide-26
SLIDE 26

Items Normal Glass HISG Normal PV 圖示 Cooling load (kWh) 5.3 3.4 6.0 Reason High heat penetration Heat insulation High temp. on the normal PV

Testing condition

Outdoor 35℃ , Cooling setting 26℃ 06:00 A.M. – 18:00 P.M. Cooling consumption (one sunny day) www.hisg.com.tw

26

slide-27
SLIDE 27

27

Compare with Low-e glass

www.hisg.com.tw

slide-28
SLIDE 28

Cooling consumption comparison

28

52% 9%

資料來源:羅偉2015

slide-29
SLIDE 29

Lighting-Saving at Day time

29

slide-30
SLIDE 30

30

Shading effect of PV Insulation Glazing

www.hisg.com.tw

slide-31
SLIDE 31

31

slide-32
SLIDE 32

All day Zero UV to protect human skin to prevent cancer attack

Zero UV

32
slide-33
SLIDE 33

PV insulation glazing Skylight

33

www.hisg.com.tw

slide-34
SLIDE 34

34

slide-35
SLIDE 35

35

35

Building in Taipei 1876 m2

slide-36
SLIDE 36

36

Solar power simulation

slide-37
SLIDE 37

37

Date PV Energ y Month kWh Jan 6601.75 Feb 5179.37 Mar 5141.24 Apr 4549.01 May 5436.75 Jun 5785.82 Jul 10506.51 Aug 13104.41 Sep 12011.15 Oct 10722.07 Nov 9858.57 Dec 9240.68 Sum Value 98137.34

98137 kWh/year

slide-38
SLIDE 38

Cooling consumption

Normal glass HISG 124,100 kWh/year 31,600 kWh/year Saving 92,500 kWh/year Saving 74%

38

slide-39
SLIDE 39

Heating consumption

Normal glass HISG 29,270 kWh/year Saving 10,890 kWh/year Saving 27.12% 40,160 kWh/year

39

slide-40
SLIDE 40

經濟效益分析

40

Energy Efficiency Assessment

Solar power Generating 98,137 kWh/year Energy consumption Environmental

CO2 decreasing 141,068 kg/year

Saving 103,390 kWh/year

Energy efficiency 201,527 kWh/year

40

slide-41
SLIDE 41

41

Economic assessment

slide-42
SLIDE 42

42

Feed back year 4.23 ROI 18 % Applied on Skylight Within 20 years

slide-43
SLIDE 43

43

Feed back year 8 ROI 7.6 % Applied on vertical facade Within 20 years

slide-44
SLIDE 44

Japan JIS wind testing

Up to 8000 Pa No damage

44

slide-45
SLIDE 45

試體熱電偶位置圖

45

Fire testing

45

slide-46
SLIDE 46

Test configuration

加熱爐封艙板安裝

46

試體光電板安裝 填塞防火綿 試體安裝完成 黏貼溫度感測器 感測器銜接至接收器

46

slide-47
SLIDE 47

Outdoor file

爐內溫度與時間關係圖(太陽能板側)

47

slide-48
SLIDE 48

Indoor fire

爐內溫度與時間關係圖(普通玻璃側)

48

slide-49
SLIDE 49

Collapse time situation Ordinary glass HISG Indoor fire 30 seconds 19 mins Outdoor fire 30 seconds 27 mins

49

slide-50
SLIDE 50

Real Application

50

www.hisg.com.tw

slide-51
SLIDE 51

EAG HOUSE

51

www.hisg.com.tw

slide-52
SLIDE 52

Skylight

52

www.hisg.com.tw

slide-53
SLIDE 53

MRT STATION

53

www.hisg.com.tw

slide-54
SLIDE 54

GREEN HOUSE USA

54

www.hisg.com.tw

slide-55
SLIDE 55

SKYLIGHT, SCHOOL

55

www.hisg.com.tw

slide-56
SLIDE 56

Glass Curtain Wall

56

www.hisg.com.tw

slide-57
SLIDE 57

Green House

57

slide-58
SLIDE 58

58

slide-59
SLIDE 59

International cooperation

59

www.hisg.com.tw

slide-60
SLIDE 60

Development of Heat Insulation Solar Glass for Low Carbon Buildings

60

slide-61
SLIDE 61

UNIVERSITY OF NOTTINGHAM TAIWAN TECH HISG TESTING HOUSE

61

slide-62
SLIDE 62

Solar power + Saving heating Only 1/5 Power required

Application of HISG on conservatory in UK

62

slide-63
SLIDE 63

Low carbon demo house in China

63

slide-64
SLIDE 64

64

Proposed for Australia

slide-65
SLIDE 65

Energy efficiency assessment

65

www.hisg.com.tw

slide-66
SLIDE 66

66

25.7m x 25.7m skylight 3.7 m high in the middle

www.hisg.com.tw

slide-67
SLIDE 67

71851 44204 36678 59529 10000 20000 30000 40000 50000 60000 70000 80000

Dubai Tokyo London Sydney Location

Solar power (kWh/year)

Solar power

67

slide-68
SLIDE 68

Saving 69% Saving 47% Saving 52% Saving 56% 100,000 200,000 300,000 400,000 500,000 600,000 700,000 Normal glass (10mm) Double Low-E glazing HISG Normal glass (10mm) Double Low-E glazing HISG Normal glass (10mm) Double Low-E glazing HISG Normal glass (10mm) Double Low-E glazing HISG Dubai Tokyo London Sydney energy consumption (kWh/year) Location

Cooling + heating consumption

68

slide-69
SLIDE 69

69

532,648 445,448 604,678 199,642 279,987 291,948 410,480 112,509 95,183 192,172 252,459 28,693 100,000 200,000 300,000 400,000 500,000 600,000 700,000

Power needed from grid(kWh)

normal glass Double Low-E glazing HISG Dubai Tokyo London Sydney Saving 82% Saving 57% Saving 58% Saving 86%

Power needed from grid (energy consumption – solar power)

slide-70
SLIDE 70

HISG

On apartment

Many small power plants in Australia

70

slide-71
SLIDE 71

All day Zero UV to protect human skin to prevent cancer attack

Zero UV

71

slide-72
SLIDE 72

72

Vertical city power plant in Sydney

slide-73
SLIDE 73

A New style Zero Energy House for Australia

73

slide-74
SLIDE 74

Zero Energy Building Design in Tainan Taiwan

74

Jan Feb Mar Apr May Jun Jul Aug Sep Oct Nov Dec 冷氣耗電量 0.0 117.1 268.1 672.9 918.7 1121.0 1864.4 1749.3 1102.8 993.2 300.7 33.5 暖氣耗電量 173.0 132.2 17.5 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 73.5 其他家電耗能 579.6 579.6 579.6 579.6 579.6 579.6 579.6 579.6 579.6 579.6 579.6 579.6 發電量 2262.0 2034.5 2205.8 2112.1 2153.2 2127.9 2289.7 2109.9 2000.1 2145.2 2053.1 2151.5 剩餘電力=9152 1509.4 1205.7 1340.7 859.6 654.9 427.3 -154.4 -218.9 317.7 572.3 1172.8 1465.0

  • 1500.0
  • 1000.0
  • 500.0

0.0 500.0 1000.0 1500.0 2000.0 2500.0 3000.0 3500.0 kWh

Cooling Heating Others Solar Remain 9,152 kWh/year send back to grid

slide-75
SLIDE 75

Zero Energy Buildings all over the world

75

www.hisg.com.tw
