Detection and Localisation of Neural Responses to Linguistic Phenomena using Machine Learning Student: Mehdi Parviz Supervisor: Mark Johnson Department of Computing Macquarie University COMP901, 2012 1 / 23 Outline Introduction Background

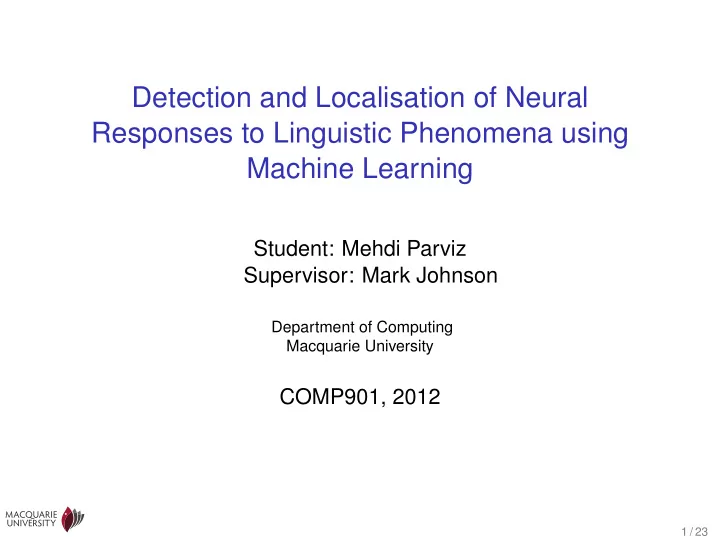

SLIDE 1

Detection and Localisation of Neural Responses to Linguistic Phenomena using Machine Learning

Student: Mehdi Parviz Supervisor: Mark Johnson

Department of Computing Macquarie University

COMP901, 2012

1 / 23

SLIDE 2

Outline

Introduction Background Magnetoencephalography N400 Response Current Analysing Methods Approach Multivariate Analysis Logistic Regression Results Experimental Data Results

2 / 23

SLIDE 3

Outline

Introduction Background Magnetoencephalography N400 Response Current Analysing Methods Approach Multivariate Analysis Logistic Regression Results Experimental Data Results

3 / 23

SLIDE 4

Background

◮ Main challenge

◮ localisation and detection of neuronal activity

◮ Non-invasive functional brain imaging

◮ Huge amount of data ◮ High dimensional space ◮ Noisy ◮ Very complex

◮ Analysing methods

◮ Univariate ◮ Multivariate 4 / 23

SLIDE 5

Outline

Introduction Background Magnetoencephalography N400 Response Current Analysing Methods Approach Multivariate Analysis Logistic Regression Results Experimental Data Results

5 / 23

SLIDE 6

Magnetoencephalography (MEG)

◮ Non-invasive technique for imaging brain activity ◮ Higher temporal resolution than fMRI (1 ms vs. 1-4 s) ◮ Higher spatial resolution than EEG (15 mm vs. 20 mm)

Figure: MEG Machine

6 / 23

SLIDE 7

Outline

Introduction Background Magnetoencephalography N400 Response Current Analysing Methods Approach Multivariate Analysis Logistic Regression Results Experimental Data Results

7 / 23

SLIDE 8

N400 Response

◮ Event related potentials (ERPs)

◮ Synchronized activation of neuronal networks ◮ Generated by external stimuli

◮ N400 response

◮ Broad negative deflection of the ERPs ◮ Peaks 400 ms after post-stimulus onset

◮ N400 occurs in sentences containing semantically

unexpected or anomalous words

◮ A sparrow is a kind of building ◮ A sparrow is a kind of bird 8 / 23

SLIDE 9

Outline

Introduction Background Magnetoencephalography N400 Response Current Analysing Methods Approach Multivariate Analysis Logistic Regression Results Experimental Data Results

9 / 23

SLIDE 10

Current Analysing Methods

◮ Using univariate analysis methods ◮ Finding some predefined ERPs

◮ P600: a sentence with singular subject and plural verb

◮ Computing statistical significance of the brain response to

the stimuli

10 / 23

SLIDE 11

Drawbacks of univariate methods

◮ Averaging over a large number of trials to increase the

signal-to-noise

◮ Removing information which are not time locked

◮ Assuming independence between variables

◮ Ignoring potential covariance between neighboring or

distant units

◮ Searching for highly localised response

◮ Ignoring several sources of activity ◮ Removing causal structure of the brain response 11 / 23

SLIDE 12

Outline

Introduction Background Magnetoencephalography N400 Response Current Analysing Methods Approach Multivariate Analysis Logistic Regression Results Experimental Data Results

12 / 23

SLIDE 13

Multivariate Analysis

◮ Whole set of variables are analysed together ◮ Dependency between variables are considered ◮ Multiple source and causal structure can be addressed

Figure: MEG Machine

13 / 23

SLIDE 14

Outline

Introduction Background Magnetoencephalography N400 Response Current Analysing Methods Approach Multivariate Analysis Logistic Regression Results Experimental Data Results

14 / 23

SLIDE 15

Logistic Regression

◮ Conditional probability

log Pr(Setence Type | Brain Respose) =

wj × xj

(1)

◮ Maximising the likelihood

max

W

log Pr(Setence Type | Brain Respose)

(2)

◮ Sparse solution using l1-norm regularisation

15 / 23

SLIDE 16

Outline

Introduction Background Magnetoencephalography N400 Response Current Analysing Methods Approach Multivariate Analysis Logistic Regression Results Experimental Data Results

16 / 23

SLIDE 17

Experimental Data

Sentences

◮ Stimuli consisted of 180 sentences drawn from the list

published by Kalikow et al. (1997)

◮ 90 examples of “constraining context” sentences, i.e., with

predictable endings (e.g. He got drunk in the local bar)

◮ 90 examples of “non-constraining context” sentences, i.e.,

with unpredictable endings (e.g. He hopes Tom asked about the bar)

◮ Each target word appears both in a constraining context

sentence and in a non-constraining context sentence

◮ 10 catch trials consisting of sentences containing the word

mouse

◮ 16 listeners

17 / 23

SLIDE 18

Experimental Data

MEG Data

MEG data were

◮ Extracted from 160 sensors and mapped into the brain

space using SPM8 package

◮ Digitised with a sample rate of 1000 Hz ◮ Filtered with a bandpass of 0.1 to 40 Hz

18 / 23

SLIDE 19

Outline

Introduction Background Magnetoencephalography N400 Response Current Analysing Methods Approach Multivariate Analysis Logistic Regression Results Experimental Data Results

19 / 23

SLIDE 20

Results

Integrating over variables

Time-Channel Time Channel Without integration 54.07 62.80 58.04 62.82

Table: The classification accuracy for each subject using all the data points (without integrating) and different types of integrating

20 / 23

SLIDE 21

Results

Temporal Information

Figure: Accuracy of detecting Context using different time windows

21 / 23

SLIDE 22

Results

Brain Activity

Figure: Feature weights for different temporal window

22 / 23
