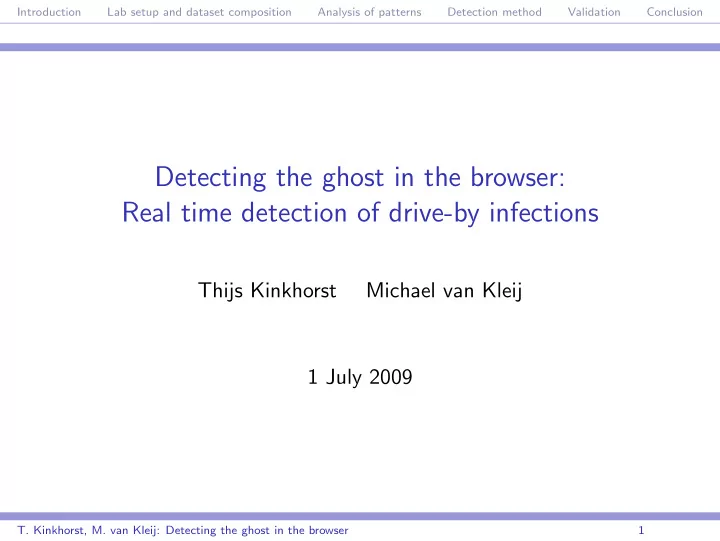

Detecting the ghost in the browser: Real time detection of drive-by infections

Thijs Kinkhorst Michael van Kleij 1 July 2009

• T. Kinkhorst, M. van Kleij: Detecting the ghost in the browser

1

Introduction Lab setup and dataset composition Analysis of patterns Detection method Validation Conclusion

• T. Kinkhorst, M. van Kleij: Detecting the ghost in the browser

2

Introduction Lab setup and dataset composition Analysis of patterns Detection method Validation Conclusion

What is a drive-by infection?

◮ Legitimate websites are compromised. ◮ An iFRAME is included which points to a browser exploit.

Example

<iframe src="http://globalnameshop.cn:8080/index.php" width=153 height=102 style="visibility: hidden"></iframe>

• T. Kinkhorst, M. van Kleij: Detecting the ghost in the browser

3

Introduction Lab setup and dataset composition Analysis of patterns Detection method Validation Conclusion

• T. Kinkhorst, M. van Kleij: Detecting the ghost in the browser

4

Introduction Lab setup and dataset composition Analysis of patterns Detection method Validation Conclusion

Research question

Can drive-by infections be discerned from legitimate sessions purely by measuring changes in HTTP traffic patterns and meta data?

◮ Enables detection by monitoring the local network. ◮ Low chance on false positives or false negatives.

• T. Kinkhorst, M. van Kleij: Detecting the ghost in the browser

5

Introduction Lab setup and dataset composition Analysis of patterns Detection method Validation Conclusion

Scope

◮ Detection via network traffic, not on the client machine. ◮ Not HTTP content inspection, no signature matching. ◮ Only infections that require no user interaction. ◮ Just the infection itself, not subsequent behaviour of the

malware.

• T. Kinkhorst, M. van Kleij: Detecting the ghost in the browser

6

Introduction Lab setup and dataset composition Analysis of patterns Detection method Validation Conclusion

Lab setup and dataset composition

◮ Infected sites in our dataset are found using

www.malwaredomainlist.com and similar.

◮ Each site was tested in a clean virtual machine using a test

protocol.

◮ Test protocol consists of:

◮ Start capture. ◮ Visit site, wait 2 minutes. ◮ Close browser, wait 2 minutes. ◮ Shut down machine. ◮ Restore machine to clean state, rotate IP address.

◮ Capturing both clean sessions and infected sessions.

• T. Kinkhorst, M. van Kleij: Detecting the ghost in the browser

7

Introduction Lab setup and dataset composition Analysis of patterns Detection method Validation Conclusion

Analysis

◮ TCP port numbers. ◮ Geographical locations. ◮ Hostnames. ◮ User agents. ◮ Invalid POST requests. ◮ Request URIs. ◮ Content types. ◮ Redirection.

• T. Kinkhorst, M. van Kleij: Detecting the ghost in the browser

8

Introduction Lab setup and dataset composition Analysis of patterns Detection method Validation Conclusion

TCP port numbers

Clean Infected # of sess. % of sess. # of sess. % of sess. port 80 39 100% 25 100% port 8080 0% 10 40% port 443 3 8% 2 8%

• T. Kinkhorst, M. van Kleij: Detecting the ghost in the browser

9

Introduction Lab setup and dataset composition Analysis of patterns Detection method Validation Conclusion

User agents

Clean sess. Infected sess. Total number of different User- Agent headers found 2 9 Average number of unique User- Agent headers per session 1.0 2.5 Average number of requests with non-original User-Agent per session 0.2 6.1

• T. Kinkhorst, M. van Kleij: Detecting the ghost in the browser

10

Introduction Lab setup and dataset composition Analysis of patterns Detection method Validation Conclusion

Redirection

WS M a0 b0 c0 d0 b1 e0 b2 a1 a2 . . . a6 img0 img1 . . .

• T. Kinkhorst, M. van Kleij: Detecting the ghost in the browser

11

Introduction Lab setup and dataset composition Analysis of patterns Detection method Validation Conclusion

Detection method

◮ Scoring like SpamAssassin. ◮ Combine inconclusive information into high-confidence verdict. ◮ Flexible and expandable

score ← 0 firstrequest ← front( capture ) for all rule ∈ ruleset do score ← score + min ( rule(capture, firstrequest), 4.0 ) end for return score ≥ 5.0

• T. Kinkhorst, M. van Kleij: Detecting the ghost in the browser

12

Introduction Lab setup and dataset composition Analysis of patterns Detection method Validation Conclusion

TCP port numbers

Rule 1 Detecting ‘bad’ ports function Rule (capture, firstreq) : s for all request ∈ capture do if request.port ∈ {80,443} ∧ request.port = firstreq.port then return 2.0 end if end for return 0 end function

• T. Kinkhorst, M. van Kleij: Detecting the ghost in the browser

13

Introduction Lab setup and dataset composition Analysis of patterns Detection method Validation Conclusion

User Agents

Rule 6 Detecting ‘bad’ user agents function Rule (capture, firstreq) : s s ← 0 for all request ∈ capture do if request.useragent ∈ α ∧ request.useragent = firstreq.useragent then s ← s + 0.4 end if end for return s end function α: whitelist of special user agents, like Adobe Updater.

• T. Kinkhorst, M. van Kleij: Detecting the ghost in the browser

14

Introduction Lab setup and dataset composition Analysis of patterns Detection method Validation Conclusion

Redirection Trees

Rule 10 Analysing redirection trees function Rule (capture, firstreq) : s T ← BuildRedirectionTree ( capture ) return min ( max ( 0, height(T) − 2), 2.0 ) end function height(T) ≤ 2 ⇒ 0.0 height(T) = 3 ⇒ 1.0 height(T) ≥ 4 ⇒ 2.0

• T. Kinkhorst, M. van Kleij: Detecting the ghost in the browser

15

Introduction Lab setup and dataset composition Analysis of patterns Detection method Validation Conclusion

Validation

◮ Collected second, separate dataset for testing usefulness. ◮ Consists of 20 legitimate and 15 infected captures. ◮ Apply our ruleset to this new data. ◮ True-negative rate: 14 out of 15 (93%) ◮ False-positive rate: 0 out of 20 (0%)

• T. Kinkhorst, M. van Kleij: Detecting the ghost in the browser

16

Introduction Lab setup and dataset composition Analysis of patterns Detection method Validation Conclusion

Validation: Infected Sessions

rule 1 2 3 4 5 6 7 8 9 10

• session 1

2.0 2.0 1.0 0.4 2.0 2.0 0.4 9.8 session 2 2.0 2.0 1.5 1.0 2.0 0.8 2.0 3.0 0.4 14.7 session 3 1.5 1.0 4.0 1.0 1.2 8.7 session 4 1.5 2.0 0.4 1.6 2.0 7.5 session 5 1.5 2.0 0.8 1.8 2.0 8.1 session 6 1.5 2.0 0.8 0.4 2.0 6.7 session 7 2.0 2.0 1.0 1.0 0.4 6.4 session 8 1.5 2.0 0.4 2.2 2.0 8.1 session 9 2.0 2.0 1.0 2.0 2.0 0.4 9.4 session 10 2.0 2.0 1.0 2.0 3.0 0.4 10.4 session 11 1.5 2.0 0.8 1.0 2.0 7.3 session 12 1.5 2.0 0.8 2.0 2.0 8.3 session 13 2.0 1.5 1.0 2.0 1.2 1.0 0.2 8.9 session 14 1.5 0.2 1.7 session 15 2.0 1.5 2.0 1.6 1.0 1.0 9.1

• T. Kinkhorst, M. van Kleij: Detecting the ghost in the browser

17

Introduction Lab setup and dataset composition Analysis of patterns Detection method Validation Conclusion

Validation: Clean Sessions

rule 1 2 3 4 5 6 7 8 9 10 P session 1 1.5 1.5 session 2 0.0 session 3 1.5 1.5 session 4 0.0 session 5 0.0 session 6 0.0 session 7 0.0 session 8 1.5 1.5 session 9 0.0 session 10 0.0 session 11 0.0 session 12 0.0 session 13 0.0 session 14 2.0 2.0 session 15 0.0 session 16 0.0 session 17 0.0 session 18 1.0 1.0 session 19 0.0 session 20 1.5 1.5

• T. Kinkhorst, M. van Kleij: Detecting the ghost in the browser

18

Introduction Lab setup and dataset composition Analysis of patterns Detection method Validation Conclusion

Conclusion

Can drive-by infections be discerned from legitimate sessions purely by measuring changes in HTTP traffic patterns and meta data? Yes, it is possible. Focus points:

◮ Scoring and rules need more real-life improvement. ◮ Identification of a session may be problematic.

• T. Kinkhorst, M. van Kleij: Detecting the ghost in the browser

19

Introduction Lab setup and dataset composition Analysis of patterns Detection method Validation Conclusion

Thank You

Questions?
