CJK ENGINEERING Design of Offshore Structures For Extreme Ice Conditions Prepared for SNAME 2017 Arctic Section by John Fitzpatrick P. Eng. CJK Engineering Ltd. jfitzpat@telus.net Graphics by Jakub Ciring and Associates Inc.

slide-1

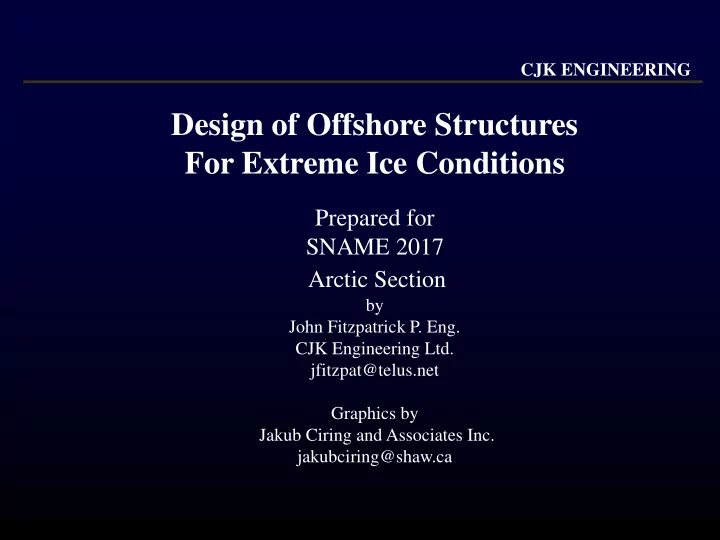

SLIDE 1

CJK ENGINEERING

Design of Offshore Structures For Extreme Ice Conditions

Prepared for SNAME 2017 Arctic Section

by John Fitzpatrick P. Eng. CJK Engineering Ltd. jfitzpat@telus.net Graphics by Jakub Ciring and Associates Inc. jakubciring@shaw.ca

slide-2
SLIDE 2

CJK ENGINEERING

  • Why a Gravity Based Structure (GBS) will not

work in 100 to 200 meters of water under extreme tabular ice conditions!

  • Two alternative solutions for permanent platforms

in 200 meters of water.

  • First: Gravity Fendered Structure (GFS).
  • Second: Rock Island Structure.
  • Costs for both concepts.

Overview

slide-3
SLIDE 3

CJK ENGINEERING

Transfer Equations for Energy to Force

Non-deformable Structures: F = 2 E2/3 σ1/3 / (H/D)2/3 Large potential for error in σ and H/D Deformable Structures: F S = E = MgH No potential for error

slide-4
SLIDE 4

CJK ENGINEERING

Energy vs. Force, depending on shape & crushing strength of the ice feature

5,000 10,000 15,000 1,000 5,000 MN MNm Hibernia 10,000 2,500 MN 10,000 MN

700 million tonnes Ice Island @ 0.22m/s

10-2, 100m 10-2, 200m 10-4, 100m 10-4, 200m

slide-5
SLIDE 5

CJK ENGINEERING

GBS vs. 100m Thick Tabular Ice

E = 1,700,000 Tm = 17,000 MNm

F = 2 x (17,000)2/3 x 41/3 / 0.12/3 = 10,000 MN (“Flat”) F = 2 x (17,000)2/3 x 11/3 / 0.42/3 = 2,500 MN (“Bump”)

slide-6
SLIDE 6

CJK ENGINEERING

GBS vs. 100m Thick Tabular Ice

slide-7
SLIDE 7

CJK ENGINEERING

GFS Concept

slide-8
SLIDE 8

CJK ENGINEERING

GFS for 200m water depth – principal particulars and design energy parameters

slide-9
SLIDE 9

CJK ENGINEERING

Size comparison with existing large structures

slide-10
SLIDE 10

CJK ENGINEERING

GFS vs. size of the Design Tabular Ice Island, 3000m in diameter and 100m thick

slide-11
SLIDE 11

CJK ENGINEERING

Timeline of absorption of energy: 0 sec.

slide-12
SLIDE 12

CJK ENGINEERING

Timeline of absorption of energy: 90 sec.

slide-13
SLIDE 13

CJK ENGINEERING

Timeline of absorption of energy: 180 sec.

slide-14
SLIDE 14

CJK ENGINEERING

Timeline of absorption of energy: 275 sec.

slide-15
SLIDE 15

CJK ENGINEERING

Timeline of absorption of energy: 390 sec. Interaction and force transfer complete

slide-16
SLIDE 16

CJK ENGINEERING

Timeline in plan view: 0 sec., 700 million tonne Ice Island contacting

Fender at 0.22m/s

slide-17
SLIDE 17

CJK ENGINEERING

Timeline in plan view: 390 sec., Ice Island stopped, after displacing Fender by 56m horizontally and 17m vertically.

slide-18
SLIDE 18

CJK ENGINEERING

Energy to Force for Deformable Structures

F S = E = MgH (68,000t÷2)×50m = 0.5 ×700,000,000t × 0.22^2÷9.81=100,000t×17m =1,700,000 tm No potential for error in Base Shear if Mass and Velocity are known. F maximum = 68,000 metric tonnes = 680MN Base overturning moment = 12,000,000 tonne meters

slide-19
SLIDE 19

CJK ENGINEERING

Fender response to ‘rogue wave’ embedded in 15m significant sea state

400 800 1200 1600 2000 t = 0 sec

60,000 45,000 30,000 15,000

  • 30,000
  • 45,000
  • 60,000

40 30 20 10

  • 10
  • 20
  • 30
  • 40

Departure [m] Base Shear Force [ T ] 10 min 20 min

  • 15,000

See detail

slide-20
SLIDE 20

CJK ENGINEERING

Wave induced Fender motions. 15m wave Steady State plus Transient ‘Rogue’impact

20 40 60 80 100 120 140 160 180 sec. 10 20 30 m 10 20 30 m 10 20 30 m 20 40 60 80 100 120 140 160 180 sec. 20 40 60 80 100 120 140 160 180 sec.

slide-21
SLIDE 21

CJK ENGINEERING

  • H=15m, T=16 secs, WL=400m
  • Fender mass (including annulus water) = 3,240,000 tonnes
  • K=15,000kn/m, Cm = 1.5, Cd=0.7
  • Fender natural period 160 seconds
  • Resonance not possible
  • Steady state total Base Shear = 30,000 tonnes
  • Confused irregular sea state = 50,000 tonnes
  • Wave Base Moment = 8,000,000 tonne meters
  • Steady state departure +/- 6m.

Wave Loads and Input to dynamics program

slide-22
SLIDE 22

CJK ENGINEERING

15m high (Steady State) Regular Wave action 0 sec.

slide-23
SLIDE 23

CJK ENGINEERING

15m high Regular Wave action – 4 sec.

slide-24
SLIDE 24

CJK ENGINEERING

15m high Regular Wave action – 8 sec.

slide-25
SLIDE 25

CJK ENGINEERING

15m high Regular Wave action – 12 sec.

slide-26
SLIDE 26

CJK ENGINEERING

15m high Regular Wave action – 16 sec.

slide-27
SLIDE 27

CJK ENGINEERING

  • In the event of a blowout the inner annulus of the Fender

could act as an effective oil containment boom with a capacity of 15,000,000 bbls. The Fender itself could contain an additional 5,000,000 bbls.

  • The Fender provides a 200m wide approach channel for

tankers in which to approach and load from the platform

  • The inner annulus could provide a safe haven and mooring

location for ice breakers or supply ships under 100 meters in length. Additional benefits

slide-28
SLIDE 28

CJK ENGINEERING

GFS Cost Estimate (excluding topsides)

Steel quantity input: Base 150,000T 1st Step 40,000T 2nd Step 20,000T Pillar 50,000T Deck 40,000T Subtotal 300,000T Fender 100,000T Total 400,000T

Total steel: 400,000T x $4,000/T = $1.60 Billion 250 cables x 100m x $1,100/m = $30 Million + $10 Million for Ends = $0.04 Billion Ballast: 300,000m3 x $200/m3 = $0.06 Billion Capital cost subtotal $1.70 Billion Towing & installation: 300days x $1 Million/day = $0.30 Billion Contingency: $0.50 Billion Grand total $2.5 Billion

slide-29
SLIDE 29

CJK ENGINEERING

Rock Island for 200m water depth - principal quantities and design energy

slide-30
SLIDE 30

CJK ENGINEERING

Concept of Rock Island for 200m water depth

slide-31
SLIDE 31

CJK ENGINEERING

Rock Island construction sequence using 10 new self- propelled, ice strengthened Rock Barges, each with 15,000 DWT capacity

slide-32
SLIDE 32

CJK ENGINEERING

  • Virtually no limit to the amount of energy that can be
  • absorbed. An indentation of 25m would absorb some

10,000,000 tonne meters of energy or 6 times more than the 10,000 year design energy.

  • The central platform should not have a draft any deeper

than 30m as this could result in overload.

  • The central platform needs to be surrounded by a

protective berm

  • The Rock Island cannot be built with sand due to

quantities and instability. (D50 ≈ 350 kg ≈ 600 mm Φ ). Comments on Rock Island

slide-33
SLIDE 33

CJK ENGINEERING

Rock Island Cost Estimate (excluding topsides)

Input for the cost of rock: Open pit mine to provide 60,000T/day $35/m3 Transport & loading/ conveyer system $10/m3 Fleet of 10 self propelled ice strengthened barges, 15,000DWT each + assistance $35/m3 Total unit cost for rock $80/m3

Octagonal platform 100m x 110m x 90m, with 3,000,000 bbl. storage $0.60 Billion Berm: 30,000,000 m3 x $80/m3 $2.40 Billion Grand total $3.0 Billion Construction time 3 to 4 years

slide-34
SLIDE 34

CJK ENGINEERING

Conclusions

  • Gravity

based non-deformable structures are not feasible in extreme tabular ice conditions.

  • Alternative ``deformable`` solutions

exist for reasonable costs.

slide-35
SLIDE 35

CJK ENGINEERING

Thank you for your attention.
