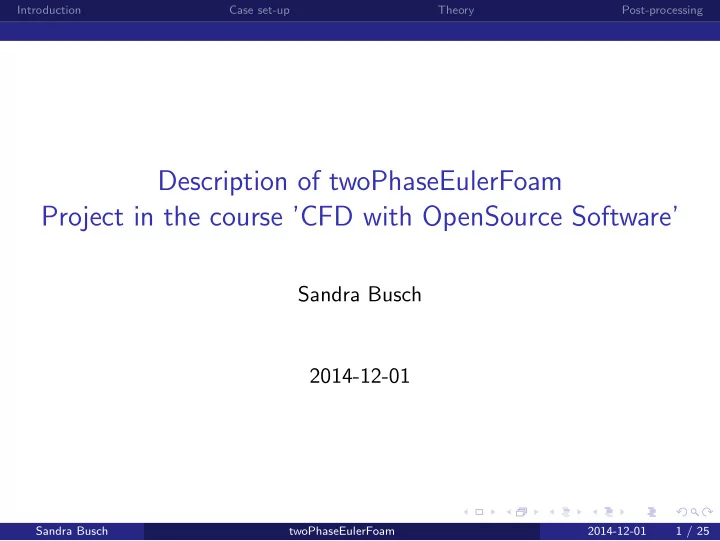

Description of twoPhaseEulerFoam Project in the course ’CFD with OpenSource Software’

Sandra Busch 2014-12-01

Sandra Busch twoPhaseEulerFoam 2014-12-01 1 / 25

Introduction Case set-up Theory Post-processing

Contents

Introduction Case set-up Theory Post-processing

Sandra Busch twoPhaseEulerFoam 2014-12-01 2 / 25

Introduction Case set-up Theory Post-processing

twoPhaseEulerFoam

Application twoPhaseEulerFoam Description Solver for a system of 2 compressible fluid phases with one phase dispersed, e.g. gas bubbles in a liquid including heat-transfer.

Sandra Busch twoPhaseEulerFoam 2014-12-01 3 / 25

Introduction Case set-up Theory Post-processing

Copy tutorial

Two tutorials available for the twoPhaseEulerFoam treating fluidized beds: laminar and RAS. Start by copying the directory in the run directory: cp -r $FOAM_TUTORIALS/multiphase/twoPhaseEulerFoam/ RAS/fluidisedBed $FOAM_RUN cd $FOAM_RUN/fluidisedBed

Sandra Busch twoPhaseEulerFoam 2014-12-01 4 / 25

Introduction Case set-up Theory Post-processing

Mesh

Adapt mesh to the new geometry and run BlockMesh

vertices ( (0 0 0) (0.28 0 0) (0.28 1 0) (0 1 0) (0 0 0.025) (0.28 0 0.025) (0.28 1 0.025) (0 1 0.025) ); blocks ( hex (0 1 2 3 4 5 6 7) (28 100 1) simpleGrading (1 1 1) );

Sandra Busch twoPhaseEulerFoam 2014-12-01 5 / 25

Introduction Case set-up Theory Post-processing

Definition of static bed height

Defined in system/setFieldsDict

defaultFieldValues ( volScalarFieldValue alpha.air 1 volScalarFieldValue alpha.particles 0 ); regions ( boxToCell { box ( 0 0 0 ) ( 0.28 0.4 0.025 ); fieldValues ( volScalarFieldValue alpha.air 0.60 volScalarFieldValue alpha.particles 0.40 ); } );

define static height of the bed default volume fraction of air αair = 1 solids volume fraction in bed αparticles = 0.4%

Sandra Busch twoPhaseEulerFoam 2014-12-01 6 / 25

Introduction Case set-up Theory Post-processing

Set fields

Before running setFields, 0/alpha.air.org and 0/alpha.particles.org have to be copied since they are backup files: cp 0/alpha.air.org 0/alpha.air cp 0/alpha.particles.org 0/alpha.particles Now setFields can be run from the case directory.

Sandra Busch twoPhaseEulerFoam 2014-12-01 7 / 25

Introduction Case set-up Theory Post-processing

Boundary conditions

The inlet velocity can be set in 0/U.air, the outlet will be defined as pressure outlet.

dimensions [0 1 -1 0 0 0 0]; internalField uniform (0 0.46 0); boundaryField { inlet { type interstitialInletVelocity; inletVelocity uniform (0 0.46 0); alpha alpha.air; value $internalField; } }

Sandra Busch twoPhaseEulerFoam 2014-12-01 8 / 25

Introduction Case set-up Theory Post-processing

Phase properties

Particle diameter defined in constant/phaseProperties

phases (particles air); particles { diameterModel constant; constantCoeffs { d 275e-6; } alphaMax 0.62; } blending { default { type none; continuousPhase air; } }

Sandra Busch twoPhaseEulerFoam 2014-12-01 9 / 25

Introduction Case set-up Theory Post-processing

Drag models

Drag model also defined in constant/phaseProperties

drag ( (particles in air) { type WenYu; residualAlpha 1e-6; residualRe 1e-3; swarmCorrection { type none; } } );

• ther models that can be set:

added mass heat transfer lift wall lubrication turbulent dispersion

Sandra Busch twoPhaseEulerFoam 2014-12-01 10 / 25

Introduction Case set-up Theory Post-processing

Drag models

Available drag models for twoPhaseEulerFoam:

Ergun Gibilaro GidaspowErgunWenYu GidaspowSchillerNaumann Lain SchillerNaumann SyamlalOBrien TomiyamaAnalytic TomiyamaCorrelated WenYu segregated

Sandra Busch twoPhaseEulerFoam 2014-12-01 11 / 25

Introduction Case set-up Theory Post-processing

Turbulence

Turbulence modelling can be set in constant/turbulenceProperties.air and constant/turbulenceProperties.particles .

RAS { RASModel kineticTheory; turbulence

• n;

printCoeffs

• n;

Sandra Busch twoPhaseEulerFoam 2014-12-01 12 / 25

Introduction Case set-up Theory Post-processing

Other properties

Define direction and value of the gravity in constant/g:

dimensions [0 1 -2 0 0 0 0]; value ( 0 -9.81 0 );

Sandra Busch twoPhaseEulerFoam 2014-12-01 13 / 25

Introduction Case set-up Theory Post-processing

ControlDict

application twoPhaseEulerFoam; startFrom startTime; startTime 0; stopAt endTime; endTime 2; deltaT 0.0002;

Sandra Busch twoPhaseEulerFoam 2014-12-01 14 / 25

Introduction Case set-up Theory Post-processing

Run solver

Run the solver : twoPhaseEulerFoam >& log &

Sandra Busch twoPhaseEulerFoam 2014-12-01 15 / 25

Introduction Case set-up Theory Post-processing

Multiphase solver

Some changes from earlier OpenFOAM versions: Phase property naming: alpha.<phase_name> denotes phase fraction of phase <phase_name> <property>.<phase name> denotes property <property> of phase <phase_name> Turbulence modeling for multiphase systems (different from single phase due to volume fraction) Different models for twoPhaseEulerFoam (drag, added mass, lift, heat transfer, turbulent dispersion and wall lubrication models)

Sandra Busch twoPhaseEulerFoam 2014-12-01 16 / 25

Introduction Case set-up Theory Post-processing

Multiphase equations (Eulerian-Eulerian)

Continuity equation

∂ ∂tαkρk + ∂ ∂xi αkρkUk,i = 0

Momentum equation

αkρk ∂ ∂tUk,i + Uk,j ∂ ∂xi Uk,i

• = αkρkgi − αk

∂Pl ∂xi − ∂τk,ij ∂xj + Ik,i

Sandra Busch twoPhaseEulerFoam 2014-12-01 17 / 25

Introduction Case set-up Theory Post-processing

Syamlal-O’Brien drag model

Drag force: FD = 1 2ρ2ACD|Vr|Vr

$FOAM_APP/solvers/multiphase/twoPhaseEulerFoam/ interfacialModels/dragModels/SyamlalOBrien

Sandra Busch twoPhaseEulerFoam 2014-12-01 18 / 25

Introduction Case set-up Theory Post-processing

Syamlal-O’Brien drag model

Foam::tmp<Foam::volScalarField> Foam::dragModels::SyamlalOBrien::CdRe() const { volScalarField alpha2(max(scalar(1) - pair_.dispersed(), residualAlpha_)); volScalarField A(pow(alpha2, 4.14)); volScalarField B ( neg(alpha2 - 0.85)*(0.8*pow(alpha2, 1.28)) + pos(alpha2 - 0.85)*(pow(alpha2, 2.65)) ); volScalarField Re(pair_.Re());

A = α4.14

2

B = 0.8α1.28

2

if α2 ≤ 0.85 B = α2.65

2

if α2 > 0.85

Sandra Busch twoPhaseEulerFoam 2014-12-01 19 / 25

Introduction Case set-up Theory Post-processing

Syamlal-O’Brien Drag model

volScalarField Vr ( 0.5 *( A - 0.06*Re + sqrt(sqr(0.06*Re) + 0.12*Re*(2.0*B - A) + sqr(A)) ) ); volScalarField CdsRe(sqr(0.63*sqrt(Re) + 4.8*sqrt(Vr))); return CdsRe *max(pair_.continuous(), residualAlpha_) /sqr(Vr); }

Vr = 0.5

• A − 0.06 Re +
• (0.06 Re)2 + 0.12 Re (2B − A) + A2
• CD

=  0.63 + 4.8

• Re

Vr

 

2

Sandra Busch twoPhaseEulerFoam 2014-12-01 20 / 25

Introduction Case set-up Theory Post-processing

paraFoam

The case can be opened in paraFoam: paraFoam

Sandra Busch twoPhaseEulerFoam 2014-12-01 21 / 25

Introduction Case set-up Theory Post-processing

paraFoam

Bed after 2.4 seconds of simulation showing symmetric behaviour:

Sandra Busch twoPhaseEulerFoam 2014-12-01 22 / 25

Introduction Case set-up Theory Post-processing

paraFoam

Bed after 20 sec of simulation time showing the volume fraction of the solids phase:

Syamlal-O’Brien Schiller-Naumann Wen-Yu Sandra Busch twoPhaseEulerFoam 2014-12-01 23 / 25

Introduction Case set-up Theory Post-processing

paraFoam

Plot of the averaged volume fraction of the solids phase at different y-positions

Syamlal-O’Brien Schiller-Naumann Sandra Busch twoPhaseEulerFoam 2014-12-01 24 / 25

Introduction Case set-up Theory Post-processing

The end

Thank you for your attention!

Sandra Busch twoPhaseEulerFoam 2014-12-01 25 / 25
