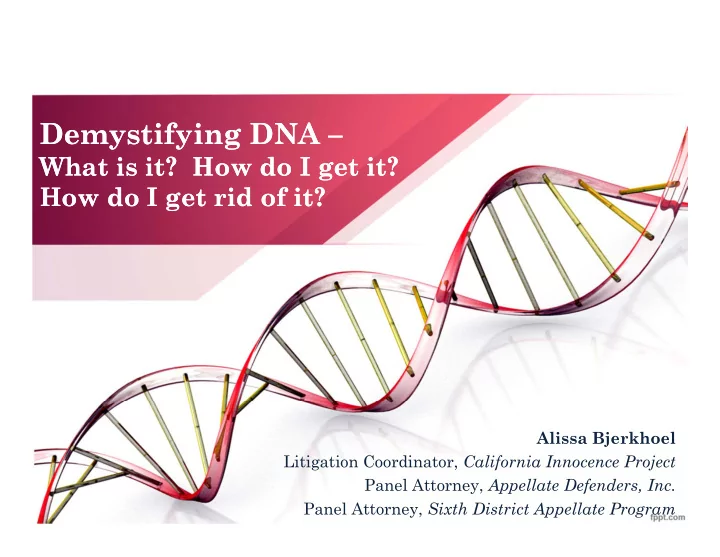

Demystifying DNA –

What is it? How do I get it? How do I get rid of it?

Demystifying DNA –

What is it? How do I get it? How do I get rid of it?

Alissa Bjerkhoel Litigation Coordinator, California Innocence Project Panel Attorney, Appellate Defenders, Inc. Panel Attorney, Sixth District Appellate Program

slide-2
SLIDE 2

Disclaimer

I AM NOT A SCIENTIST

SCIENTIST NOT A SCIENTIST

slide-3
SLIDE 3
slide-4
SLIDE 4
slide-5
SLIDE 5
slide-6
SLIDE 6
slide-7
SLIDE 7
slide-8
SLIDE 8
slide-9
SLIDE 9
slide-10
SLIDE 10
slide-11
SLIDE 11
slide-12
SLIDE 12
slide-13
SLIDE 13

PRE‐DNA

Forensic “Sciences”

slide-14
SLIDE 14

Microscopic Hair Comparison

slide-15
SLIDE 15

Bullet Comparison

slide-16
SLIDE 16

Fingerprint Comparison

slide-17
SLIDE 17

Tool Mark Comparison

slide-18
SLIDE 18

Tire Tread Impression

slide-19
SLIDE 19

Bite Mark Comparison

slide-20
SLIDE 20

Shoe Print Evidence

slide-21
SLIDE 21

“With the exception of nuclear DNA analysis, however, no forensic method has been rigorously shown to have the capacity to consistently, and with a high degree of certainty, demonstrate a connection between evidence and a specific individual or source. “

2009 NAS Report

slide-22
SLIDE 22

DNA TESTING

slide-23
SLIDE 23

Common Sources

*Red blood cells do not contain DNA.

slide-24
SLIDE 24

Not So Common Sources

Trees and Plants Pets Bugs and Bacteria

slide-25
SLIDE 25
slide-26
SLIDE 26

Chromosomes

  • 23 pairs of chromosomes
  • 46 total chromosomes
slide-27
SLIDE 27

Dense Packets of DNA Surrounded by Protein

slide-28
SLIDE 28

Molecular Structure

  • NUCLEOTIDES
  • 1. Base (A, C, G, T).
  • cytosine (C)
  • thymine (T)
  • adenine (A)
  • guanine (G)
  • 2. Five‐carbon sugar (D).
  • deoxyribose
  • 3. Phosphate group (P).
slide-29
SLIDE 29

Locus

  • The position or location of a particular piece of DNA is

commonly referred to as a locus (loci for more than one).

Locus

slide-30
SLIDE 30

Genetic Markers

  • Scientists examine the genetic locations (loci) where the

number of sequence repeats are the most variable amongst humans

slide-31
SLIDE 31

Alleles

  • Each locus (location of DNA on specific set of chromosomes) has two “alleles”
  • Alleles may be dominant or recessive
slide-32
SLIDE 32

Genetic Discrimination

  • Variable loci provide the capability of using DNA testing

for human identity.

slide-33
SLIDE 33
  • FLORIDA = 19,550,000
  • TAMPA = 352,957
  • MAIN STREET = 54
  • HOUSE LOCATED AT 123 = 6
  • LAST NAME ‐ SMITH = 4
  • FIRST NAME ‐ JOHN = 1
slide-34
SLIDE 34

PRE‐DNA TYPING

Two Main Steps:

  • 1. Extraction
  • 2. Quantification
slide-35
SLIDE 35

Isolation/Extraction

  • f DNA
slide-36
SLIDE 36

Extraction Techniques

  • Chemical and biological procedures are used to separate

DNA molecules from other material.

slide-37
SLIDE 37

Quantification

slide-38
SLIDE 38
  • Must quantify the amount of human DNA.
  • Need appropriate DNA levels for subsequent DNA

amplification & typing.

  • Optimal amounts result in higher quality data and easier

data interpretation

slide-39
SLIDE 39

Spectrofluorometers

  • DNA stained with a fluorescent dye.
  • The fluorescent intensity is measured with a

spectrofluorometer.

slide-40
SLIDE 40

DNA TYPING

(profiling/fingerprinting)

slide-41
SLIDE 41
slide-42
SLIDE 42

RFLP

(Restriction Fragment Length Polymorphism)

slide-43
SLIDE 43

Alec Jeffreys ‐ 1985

slide-44
SLIDE 44

Jul 16, 2010 RFLP , Restriction Fragment Length Polymorphism Flash Lecture,DNA Fingerprinting https://www.youtube.com/watch?v=CfZkn7D6dro

slide-45
SLIDE 45

Analysis The size of the target DNA fragments are measured & compared (each fragment length is considered an allele).

slide-46
SLIDE 46

Colin Pitchfork

slide-47
SLIDE 47
  • What they mostly look like:
slide-48
SLIDE 48
  • Other problems with RFLP =
slide-49
SLIDE 49

PCR‐Based Testing Methods

slide-50
SLIDE 50

https://www.youtube.com/watch?v=2KoLnIwoZKU

slide-51
SLIDE 51

PCR Inhibition

  • PCR amplification can be affected by substances

known as “inhibitors.”

slide-52
SLIDE 52

Early Testing Kits

slide-53
SLIDE 53

DQa1 Kits

  • First PCR‐based DNA test kit.
  • Relatively low power of discrimination.
slide-54
SLIDE 54

PM‐DQa1 kits

(PolyMarker)

slide-55
SLIDE 55

PM‐DQa1 kits

(PolyMarker)

slide-56
SLIDE 56

Short Tandem Repeat (STR)

slide-57
SLIDE 57

What is an “STR”?

Short segments of our DNA that are next to each other (tandem) and repeat over and over again.

slide-58
SLIDE 58
slide-59
SLIDE 59
slide-60
SLIDE 60
slide-61
SLIDE 61

Benefits of More Markers

  • Over time, DNA breaks

down (degrades)

  • Larger fragments of DNA

break down first, smaller later (harder to rip a small piece of paper than a large one)

slide-62
SLIDE 62

Post‐Amplification Testing

slide-63
SLIDE 63
  • Amplified product is then subjected to capillary

electrophoresis for separation.

  • Alleles are separated by size using a gel or capillary

method.

  • The machine produces an electropherogram report.
slide-64
SLIDE 64

In two‐minute form . . .

slide-65
SLIDE 65

Comparing Reports

slide-66
SLIDE 66
slide-67
SLIDE 67
slide-68
SLIDE 68
slide-69
SLIDE 69

YSTR

slide-70
SLIDE 70

Y‐STR

  • Detects alleles at different areas on the male chromosome.
slide-71
SLIDE 71

Y‐STR

  • Good for cases where lots of female DNA.
  • Passed down from father to son
slide-72
SLIDE 72

mtDNA

(mitochondrial testing)

slide-73
SLIDE 73

About

  • mtDNA is the DNA located inside the mitochondria

within cells.

  • mtDNA is organized as a circular, covalently closed,

double‐stranded DNA.

slide-74
SLIDE 74
  • mtDNA is inherited solely from the mother.
slide-75
SLIDE 75

Nucleotide Position Cambridge Reference Sequence (CRS) Differing Sequences from CRS

slide-76
SLIDE 76

Pros

  • Ability to obtain DNA profiles from evidence that is not

suitable for nuclear DNA analysis.

  • Helpful in associating maternally related individuals.
  • Lowest power of discrimination. Any maternally

related individuals will share the same mtDNA profile.

  • Longest processing time of any DNA test.
slide-77
SLIDE 77

How to Get DNA Testing:

PENAL CODE SECTION 1405

slide-78
SLIDE 78

1405 Requirements

(1) CONDITION: Evidence is available and in a condition that would permit DNA testing. (2) CHAIN OF CUSTODY: Evidence to be tested has been subject to a chain of custody. (3) IDENTITY AN ISSUE: Identity of the perpetrator of the crime was, or should have been, a significant issue in the case. (4) MATERIAL: Evidence sought to be tested is material to the issue of the convicted person’s identity as the perpetrator. (5) REASONABLE PROBABILITY: Results would raise a reasonable probability that, in light of all the evidence, the convicted person’s verdict or sentence would have been more favorable. (6) PRIOR TESTING: Evidence was not tested previously or was tested previously, but the requested DNA test would provide results that are reasonably more discriminating and probative of the identity

  • f the perpetrator or accomplice or have a reasonable probability of contradicting prior test results.

(7) METHOD: Testing requested employs a method generally accepted within the relevant scientific community. (8) DELAY: Motion is not made solely for the purpose of delay.

slide-79
SLIDE 79

Uriah Courtney

slide-80
SLIDE 80
slide-81
SLIDE 81
slide-82
SLIDE 82
slide-83
SLIDE 83
slide-84
SLIDE 84

TESTING AT TRIAL (2005) – San Diego Sheriff’s Department

  • Amylase was detected in the crotch of the underwear
  • DNA analysis performed
  • Debris observed on toothpicks
  • DNA analysis performed
slide-85
SLIDE 85
slide-86
SLIDE 86

THE CONVICTION

slide-87
SLIDE 87

CONCESSION & JOINT STIPULATION

slide-88
SLIDE 88

POST‐CONVICTION DNA TESTING

CALIFORNIA INNOCENCE PROJECT

slide-89
SLIDE 89

RESULTS

  • Fingernail scrapings ‐ Victim
  • Vaginal swabs ‐ Victim
  • Underwear – 1 allele
slide-90
SLIDE 90

STR RESULTS FROM THE SHIRT

slide-91
SLIDE 91

ISOLATING THE PERPETRATOR PROFILE

slide-92
SLIDE 92

CALIFORNIA INNOCENCE PROJECT

slide-93
SLIDE 93
  • THE HIT
slide-94
SLIDE 94
slide-95
SLIDE 95
slide-96
SLIDE 96
slide-97
SLIDE 97
slide-98
SLIDE 98

16 years later

slide-99
SLIDE 99

Ronald Cotton – Served 10 years

slide-100
SLIDE 100

Richard Jones – Served 17 years

slide-101
SLIDE 101

Michael McAlister – Served 29 years

slide-102
SLIDE 102

How to Get CODIS Upload:

PENAL CODE SECTION 1405.1

slide-103
SLIDE 103

DNA Identification Act (1994)

  • Allowed the FBI to establish NDIS for law

enforcement

  • Allowed disclosure of data to criminal justice

agencies for law enforcement identification purposes

  • Did not authorize defendants to request crime

scene evidence be run through CODIS or allow disclosure of data to them

slide-104
SLIDE 104

NDIS SDIS‐CA SDIS ‐TX SDIS‐FL

*Exchange and control of this system is strictly limited to law enforcement

LDIS –Los Angeles LDIS –Fort Worth LDIS –Orlando

slide-105
SLIDE 105
  • 14,047,860 offender profiles
  • 3,796,117 arrestee profiles
  • 985,797 forensic unknowns
  • CODIS has produced over 491,537 hits

assisting in more than 481,098 investigations

slide-106
SLIDE 106

1405.1 Requirements (1) PUTATIVE PERPETRATOR: DNA profile is attributable to the putative perpetrator of the crime. (2) PROFILE REQUIREMENTS: Profile meets requirements for permanent inclusion. (3) NOTICE: Defense provides written notice to CA CODIS administrator, DOJ, and AG.

slide-107
SLIDE 107

Problems with “TOUCH DNA”

slide-108
SLIDE 108
slide-109
SLIDE 109

Contamination – Lukis Anderson

  • 26 year old homeless man (Anderson) with a long rap sheet
  • 66 year old murder victim
  • DNA under fingernails was Anderson’s
slide-110
SLIDE 110
slide-111
SLIDE 111
slide-112
SLIDE 112

Probabilistic Genotyping

slide-113
SLIDE 113

Number of Assumed Contributors can Greatly Impact Results

Number of Assumed Contributor Statistic 2 contributors Exclusion 3 contributors 16 billion x more likely

NSW Forensic & Analytical Science Service, Sydney (Zane Kerr, ISHI 2015)

slide-114
SLIDE 114

Different Runs of the Same Sample Produce Different Results

Run Statistic 1st run 12 million x more likely 2nd run 17 times more likely

Augenstein, Forensic Magazine, October 2017, Reporting on presentation at ISHI 2017

slide-115
SLIDE 115

Different PG Software Produced Different Results

PG Software Statistic TrueAllele Inconclusive STRMix 10 million x more likely 10k x more likely 100 x more likely

State v. Hillary

slide-116
SLIDE 116

Courts Are Not Requiring Disclosure of Source Code…

The prosecution has no obligation to turn over STRMix’s source code because it is in the possession of a third party and there is no indication the software did not operate appropriately. – People v. Superior Court (Dominguez), 4th Dist., Div. 1 The source code is a protected trade secret of the creator and owner of the software and his company; Chubbs has not demonstrated how TrueAllele’s source code is necessary to his ability to test the reliability of its results. – People v. Superior Court (Chubbs), 2nd District, Div. 4,

  • non. pub.
slide-117
SLIDE 117

…But keeping evidence

  • ut on other grounds

“[B]ecause the sum of the parts simply does not add up to a reliable whole, the DNA analysis/likelihood ratio resulting from the use of the STRMix probabilistic genotyping software must be excluded” ‐ United States v. Gissanter “Because Bullet was only validated to analyze complex mixtures of up to four contributors, and because [the analyst] did not reliably conclude that only four people contributed DNA to this mixture, this evidence is not reliable” ‐ United States v. Williams But See: STRmix is generally accepted by the relevant scientific community and that evidence produced using STRMix is admissible ‐ People v. Juan Manuel Venegas, Superior Court of Shasta County

slide-118
SLIDE 118

Statistics

slide-119
SLIDE 119

Allele Frequency is Determined by Referencing Documented Population Databases

https://strbase.nist.gov//population/PopSurvey.htm#ReferenceListing).

slide-120
SLIDE 120

Statistics are Subject to Kelly analysis

Statistical calculations are subject to a Kelly analysis to determine whether the methodology used was generally accepted in the scientific community, and whether correct scientific procedures were followed in calculating the probability. ‐ People v. Venegas (1998) 18 Cal.4th 47, 84.

slide-121
SLIDE 121

Multiple Ways of Interpreting DNA Mixtures

  • Combined Probability of Inclusion (CPI)
  • Combined Probability of Exclusion (CPE)
  • Random Match Probability (RMP)
  • Random Man Not Excluded (RMNE)
  • Likelihood Ratio (LR)
slide-122
SLIDE 122

John Butler, Introduction to Interpretation: Statistical Approaches and Assumptions (2012)

slide-123
SLIDE 123

Changing Model/ Terminology

  • In 2011, SDPD modified their interpretation guidelines

– More samples will not be interpretable due to complexity/low level

  • In 2015, SDPD changed from CPI to LR
  • In 2018, SDPD started using STRMix
  • In 2019, SDPD adopted different language for conveying

results – “The SDPD will no longer use the term inconclusive to describe a likelihood ratio value between 0.01 and 100. Likelihood ratio values between 0.5 and 2 will now be reported as uninformative.”

slide-124
SLIDE 124
