DECONTAMINATION FIRE GEAR What? Why? How? T. VERMINCK DEFINITION - - PowerPoint PPT Presentation

▶
decontamination fire gear what why how
SMART_READER_LITE
LIVE PREVIEW

DECONTAMINATION FIRE GEAR What? Why? How? T. VERMINCK DEFINITION - - PowerPoint PPT Presentation

Mar 27, 2023 526 likes •939 views

DECONTAMINATION FIRE GEAR What? Why? How? T. VERMINCK DEFINITION FIREFIGHTER RELEVANT CONTAMINATION CHEMICAL CONTAMINATION : VOCs SVOCs PAHs DIOXINS CYANIDES BIOLOGICAL CONTAMINATION BACTERIA

slide-1

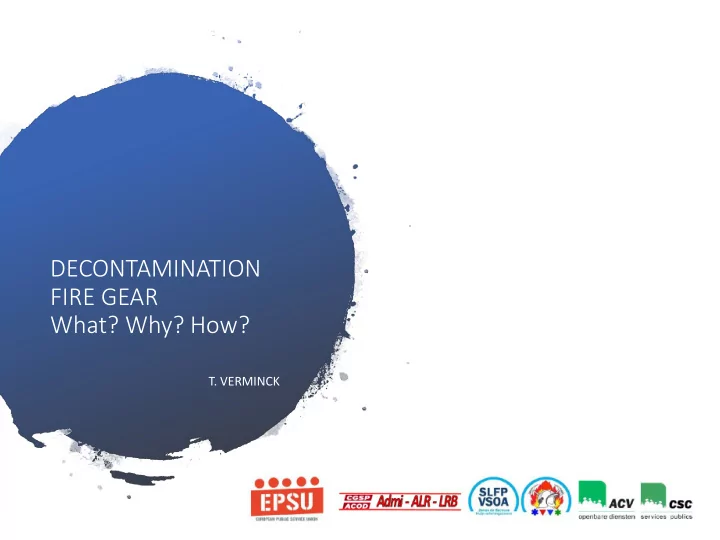

SLIDE 1

DECONTAMINATION FIRE GEAR What? Why? How?

  • T. VERMINCK
slide-2
SLIDE 2

DEFINITION FIREFIGHTER RELEVANT CONTAMINATION

  • CHEMICAL CONTAMINATION :
  • VOC’s – SVOC’s
  • PAH’s
  • DIOXINS
  • CYANIDES
  • …
  • BIOLOGICAL CONTAMINATION
  • BACTERIA
  • VIRUSES
  • FUNGI
  • OTHER SPECIFIC CONTAMINATION
  • ASBESTOS
  • HEAVY METALS
slide-3
SLIDE 3

CHEMICAL CONTAMINATION FIR FIREFIGHTERS

36 RELEVANT SUBSTANCES

slide-4
SLIDE 4

S K I N

slide-5
SLIDE 5

S K I N

slide-6
SLIDE 6

TOXICOLOGICAL SPECTRUM FIRE GEAR AFTER AVERAGE 1 1 IN INDOOR FIR IRE

slide-7
SLIDE 7
  • DIRECTIVE 2004/37/EC
  • CMD carcinogens or

mutagens at work –

  • art. 10
  • REACH REGULATION –

ANNEX VII

  • OEKO-TEX STANDARD
  • EU PPE REGULATION

2016/425

DECONTAMINATION – WHY?

slide-8
SLIDE 8

4 EXPOSURE ROUTES : INTER UNIVERSITY RESEARCH BELGIUM A possible explanation of the results is that a large proportion of the increase in concentration is from percutaneous absorption. Probably the fireman are continuously exposed to PAHs through continuous exhalations of its contaminated clothing (PPE).

  • Prof. dr. J. Weyler - dr. D. Giuliani - dr. K. D’Hamer - dr. R. Verhoogen

GASTRO INTESTINAL INHALLATION PERCU TANUOUS OCULAR

slide-9
SLIDE 9

DECONTAMINATION – HOW?

slide-10
SLIDE 10

CONCLUSIONS

  • Cleaning with water and detergents is only

able to decontaminate:

  • MAX. 40% with 2 garments in the

machine

  • MAX. 15% with 3 garments in the

machine

  • Toxic compounds transfer from more

contaminated garments to the less contaminated garments during standard cleaning : CROSS CONTAMINATION

  • The clothing shows severe degradation

after frequent cleaning with standard processes

  • Environment !

STANDARD CLEANING TECHNOLOGIES BASED ON WATER AND DETERGENTS CAN NOT BE USED FOR THE DECONTAMINATION OF FIRE INTERVENTION GEAR

slide-11
SLIDE 11

DECONTAMINATION – WHAT?

DECONTAMINATION : The reduction of all toxic products present in the clothing up to the legal maximum allowed quantities for this type of clothing. This without degrading the clothing and in an environmentally responsible manner.

slide-12
SLIDE 12

TOXICOLOGICAL SPECTRUM FIRE GEAR

slide-13
SLIDE 13

TOXICOLOGICAL SPECTRUM FIRE GEAR AFTER 80 80min. . STANDARD H2O O CLEANING

slide-14
SLIDE 14

TOXICOLOGICAL SPECTRUM FIRE GEAR AFTER 27 27min LCO2 EXTRACTION

slide-15
SLIDE 15

DECONTEX TECHNOLOGY

slide-16
SLIDE 16

LCO2 TECHNOLOGY

CO2 H2O

DECONTEX SMALL EXTRACTOR

slide-17
SLIDE 17

DECONTEX MEDIUM EXTRACTOR

slide-18
SLIDE 18

DECONTEX LARGE EXTRACTOR

slide-19
SLIDE 19

LCO2 - EXTRACTION TECHNOLOGY

slide-20
SLIDE 20

DECO2FIRE TECHNOLOGY

CO2 H2O

slide-21
SLIDE 21
slide-22
SLIDE 22
slide-23
SLIDE 23
slide-24
SLIDE 24
slide-25
SLIDE 25
slide-26
SLIDE 26

From most resistant to most susceptible :

  • Prions (Creutzfeldt-Jacob)
  • Bacterial spores
  • Mycobacterium tuberculosis
  • Nonlipid viruses (polio, coxsackie)
  • Fungi (aspergillus, candida)
  • Vegetative bacteria (S. aureus, P aeruginosa)
  • Lipid viruses (HIV, herpes, hepatitis B)

BIO IOLOGICAL CONTAMINATION

slide-27
SLIDE 27 1.00E+00 1.00E+01 1.00E+02 1.00E+03 1.00E+04 1.00E+05 1.00E+06 1.00E+07 1.00E+08 1.00E+09 Meenemen PAOI Behandelen PAOI Hier gebleven PAOI Meenemen Mu50 Behandelen Mu50 Hier geblevenMu50

STERICOO/DECONTEX – 18/09/2017 Pseudomonas aeruginosa PAO1 Staphylococus aureus Mu50 Data zijn het aantal overgebleven bacteriën na behandeling (log schaal)

DECONTEX LCO2 technology kills bacteria, viruses and fungi between factor 106 and 107

slide-28
SLIDE 28

SPECIFIC CONTAMINATION

  • Serpentine
  • Chrysotile
  • Amfibole
  • Amosite
  • Crocidolite
  • Tremonite
  • Actinolite
  • Anthofylite

ASBESTOS DERIVATES

  • Lead
  • Cadmium
  • Zinc
  • …

HEAVY METALS (>5,0 g/cm³)

slide-29
SLIDE 29

SPECIFIC DECONTAMINATION

DECONTEX TECHNOLOGY CERTIFICATION 20/12/2017 – KIWA COMPLIANCE

slide-30
SLIDE 30
slide-31
SLIDE 31

PREMIUM CLEANROOM FOR FIREFIGHTER PPE

slide-32
SLIDE 32

QC

  • VISIBILITY
  • MEMBRANE TEST
  • REPELLENCY
slide-33
SLIDE 33

EXAMPLE VISIBILITY REPORT

slide-34
SLIDE 34

CLEANING

slide-35
SLIDE 35

REÏMPREGNATION

slide-36
SLIDE 36

FINAL CONCLUSION DECONTAMINATION

Fire suits that are in regular use must be subjected to maintenance (incl. complete decontamination) at least twice a year, for reasons of :

  • emptying the filter for toxic compounds

and thus avoid breaktrough to the skin

  • the killing of all micro-organisms, both for

hygienic and health reasons

  • applying the water/chemical-repellent

after-treatment as prescribed in European Standard EN 469

  • control of the general functionality

(visibility, protection, rescue system, ...) note: suits that have been exposed to very serious contamination must be decontaminated immediately

slide-37
SLIDE 37

PROJECT : PERSONAL DECON

www.mydeconwipes.com

slide-38
SLIDE 38
slide-39
SLIDE 39

NEXT PROJECT FIREFIGHTER BIOMONITORING

slide-40
SLIDE 40

QUESTIONS ? ? tv tve@decontex.com

THANK YOU!!!!!
