CBRN Decontamination State-of-the-art solutions www.kaercher-futuretech.com Page 1 Agenda Factors affecting the decon efficiency The Family of CBRN Decontamination Agents Specific Technological Solutions for Decontamination of

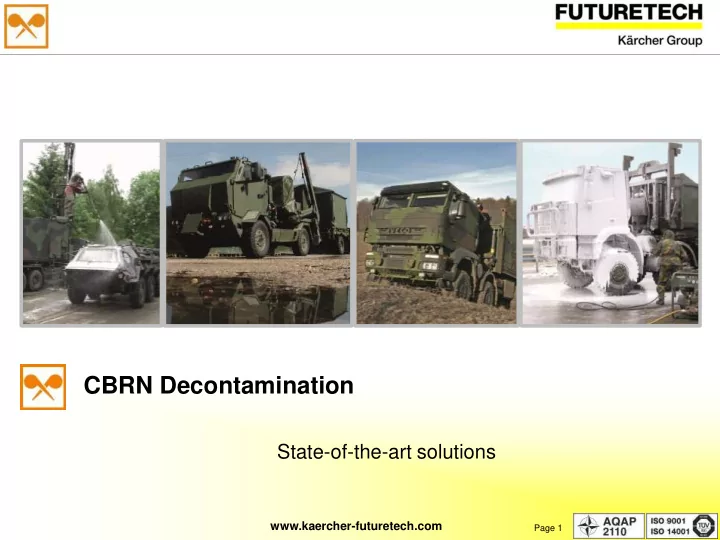

Page 1
www.kaercher-futuretech.com
CBRN Decontamination
State-of-the-art solutions
www.kaercher-futuretech.com
Page 2
Agenda
Equipment
2
Page 3
www.kaercher-futuretech.com
Subject of decon
Factors affecting the decon efficiency
Contamination
Information about the contamination Contamination level (g/m²) Kind of contaminants
Regulations Subjective factors
(human factor)
Physiological Psychological Training level Personal (quantity) Rain Time Character of the subject to be decontaminated Humidity
Decon conditions
Wind Temperature Sunlight
Decontamination technology
Decon procedure Decon hardware
Decontaminants
Specific properties Limitations Decon chemicals
Page 4
www.kaercher-futuretech.com
The Family of CBRN Decontamination Agents by Kärcher Futuretech
Page 5
www.kaercher-futuretech.com
Development of new CBRN decontaminants (1) One universal chemical agent for C, B and RN decon (2) Or a complete family of highly effective rapid- action agents for the
warfare agents
Page 6
www.kaercher-futuretech.com
RDS 2000 BDS 2000 GDS 2000 RM 21
CBRN decon agent
The family of CBRN decontaminants
CBRN Decon Agents B decon agent C decon agent RN decon agent
Page 7
www.kaercher-futuretech.com
GDS 2000 BDS 2000
with antifreeze
Temperature range for the application
RDS 2000
with antifreeze
CBRN Decon chemicals
°C °F
0 32 10 50 20 68 30 86 40 104 50 122
NATO requirement:
Page 8
www.kaercher-futuretech.com
C decontaminant
Page 9
www.kaercher-futuretech.com
GDS 2000
Page 10
www.kaercher-futuretech.com
Amount of decontaminants needed for decon of one tank:
GDS 2000
Page 11
www.kaercher-futuretech.com
DECONTAMINATION
Page 12
www.kaercher-futuretech.com
100 [%]
Test Results - Decon efficiency against CWA (in %) THD TGD VX
99,1 99,1 >99,9 99,95 99,9 >99,97 Kind of coating PUR (CARC) Alkyd (NCARC)
Test Conditions: CWA challenge: 10 g /m² Exposure time: 180 minutes Amount of GDS 2000: 0.1 - 0.2 ltr /m² Reaction time: 10 minutes
GDS 2000
Page 13
www.kaercher-futuretech.com
B decon agent system
Page 14
www.kaercher-futuretech.com
Page 15
www.kaercher-futuretech.com
Examples for Hazardous Concentrations
may be about 10.000 spores = decontamination to 100 spores/m2 is said to be a safe level
induce disease = decontamination to 100 virons/m2 not acceptable
level
Page 16
www.kaercher-futuretech.com
Which is the most effective Agent?
which does not show any gap against any kind
Introduction
aldehydes, organic acids and chlorine separators
Page 17
www.kaercher-futuretech.com
Page 18
www.kaercher-futuretech.com
BDS 2000
thermally stable peracetic acid (SC 250) and a buffer system (Alcapur)
in two different ways: foam fog
BDS 2000 Thermal Aerosol Generator DS 10 foam fog
Page 19
www.kaercher-futuretech.com
Peracetic acid (PAA) Highly effective microbiocide, kills viruses (enveloped and non-enveloped), bacteria, spores (incl. anthrax) and fungi Rapid effect at low concentration Highly effective at low temperature Harmless residue and environmentally safe (Residuals are acetic acid, water and oxygen) By adding a liquid buffer additive the corrosion is inhibited and the odour is minimised
Solvent-Cage-Peracetic acid
Cage CH3COO-
BDS 2000
PAA
Page 20
www.kaercher-futuretech.com
After Usage of BDS 2000
Page 21
www.kaercher-futuretech.com
RN decontaminant
Page 22
www.kaercher-futuretech.com
new highly effective RN decon agent common development of WISABC-SchutzBw and Kärcher specific combination of an aqueous surfactant solution system with appropriate complexing agents, oxidants or
two-component concentrate with
application as decon foam with HP decon modules water pollution class 1 (low hazard for water) biodegradable compared with other RN decontaminants RDS 2000 shows a considerably higher level of efficiency
RDS 2000
Page 23
www.kaercher-futuretech.com
Contamination: Residual contamination after decon:
100 % < 1 %
Decon tests with La-140
RDS 2000
Page 24
www.kaercher-futuretech.com
RDS 2000
www.kaercher-futuretech.com
Page 25
RM 21 – Cleaning Agent for persons
25
RM 21
www.kaercher-futuretech.com
Page 26
RM 21 - Cleaning Agent for persons
hardening salts of water as well as against alkalis, acids and oxidizing agents
accordance to the cosmetic guidelines of the European Union
26
Page 27
www.kaercher-futuretech.com
Sp Spec ecif ific ic Tec echn hnolog
ical So Soluti lution
s for
Page 28
www.kaercher-futuretech.com
CBRN System survivability
Hardness Decontaminability Compatibility
Page 29
www.kaercher-futuretech.com
Vacuum decon technology
Vacuum process for decon of sensitive personal equipment
C decontamination
desorption from the surface of the equipment
equipment
B decontamination
by pressure induced impact of gaseous PAA based decontaminant BDS 2000
equipment
Page 30
www.kaercher-futuretech.com
Decon mechanism C decon process
cut view of housing at a sealing edge contamination absorption (semi-) dry decontamination vacuum process
Page 31
www.kaercher-futuretech.com
Tests carried out show for C contaminated subjects (CWA challenge: 10 g/m²) after the vacuum decon procedure a residual content and a desorption rate of CWA that can be below the relevant NATO test criteria (acc. STANAG 4360) depending on the equipment properties, kind of warfare agent to be decontaminated and decontamination conditions (vacuum, temperature). The vacuum decontamination technology represents practically a chemical-free “dry” decontamination of CWA. After the vacuum chamber is being loaded with the relevant sensitive equipment the decontamination procedure runs practically automatically so that the personnel requirement is low in comparison. The C decontamination is based on removing chemical warfare agents by evaporating and desorption from the surface of the equipment by ► temperatures up to 70 °C (limited by the thermal resistance
► vacuum down to 1 Pa (0.01 mbar). For security reasons the removed gaseous products are immobilized in a special CBRN filter unit.
Vacuum based C decon technology
Page 32
www.kaercher-futuretech.com
1 the core with cytoplasma 2 cytoplasmic membrane 3 cell wall 4 cortex 5 inner spore coat 6
7 exosporium 8 DNA
Source: Structure of a gram positive ripe spore according Schlegel [4], p.80f.
thermically resistant barriers need to be penetrated before reaching DNA
inactivate the spores by affecting the DNA are needed
The Spore - the microbiological fortress
1 2 3 4 5 7 6 8
Vacuum based B decon technology
Page 33
www.kaercher-futuretech.com
Mechanism of the B decon process Vacuum based B decon technology
Page 34
www.kaercher-futuretech.com
B decontamination tests
Test microorganism: Bacillus subtilis (ATCC 6633) , produced in acc. DIN EN 14347 BWA challenge: 1x107 CFU/m² (AEP-7, Ed. 5, 6-10, 4.) Equipment: Vacuum decontamination module VDM 135 with integrated low temperature vaporizer module for selective evaporation of the B decontaminant B decontaminant: BDS 2000 component 1 NSN 6850-12-373-5844 (thermally stabilized PAA formulation) Temperature: 70 °C Process time: 28 min Sporocidal effect: Kill rate > 1x107 CFU/m² determined on the basis of DIN 58933-3
Vacuum based B decon technology
Page 35
www.kaercher-futuretech.com
Free programmable process parameters
with associated evacuation levels
VDM 135
L x W x H: 900 x 800 x 900 mm P: 7 kW M: 400 kg
VDM 265
L x W x H: 1,200 x 800 x 1,650 mm P: 11 kW M: 650 kg
Product Family
1 main switch/ emergency off 2 process start button 3 signal lamps filling nozzle for B decon agent 4 display for chosen program, remaining time current pressure etc. 5 manometer 6 filling nozzle for B decon agent 7 infrared emitters 8 vacuum chamber, capacity 135 litres 9 guidings for basket for sensitive equipment 10 front door with handle for white and black side
Vacuum Decontamination Modules
4 5 6 9 7 8 1 2 3 10
VDM 135
Page 36
www.kaercher-futuretech.com
Implementation in delivered decon systems
Kärcher Futuretech GmbH - GIAT-Industries NBC-Sys
view: “dirty side” view: “clean side”
DSSM
Charging with contaminated sensitive equipment
TEP 90
Vacuum Decontamination Modules
LDS lightweight Systems for DSO
Module for sensitive equipment
in working position”
VDM 135 VDM 265 VDM 135
www.kaercher-futuretech.com
Page 37
automated cubical form small loading basket Not for large scale decontamination
secure procedure Optimization of the procedure based on recent research and experience
since 2005
since 2009
Development Vacuum-Decontamination
Treatment phase Transport position
Page 38
www.kaercher-futuretech.com
Decontamination Systems by Kärcher Futuretech
Page 39
www.kaercher-futuretech.com Swingfog SN 50 Turbo Sprayer
Spraying Devices Fogging Devices
DS 10 DS 10 S AMGDS Mini DS 5
CBRN Protection Systems Decon Devices
Page 40
www.kaercher-futuretech.com
CBRN Protection Systems Dekontamination Modules
MPDS
HP- Modules
JSTDS-SS SCS 1801 DE
Application
AMGDS 1000 AMGDS 2000
Water Heating
HWM 3000 HWM 35C
Decon Shuttle Mediclean 2000 se
Page 41
www.kaercher-futuretech.com
Rack
DJT 2000
Trailer
RIDS 1400 G/GT
Trailer- oder Rackbased CBRN Protection Systems
RILDS CDS 1000 GDS
Page 42
www.kaercher-futuretech.com
Container Based CBRN Protection Systems
HEP 90 DSSM Decon Pers Decocontain 3000 Decocontain 3000 GDS Decocontain 3000 ELS MOSDM TEP 90
Page 43
www.kaercher-futuretech.com
Special Projects CBRN Protection Systems
HMDV 3000 RIV 1500 USC AB-DEKO
www.kaercher-futuretech.com
Page 44
Container – based Systems
4
TEP 90
20 – 40 / h 20 / h 20 / h 4 – 8 / h 1.500 m² / h 3 / h
www.kaercher-futuretech.com
Page 45
Container – based Systems
FTS-mn / 17.06.2013 / 2013-06- 4
decontamination system
CBRN defence within the NATO
for persons
TEP 90
www.kaercher-futuretech.com
Page 46
Container – based Systems
TEP 90
Vehicle and Road Decon Modul Equipment Decon Modul Personal Decon Modul Interior Decon Modul (Decon Shuttle)
www.kaercher-futuretech.com
Page 47
Container – based Systems
TEP 90 Module 1
4 Decontamination of vehicles
www.kaercher-futuretech.com
Page 48
Container – based Systems
TEP 90 Module 1
4 Decontamination of road sections
www.kaercher-futuretech.com
Page 49
Container – based Systems
TEP 90 Module 2
4 Decontamination of Equipment
www.kaercher-futuretech.com
Page 50
Container – based Systems
TEP 90 Module 3
5 Decontamination of Persons
www.kaercher-futuretech.com
Page 51
TEP 90 Module 4
Container – based Systems
5 Interior decontamination
www.kaercher-futuretech.com
Page 52
Container – based Systems
TEP 90
5
According to NATO requirements:
www.kaercher-futuretech.com
Page 53
Decontamination System TEP 90 civil version
www.kaercher-futuretech.com
Page 54
hot gas / hot steam chamber (up to 170°) vacuum chamber environmentally safe and biodegradable decontaminants (RDS 2000, BDS 2000, GDS 2000) spray / extraction method
New Decontamination Capabilities
Conclusion
Page 55
www.kaercher-futuretech.com DS 10 MPDS JSTDS AMGDS 2000 1000 mini Decon Shuttle CDS 1000 GDS DJT 2000 DECOCONTAIN 3000 GDS HEP 90 DSSM Decon Pers
Decontamination Systems
Decon devices Decon systems Decon modules
MOSDM DSO TEP 90 Mediclean 2000 SE Casualty Decontaminaton RIDS 1400 G/GT
Conclusion
www.kaercher-futuretech.com
Page 56
Worldwide employability High performance capability whether employed individually
Reduced timelines for preparation, decontamination and after-action activities Self-sufficiency , flexibility, modularity and mobility Effective use of water resources thanks to low consumption No more ecologically harmful and aggressive decontaminants Reduced number of operating personnel and reduced workload
Conclusion
www.kaercher-futuretech.com
Page 57
Kärcher Futuretech - Reliable Partner for CBRN System Solutions
5
Naktel Ben Fraj Regional Sales Manager
KÄRCHER Futuretech GmbH
Phone: +49 7195 14-3248 Fax: +49 7195 14-2423 e-mail: naktel.benfraj@de.kaercher.com Internet: www.kaercher-futuretech.com
