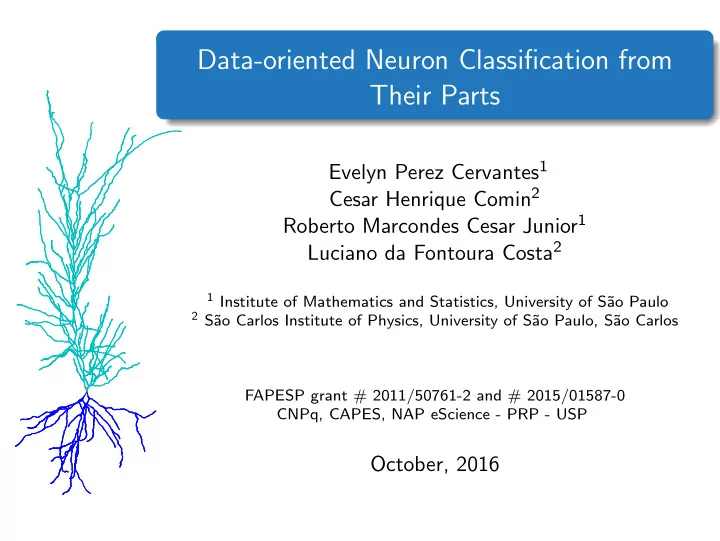

Data-oriented Neuron Classification from Their Parts

Evelyn Perez Cervantes1 Cesar Henrique Comin2 Roberto Marcondes Cesar Junior1 Luciano da Fontoura Costa2

1 Institute of Mathematics and Statistics, University of S˜

ao Paulo

2 S˜

ao Carlos Institute of Physics, University of S˜ ao Paulo, S˜ ao Carlos FAPESP grant # 2011/50761-2 and # 2015/01587-0 CNPq, CAPES, NAP eScience - PRP - USP

October, 2016

slide-2
SLIDE 2

Outline

1

Introduction

2

Dataset

3

Concepts and methods

4

Results and discussion

5

Conclusions

Evelyn P. Cervantes Neuron Classification from Their Parts 1/21
