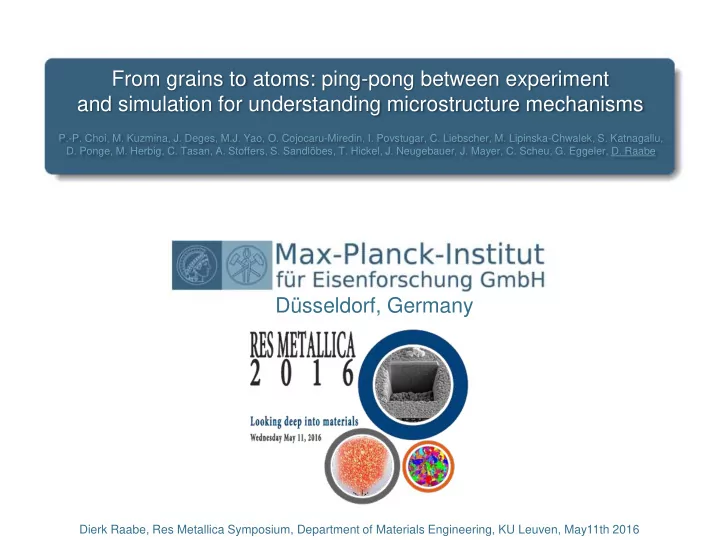

SLIDE 1

From grains to atoms: ping-pong between experiment and simulation for understanding microstructure mechanisms Düsseldorf, Germany

P.-P. Choi, M. Kuzmina, J. Deges, M.J. Yao, O. Cojocaru-Miredin, I. Povstugar, C. Liebscher, M. Lipinska-Chwalek, S. Katnagallu,

D. Ponge, M. Herbig, C. Tasan, A. Stoffers, S. Sandlöbes, T. Hickel, J. Neugebauer, J. Mayer, C. Scheu, G. Eggeler, D. Raabe

Dierk Raabe, Res Metallica Symposium, Department of Materials Engineering, KU Leuven, May11th 2016

SLIDE 2

1

Zeitalter tragen die Namen von Materialien

Experiment Models

SLIDE 3

2

Complex materials: atomic scale view

Atom Probe: Imaging atoms Solar Cells High temperature materials Strong light- weight steels

SLIDE 4

3

Complex materials: atomic scale view

Atom Probe: Imaging atoms Solar Cells High temperature materials Strong light- weight steels

SLIDE 5

Atom Probe Tomography (APT)

4

Ion sequence Position sensitive detector X1, Y1, ToF1 VDC Vp +



Time of flight

X2, Y2, ToF2 X3, Y3, ToF3 X4, Y4, ToF4 R  50 nm T 20–100 K X5, Y5, ToF5 …….. Time of flight  chemical identity Position of hit  X-Y coordinates Evaporation sequence  Z coordinate

r

The specimen is the lens 3D point cloud data

SLIDE 6

Atom Probe Tomography (APT): directions for structure resolution

5

can you get structure? It‘s a point cloud

approach 1: use evaporation anisotropy approach 2: combine APT withTEM / SEM / STEM

Guo et al phys rev let. 2014, Duarte et al. Science 341, 372 (2013)

SLIDE 7

6

Atom Probe Tomography (APT): evaporation anisotropy

SLIDE 8

7

Atom Probe Tomography (APT): evaporation anisotropy

SLIDE 9

8

Atom Probe Tomography (APT): evaporation anisotropy

SLIDE 10

9

Atom Probe Tomography (APT): evaporation anisotropy

SLIDE 11

10

(002) planes

Atom Probe Tomography (APT): evaporation anisotropy

SLIDE 12

11

(111) planes

Atom Probe Tomography (APT): evaporation anisotropy

SLIDE 13

12

(001) (012) (113) (112) (111) (011)

Field desorption image; example Fe3Al

12

Herbig et al., phys rev let. 2014, Guo et al phys rev let. 2014

SLIDE 14

[111] [-1-12] 0.33 nm 0.25 nm

Lattice plane reconstruction: APT crystallography

Fe3Al (only Al displayed)

13

Atom probe crystallography: Chemistry and structure in 3D

Kuzmina et al. Science 349 (2015)

SLIDE 15

2 nm

[111] [-1-12] 0.33 nm 0.25 nm

Lattice plane reconstruction: APT crystallography

Fe3Al (only Al displayed)

14

Atom probe crystallography: Chemistry and structure in 3D

Kuzmina et al. Science 349 (2015)

SLIDE 16

Experimental setup for correlative TEM–APT probing

Ga3+ 52° modified single- tilt TEM retainer sample

FIB: Tip is cut parallel to holder axis.

e-

TEM: During tilt around holder axis tip always stays in focus range, whole sample in focus (!).

Ions

APT: Defined sample orientation in all instruments makes it possible to merge information.

Principle

Guo et al phys rev let. 2014, Duarte et al. Science 341, 372 (2013)

15

Li et al. phys rev let. 2014 Herbig et al., phys rev let. 2014

SLIDE 17

Experimental setup for correlative TEM–APT probing

Ga3+ 52° modified single- tilt TEM retainer sample

FIB: Tip is cut parallel to holder axis.

e-

TEM: During tilt around holder axis tip always stays in focus range, whole sample in focus (!).

Ions

APT: Defined sample orientation in all instruments makes it possible to merge information.

Principle

Guo et al phys rev let. 2014, Duarte et al. Science 341, 372 (2013)

16

Li et al. phys rev let. 2014 Herbig et al., phys rev let. 2014

SLIDE 18

Correlative TEM-APT probe for 5D GB segregation analysis

BF-STEM micrograph of cold-drawn Fe-C (010) (00-1) (-100) e- beam Nano beam diffraction Scanning nano beam diffraction

100 nm

(ASTAR) Acta Mat 61 (2013) 3172, Herbig et al. phys rev let. 2014

17

SLIDE 19

Carbon atoms

50 nm

18

Correlative TEM-APT probe for 5D GB segregation analysis

5 crystal. parameters N chemical species

Herbig phys rev let., (2014); Kuzmina et al. Science 349 (2015) Li. phys rev. let (2014)

SLIDE 20

Mn
Fe

Mn 11 at% isosurface Segregation at dislocation lines (ε=50% & 450°C/6h): Fe-9wt% Mn

19

Kuzmina et al. Science 349 (2015) Li. phys rev. let (2014)

SLIDE 21

Correlated microscopy LAGB (50%CR+450°C/6h) Fe-9%Mn

20

Mn
Fe

Mn 11 at% isosurface

Kuzmina et al. Science 349 (2015) Li. phys rev. let (2014)

SLIDE 22

Mn
Fe

Mn 11 at% isosurface Segregation at dislocation lines (ε=50% & 450°C/6h): Fe-9wt% Mn

21 Fe-Mn: segregation & reversion: trends for middle Mn steels

SLIDE 23

22

Complex materials: atomic scale view

Atom Probe: Imaging atoms Solar Cells High temperature materials Strong light- weight steels

SLIDE 24

23

Courtesy: Siemens

New materials for key energy technologies: Turbine materials

s

Source: Siemens

75% energy conversion via turbines <44% efficiency

SLIDE 25

24

Courtesy: Siemens

New materials for key energy technologies: Turbine materials

Source: Siemens

SLIDE 26

25

Example: 4th generation superalloys for turbine blades (SFB / TR 103)

20 nm

Al Co Re

iso. 56 at.% Ni

source GE

SLIDE 27

26

Complex materials: atomic scale view

Atom Probe: Imaging atoms Solar Cells High temperature materials Strong light- weight steels

SLIDE 28

27

Courtesy: Maybach, Siemens, ThyssenKrupp, VW, IG Metall Eng.

New materials for key energy technologies: Mobility

courtesy: R. Boesenkool, SMEA conference, Sheffield SUV sales, Germany

SLIDE 29

28

Nanostructured Fe-based superalloy

Fe-30%Mn-8%Al-1.2%C – 10-18% Weight reduction

SLIDE 30

[100]/κ [010]/κ [001]/κ

HAADF-STEM

20nm

Characterizing Fe-Mn-Al-C /κ steel by correlative HRSTEM / APT

Al Mn/Fe C

DFT supercell of κ-carbide courtesy: P. Dey, T. Hickel

APT C  9.0 at.%

HRSTEM 2D structural analysis with atomic resolution

Coherency
Lattice parameter

gradient

Site occupancy
Interface structure

APT 3D chemical analysis with near atomic resolution

3D morphology
Elemental partitioning
Chemical gradients

29

Nanostructured Fe-based superalloy

SLIDE 31

30

Fe-30%Mn-8%Al-1.2%C – 10-18% Weight reduction

SLIDE 32

SiO2 pattern

1µm

Strain map Experiments Spectral solver Digital model Strain map & stress map Simulations

31

ICME applied to dual phase steel

Integrated Computational Materials Engineering: DP steel

Deformation Imaging & DIC Sectioning Indents

SLIDE 33

Martensite: Hierarchical microstructure analysis

Integrated Computational Materials Engineering: DP steel

Morsdorf et al. Acta Mater 95 (2015) 366

32

C

SLIDE 34

33 Integrated Computational Materials Engineering: DP steel

In-situ tensile testing: role of coarse lath in martensite fracture

SEM – in-situ tensile

SLIDE 35

Damage statistics in dual phase steels

34 Integrated Computational Materials Engineering: DP steel

DM: martensite damage; DM-F: martensite-ferrite decohesion

Tasan et al. Annu. Rev. Mater. Res.45 (2015) 391

SLIDE 36

35 DAMASK.mpie.de

Düsseldorf Advanced MAterial Simulation Kit, DAMASK

> 15 years of development > 50 man years of expertise > 50.000 lines of code Pre- and post-processing Blends with MSC.Marc and Abaqus Standalone (FFT) spectral solver

Freeware, GPL 3

Crystal plasticity & phase field: Mechanics, damage, phase transformation, diffusion http://DAMASK.mpie.de

Many user groups

SLIDE 37

36

Atom Probe: Imaging atoms Solar Cells High temperature materials Strong light- weight steels

Complex materials: atomic scale view

SLIDE 38

Σ3 with steps and high EBIC contrast

37

A. Stoffers, PRL, in press

Si C O 20 nm

SLIDE 39

Σ3 facets in HR-STEM

38

5 nm 2 nm

SLIDE 40

APT reconstruction LEAP 5000

39

Stoffers et al, 2015 PRL

Si C

nm

SLIDE 41

Example Turbines Example LED Example Soft magnetic materials Example Thin film solar cells Example Hydrogen based energy Example Catalysis

40

Message & Conclusions

SLIDE 42

41

The Düsseldorf Max-Planck Team

www.mpie.de
