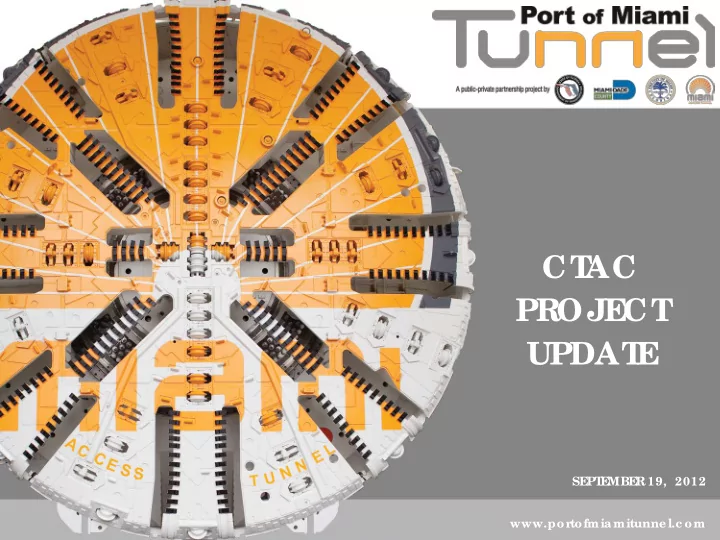

CT AC PROJE CT UPDAT E SE PT E MBE R 19, 2012 www.por - - PowerPoint PPT Presentation

www.por tofmiamitunne l.c om

CT AC PROJE CT UPDAT E

www.por tofmiamitunne l.c om SE PT E MBE R 19, 2012

www.por tofmiamitunne l.c om www.por tofmiamitunne l.c om 90% Equity Partner 10% Equity Partner Contractor VMS Operator Public Sponsors Federal Support

Project Partners

www.por tofmiamitunne l.c om

Scope of Work

Shifting of EB MacArthur Cswy MacArthur Cswy Bridge Widening Twin tunnels under Government Cut Modification of Dodge Island Roadway System

www.por tofmiamitunne l.c om

• Pier construction for

bridge widening

• Inside widening of

both bridges to create additional capacity for tunnel traffic

• 18 Piers and 28 beams
• To date:15 of 19 spans

have been set

MacArthur Causeway Bridge Widening

www.por tofmiamitunne l.c om

Dodge Island – Roadway Improvements

• Construction of Eastbound & Westbound Port Blvd.
• South Cruise Boulevard
• Internal Roadways

www.por tofmiamitunne l.c om

TBM in Launching Pit in median of MacArthur Causeway showing conveyor system that carries excavated material running

• ut of the eastbound tube

and across MacArthur Causeway and dropping into Spoils Management area.

Watson Island – Tunnel Boring Machine (TBM)

www.por tofmiamitunne l.c om

• TBM cutter head with

an outside diameter

• f 42.3 feet (as high

as a 4 story building)

• 361 foot long trailing

support gear made up of 6 gantries

• Total length of the

TBM is 428.5 feet long (more than a football field).

Tunnel Boring Machine (TBM)

www.por tofmiamitunne l.c om

Tunneling Profile Section & Cross Passages

• Tunnels are approximately 4200 ft. long
• +40 ft. under the bottom of Government Cut & approximately

120 ft. below the surface at deepest point

• 5% Grade
• 5 cross passages

www.por tofmiamitunne l.c om

Eastbound Tunnel Interior

Boring Started: November 11, 2011 Breakout on Dodge: July 31, 2012 Rings Installed: 745 Rings Length of Bored Tunnel: 4,186 LF

www.por tofmiamitunne l.c om

• Original plan was to disassemble

TBM and move it back to Watson Island to be reassembled and begin boring the second tunnel.

• Design-Build Team modified the
• riginal concept on Dodge Island

from two portals to a single split

• portal. They also revised the
• perations to mine the second

tunnel from Dodge Island to Watson Island by use of a turntable in the receiving pit on Dodge Island.

TBM inside Dodge Island Receiving Pit

www.por tofmiamitunne l.c om

TBM Turnaround Table

TBM is in the process of being disassembled, turned and reassembled to begin the Westbound Tunnel Mining in October. A Custom Teflon turn table was used to turn the TBM. This method minimizes logistical risks and preserves project schedule.

www.por tofmiamitunne l.c om

TBM Turnaround - Translation

www.por tofmiamitunne l.c om

TBM Turnaround - Rotation

www.por tofmiamitunne l.c om

TBM Turnaround Placement for WB Boring

www.por tofmiamitunne l.c om

Watson Island Tunnel Portal & Conceptual Interior View of Tunnel

• Eastbound MacArthur

Causeway view

• Tunnel Portal Structure

houses the Flood Gates which come down in the event of a storm to prevent flooding of tunnels

• Aesthetic challenge

was the massive size and boxy shape of the structure

www.por tofmiamitunne l.c om

July 31, 2012 – Completion of eastbound tunnel Spring 2013 – Completion of westbound tunnel Spring 2014 – Completion of Dodge Island roadway improvements May 15, 2014 – Substantial Completion - Port of Miami Tunnel opens to traffic, O&M Period begins August 13, 2014 – Final Completion As of 9/13/12 - Construction Days to Date: 1065 of 1765 (55 months) = 60.3% of Design-Build

Project Schedule

www.por tofmiamitunne l.c om

Questions?

For additional project information, please visit our website at: www.portofmiamitunnel.com Project Videos & Gallery
